Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

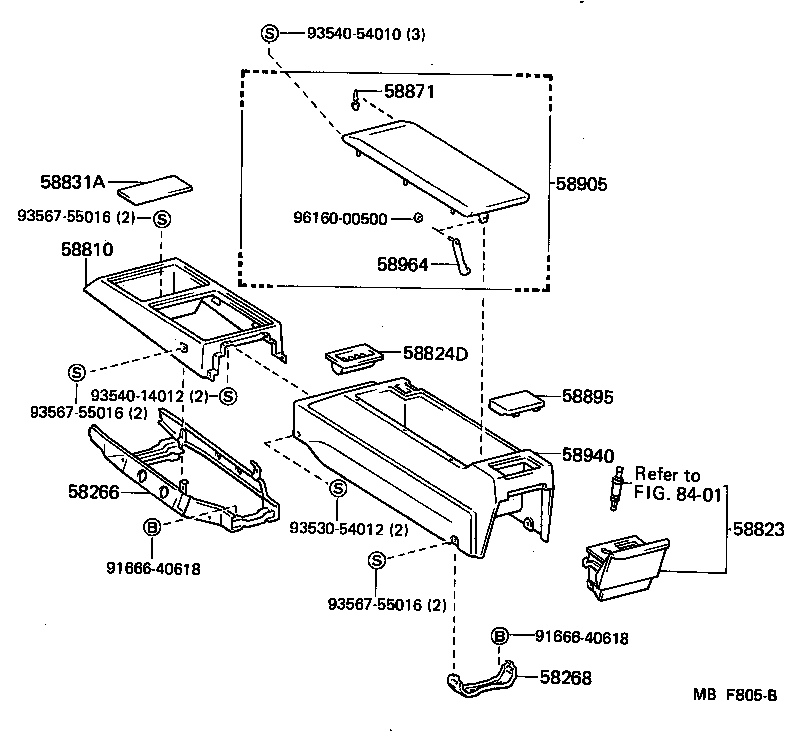

Figure MBF673B MBF673B 1983-08 → — Figure MBF805B MBF805B 1983-08 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58823 Panel, Console, Rear
58824D Box, Console Coin
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58837 Panel, Console, Upper Rear
58839A Cover, Console Box Hole
58871 Cushion, Console Box
58895 Cover, Switch Hole, NO.1
58905 Door Sub-assy, Console Compartment
58940 Console Assy, Rear
58964 Stopper, Console Compartment Door, NO.1
58976 Striker, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
