Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01

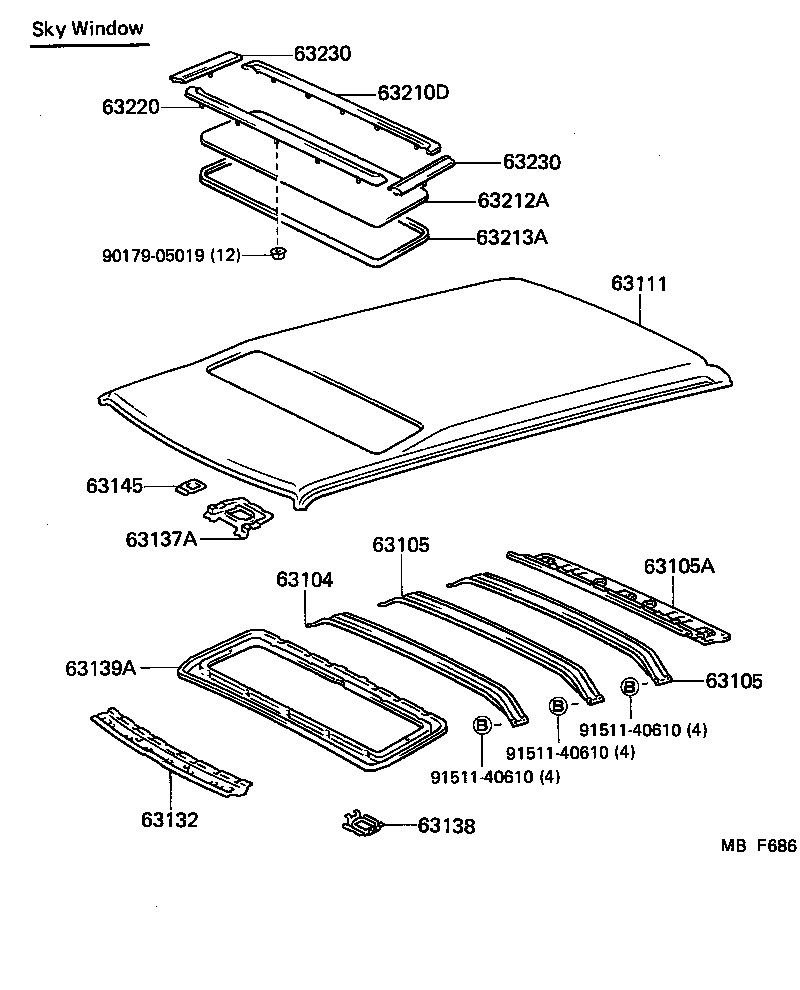

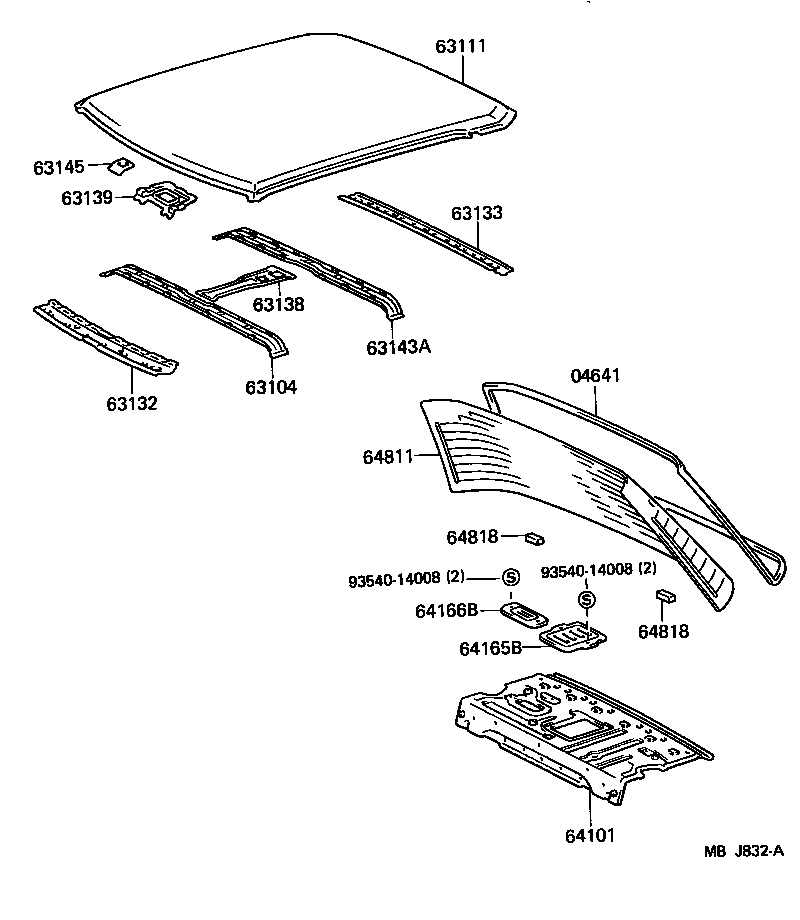

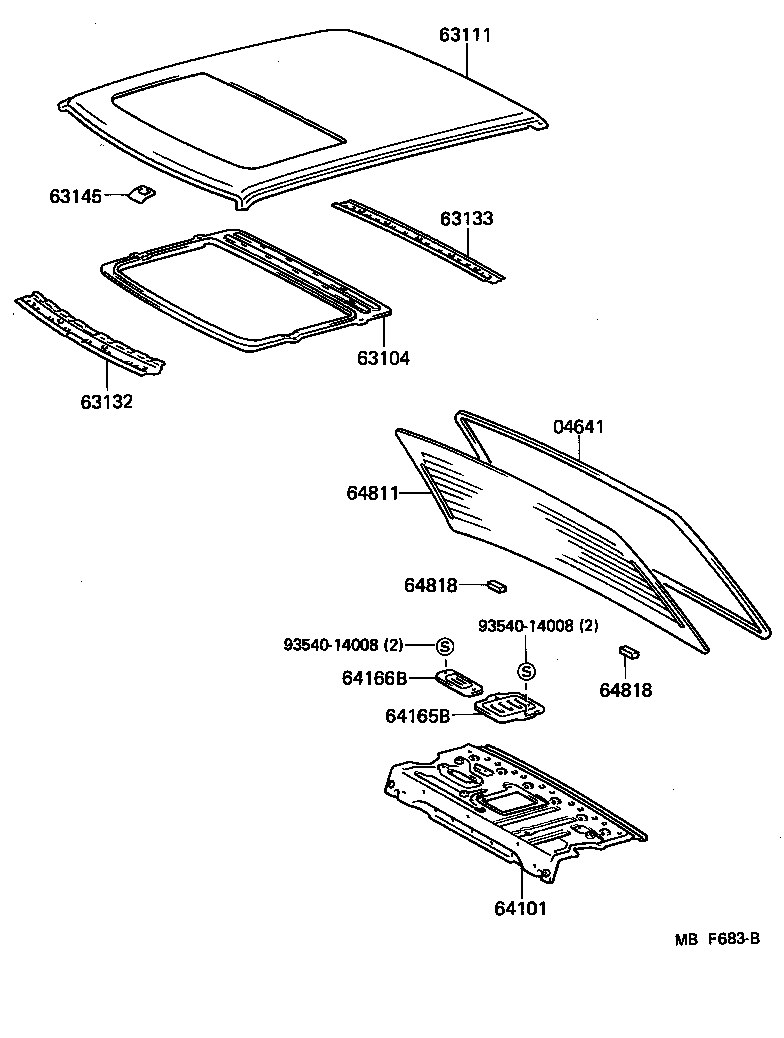

Roof Panel & Back Window Glass

39 part groups · 5 illustrations

PNC	Description
04641	Dam Kit, Back Window Glass
63104	Reinforcement Sub-assy, Roof Panel, Center
63105	Reinforcement Sub-assy, Roof Panel, Rear
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63132	Panel, Windshield Header, Inner
63133	Frame, Back Window Opening, Upper
63137A	Bracket, Dome Lamp, NO.1
63138	Bracket, Dome Lamp, NO.2
63139	Bracket, Dome Lamp, NO.3
63139A	Frame, Roof Window
63143A	Reinforcement, Roof Panel
63145	Reinforcement, Windshield Header Inner Panel

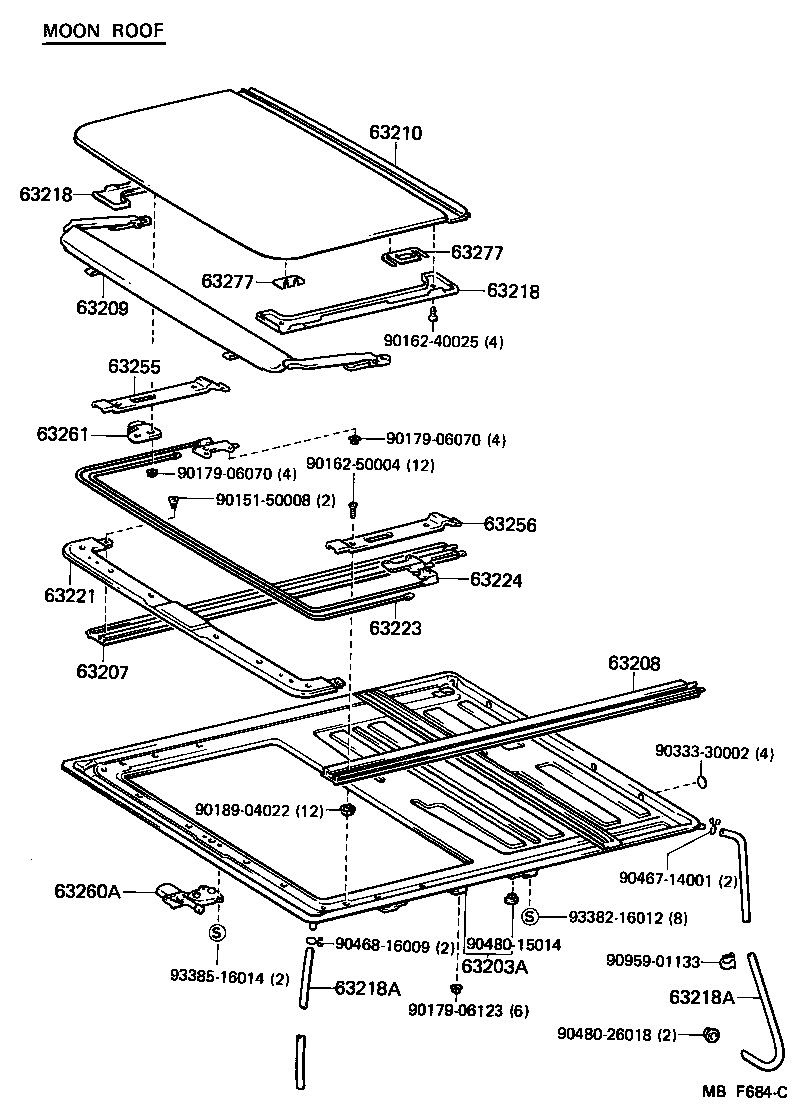

63203A	Housing Sub-assy, Sliding Roof OR Removable Roof
63207	Rail Sub-assy, Sliding Roof Guide, RH
63208	Rail Sub-assy, Sliding Roof Guide, LH
63209	Panel Sub-assy, Roof Wind Deflector
63210	Glass Sub-assy, Sliding Roof OR Removable Roof
63210D	Moulding Assy, Roof Window, Upper
63212A	Glass, Roof Window
63213A	Seal, Roof Window Glass
63218	Garnish, Sliding Roof, Side
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63220	Moulding Assy, Roof Window, Lower
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63230	Moulding Assy, Roof Window, Side
63255	Cover, Sliding Roof Guide Rail, RH
63256	Cover, Sliding Roof Guide Rail, LH
63260A	Gear Sub-assy, Sliding Roof Drive
63261	Shoe, Sliding Roof, Front
63277	Shim, Sliding Roof Rail
64101	Panel Sub-assy, Upper Back
64165B	Cover, Upper Back Panel Hole, NO.1
64166B	Cover, Upper Back Panel Hole, NO.2
64167B	Cover, Upper Back Panel Hole, NO.3
64811	Glass, Back Window
64818	Spacer, Back Window Glass

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
