Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01

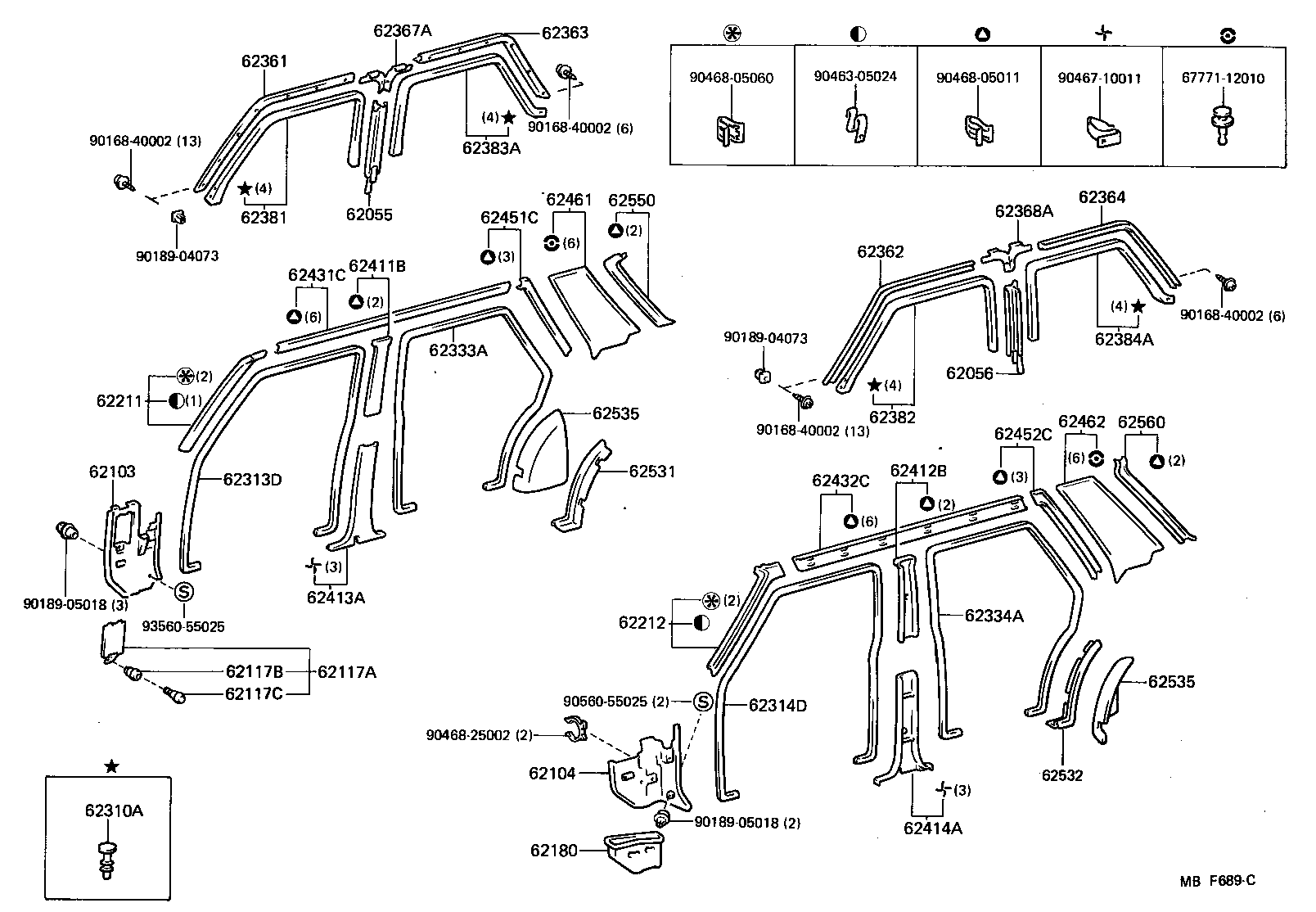

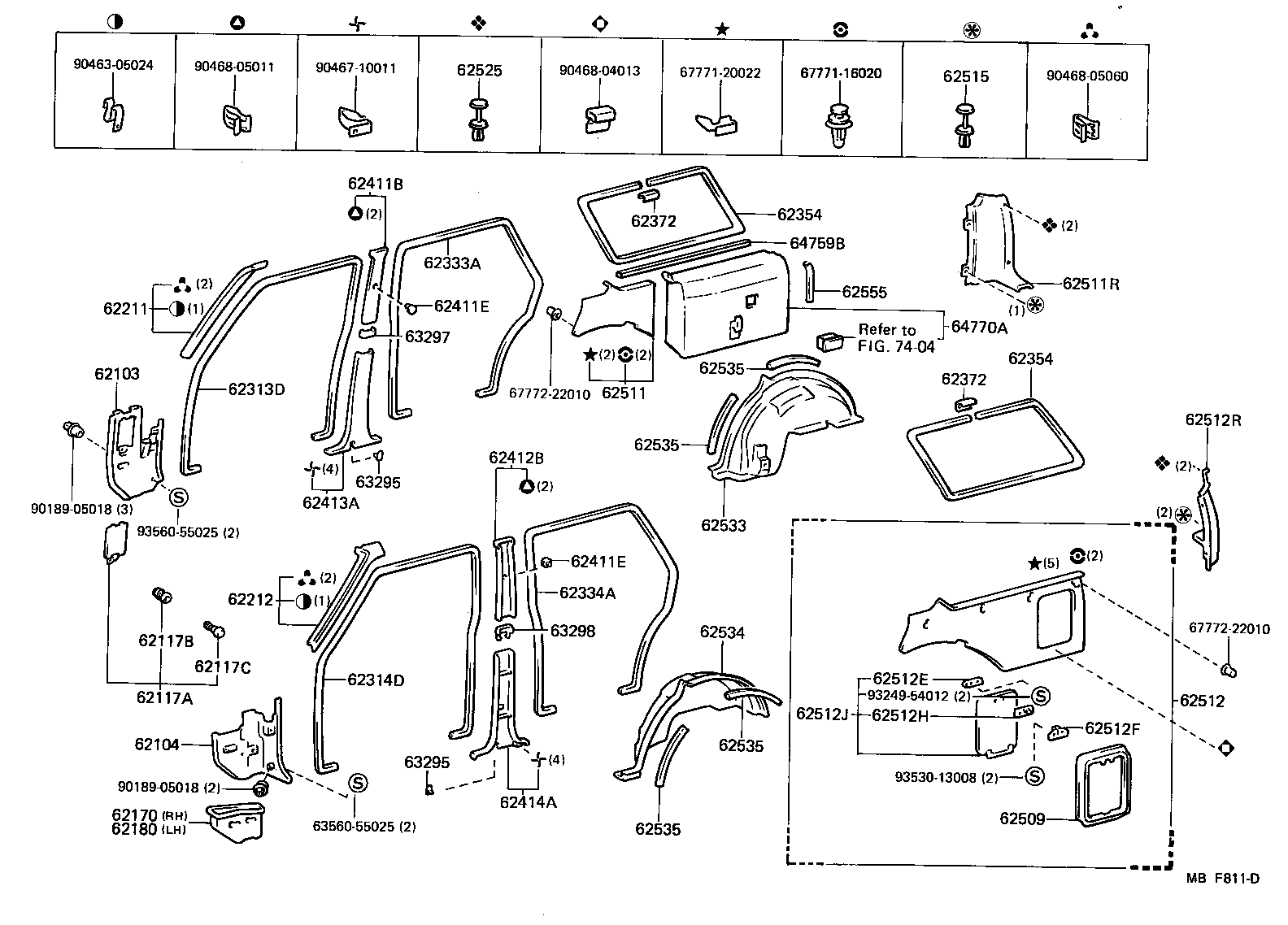

Inside Trim Board & Door Opening Trim Moulding
64 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62055 | Retainer Sub-assy, Center Pillar Weatherstrip, RH |
| 62056 | Retainer Sub-assy, Center Pillar Weatherstrip, LH |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62115 | Plug, Cowl Side Trim |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170 | Box Assy, Cowl Side Trash, RH |
| 62180 | Box Assy, Cowl Side Trash, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62361 | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362 | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 62363 | Retainer, Roof Side Rail Weatherstrip, Rear RH |
| 62364 | Retainer, Roof Side Rail Weatherstrip, Rear LH |
| 62367A | Plate, Roof Side Rail Weatherstrip Ret, RH |
| 62368A | Plate, Roof Side Rail Weatherstrip Ret, LH |
| 62372 | Cover, Quarter Window Inside Trim |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62383A | Weatherstrip, Roof Side Rail, Rear RH |
| 62384A | Weatherstrip, Roof Side Rail, Rear LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411E | Plug, Hole (FOR SEAT BELT) |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62509 | Reinforcement Sub-assy, Quarter Trim |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512E | Knob, Rear Washer Tank Cover |
| 62512F | Stopper, Rear Washer Tank Cover |
| 62512H | Hook, Rear Washer Tank Cover |
| 62512J | Cover, Quarter Trim Washer |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62515 | Clip, Quarter Inside Trim |
| 62525 | Clip, Rear Body Inside Trim |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62533 | Cover, Quarter Wheel House Side Trim, RH |
| 62534 | Cover, Quarter Wheel House Side Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62550 | Garnish Assy, Rear Body Pillar, RH |
| 62555 | Trim, Back Side |
| 62560 | Garnish Assy, Rear Body Pillar, LH |
| 63295 | Lid, Center Pillar Garnish Belt Hole, Lower |
| 63297 | Lid, Center Pillar Garnish Belt Hole, RH |
| 63298 | Lid, Center Pillar Garnish Belt Hole, LH |
| 64759B | Silencer, Spare Wheel Cover End |
| 64770A | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
