Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

19 part groups · 2 illustrations

Illustrations

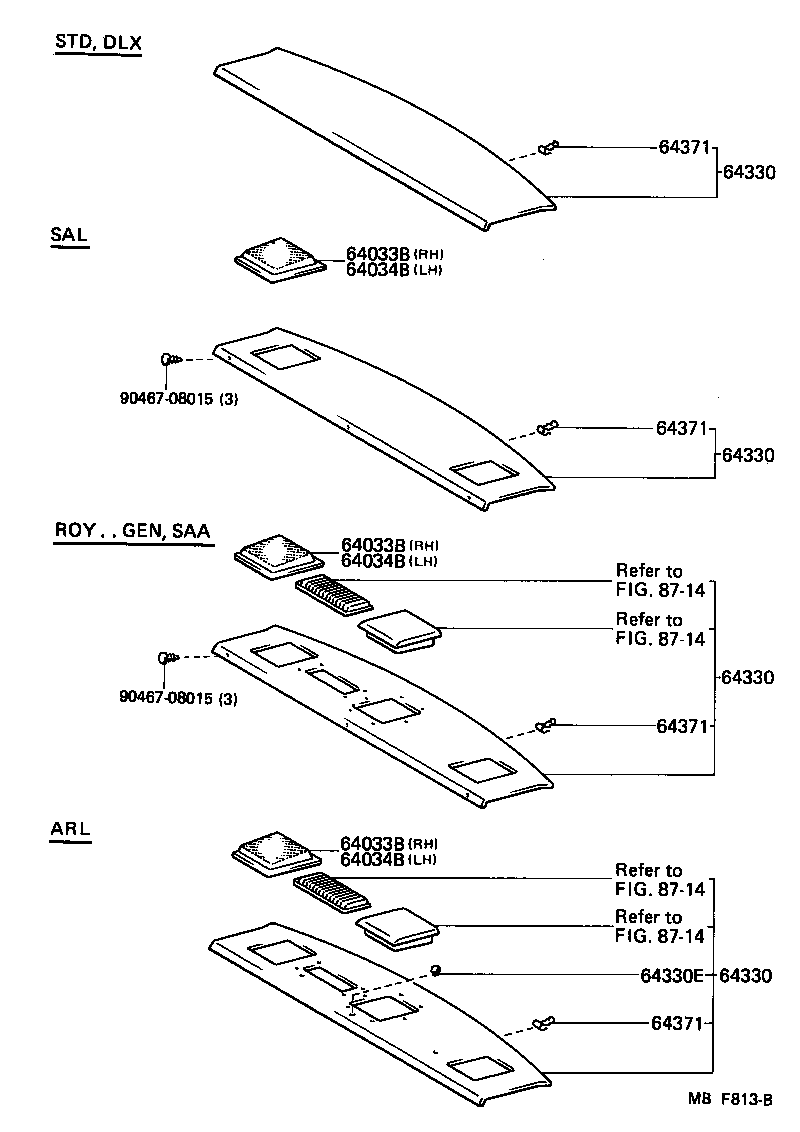

Figure MBF812D MBF812D 1983-08 → — Figure MBF813B MBF813B 1983-08 → —

Part groups

PNCDescription
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64221A Panel, Rear Seat Cushion Support
64224 Pad, Rear Seat Cushion Support Panel
64271 Board, Room Partition, NO.1
64330 Panel Assy, Package Tray Trim
64330E Plug(FOR PACKAGE TRAY TRIM PANEL)
64371 Retainer, Package Tray Trim
64701 Mat Sub-assy, Luggage Compartment
64714 Cover, Luggage Compartment, RH
64715 Cover, Luggage Compartment, LH
64716 Cover, Luggage Compartment, Rear Center
64716B Cover, Luggage Compartment Door Striker
64716C Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717A Cover, Luggage Compartment Trim, Front
64725 Retainer, Luggage Compartment Cover, NO.1
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
