Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

21 part groups · 2 illustrations

Illustrations

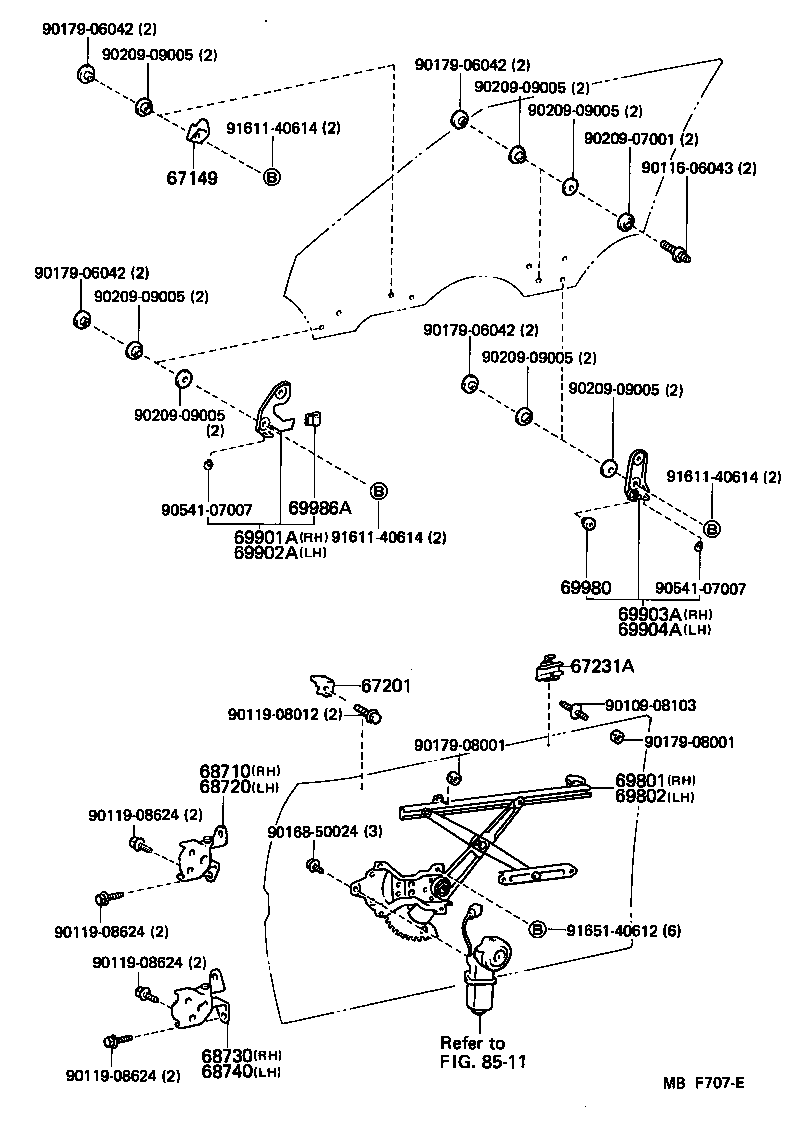

Figure MBF706D MBF706D 1983-08 → — Figure MBF707E MBF707E 1985-09 → —

Part groups

PNCDescription
67149 Stabilizer, Front Door Glass
67201 Stopper Assy, Door Glass(FOR FRONT DOOR)
67231A Support, Front Door Trim
68171 Weatherstrip, Front Door Glass Channel
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69901A Bracket Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69902A Bracket Sub-assy, Front Door Glass, LH
69903A Bracket Sub-assy, Front Door Glass, Rear RH
69904A Bracket Sub-assy, Front Door Glass, Rear LH
69980 Roller Assy, Front Door Glass Guide
69986A Piece, Front Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
