Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

19 part groups · 2 illustrations

Illustrations

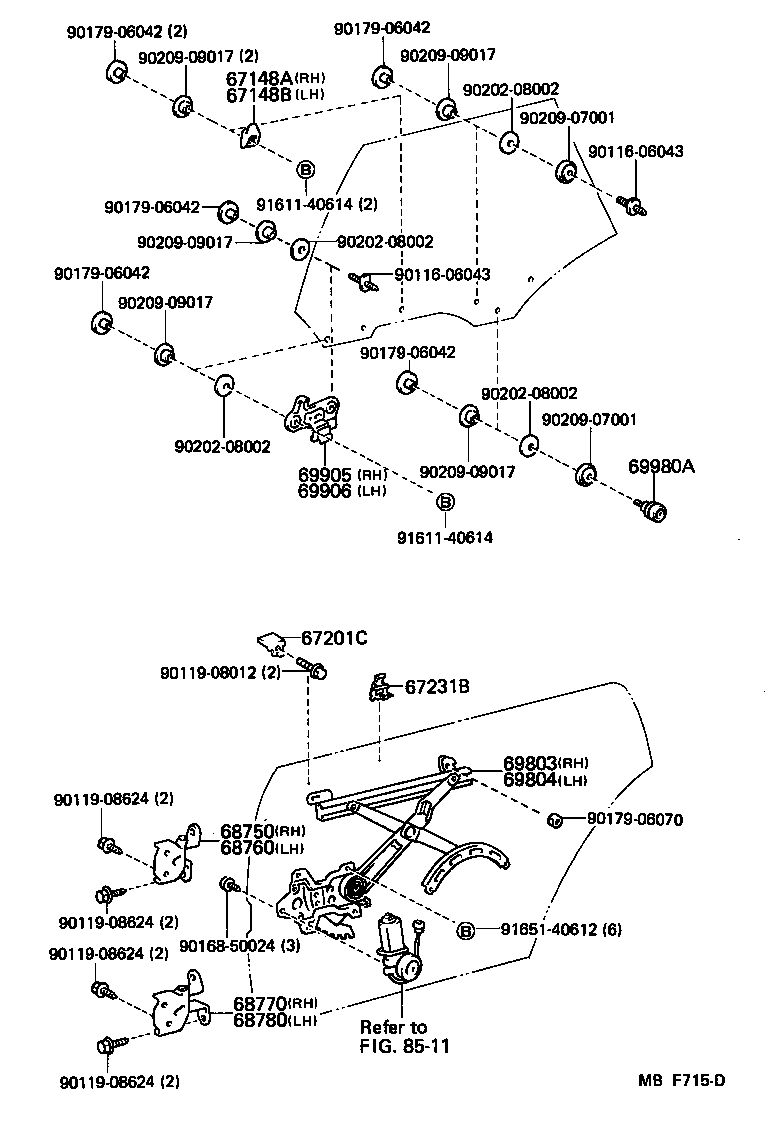

Figure MBF714C MBF714C 1983-08 → — Figure MBF715D MBF715D 1985-09 → —

Part groups

PNCDescription
67148A Stabilizer, Rear Door Glass Male, RH
67148B Stabilizer, Rear Door Glass Male, LH
67201C Stopper Assy, Door Glass(FOR REAR DOOR)
67231B Support, Rear Door Trim
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272B Plate, Rear Door Regulator Inside Handle
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69903 Channel Sub-assy, Rear Door Glass, RH
69904 Channel Sub-assy, Rear Door Glass, LH
69905 Bracket Sub-assy, Rear Door Glass, RH
69906 Bracket Sub-assy, Rear Door Glass, LH
69975A Filler, Rear Door Glass Channel
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
