Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

128 part groups · 10 illustrations

Illustrations

MBF873E 1983-08 → —

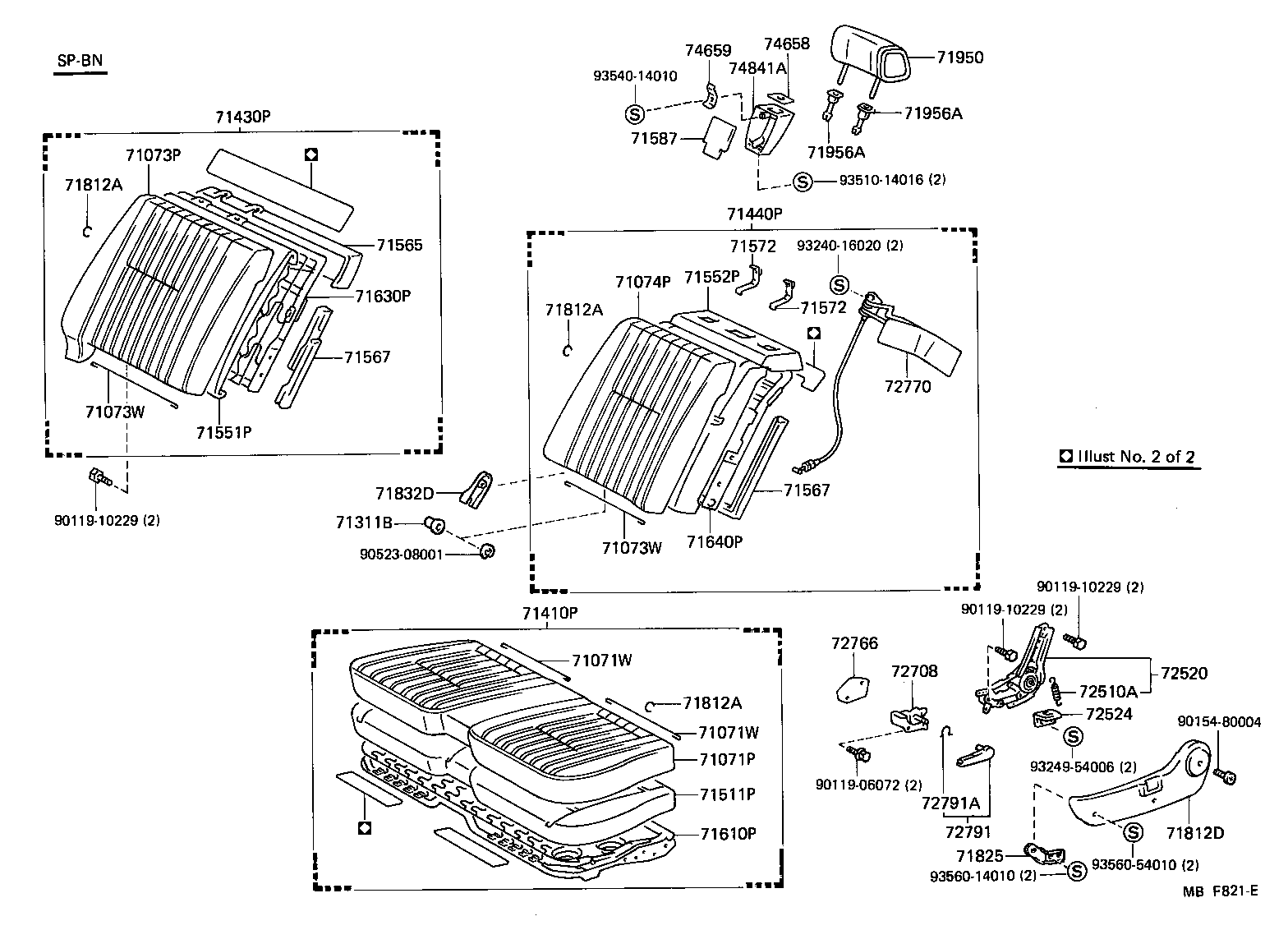

MBF821E 1983-08 → —

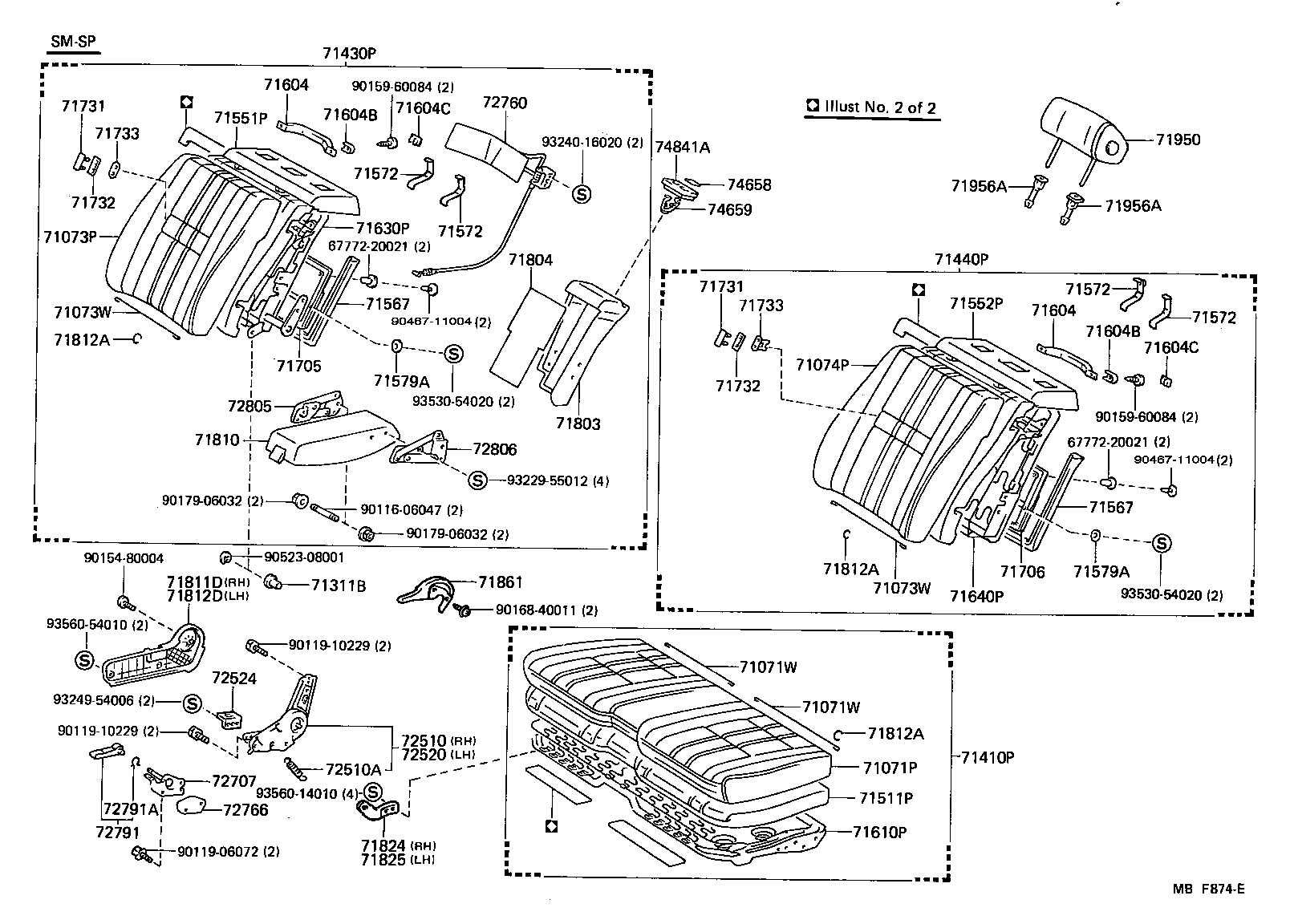

MBF874E 1983-08 → —

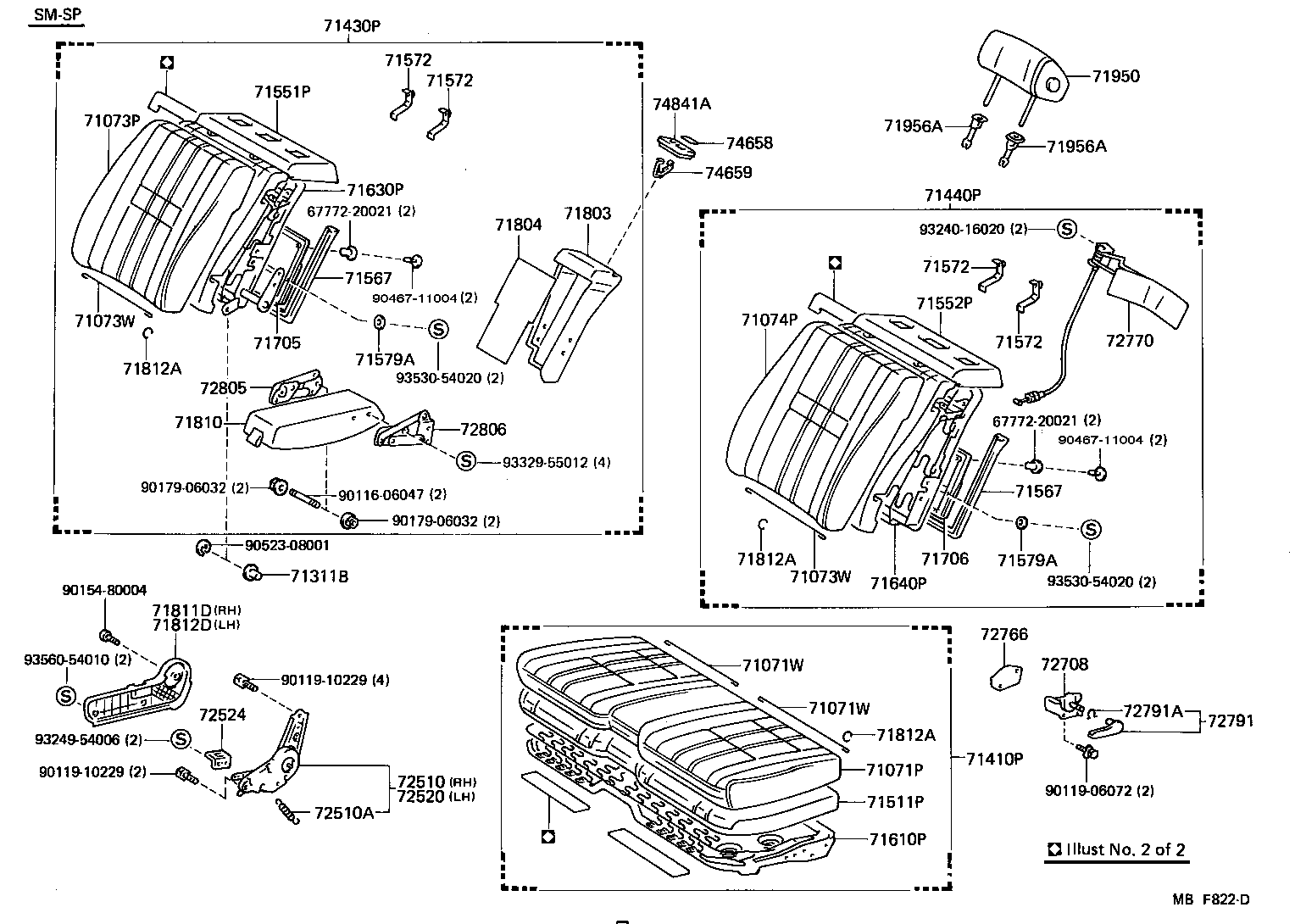

MBF822D 1983-08 → 1985-09

Part groups

PNC	Description
71071P	Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071W	Wire, Front Seat Cushion Cover
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073P	Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073W	Wire, Front Seatback Cover
71074P	Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71147	Silencer, Seat Spring
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71410P	Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430P	Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P	Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511P	Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521	Pad, Front Seat Cushion Silencer, A
71522A	Pad, Front Seat Cushion Silencer, B
71523A	Pad, Front Seat Cushion Silencer, C
71524	Pad, Front Seat Cushion Silencer, D
71525	Pad, Front Seat Cushion Silencer, E
71531	Pad, Front Seat Cushion Corner, A
71532	Pad, Front Seat Cushion Corner, B
71551P	Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552P	Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71554	Pad, Front Seatback, C
71565	Pad, Front Seatback, Inside
71567	Pad, Front Seatback Safety
71571	Pad, Front Seatback Silencer, A
71572	Pad, Front Seatback Silencer, B
71573	Pad, Front Seatback Silencer, C
71579A	Washer, Front Seatback Board Setting
71581A	Pad, Front Seatback Corner, A
71581B	Pad, Front Seatback Corner, B
71584	Pad, Front Seatback Corner, D
71587	Protector, Front Seatback Edge
71604	Grip Sub-assy, Assist(FOR SEATBACK)
71604B	Support, Assist Grip
71604C	Plug, Hole(FOR ASSIST GRIP)
71610P	Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630P	Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640P	Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71711	Leather, For Seat, A RH
71712	Leather, For Seat, B RH
71731	Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71732	Fastener, Seat Cover, B (FOR FRONT SEAT)
71733	Retainer, Seat Cover Fastener, A (FOR FRONT SEAT)
71803	Holder Sub-assy, Front Seat Armrest
71804	Board Sub-assy, Front Seat Armrest Hole
71810	Armrest Assy, Front Seat Center
71811D	Shield, Front Seat Cushion, RH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812D	Shield, Front Seat Cushion, LH
71824	Bracket, Front Seat Side, NO.1 RH
71825	Bracket, Front Seat Side, NO.1 LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71867B	Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873A	Shield, Front Seat Cushion, Lower
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72031	Adjuster Assy, Front Seat Vertical
72043B	Lever Sub-assy, Seat Lifter, RH
72044B	Lever Sub-assy, Seat Lifter, LH
72110	Regulator Assy, Power Seat, RH
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E	Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120A	Regulator Assy, Power Seat, LH
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130	Track Assy, RH Seat, Inner
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72140	Track Assy, LH Seat, Inner
72157	Cover, Seat Track Bracket, Inner
72211	Handle, Seat Track Adjusting
72213	Knob, Seat Track Adjusting Handle
72301	Wire Sub-assy, Seat Track Equalizing
72401	Housing Sub-assy, Front Seat Motor Side
72402	Housing Sub-assy, Cable Side
72405	Housing Sub-assy, Front Seat Vertical
72410A	Cable Assy, Seat Adjuster Drive, NO.1
72420	Cable Assy, Seat Adjuster Drive, NO.2
72430	Cable Assy, Seat Adjust Drive, NO.3
72459A	Cap, Vertical Seat Adjuster Knob
72480	Adjuster Assy, Front Seat Vertical, NO.2 RH
72490	Adjuster Assy, Front Seat Vertical, NO.2 LH
72501C	Pipe Sub-assy, Reclining Connecting
72510	Adjuster Assy, Reclining Seatback, RH
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72707	Lever Sub-assy, Lumber Support, RH
72708	Lever Sub-assy, Lumber Support, LH
72760	Adjuster Assy, Lumbar Support, RH
72766	Patch, Lumbar Support Bracket
72770	Adjuster Assy, Lumbar Support, LH
72791	Lever, Lumbar Support
72791A	Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
72805	Link Sub-assy, Front Seat Center Armrest, RH
72806	Link Sub-assy, Front Seat Center Armrest, LH
73146	Cover, Front Seat Belt Inner Anchor Bracket, RH
73148	Cover, Front Seat Belt Inner Anchor Bracket, LH
74658	Ornament, Front Seatback Control Panel
74659	Retainer, Front Seatback Control Panel
74841A	Panel, Front Seatback Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
