Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

85 part groups · 8 illustrations

Illustrations

MBF727 1983-08 → —

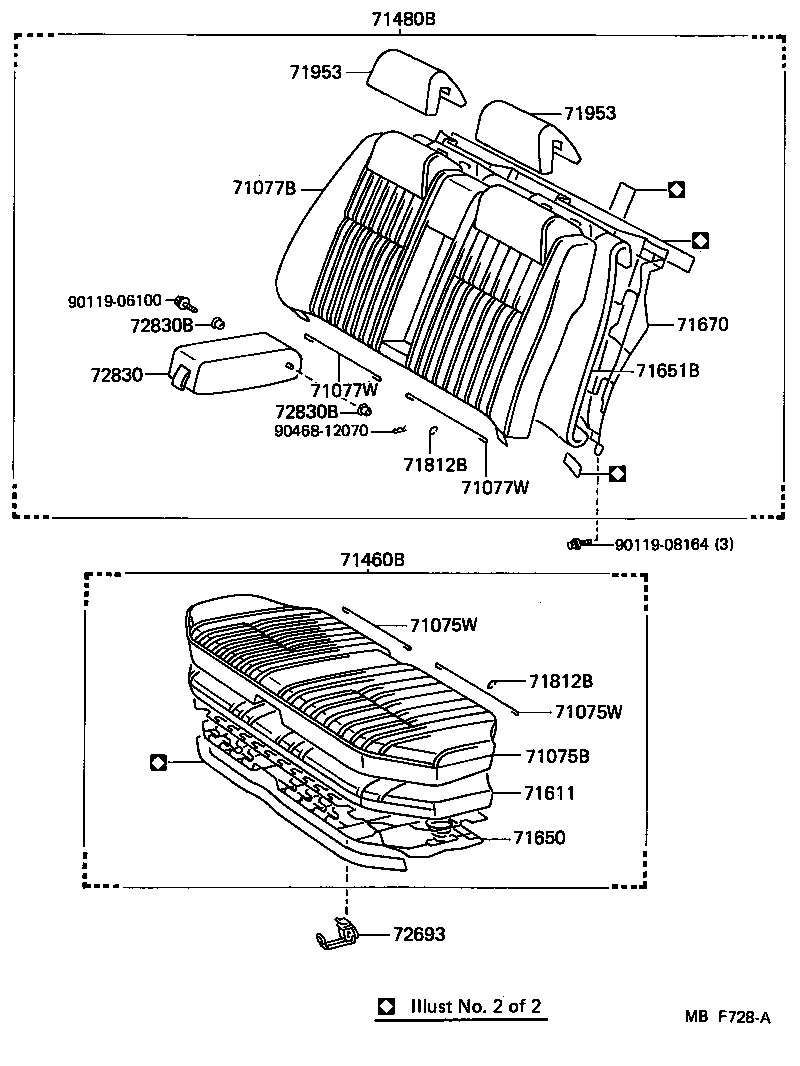

MBF728A 1983-08 → 1985-09

Part groups

PNC	Description
58443A	Cushion, Deck Compartment Box
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W	Wire, Rear Seat Cushion Cover
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W	Wire, Rear Seatback Cover
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71091	Link Sub-assy, 3RD Seat, RH
71092	Link Sub-assy, 3RD Seat, LH
71330	Hinge Assy, Rear Seat Cushion
71343	Bracket, 3RD Seatback
71349C	Cover, Rear Seatback Hinge
71354A	Plate, Rear Seatback Set
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540	Cushion Assy, 3RD Seat
71550	Back Sub-assy, Side Seat
71602	Lock Sub-assy, Rear Seatback, RH
71603	Lock Sub-assy, Rear Seatback, LH
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71621A	Pad, Rear Seat Cushion Silencer, A
71622A	Pad, Rear Seat Cushion Silencer, B
71623A	Pad, Rear Seat Cushion Silencer, C
71624A	Pad, Rear Seat Cushion Silencer, D
71631A	Pad, Rear Seat Cushion Corner
71650	Spring Assy, Rear Seat Cushion
71650B	Spring Assy, Rear Seat Cushion, RH
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B	Spring Assy, Rear Seat Cushion, LH
71661A	Pad, Rear Seatback, Upper A
71662	Pad, Rear Seatback, Upper B
71667A	Pad, Rear Seatback, Center A
71670	Spring Assy, Rear Seatback(FOR BENCH SEAT)
71670S	Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71672	Pad, Rear Seatback Silencer, B
71680S	Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71682	Pad, Rear Seatback Corner, B
71697	Protector, Rear Seatback Edge
71709	Strap Sub-assy, 3RD Seatback
71731A	Fastener, Seat Cover, A (FOR REAR SEAT)
71732A	Fastener, Seat Cover, B (FOR REAR SEAT)
71737	Retainer, Seat Cover Fastener, B (FOR REAR SEAT)
71804A	Board Sub-assy, Rear Seat Armrest Hole
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71832A	Clip, Rear Seatback Carpet OR Mat
71864	Panel, Deck Compartment Box Partition
71900	Floor Assy, Rear Seat
71900S	Spring (FOR REAR SEAT FLOOR)
71915	Bolt, Seat Link Connecting
71953	Pad, Rear Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72030	Adjuster Assy, Rear NO.1 Seat
72040	Adjuster Assy, Rear NO.2 Seat
72152A	Cover, Rear Seat Track Bracket, Inner
72159B	Cover, Rear Seat Track Bracket, Outer
72180	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72205C	Housing Sub-assy, Power Seat, NO.1
72206A	Housing Sub-assy, Power Seat, NO.2
72402A	—
72450	Cable Assy, Seat Adjuster Drive, NO.5
72460	Cable Assy, Seat Adjuster Drive, NO.6
72601	Striker Sub-assy, Rear Seat Lock
72619	Cover, Rear Seatback Lock Striker
72622	Rod, Rear Seatback Stopper Connecting
72656	Button, Rear Seatback Stop Release
72656A	Grommet, Rear Seatback Stop Button
72693	Hook, Rear Seat Cushion Lock
72723	Pin, Rear Seat Cushion, NO.2
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72901	Frame Sub-assy, 3RD Seat Cushion
72903	Frame Sub-assy, 3RD Seatback
72918	Cover, 3RD Seat Cushion Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
