Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01

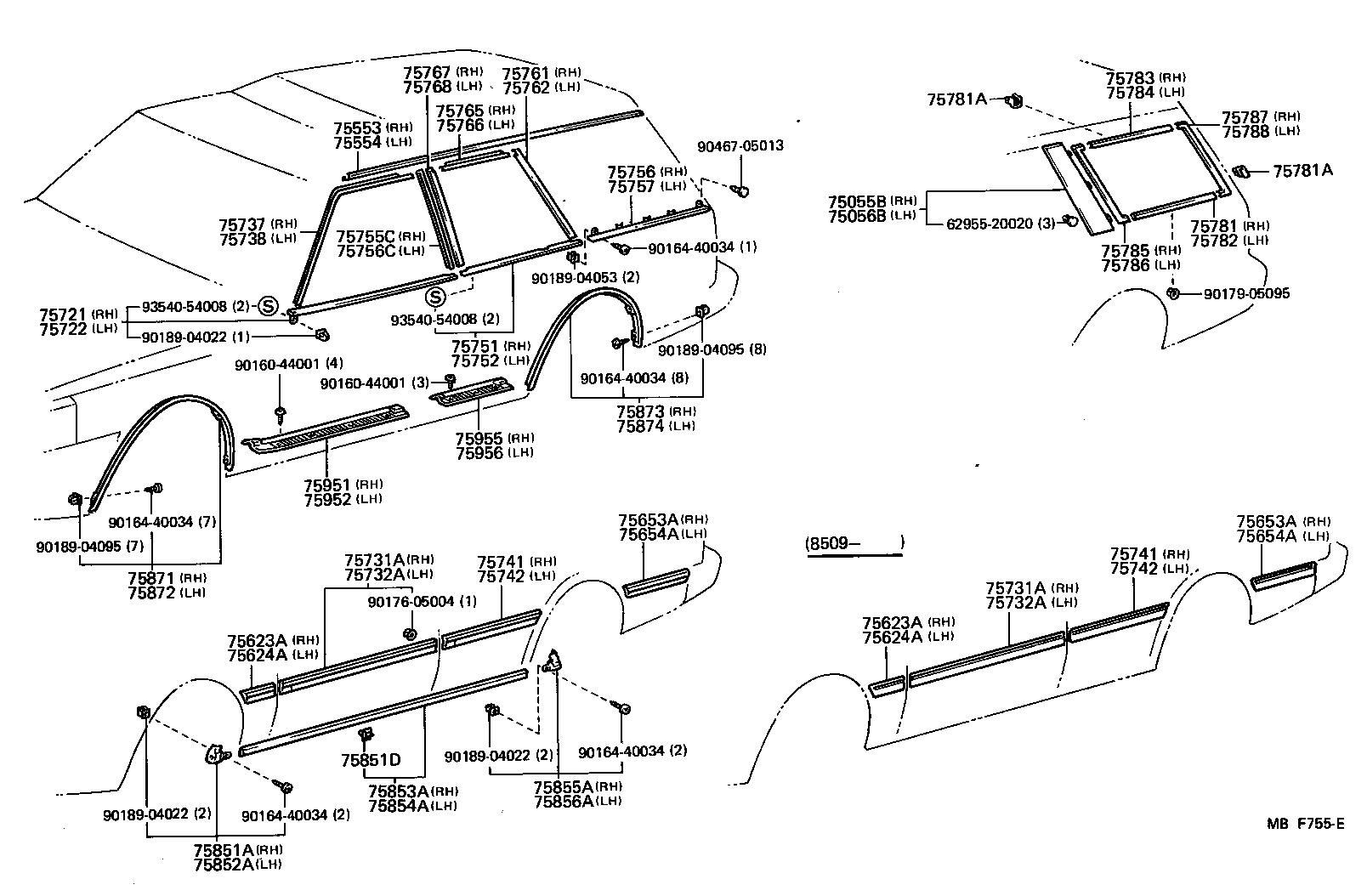

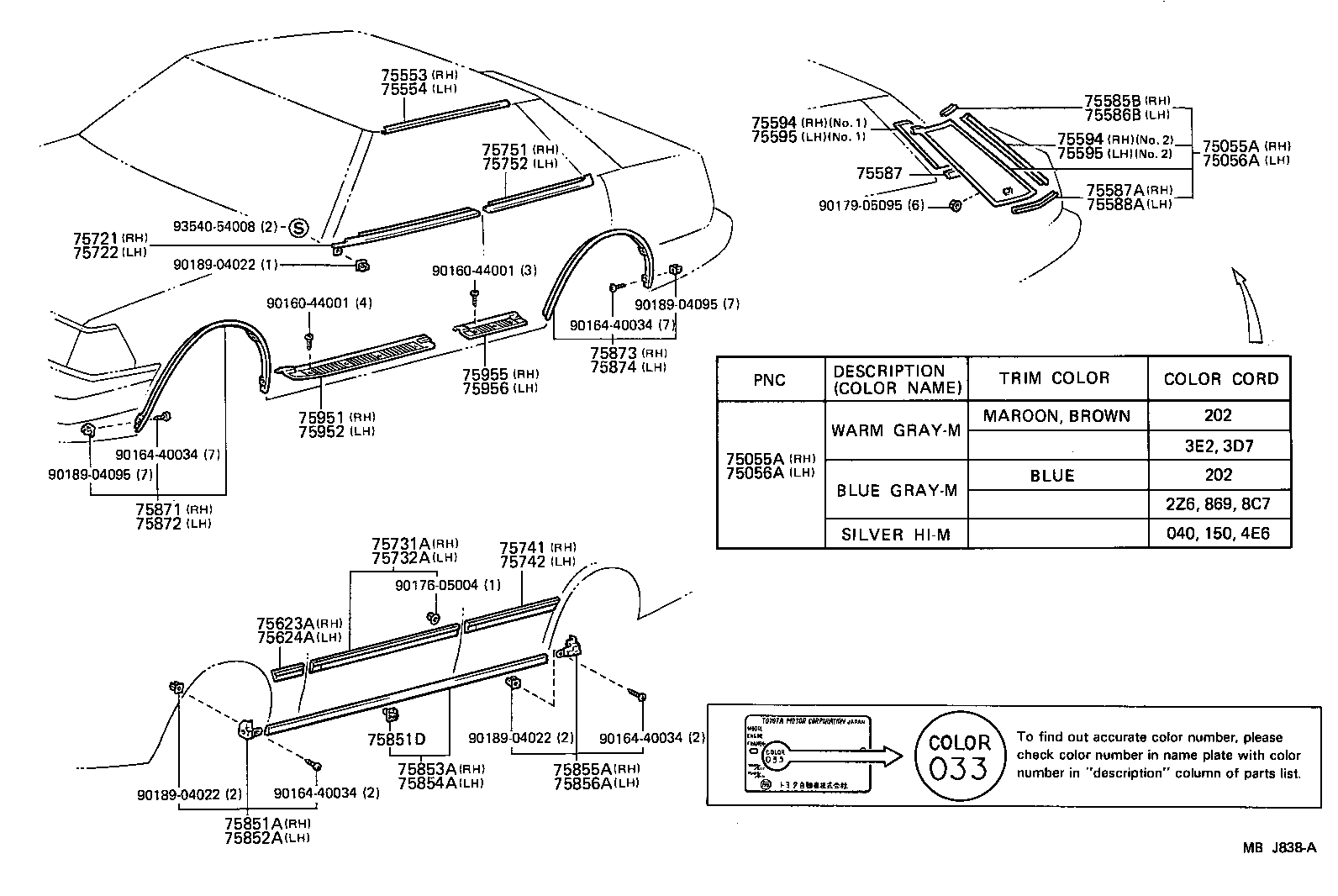

Side Moulding
67 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75055A | Garnish Sub-assy, Quarter, Outer RH |
| 75055B | Garnish Sub-assy, Rear Pillar, Outer RH |
| 75056A | Garnish Sub-assy, Quarter, Outer LH |
| 75056B | Garnish Sub-assy, Rear Pillar, Outer LH |
| 75498 | Clip, Quarter Garnish, NO.1 |
| 75499 | Clip, Quarter Garnish, NO.2 |
| 75553 | Moulding, Roof Drip Side Finish, RH |
| 75554 | Moulding, Roof Drip Side Finish, LH |
| 75585B | Protector, Rear Pillar Garnish, NO.1 |
| 75586B | Protector, Rear Pillar Garnish, NO.2 |
| 75587 | Pad, Quarter Garnish, Lower |
| 75587A | Pad, Quarter Garnish, Lower RH |
| 75588A | Pad, Quarter Garnish, Lower LH |
| 75594 | Pad, Quarter Garnish, RH |
| 75595 | Pad, Quarter Garnish, LH |
| 75605A | Moulding Sub-assy, Quarter Outside, RH |
| 75606A | Moulding Sub-assy, Quarter Outside, LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75721 | Moulding, Front Door Belt, RH |
| 75722 | Moulding, Front Door Belt, LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75737 | Moulding, Front Door Window Frame, Front RH |
| 75738 | Moulding, Front Door Window Frame, Front LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75751 | Moulding, Rear Door Belt, RH |
| 75752 | Moulding, Rear Door Belt, LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756 | Moulding, Quarter Belt, RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75757 | Moulding, Quarter Belt, LH |
| 75761 | Moulding, Rear Door Window Frame, Rear RH |
| 75762 | Moulding, Rear Door Window Frame, Rear LH |
| 75765 | Moulding, Rear Door Window Frame, Upper RH |
| 75766 | Moulding, Rear Door Window Frame, Upper LH |
| 75767 | Moulding, Rear Door Window Frame, Front RH |
| 75768 | Moulding, Rear Door Window Frame, Front LH |
| 75781 | Moulding, Quarter Window, Lower RH |
| 75781A | Clip, Quarter Window Moulding |
| 75782 | Moulding, Quarter Window, Lower LH |
| 75783 | Moulding, Quarter Window, Upper RH |
| 75784 | Moulding, Quarter Window, Upper LH |
| 75785 | Moulding, Quarter Window, Front RH |
| 75786 | Moulding, Quarter Window, Front LH |
| 75787 | Moulding, Quarter Window, Rear RH |
| 75788 | Moulding, Quarter Window, Rear LH |
| 75851 | Moulding, Rocker Panel, RH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75852 | Moulding, Rocker Panel, LH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75853A | Moulding, Rocker Panel, Center RH |
| 75854A | Moulding, Rocker Panel, Center LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75955 | Plate, Rear Door Scuff, Outside RH |
| 75956 | Plate, Rear Door Scuff, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
