Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

17 part groups · 4 illustrations

Illustrations

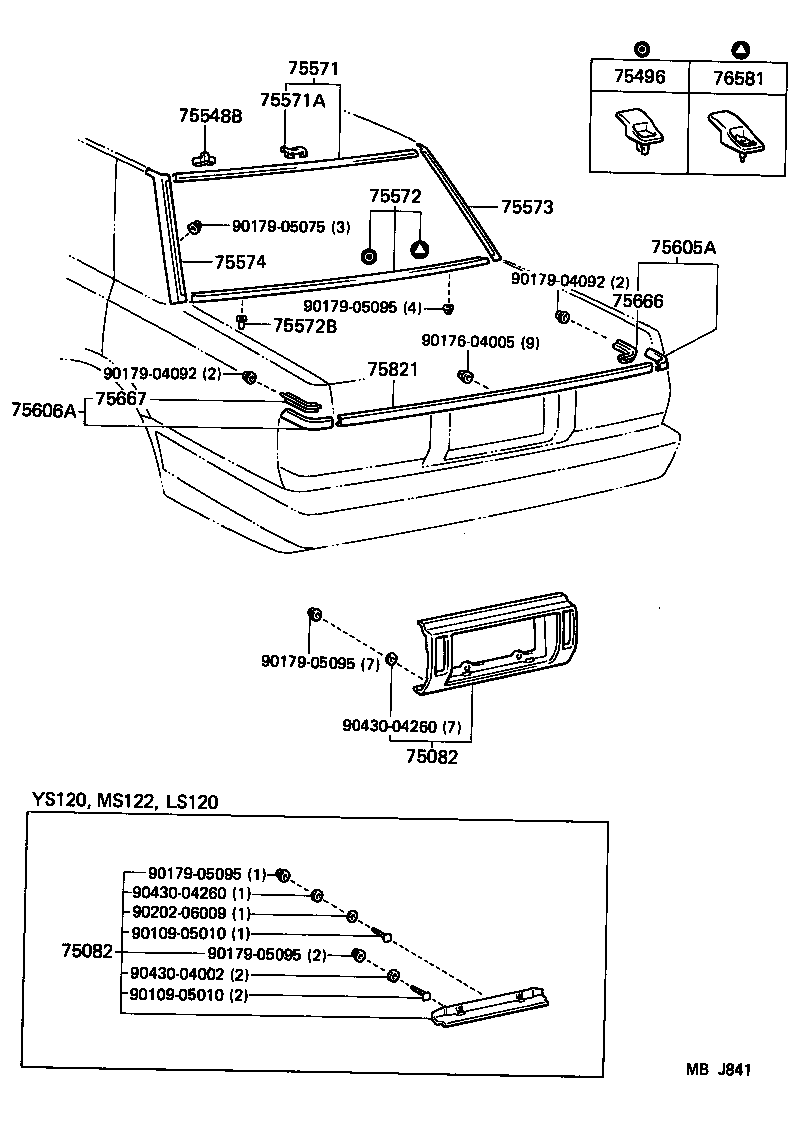

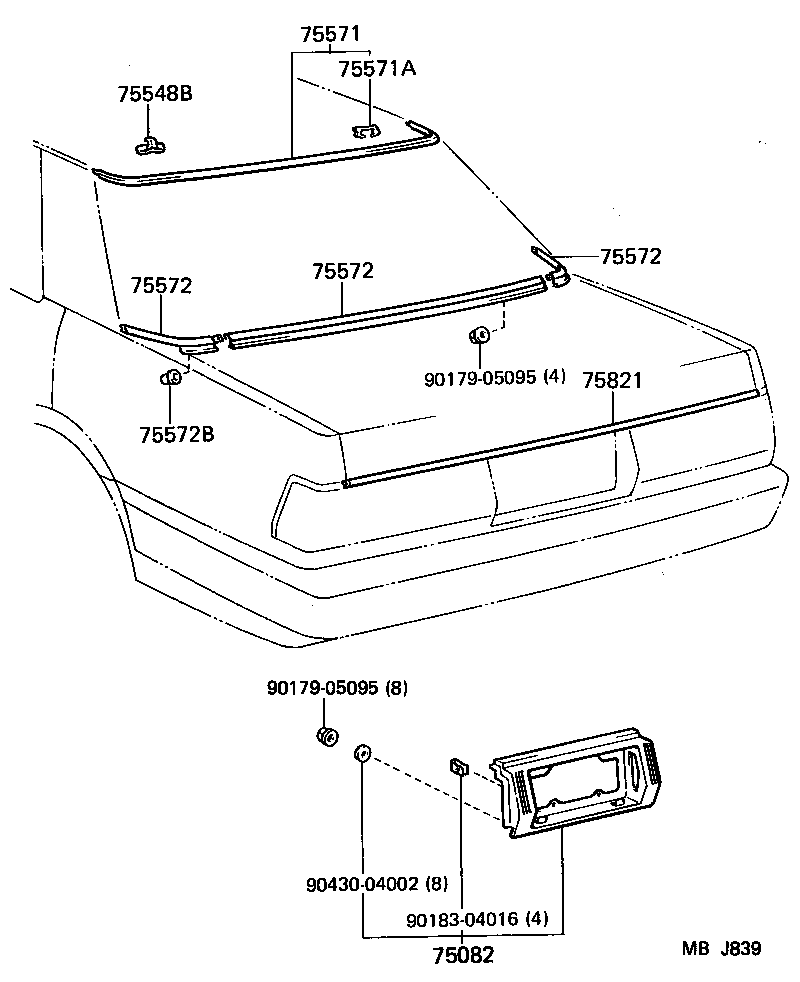

Figure MBF835B MBF835B 1983-08 → 1985-09 Figure MBJ841 MBJ841 1985-09 → — Figure MBJ839 MBJ839 1985-09 → — Figure MBF836B MBF836B 1983-08 → —

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75397 Clip, Back Door Moulding, NO.3
75496 Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75572 Moulding, Back Window, Lower
75572B Clip(FOR BACK WINDOW MOULDING SET)
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75666 Cover, Quarter Panel Back Moulding End, NO.1
75667 Cover, Quarter Panel Back Moulding End, NO.2
75802A Moulding Sub-assy, Back Door, Outside Upper
75803D Moulding Sub-assy, Back Door, Outside Lower
75821 Moulding, Luggage Compartment Door Back
76581 Retainer, Back Window Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
