Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

10 part groups · 2 illustrations

Illustrations

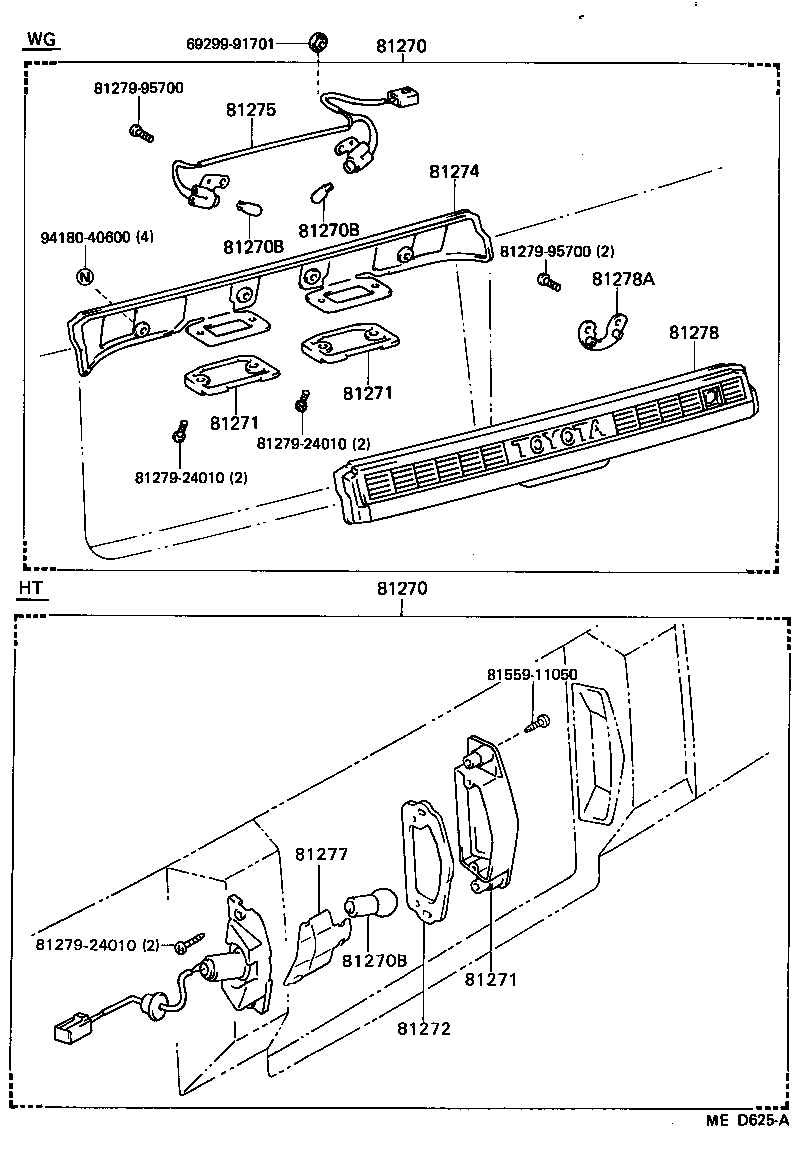

Figure MED356D MED356D 1983-08 → — Figure MED625A MED625A 1983-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273 Bracket, License Plate Lamp
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
81277 Spacer, License Plate Lamp Rim And Lens
81278 Cover, License Plate Lamp
81278A Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
