Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 10 illustrations

Illustrations

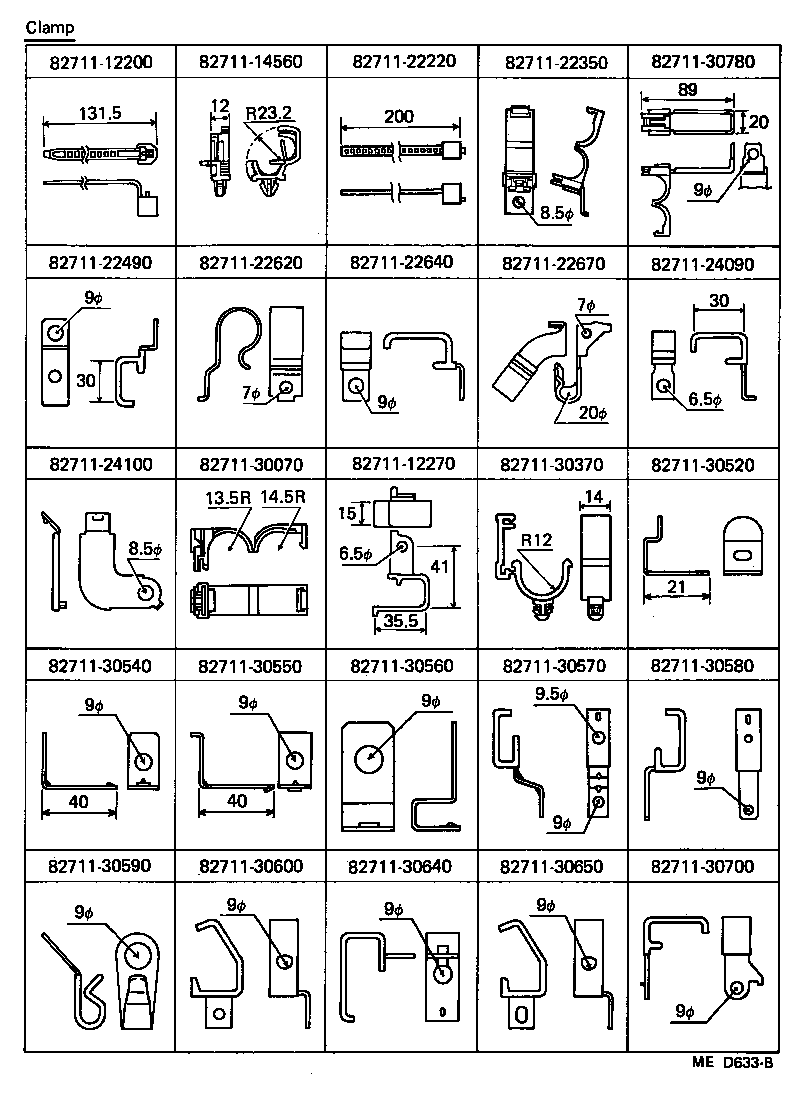

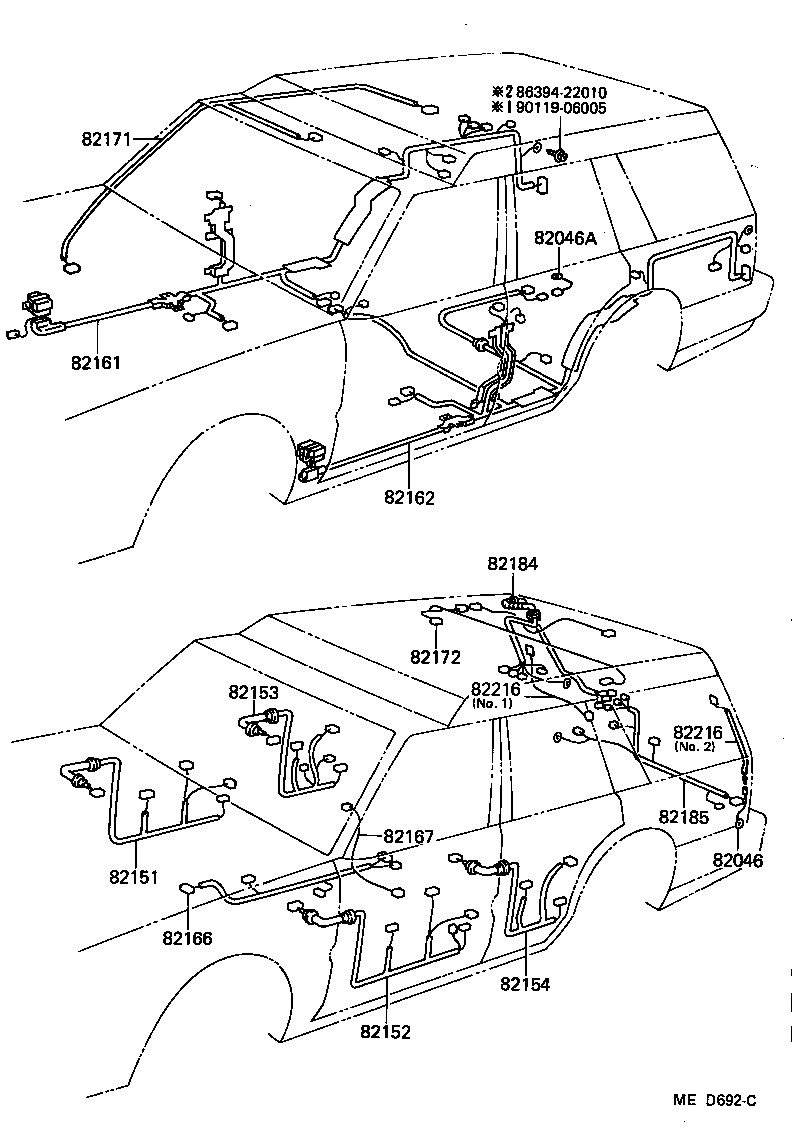

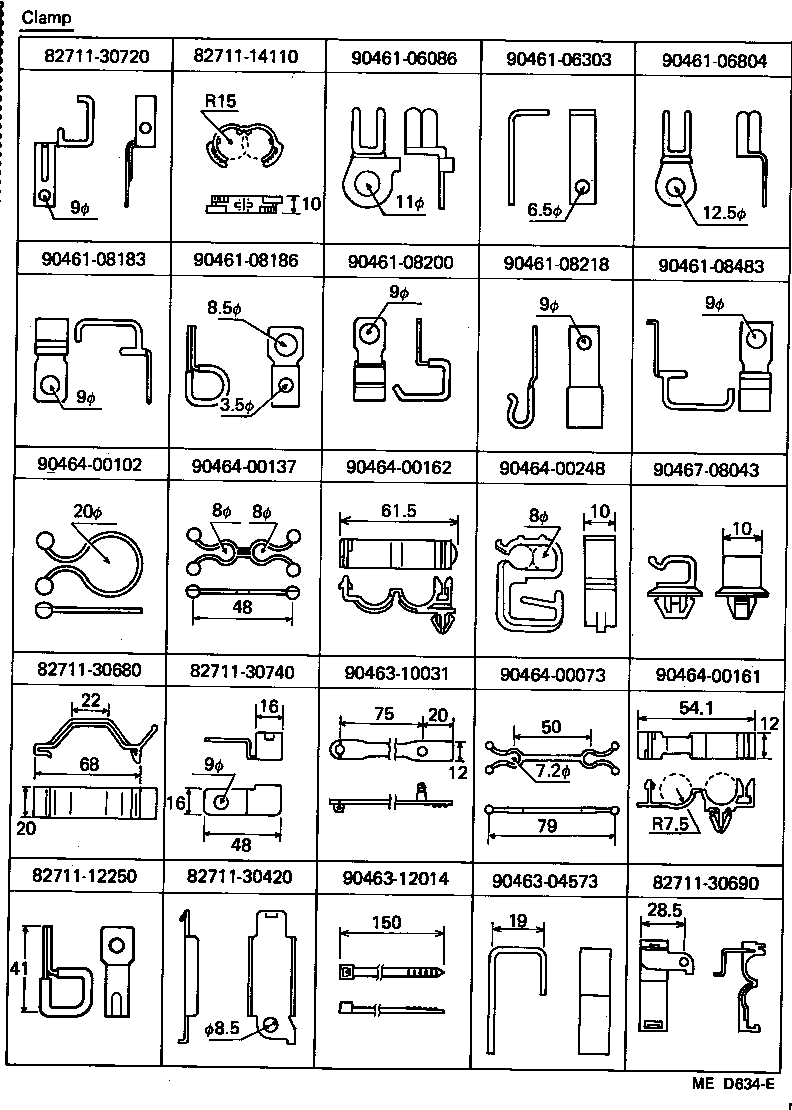

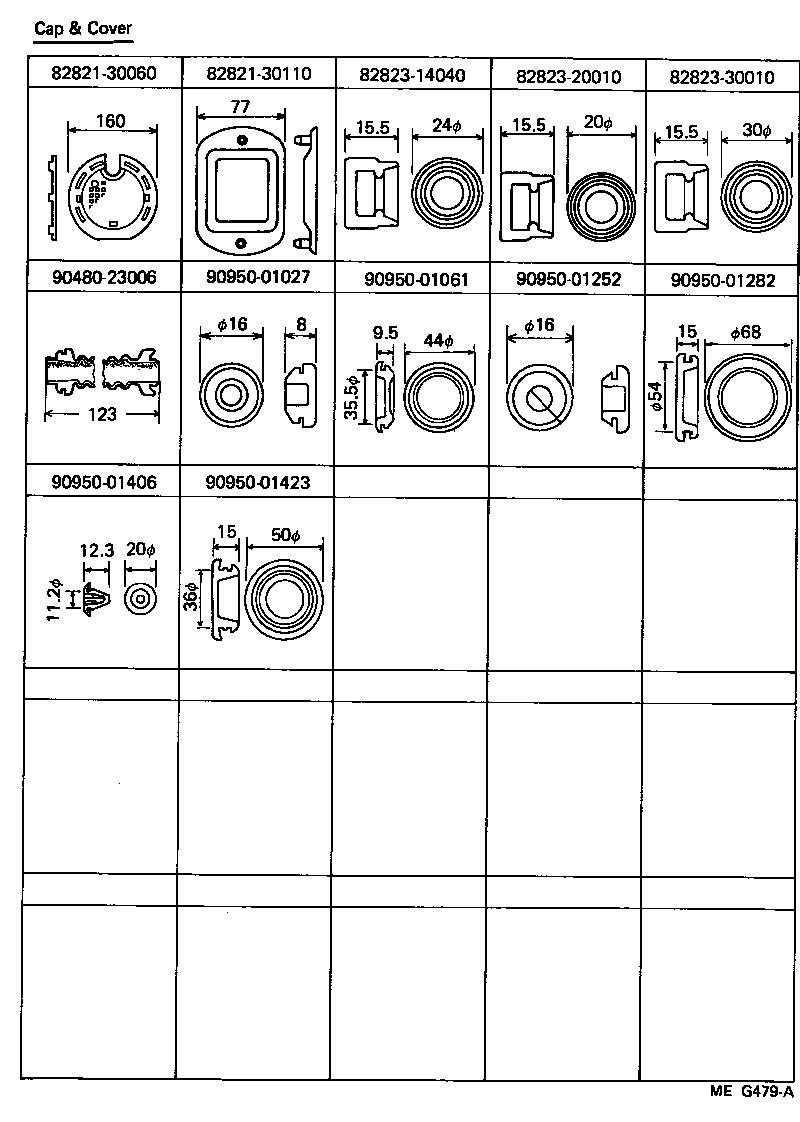

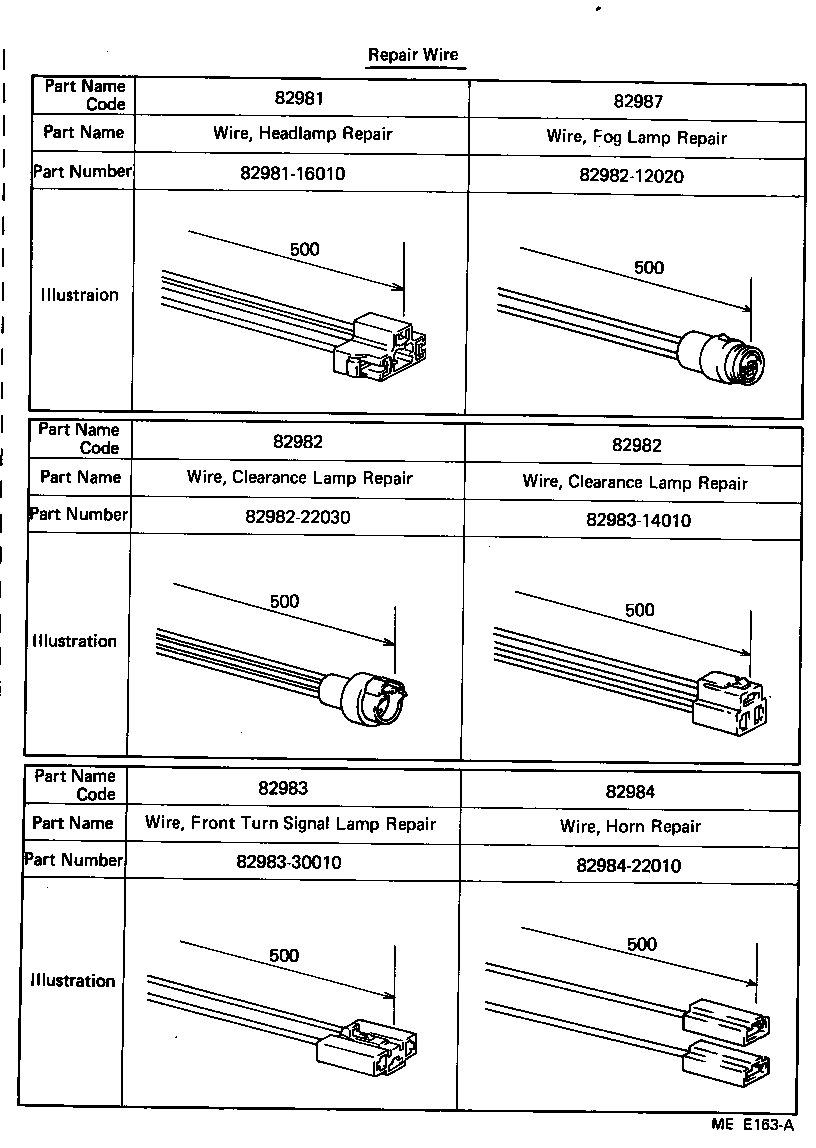

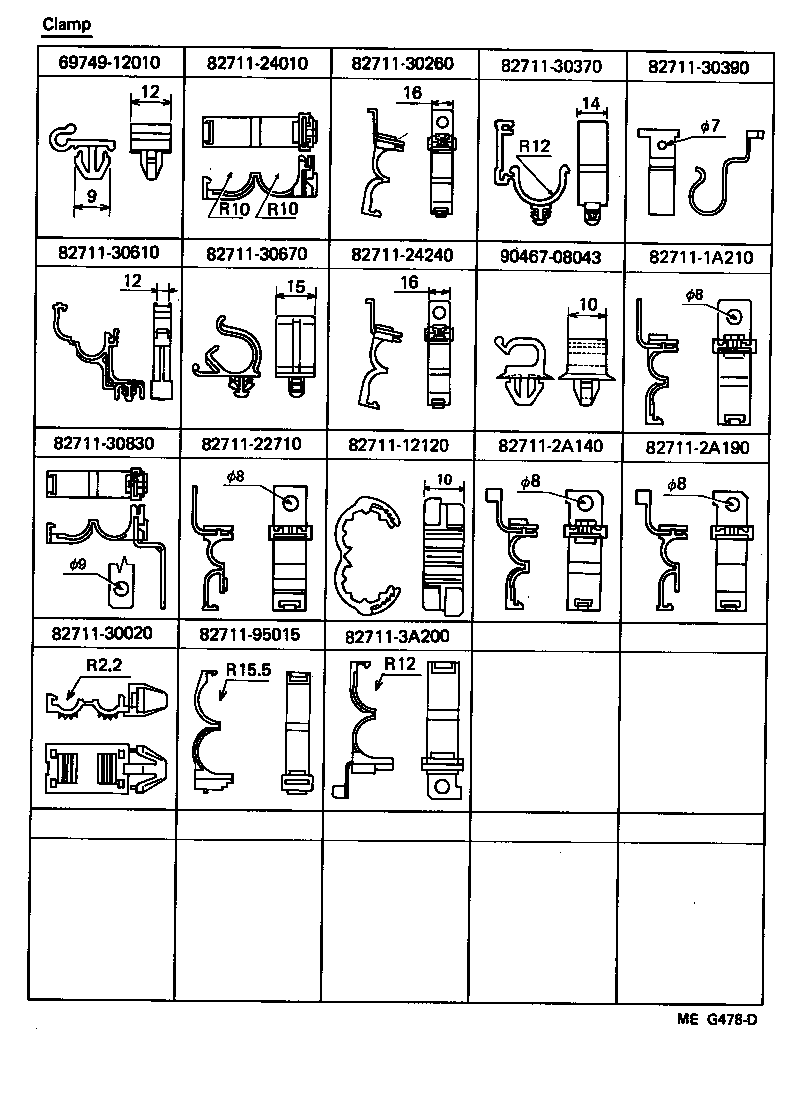

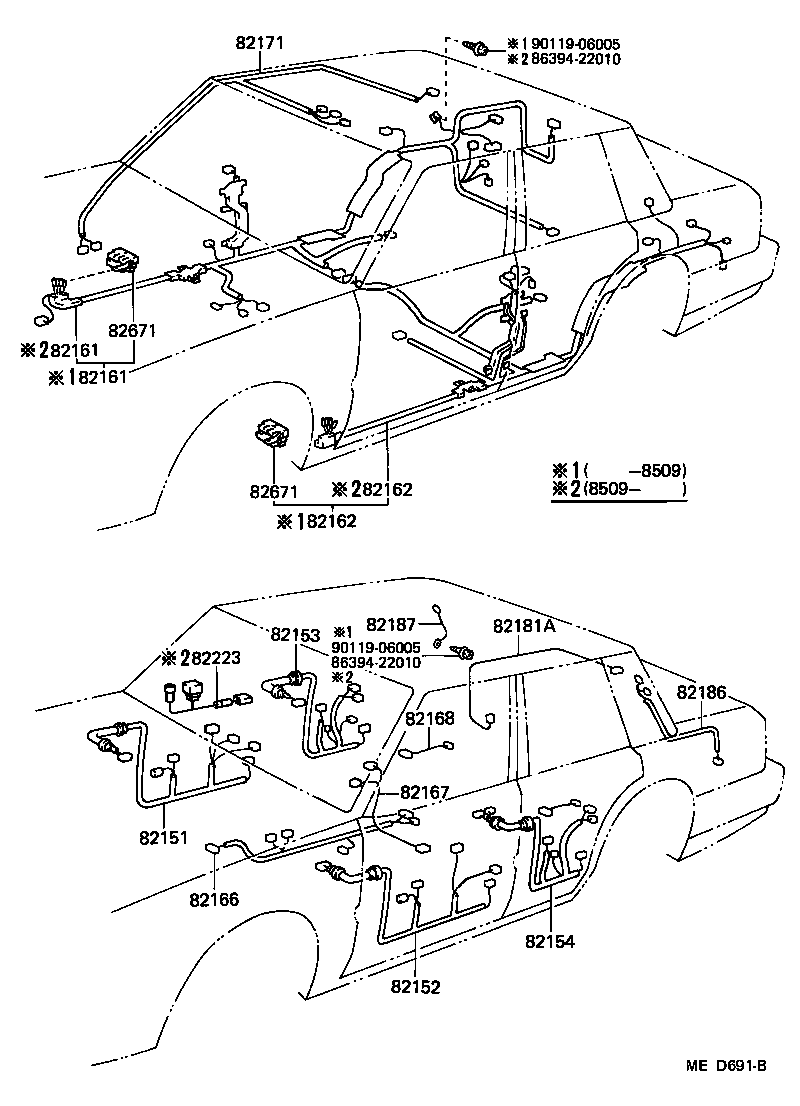

Figure MED690D MED690D 1983-08 → — Figure MED691B MED691B 1983-08 → — Figure MED692C MED692C 1983-08 → — Figure MEE163A MEE163A 1983-08 → — Figure MEE164 MEE164 1983-08 → — Figure MED633B MED633B 1983-08 → — Figure MED634E MED634E 1983-08 → — Figure MEG478D MEG478D 1985-09 → — Figure MED635E MED635E 1983-08 → — Figure MEG479A MEG479A 1985-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181A Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82223 Wire, Switch
82241C Wire, Relay
82284 Wire, Earth
82345 Diode
82620 Block Assy, Fusible Link
82671 Block, Junction
82673 Bracket, Junction Block
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
85999J Bracket, Circuit Breaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
