Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01
Meter
36 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83159 | Switch, Meter, NO.1 |
| 83179 | Cover, Combination Meter, Hole |
| 83189 | Bracket, Meter |
| 83241 | Meter Sub-assy, Speed |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

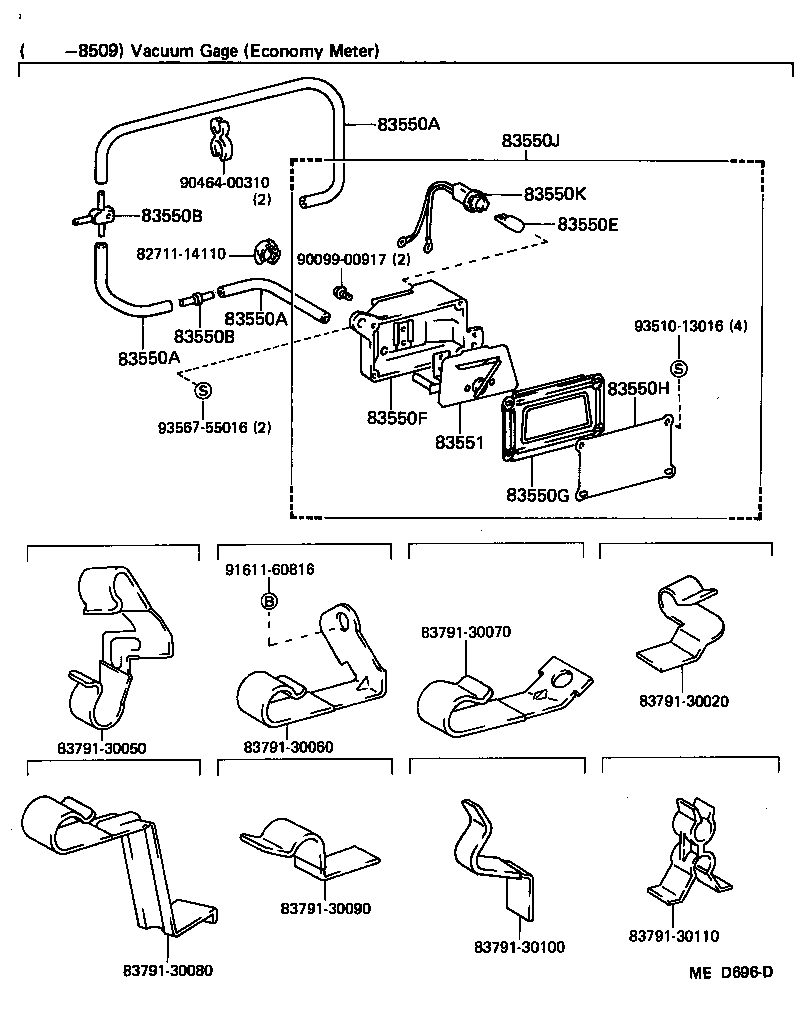

| 83550A | Hose, ED Monitor Gage |
| 83550B | Union OR Way, ED Monitor Gage |
| 83550E | Bulb, Pressure Vacuum Gage |
| 83550F | Case, Pressure Vacuum Gage |
| 83550G | Plate, Pressure Vacuum Gage |
| 83550H | Glass, Pressure Vacuum Gage |
| 83550J | Gage Assy,Pressure Vacuum |
| 83550K | Socket, Pressure Vacuum Gage Bulb |
| 83551 | Gage, Vacuum |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |

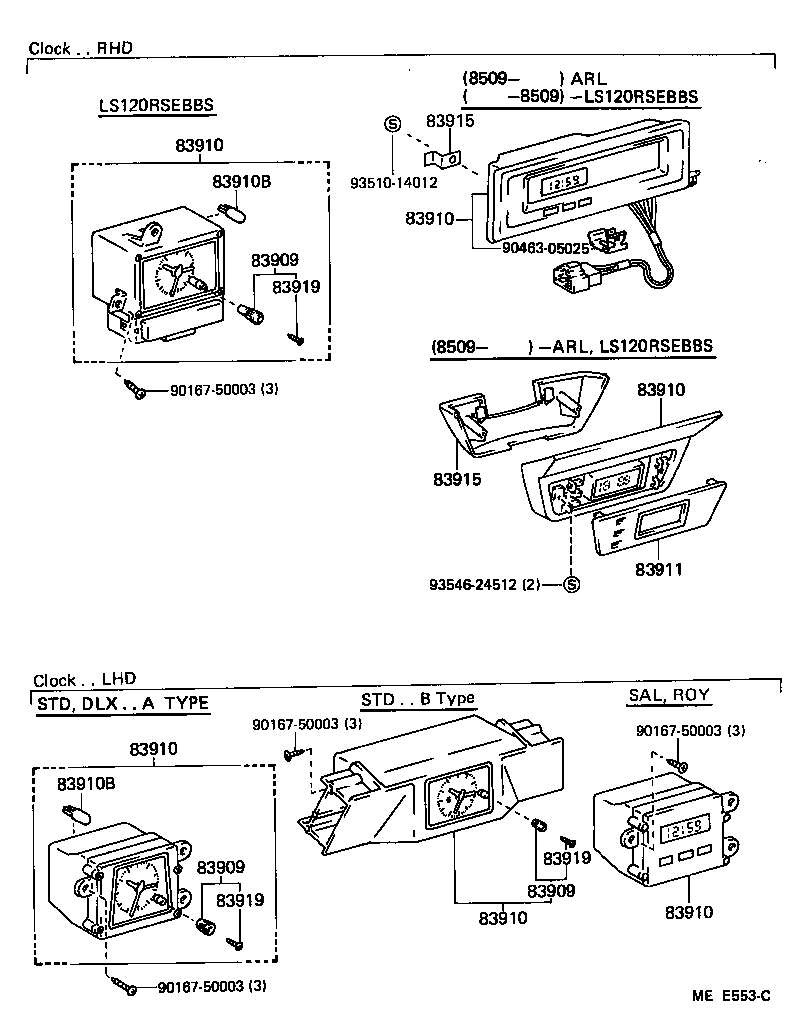

| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83911 | Cover, Clock |
| 83915 | Bracket, Clock |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
