Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

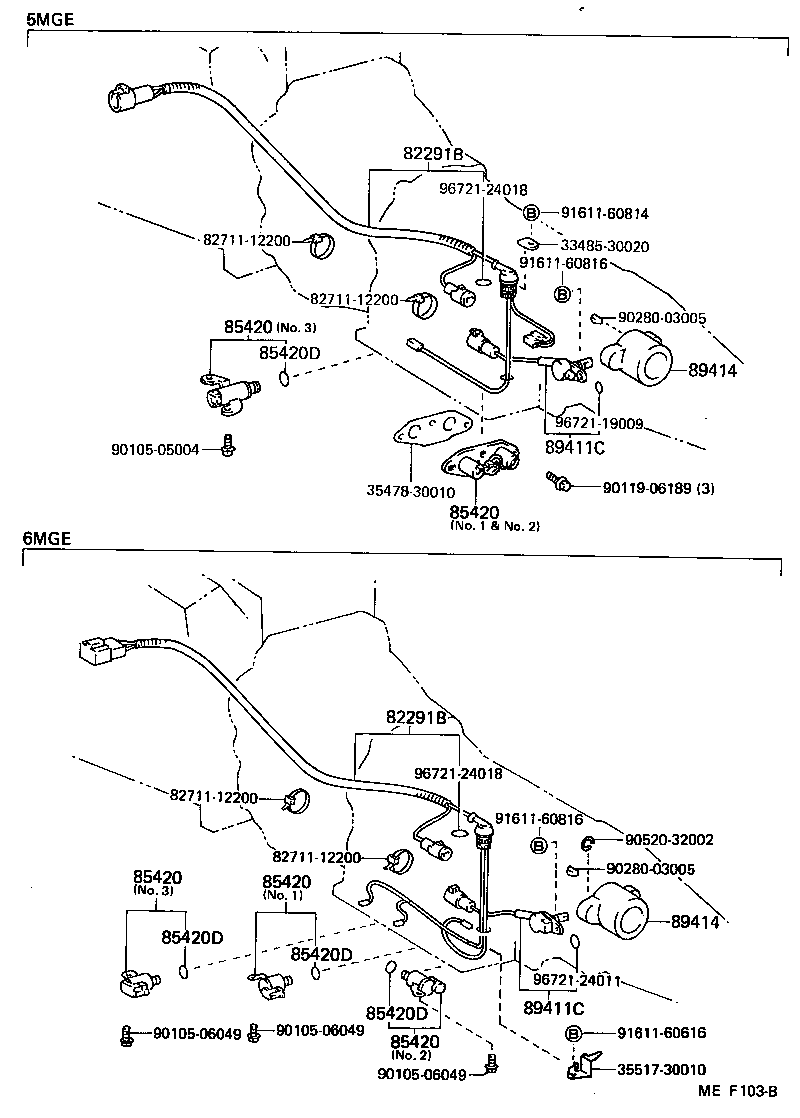

Figure MED712C MED712C 1983-08 → — Figure MEF103B MEF103B 1983-08 → —

Part groups

PNCDescription
82291B Wire, TO Solenoid (FOR TRANSMISSION)
84722E Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
