Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

20 part groups · 7 illustrations

Illustrations

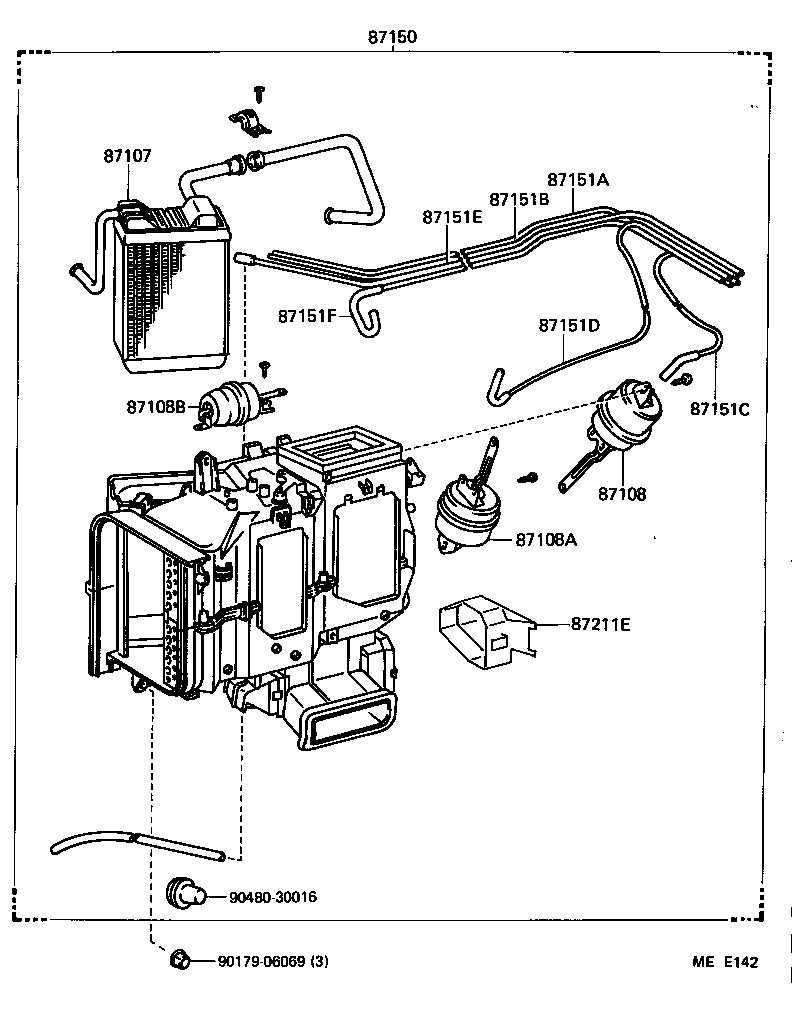

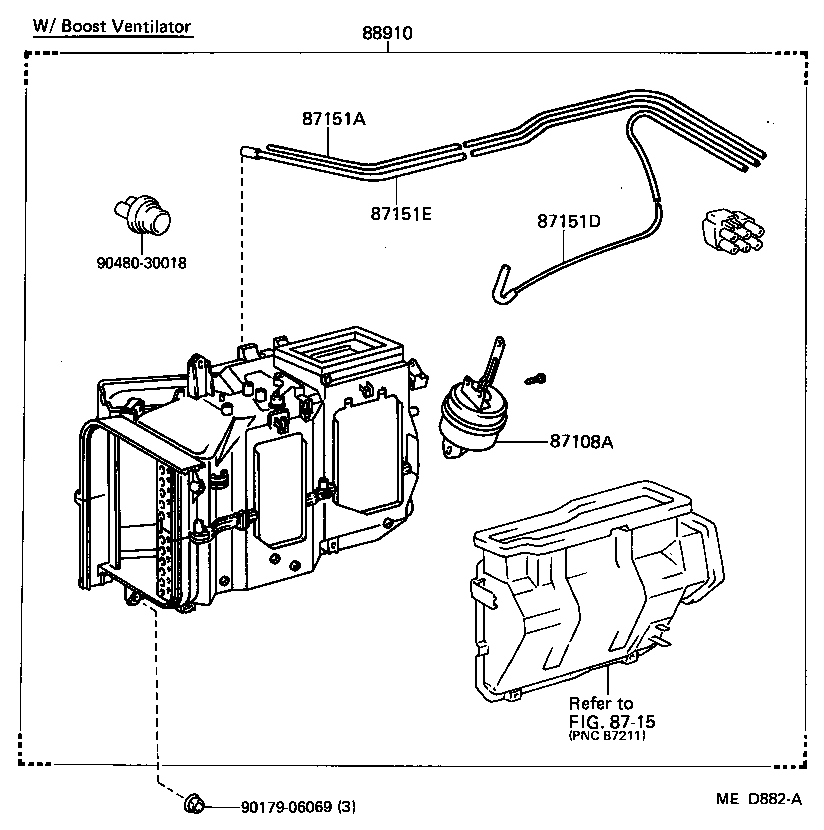

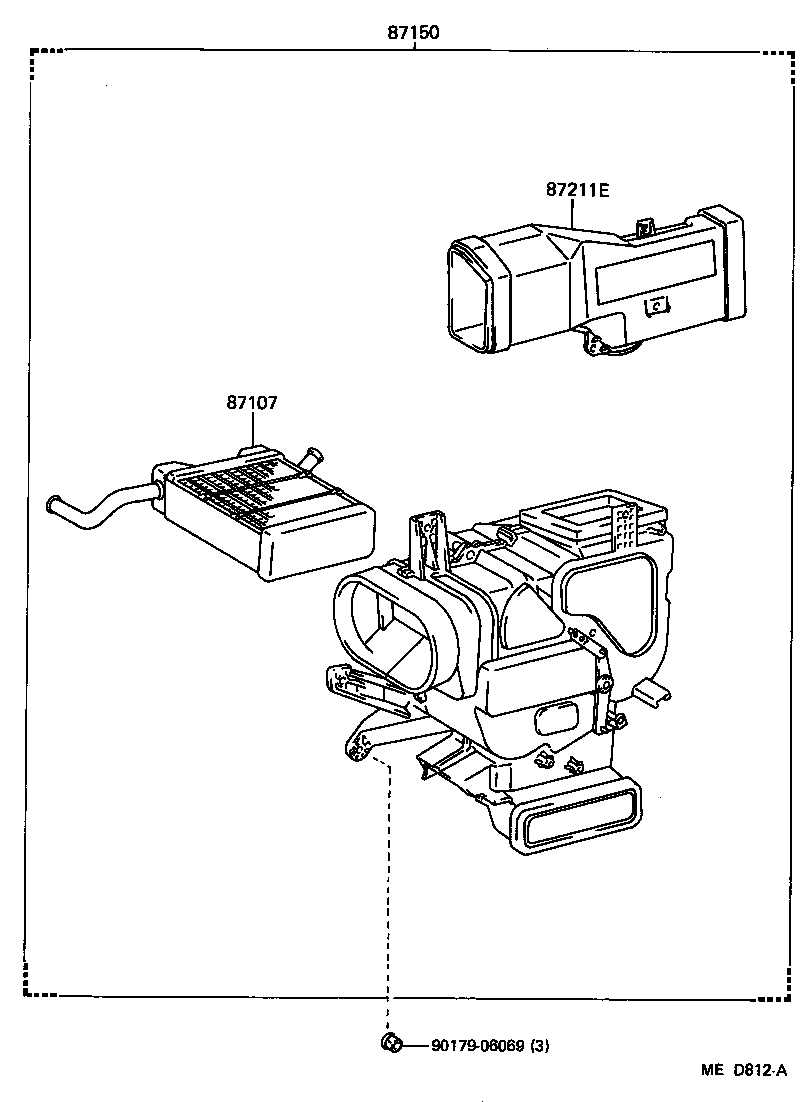

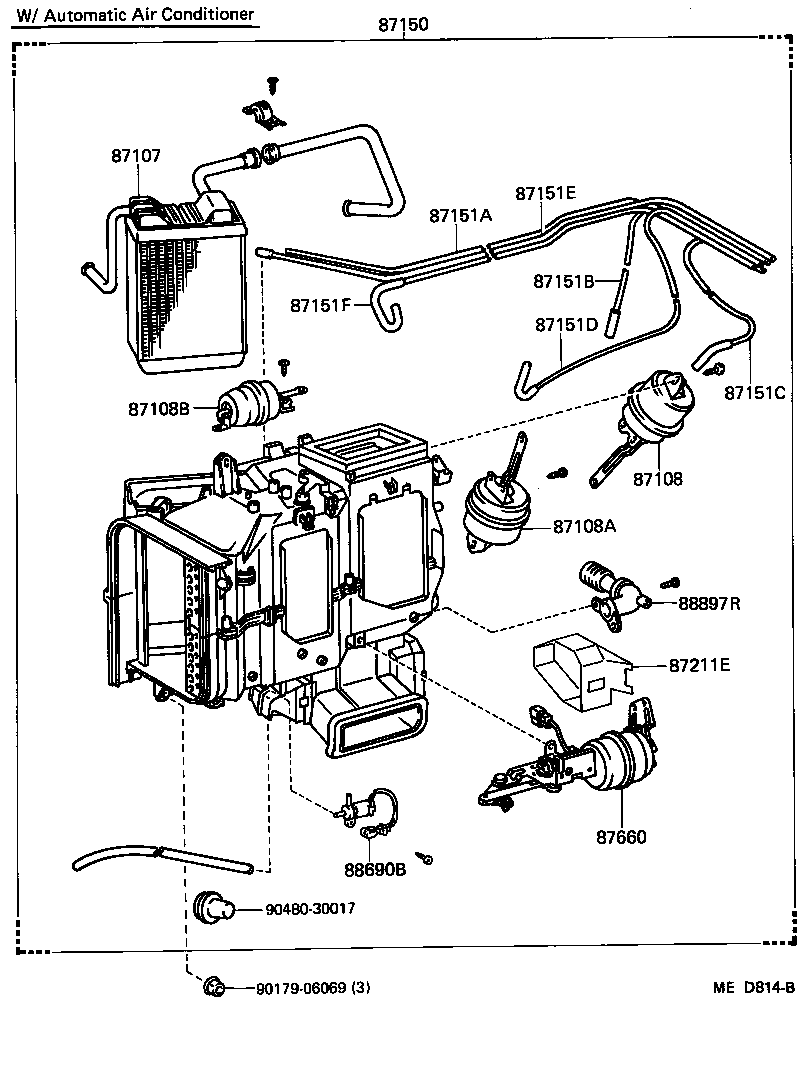

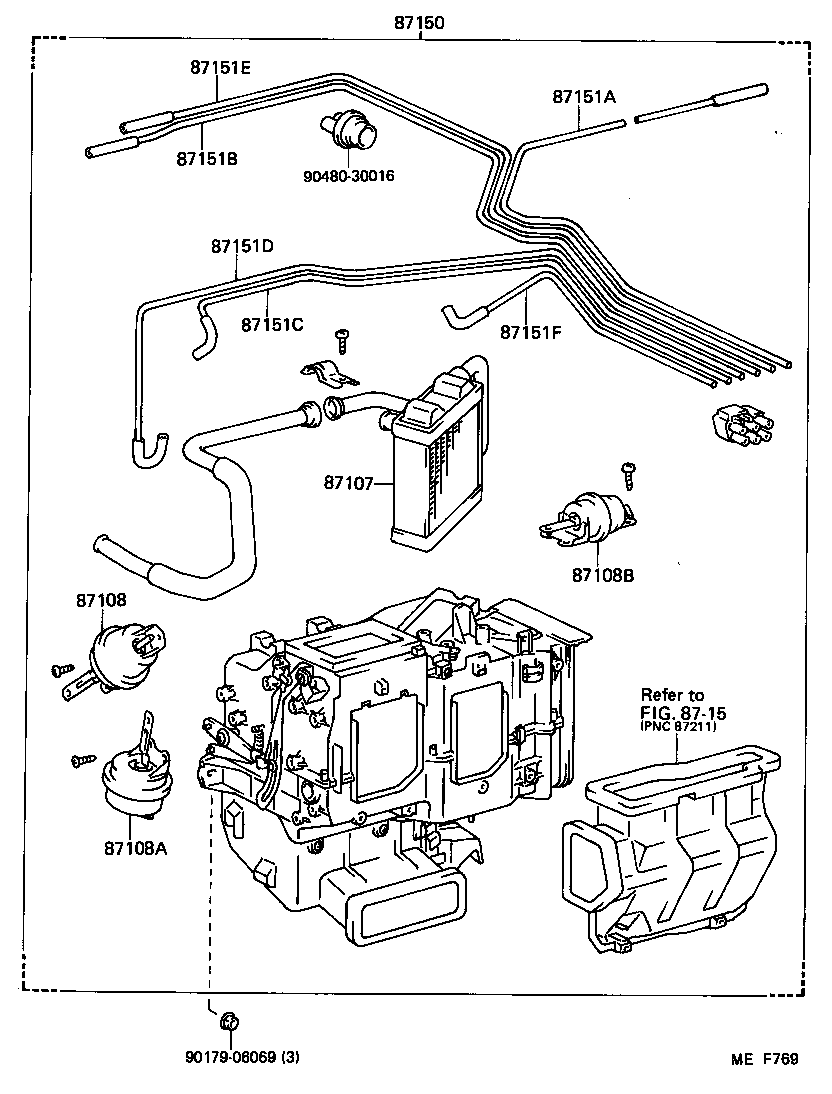

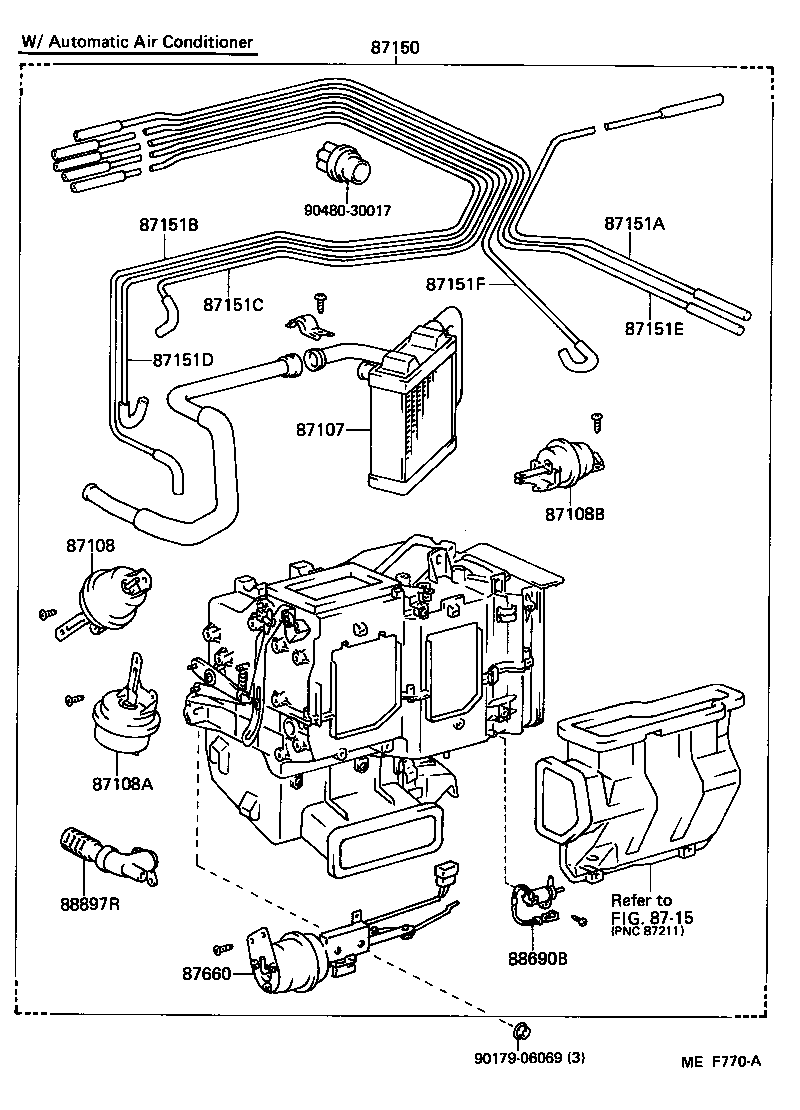

Figure MED811B MED811B 1983-08 → — Figure MED812A MED812A 1983-08 → — Figure MEE142 MEE142 1983-08 → — Figure MED814B MED814B 1983-08 → — Figure MEF769 MEF769 1983-08 → — Figure MEF770A MEF770A 1985-08 → — Figure MED882A MED882A 1983-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108 Diaphragm Sub-assy, Heater Door Control
87108A Diaphragm Sub-assy, Ventilator Door Control
87108B Diaphragm Sub-assy, Bi-level Door Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87151A Hose, Vacuum, A
87151B Hose, Vacuum, B
87151C Hose, Vacuum, C
87151D Hose, Vacuum, D
87151E Hose, Vacuum, E
87151F Hose, Vacuum, F
87211E Duct, Air
87660 Servo Assy, Air Conditioner
88690B Valve Assy, Cooler Magnet
88897R Aspirator
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
