Heating & Air Conditioning - Cooler Unit

27 part groups · 6 illustrations

Illustrations

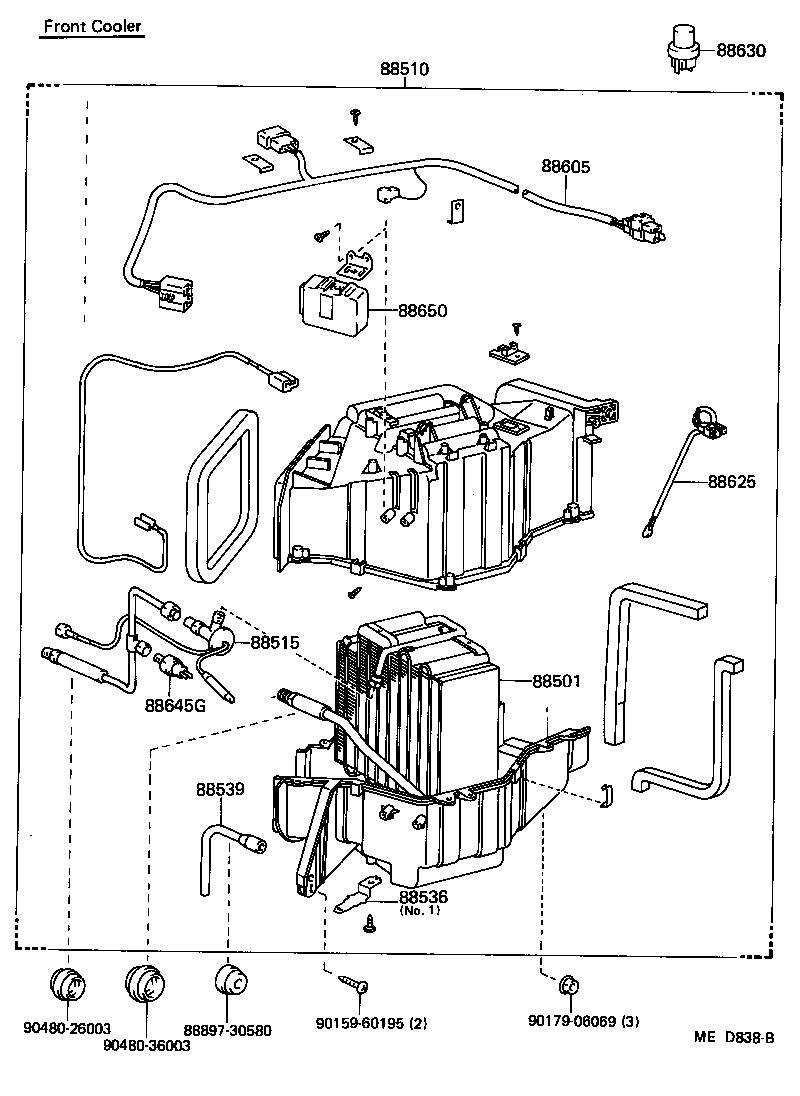

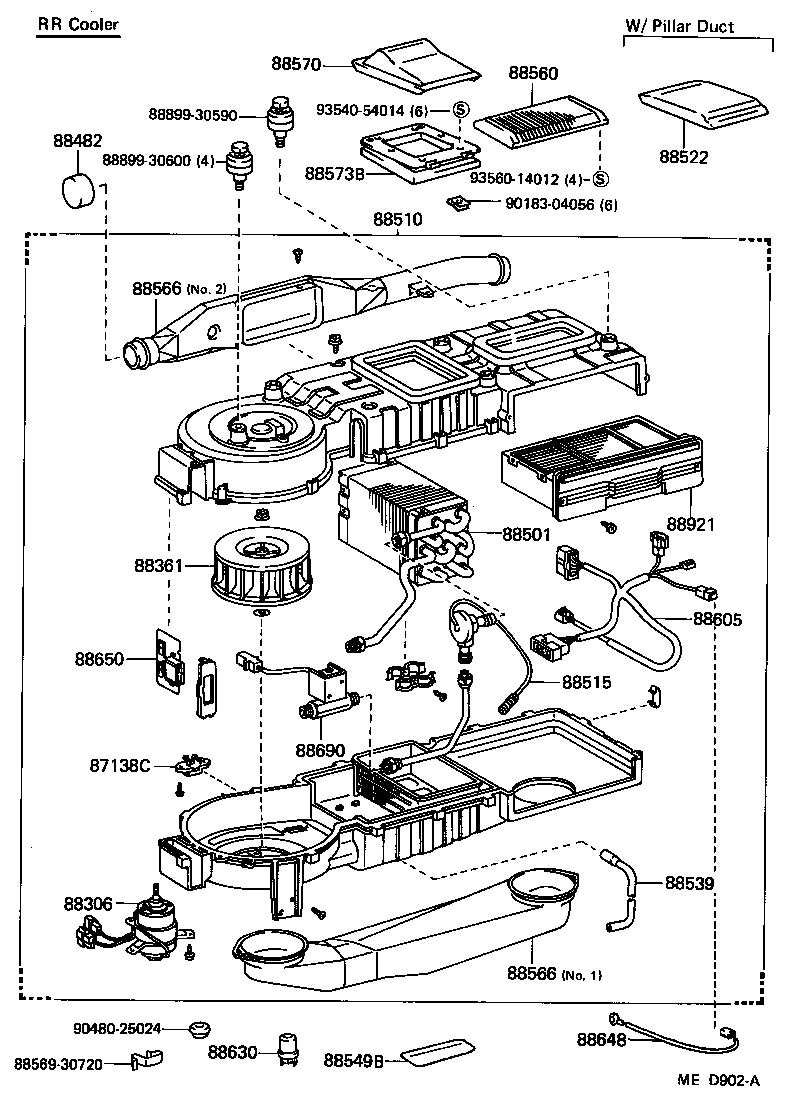

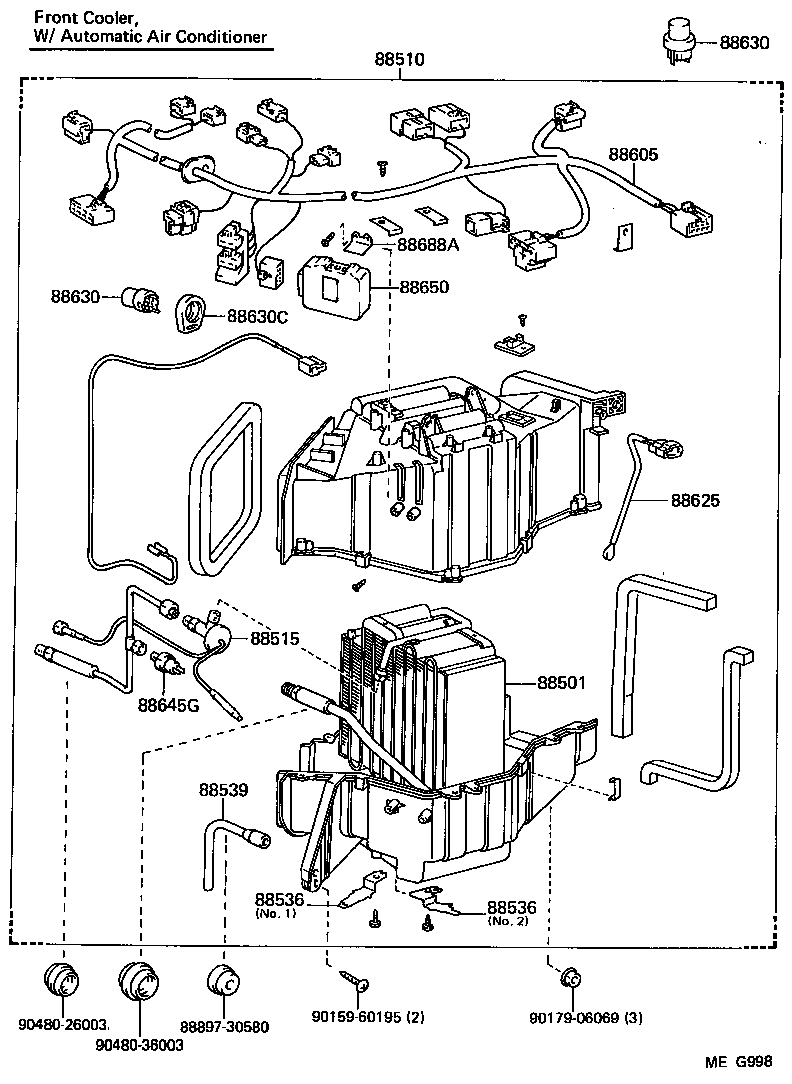

Figure MEE061D MEE061D 1983-08 → — Figure MEE061D MEE061D 1984-01 → — Figure MED838B MED838B 1983-08 → — Figure MEG998 MEG998 1983-08 → — Figure MED902A MED902A 1983-08 → — Figure MEG807 MEG807 1985-09 → —

Part groups

PNCDescription
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88549B Plate, Caution
88560 Grille Assy, Cooler Air Inlet
88566 Duct, Cooler Air, NO.1
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630C Bracket, Cooler Relay
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88690 Valve Assy, Cooler Magnet
88921 Filter, Air Purifier, NO.1
88940 Actuator Assy, Swing Grille
88940B Knob Sub-assy, Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
