Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

35 part groups · 6 illustrations

Illustrations

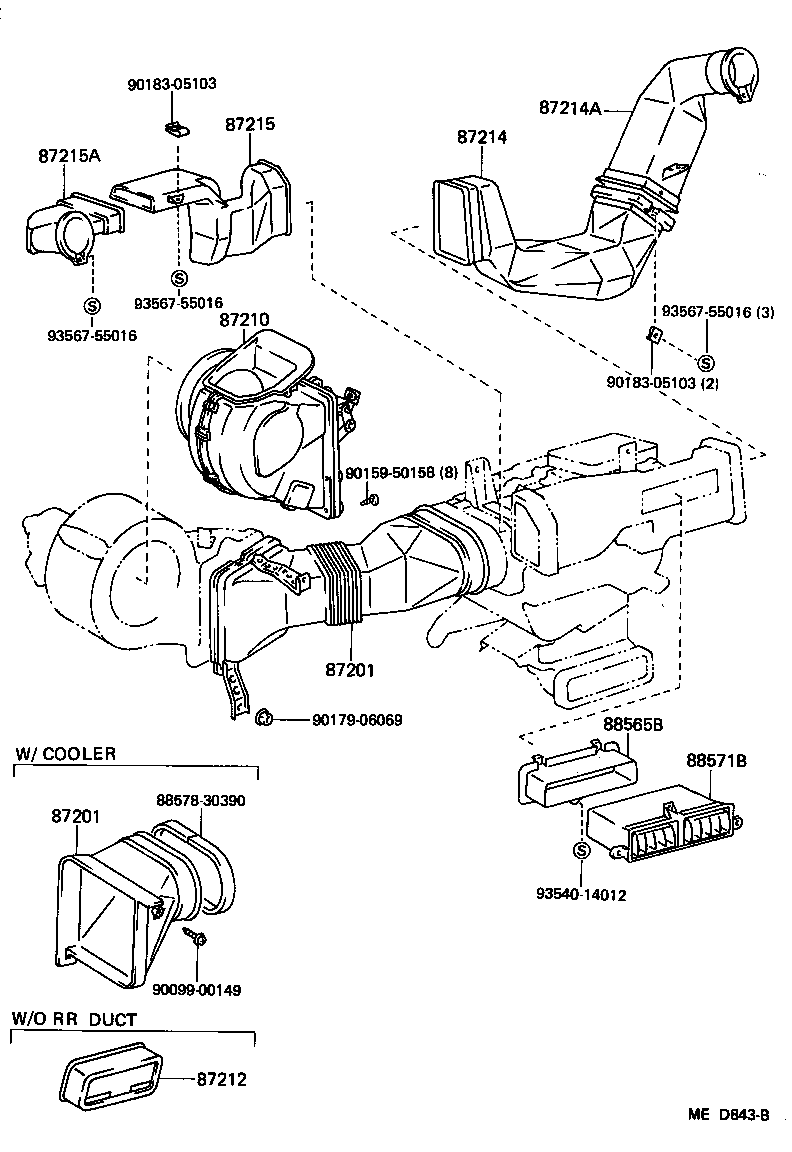

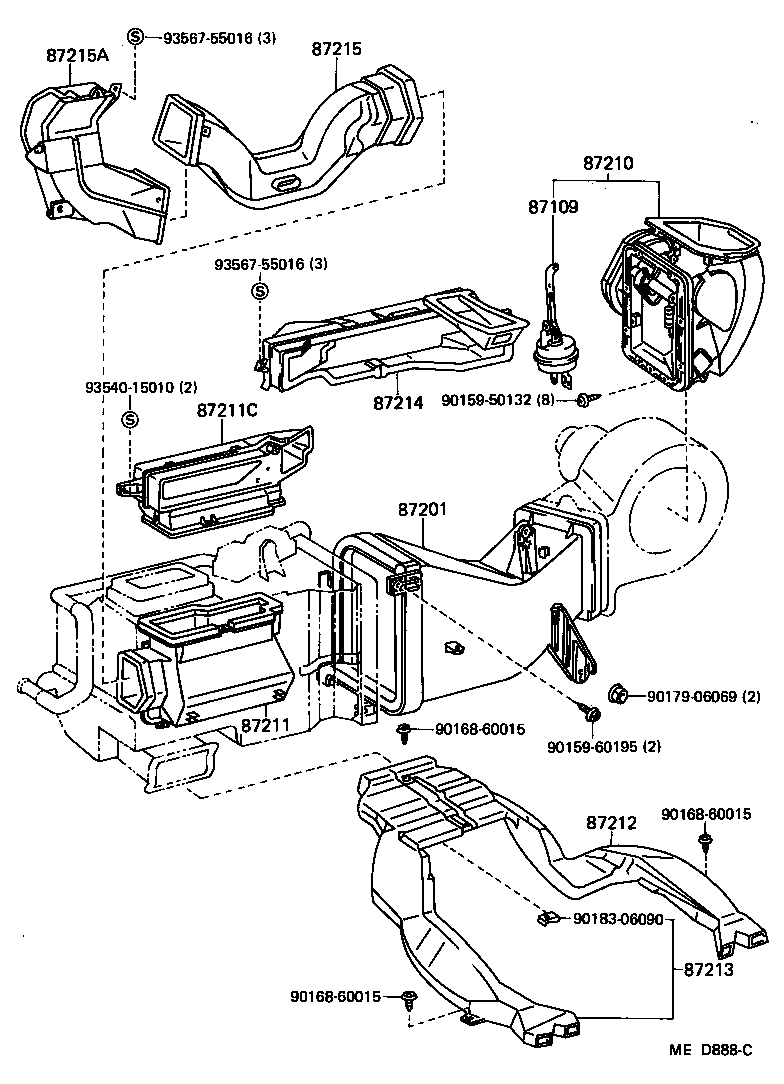

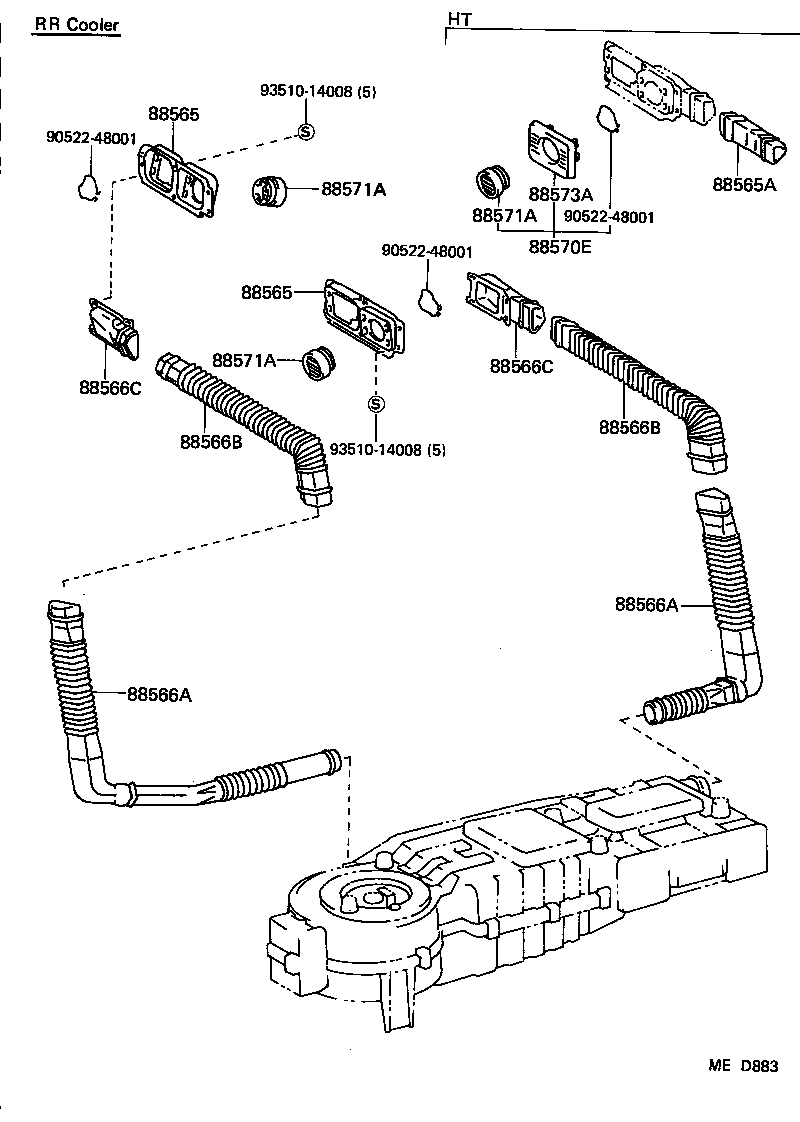

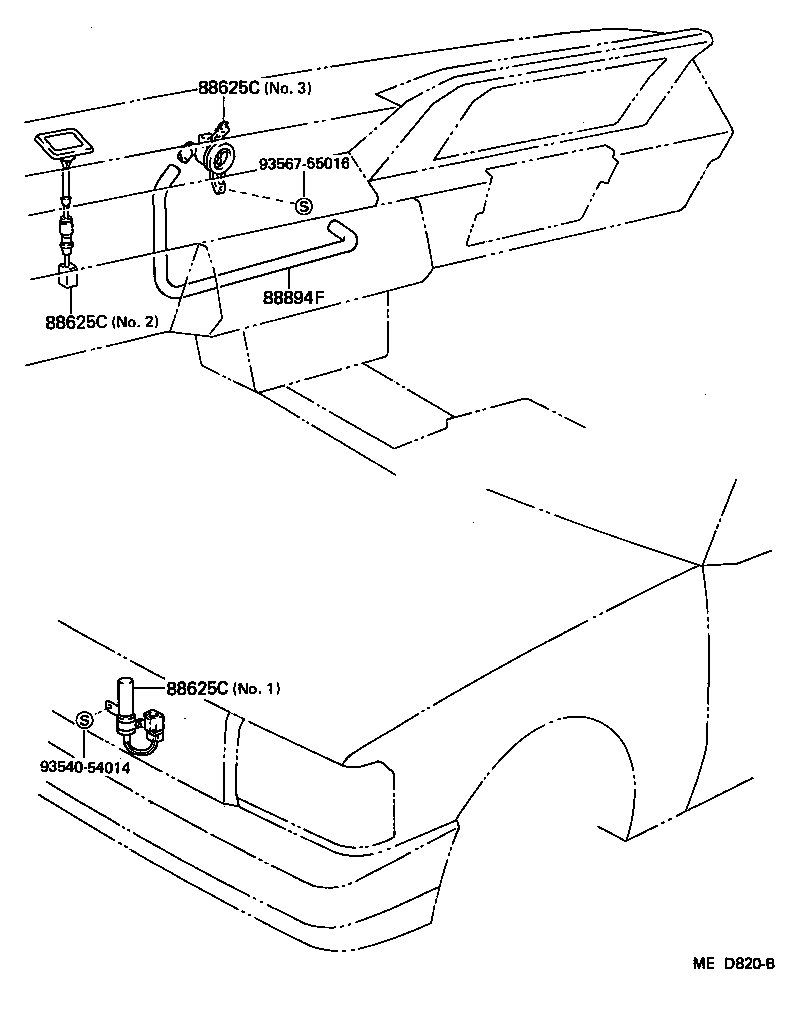

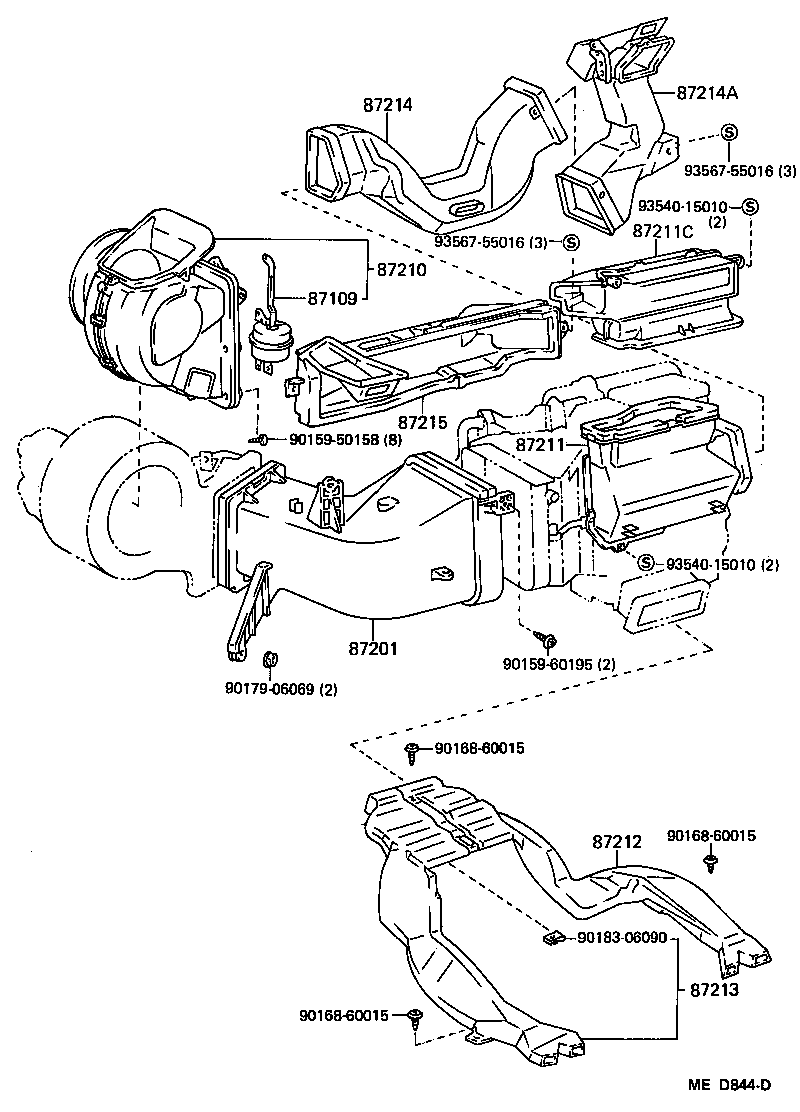

Figure MED841D MED841D 1983-08 → — Figure MED820B MED820B 1983-08 → — Figure MED843B MED843B 1983-08 → — Figure MED844D MED844D 1983-08 → — Figure MED888C MED888C 1983-08 → — Figure MED883 MED883 1983-08 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55903 Lever Sub-assy, Heater Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
87109 Diaphragm Sub-assy, Air Door Control
87201 Duct Sub-assy, Air, NO.1
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88565 Bracket, Cooler Duct
88565A Adapter, Air Duct, NO.1
88565B Adapter, Air Duct, NO.2
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88570E Grille Assy, Air Outlet
88571A Grille, Air Outlet
88571B Grille, Air Outlet
88573A Base, Grille
88600B Panel Assy, Control
88625C Thermistor, Cooler
88681A Switch, Heater Control Vacuum, NO.1
88681B Switch, Heater Control Vacuum, NO.2
88681C Switch, Heater Control Vacuum, NO.3
88894F Hose, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
