Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

18 part groups · 4 illustrations

Illustrations

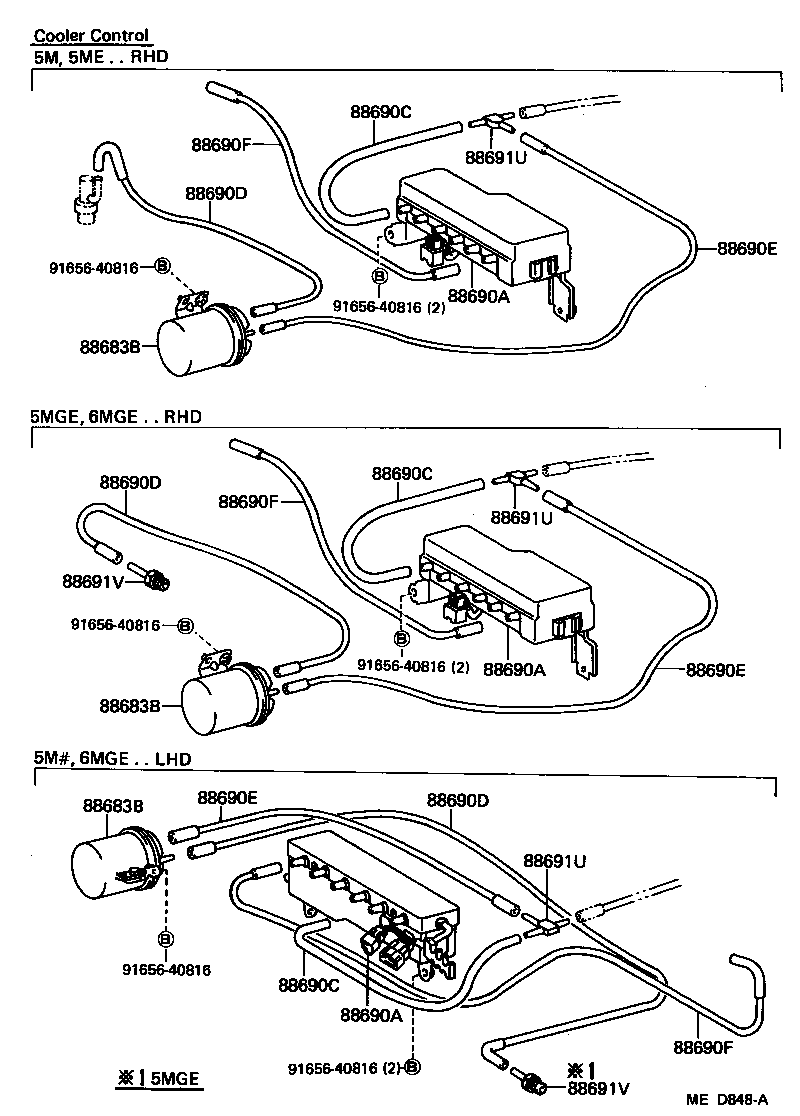

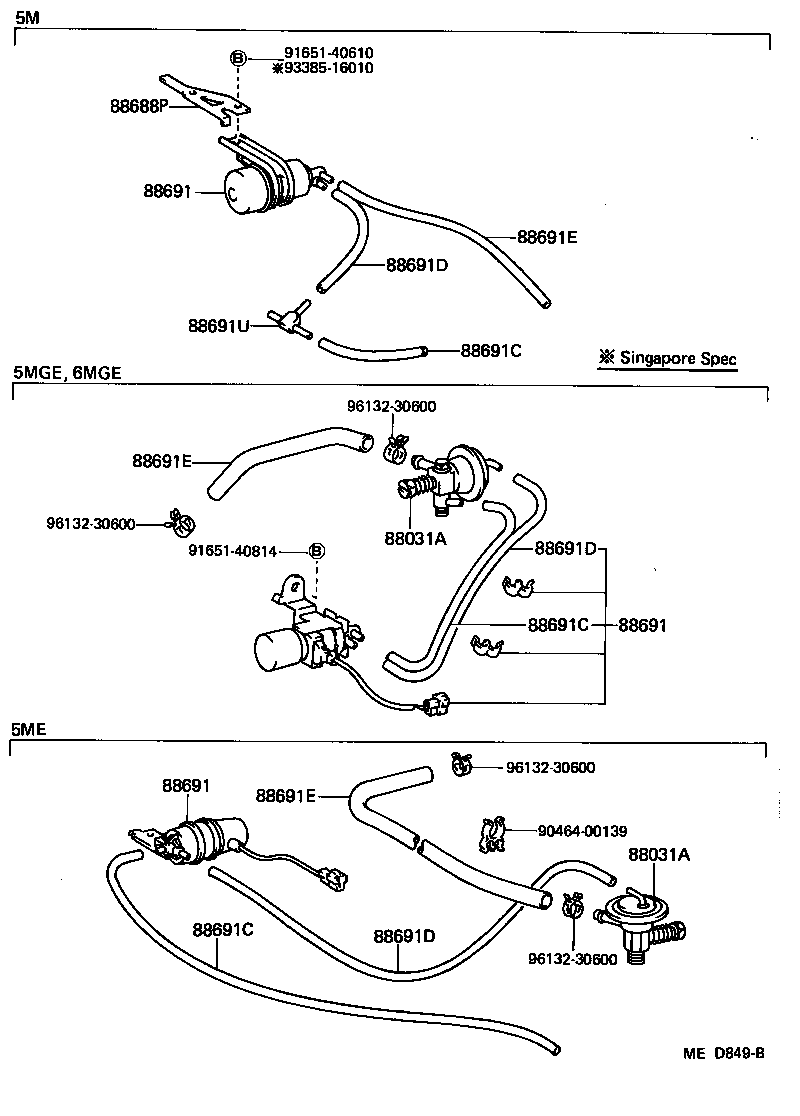

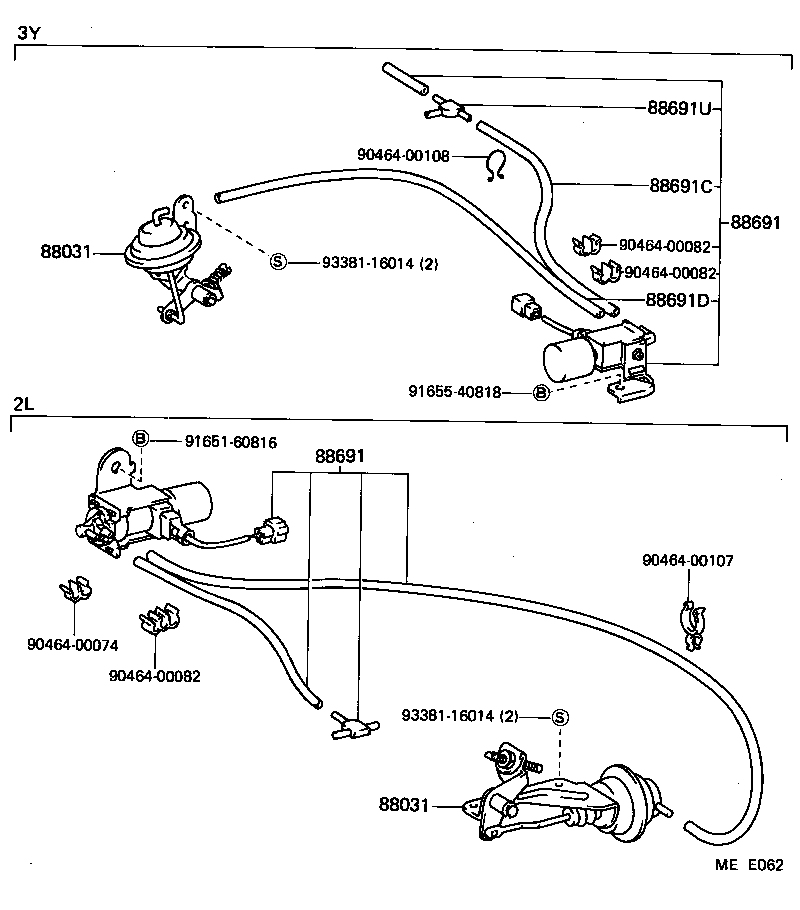

Figure MED847B MED847B 1983-08 → — Figure MED848A MED848A 1983-08 → — Figure MED849B MED849B 1983-08 → — Figure MEE062 MEE062 1983-08 → —

Part groups

PNCDescription
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87293E Union, Hose
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88683B Tank, Vacuum
88688P Bracket (FOR MAGNET VALVE)
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88690F Hose, Vacuum, NO.4 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691E Hose, Vacuum (FOR IDLE UP DIVICE), NO.3
88691U Way(FOR VACUUM HOSE)
88691V Union (FOR VACUUM PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
