Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 8 illustrations

Illustrations

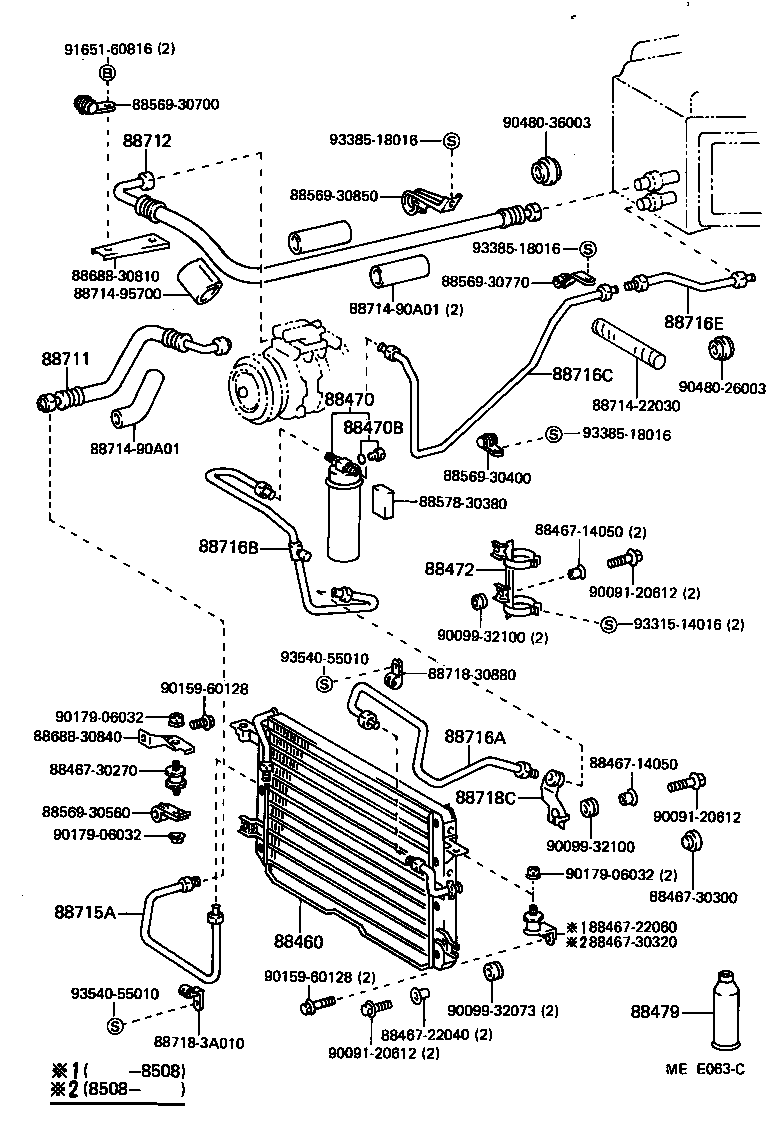

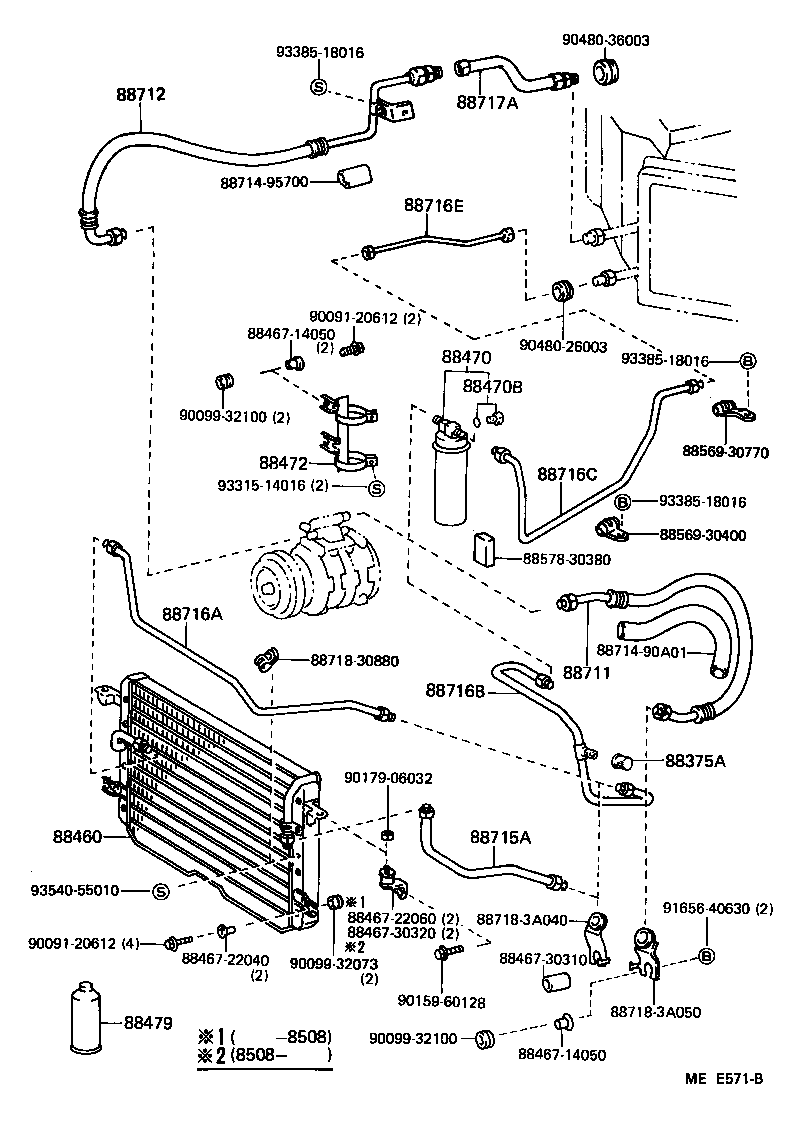

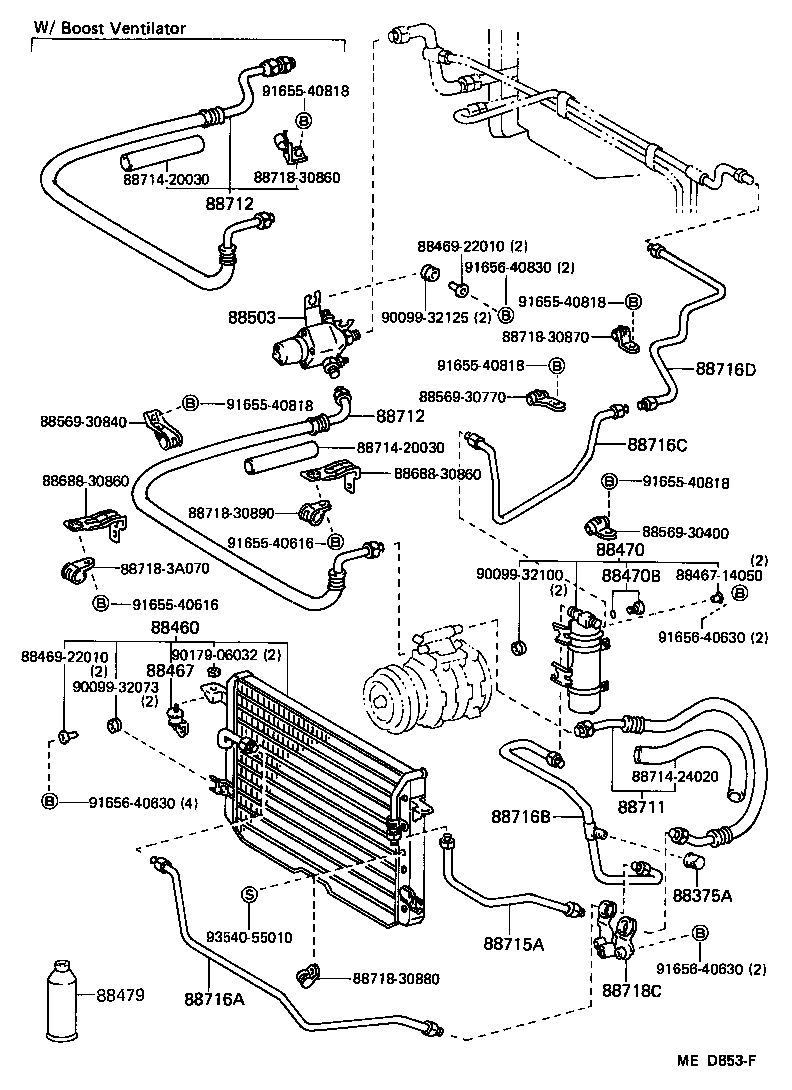

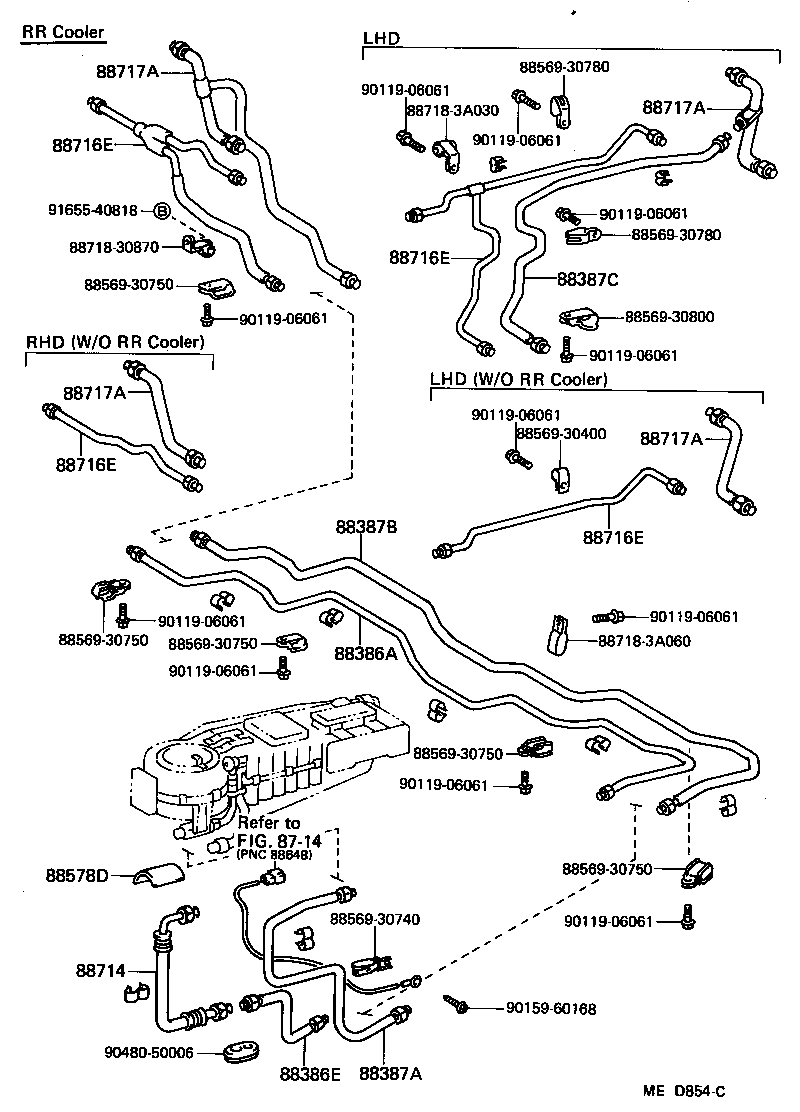

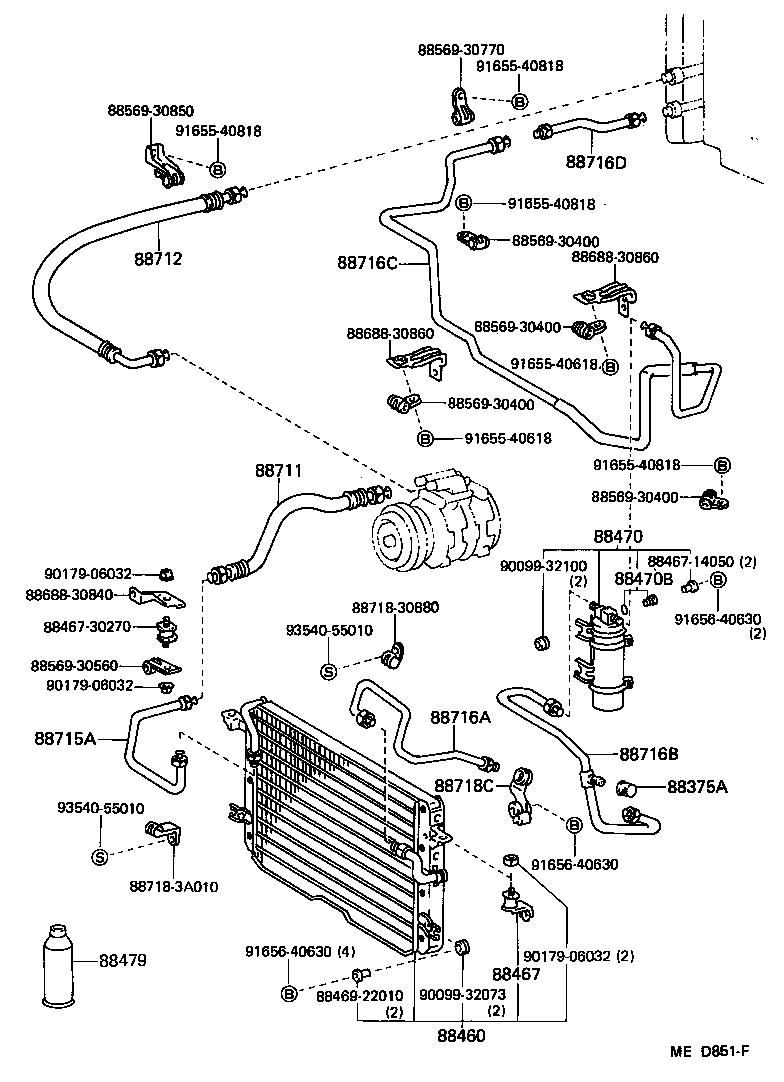

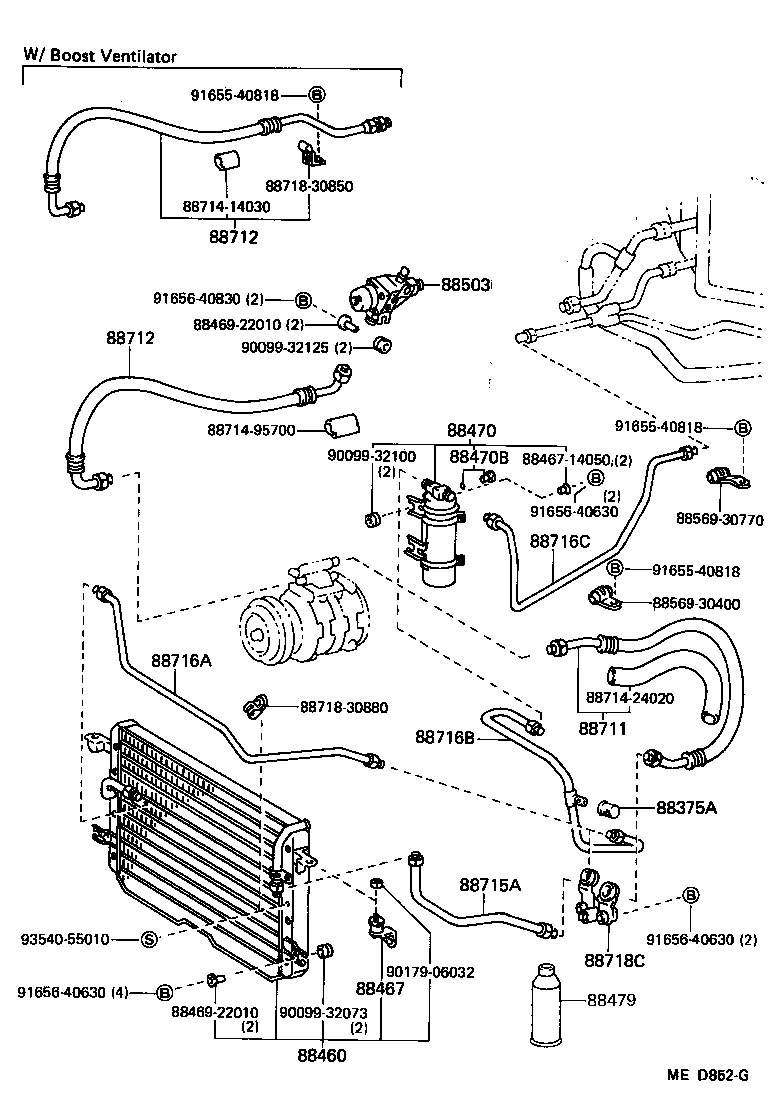

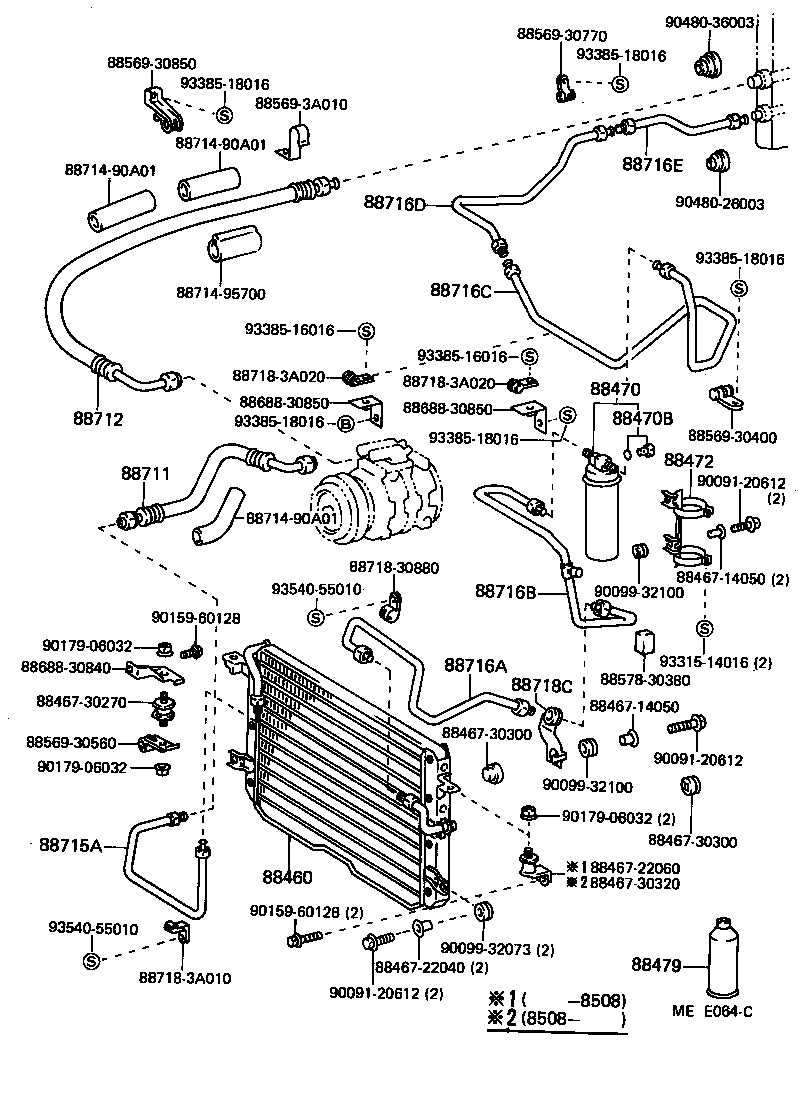

Figure MED850F MED850F 1983-08 → — Figure MEE063C MEE063C 1983-08 → — Figure MED851F MED851F 1983-08 → — Figure MEE064C MEE064C 1983-08 → — Figure MED852G MED852G 1983-08 → — Figure MEE571B MEE571B 1984-01 → — Figure MED853F MED853F 1983-08 → — Figure MED854C MED854C 1983-08 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88386A Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER)
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88578D Packing, Cooler Pipe, NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
