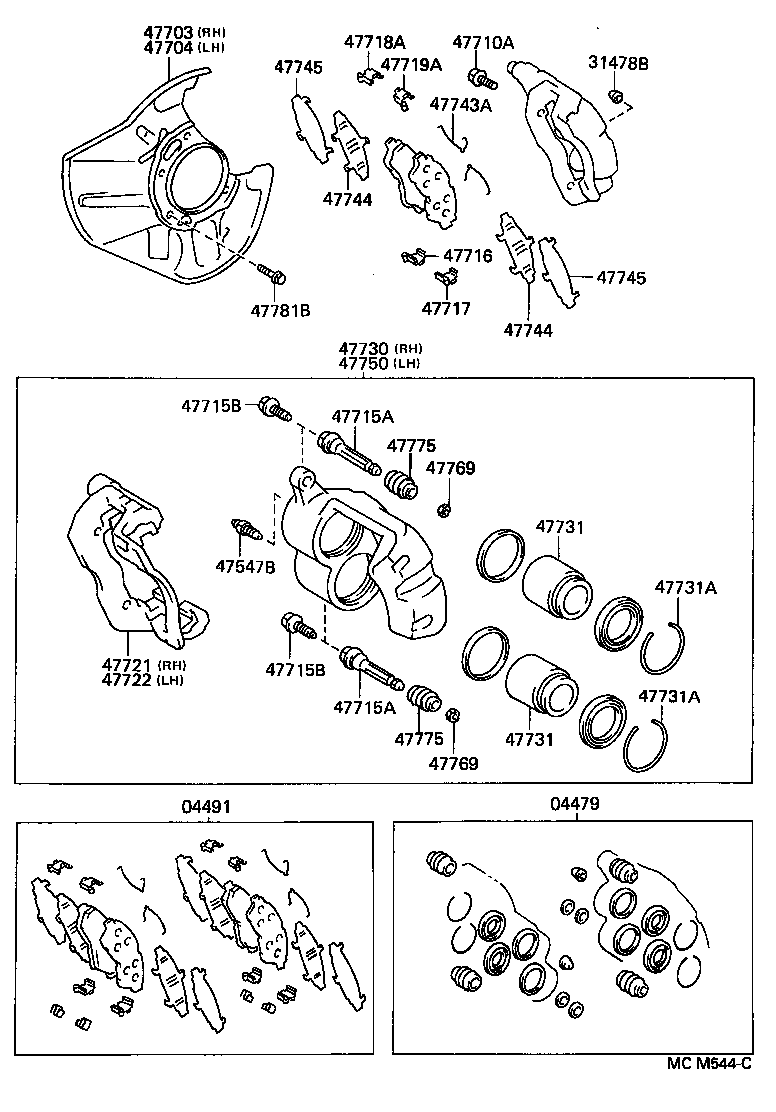

Exploded illustration MCM544C 47703 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH (3 parts) 47718A — PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) (3 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (1 parts) 47704 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH (3 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 47719A — PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) (3 parts) 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (1 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (2 parts) 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (6 parts) 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (1 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (6 parts) 47781B — BOLT(FOR DUST COVER SETTING) (2 parts) 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (4 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (4 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (5 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (3 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (1 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (2 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (3 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (3 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (2 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (5 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (2 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (3 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (3 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (5 parts)
MCM544C · 33 callouts Full size ↗
71 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-30120 Cylinder Kit, Disc Brake, Front
1993-03 → 1995-03 ended
JZS147 —
04479-30121 Cylinder Kit, Disc Brake, Front
1995-03 → 1995-08 ended
JZS147 —
04479-30190 Cylinder Kit, Disc Brake, Front
1995-08 → 1997-08 ended
JZS147 —
04491 — Pad Kit, Disc Brake, Front
04491-30330 Pad Kit, Disc Brake, Front
1993-03 → 1993-04 ended
JZS147 —
04491-30341 Pad Kit, Disc Brake, Front
1993-08 → 1994-10 ended
JZS147 EUR —
04491-30350 Pad Kit, Disc Brake, Front
1994-10 → 1995-05 ended
JZS147 EUR —
04491-50120 Pad Kit, Disc Brake, Front
1993-04 → 1994-11 ended
JZS147 GCC —
04491-50180 Pad Kit, Disc Brake, Front
1994-11 → 1995-05 ended
JZS147 GCC —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-27030 Plug, Bleeder(FOR FRONT DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47703 — Cover Sub-assy, Disc Brake Dust, Front RH
47781-30150 Cover Sub-assy, Disc Brake Dust, Front RH
1993-03 → 1995-08 ended
JZS147 —
47781-30190 Cover Sub-assy, Disc Brake Dust, Front RH
1995-08 → 1996-09 ended
JZS147 —
47781-30191 Cover Sub-assy, Disc Brake Dust, Front RH
1996-09 → 1997-08 ended
JZS147 —
47704 — Cover Sub-assy, Disc Brake Dust, Front LH
47782-30150 Cover Sub-assy, Disc Brake Dust, Front LH
1993-03 → 1995-08 ended
JZS147 —
47782-30190 Cover Sub-assy, Disc Brake Dust, Front LH
1995-08 → 1996-09 ended
JZS147 —
47782-30191 Cover Sub-assy, Disc Brake Dust, Front LH
1996-09 → 1997-08 ended
JZS147 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12228 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1993-03 → 1997-08 ended
JZS147 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-22070 note Pin, Front Disc Brake Cylinder Slide
1995-09 → 1997-08 ended
JZS147 —
47715-30060 note Pin, Front Disc Brake Cylinder Slide
1995-09 → 1997-08 ended
JZS147 —
47715-50010 note Pin, Front Disc Brake Cylinder Slide
1995-08 → 1995-09 ended
JZS147 —
47715-50020 Pin, Front Disc Brake Cylinder Slide
1993-03 → 1995-08 ended
JZS147 —
47715-50030 note Pin, Front Disc Brake Cylinder Slide
1995-08 → 1995-09 ended
JZS147 —
47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
1993-03 → 1997-08 ended
JZS147 —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-24010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-03 → 1993-04 ended
JZS147 —
47716-24010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-04 → 1994-02 ended
JZS147 EUR —
47716-24010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 EUR —
47716-50050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-04 → 1994-02 ended
JZS147 GCC —
47716-50050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1994-02 → 1994-11 ended
JZS147 —
47716-50051 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1994-11 → 1995-08 ended
JZS147 —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47716-24020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-03 → 1993-04 ended
JZS147 —
47716-24020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-04 → 1994-02 ended
JZS147 EUR —
47716-24020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 EUR —
47716-50060 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-04 → 1994-02 ended
JZS147 GCC —
47716-50060 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1994-02 → 1994-11 ended
JZS147 —
47716-50061 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1994-11 → 1995-08 ended
JZS147 —
47718A — Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
47717-24010 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1993-03 → 1994-11 ended
JZS147 —
47717-30070 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 —
47717-50051 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1994-11 → 1995-08 ended
JZS147 —
47719A — Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
47717-24020 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1993-03 → 1994-11 ended
JZS147 —
47717-30080 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 —
47717-50061 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1994-11 → 1995-08 ended
JZS147 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-30130 Mounting, Front Disc Brake Cylinder, RH
1993-03 → 1994-02 ended
JZS147 —
47721-30132 Mounting, Front Disc Brake Cylinder, RH
1994-02 → 1995-08 ended
JZS147 —
47721-30180 Mounting, Front Disc Brake Cylinder, RH
1995-08 → 1997-08 ended
JZS147 —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-30050 Mounting, Front Disc Brake Cylinder, LH
1993-03 → 1994-02 ended
JZS147 —
47722-30052 Mounting, Front Disc Brake Cylinder, LH
1994-02 → 1995-08 ended
JZS147 —
47722-30100 Mounting, Front Disc Brake Cylinder, LH
1995-08 → 1997-08 ended
JZS147 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-30230 Cylinder Assy, Front Disc Brake, RH
1993-03 → 1993-04 ended
JZS147 —
47730-30231 Cylinder Assy, Front Disc Brake, RH
1993-04 → 1994-02 ended
JZS147 —
47730-30233 Cylinder Assy, Front Disc Brake, RH
1994-02 → 1995-08 ended
JZS147 —
47730-30400 Cylinder Assy, Front Disc Brake, RH
1995-08 → 1997-08 ended
JZS147 —
47731 — Piston, Front Disc Brake
47731-30140 Piston, Front Disc Brake
1995-09 → 1997-08 ended
JZS147 —
47731-50030 Piston, Front Disc Brake
1993-03 → 1995-09 ended
JZS147 —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90520-52006 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1995-09 → 1997-08 ended
JZS147 —
90522-50002 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1993-03 → 1995-09 ended
JZS147 —
47743A — Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47743-30020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1993-03 → 1993-04 ended
JZS147 —
47743-30020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1993-04 → 1997-08 ended
JZS147 EUR —
47744 — Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744-14130 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-04 → 1995-10 ended
JZS147 —
47744-14130 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1995-10 → 1997-08 ended
JZS147 GCC —
47745 — Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745-14060 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-04 → 1997-08 ended
JZS147 —
47750 — Cylinder Assy, Disc Brake, LH
47750-30230 Cylinder Assy, Disc Brake, LH
1993-03 → 1993-04 ended
JZS147 —
47750-30231 Cylinder Assy, Disc Brake, LH
1993-04 → 1994-02 ended
JZS147 —
47750-30233 Cylinder Assy, Disc Brake, LH
1994-02 → 1995-08 ended
JZS147 —
47750-30400 Cylinder Assy, Disc Brake, LH
1995-08 → 1997-08 ended
JZS147 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-03 → 1995-08 ended
JZS147 —
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 —
47769-50020 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-03 → 1995-08 ended
JZS147 —
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-30070 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 —
47775-50010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47781B — Bolt(FOR DUST COVER SETTING)
90119-06227 note Bolt(FOR DUST COVER SETTING)
1993-03 → 1996-09 ended
JZS147 —
90148-60028 note Bolt(FOR DUST COVER SETTING)
1996-09 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
