Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe
Discontinued model
Data version 1997-12

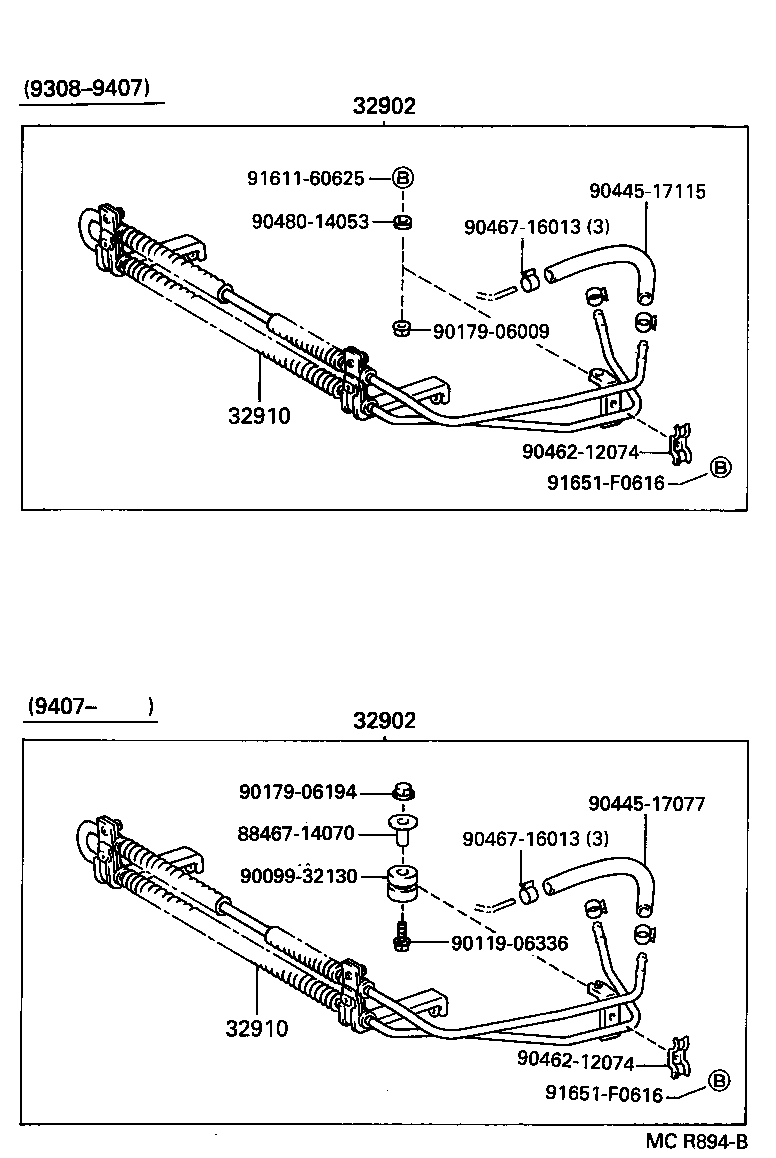

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32902 — Cooler Set, Transmission Oil | ||||
| 32902-30010 |
Cooler Set, Transmission Oil
1993-08 → 1994-07
ended
|
JZS147 EUR | — | |
| 32902-30011 |
Cooler Set, Transmission Oil
1994-07 → 1997-08
ended
|
JZS147 EUR | — | |
| 32910 — Cooler Assy, Oil | ||||
| 32910-30030 |
Cooler Assy, Oil
1993-08 → 1994-07
ended
|
JZS147 EUR | — | |
| 32910-30031 |
Cooler Assy, Oil
1994-07 → 1997-08
ended
|
JZS147 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
