Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

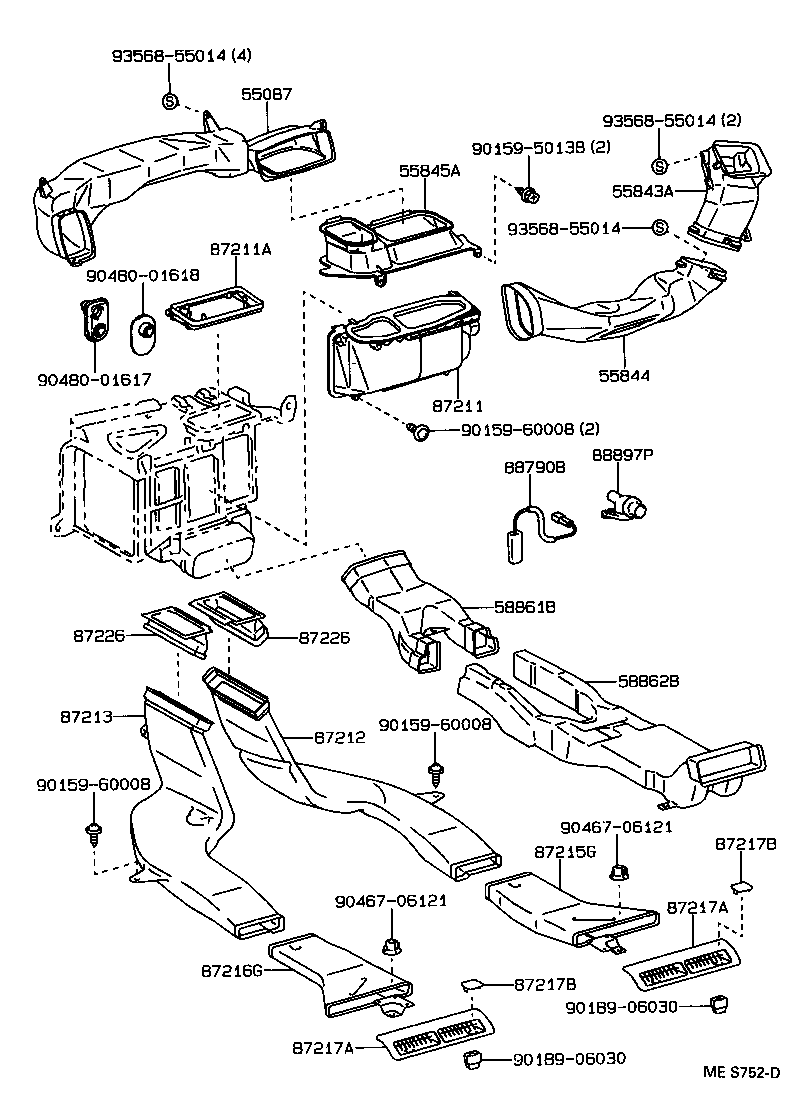

Exploded illustration MES752D 9356855014 — not listed in this catalogue 55087 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 (2 parts) 9356855014 — not listed in this catalogue 9015950138 — not listed in this catalogue 55845A — DUCT, HEATER TO REGISTER, NO.3 (2 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (2 parts) 9356855014 — not listed in this catalogue 87211A — DUCT, AIR, NO.2 (1 parts) 9048001618 — not listed in this catalogue 55844 — DUCT, HEATER TO REGISTER, NO.2 (2 parts) 9048001617 — not listed in this catalogue 87211 — DUCT, AIR, NO.1 (2 parts) 9015960008 — not listed in this catalogue 88897P — ASPIRATOR (2 parts) 88790B — THERMISTOR ASSY (1 parts) 58861B — DUCT, CONSOLE BOX, NO.1 (2 parts) 87226 — ADAPTER, AIR DUCT (2 parts) 87226 — ADAPTER, AIR DUCT (2 parts) 58862B — DUCT, CONSOLE BOX, NO.2 (2 parts) 87213 — DUCT, AIR, REAR NO.2 (1 parts) 9015960008 — not listed in this catalogue 87212 — DUCT, AIR, REAR NO.1 (1 parts) 9015960008 — not listed in this catalogue 9046706121 — not listed in this catalogue 87217B — PLUG, AIR DUCT (3 parts) 87215G — GUIDE, AIR DUCT, REAR RH (1 parts) 9046706121 — not listed in this catalogue 87217A — DUCT, AIR, REAR NO.6 (3 parts) 87216G — GUIDE, AIR DUCT, REAR LH (1 parts) 87217B — PLUG, AIR DUCT (3 parts) 9018906030 — not listed in this catalogue 87217A — DUCT, AIR, REAR NO.6 (3 parts) 9018906030 — not listed in this catalogue
MES752D · 20 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
55087 — Duct Sub-assy, Heater TO Register, NO.4
55085-30130 Duct Sub-assy, Heater TO Register, NO.4
1993-08 → 1997-08 ended
JZS147 RHD —
55846-30140 Duct Sub-assy, Heater TO Register, NO.4
1993-03 → 1997-08 ended
JZS147 LHD —
55843A — Duct, Heater TO Register, NO.1
55843-30150 Duct, Heater TO Register, NO.1
1993-08 → 1997-08 ended
JZS147 RHD —
55843-30180 Duct, Heater TO Register, NO.1
1993-03 → 1997-08 ended
JZS147 LHD —
55844 — Duct, Heater TO Register, NO.2
55844-30140 Duct, Heater TO Register, NO.2
1993-08 → 1997-08 ended
JZS147 RHD —
55844-30150 Duct, Heater TO Register, NO.2
1993-03 → 1997-08 ended
JZS147 LHD —
55845A — Duct, Heater TO Register, NO.3
55845-30170 Duct, Heater TO Register, NO.3
1993-08 → 1997-08 ended
JZS147 RHD —
55845-30180 Duct, Heater TO Register, NO.3
1993-03 → 1997-08 ended
JZS147 LHD —
58861B — Duct, Console Box, NO.1
58861-30051 Duct, Console Box, NO.1
1993-08 → 1997-08 ended
JZS147 RHD —
58861-30060 Duct, Console Box, NO.1
1993-03 → 1997-08 ended
JZS147 LHD —
58862B — Duct, Console Box, NO.2
58086-30011 Duct, Console Box, NO.2
1993-08 → 1997-08 ended
JZS147 RHD —
58086-30020 Duct, Console Box, NO.2
1993-03 → 1997-08 ended
JZS147 LHD —
87211 — Duct, Air, NO.1
87201-30570 Duct, Air, NO.1
1993-08 → 1997-08 ended
JZS147 RHD —
87201-30590 Duct, Air, NO.1
1993-03 → 1997-08 ended
JZS147 LHD —
87211A — Duct, Air, NO.2
87201-30550 Duct, Air, NO.2
1993-08 → 1997-08 ended
JZS147 RHD —
87212 — Duct, Air, Rear NO.1
87212-30350 Duct, Air, Rear NO.1
1993-03 → 1997-08 ended
JZS147 —
87213 — Duct, Air, Rear NO.2
87213-30270 Duct, Air, Rear NO.2
1993-03 → 1997-08 ended
JZS147 —
87215G — Guide, Air Duct, Rear RH
87215-30260 Guide, Air Duct, Rear RH
1993-03 → 1997-08 ended
JZS147 —
87216G — Guide, Air Duct, Rear LH
87216-30240 Guide, Air Duct, Rear LH
1993-03 → 1997-08 ended
JZS147 —
87217A — Duct, Air, Rear NO.6
87217-50030-A0 note Duct, Air, Rear NO.6
1993-03 → 1997-08 ended
JZS147 —
87217-50030-B0 note Duct, Air, Rear NO.6
1993-03 → 1997-08 ended
JZS147 —
87217-50030-G0 note Duct, Air, Rear NO.6
1993-03 → 1997-08 ended
JZS147 —
87217B — Plug, Air Duct
90950-01693-A0 note Plug, Air Duct
1993-03 → 1997-08 ended
JZS147 —
90950-01693-B0 note Plug, Air Duct
1993-03 → 1997-08 ended
JZS147 —
90950-01693-G0 note Plug, Air Duct
1993-03 → 1997-08 ended
JZS147 —
87226 — Adapter, Air Duct
87226-30020 note Adapter, Air Duct
1993-03 → 1997-08 ended
JZS147 —
87226-30030 note Adapter, Air Duct
1993-03 → 1997-08 ended
JZS147 —
88790B — Thermistor Assy
88790-28010 Thermistor Assy
1993-03 → 1997-08 ended
JZS147 —
88897P — Aspirator
88897-30710 Aspirator
1993-08 → 1997-08 ended
JZS147 RHD —
88897-30730 Aspirator
1993-03 → 1997-08 ended
JZS147 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
