Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

33 part groups · 2 illustrations

Illustrations

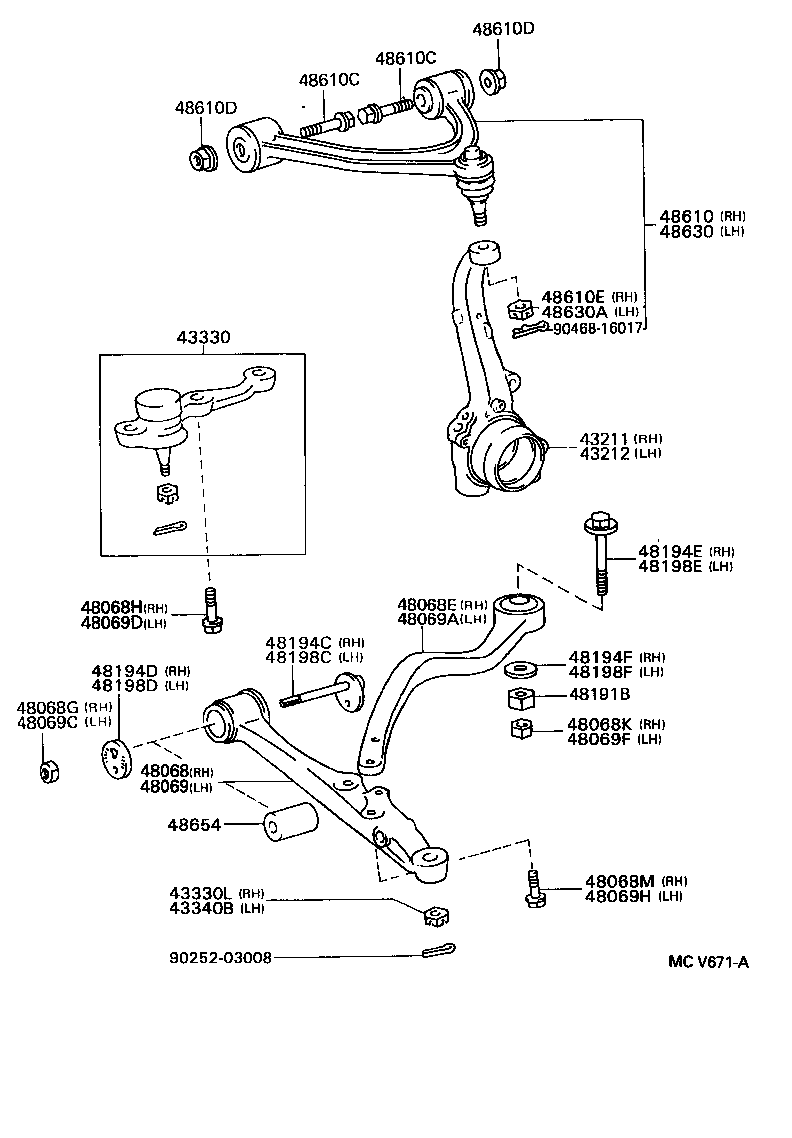

Figure MCP385B MCP385B 1993-03 → 1995-08 Figure MCV671A MCV671A 1995-08 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43212 Knuckle, Steering, LH
43330 Joint Assy, Lower Ball, Front
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068E Arm Sub-assy, Front Suspension, Lower NO.2 RH
48068G Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068K Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48068M Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069A Arm Sub-assy, Front Suspension, Lower NO.2 LH
48069C Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069F Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48069H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48191B Plate, Caster Adjust
48194C Cam, Front Suspension Camber Adjust, NO.1 RH
48194D Cam, Front Suspension Camber Adjust, NO.2 RH
48194E Cam, Front Suspension Camber Adjust, NO.3 RH
48194F Cam, Front Suspension Camber Adjust, NO.4 RH
48198C Cam, Front Suspension Camber Adjust, NO.1 LH
48198D Cam, Front Suspension Camber Adjust, NO.2 LH
48198E Cam, Front Suspension Camber Adjust, NO.3 LH
48198F Cam, Front Suspension Camber Adjust, NO.4 LH
48610 Arm Assy, Front Suspension Upper, RH
48610C Bolt(FOR SUSPENSION UPPER ARM)
48610D Nut(FOR SUSPENSION UPPER ARM)
48610E Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH)
48630 Arm Assy, Front Suspension, Upper LH
48630A Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH)
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
