Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe
Discontinued model
Data version 1997-12

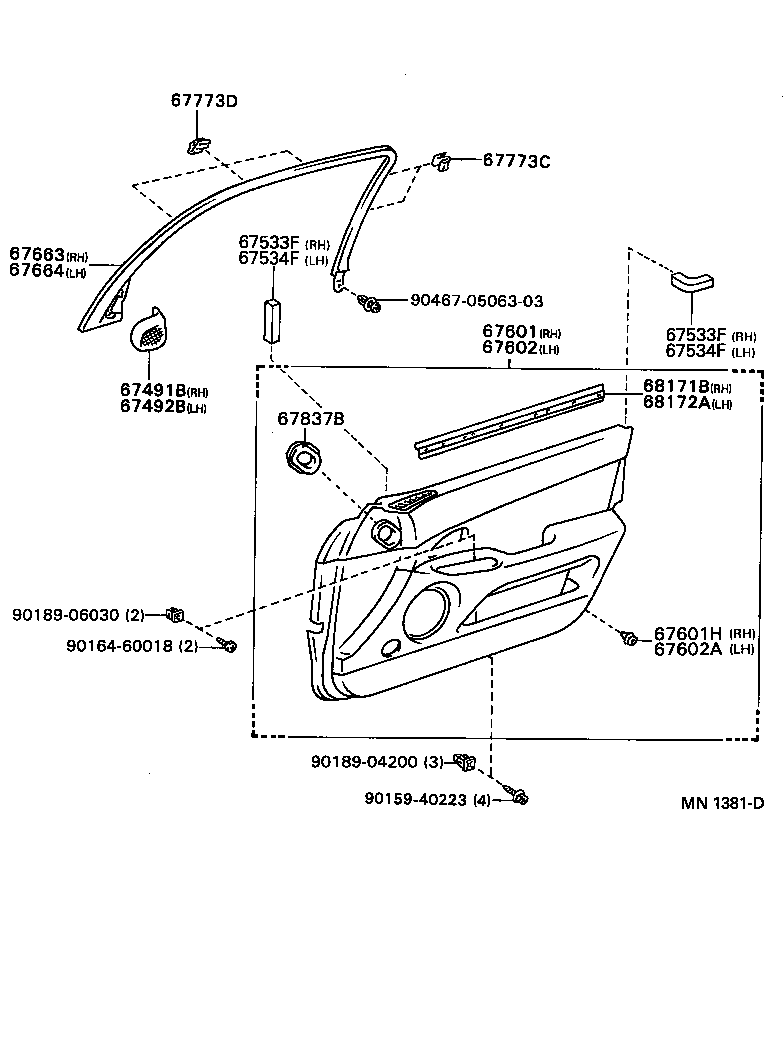

Front Door Panel & Glass
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67411 | Frame, Front Door Window, Front Upper RH |
| 67412A | Frame, Front Door Window, Front Upper LH |
| 67491B | Garnish, Front Door Window Upper Bracket, RH |
| 67492B | Garnish, Front Door Window Upper Bracket, LH |
| 67533F | Pad, Front Door Lower Frame Garnish, RH |
| 67534F | Pad, Front Door Lower Frame Garnish, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601H | Retainer, Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67773C | Clip, Door Trim Upper Retainer, NO.1 |
| 67773D | Clip, Door Trim Upper Retainer, NO.2 |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837B | Seal, Front Door Dust Proof |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68211B | Clip(FOR FRONT DOOR GLASS WEATHERSTRIP) |
| 68220A | Weatherstrip Assy, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
