Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 13 illustrations

Illustrations

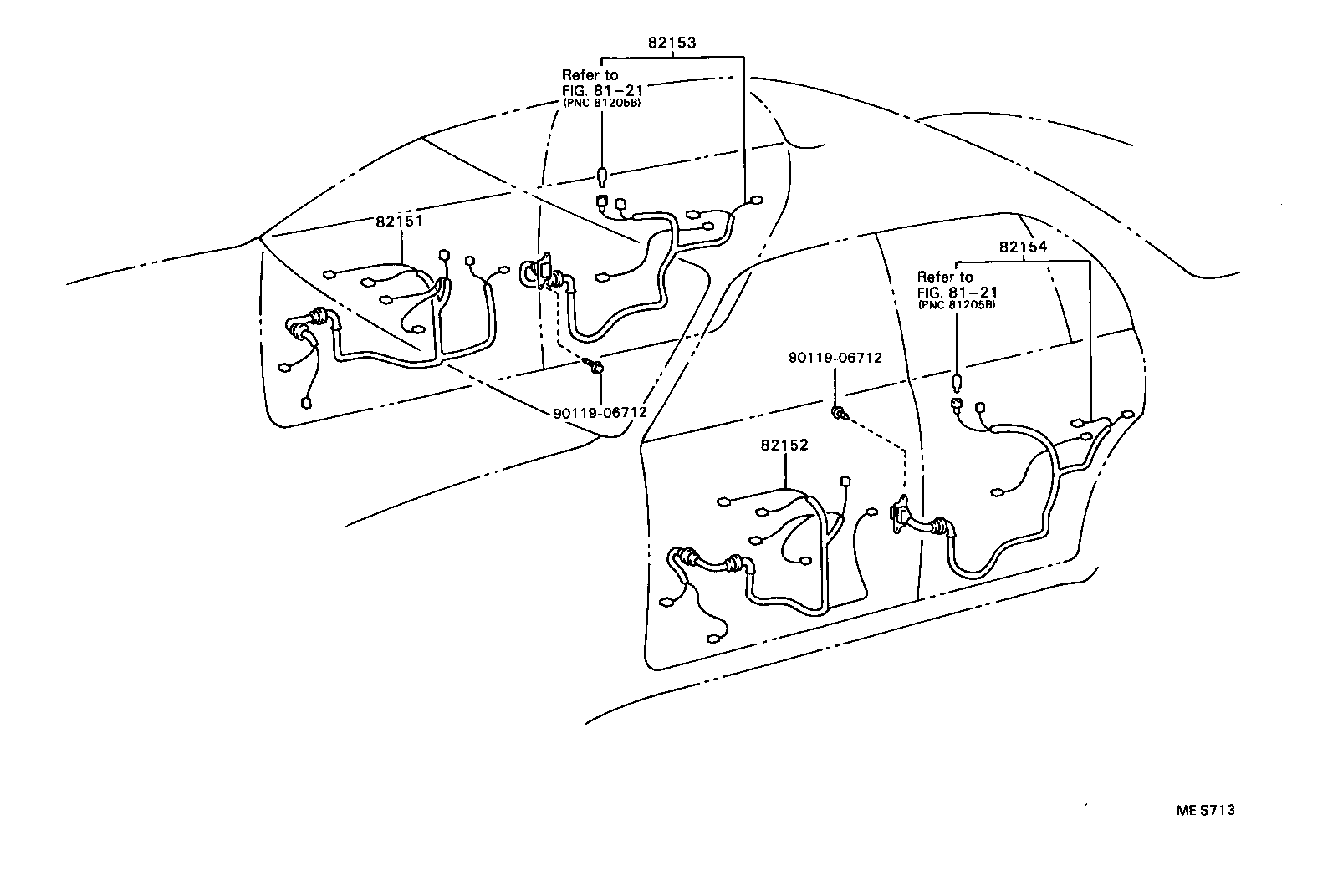

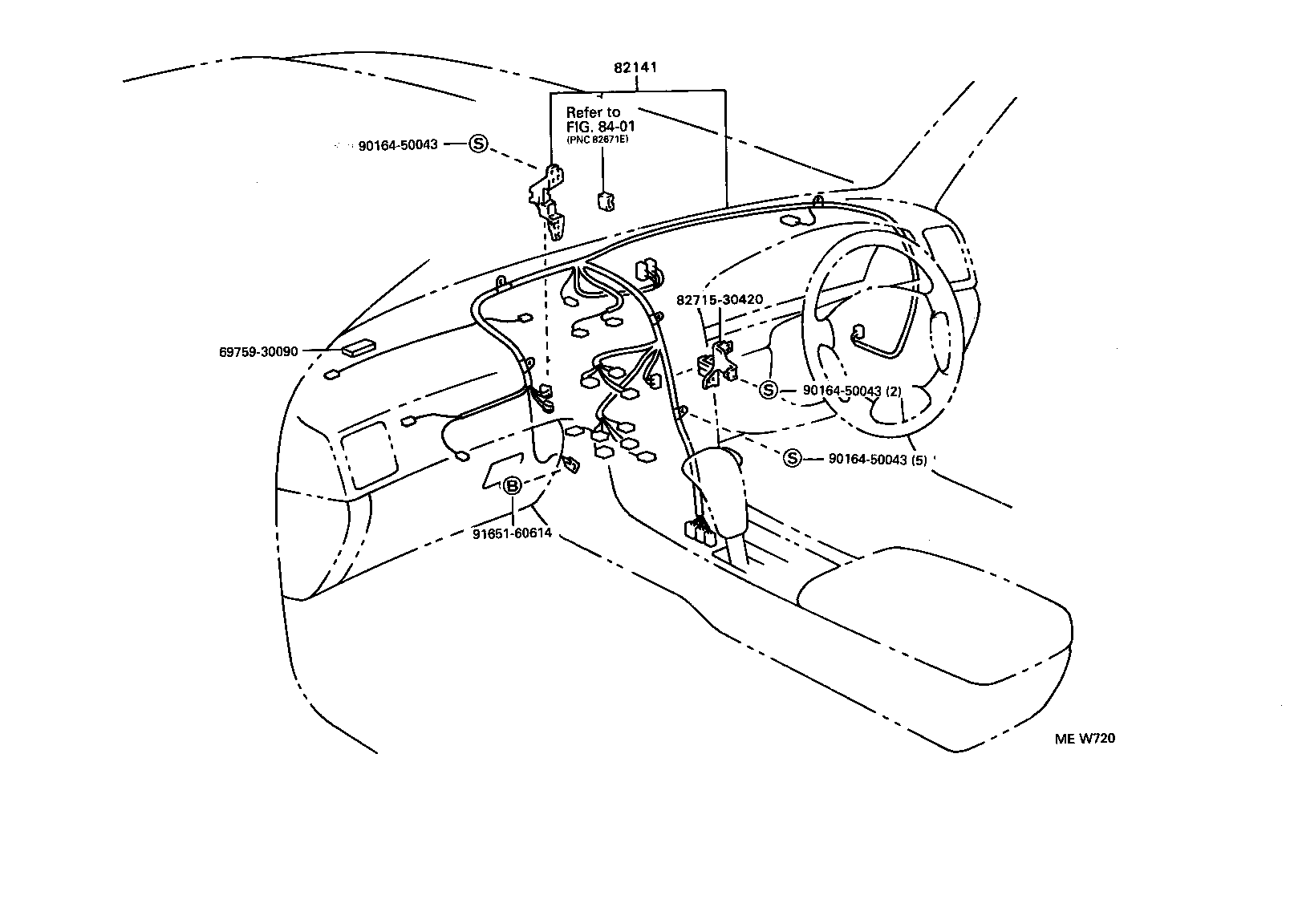

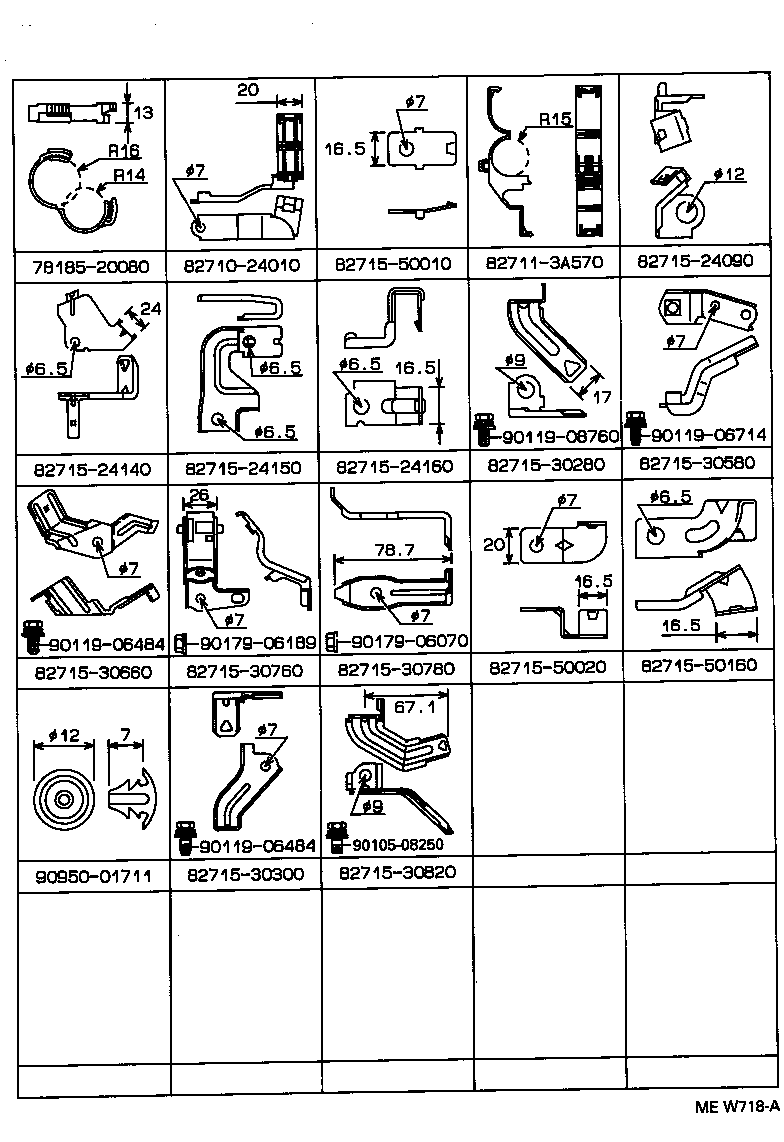

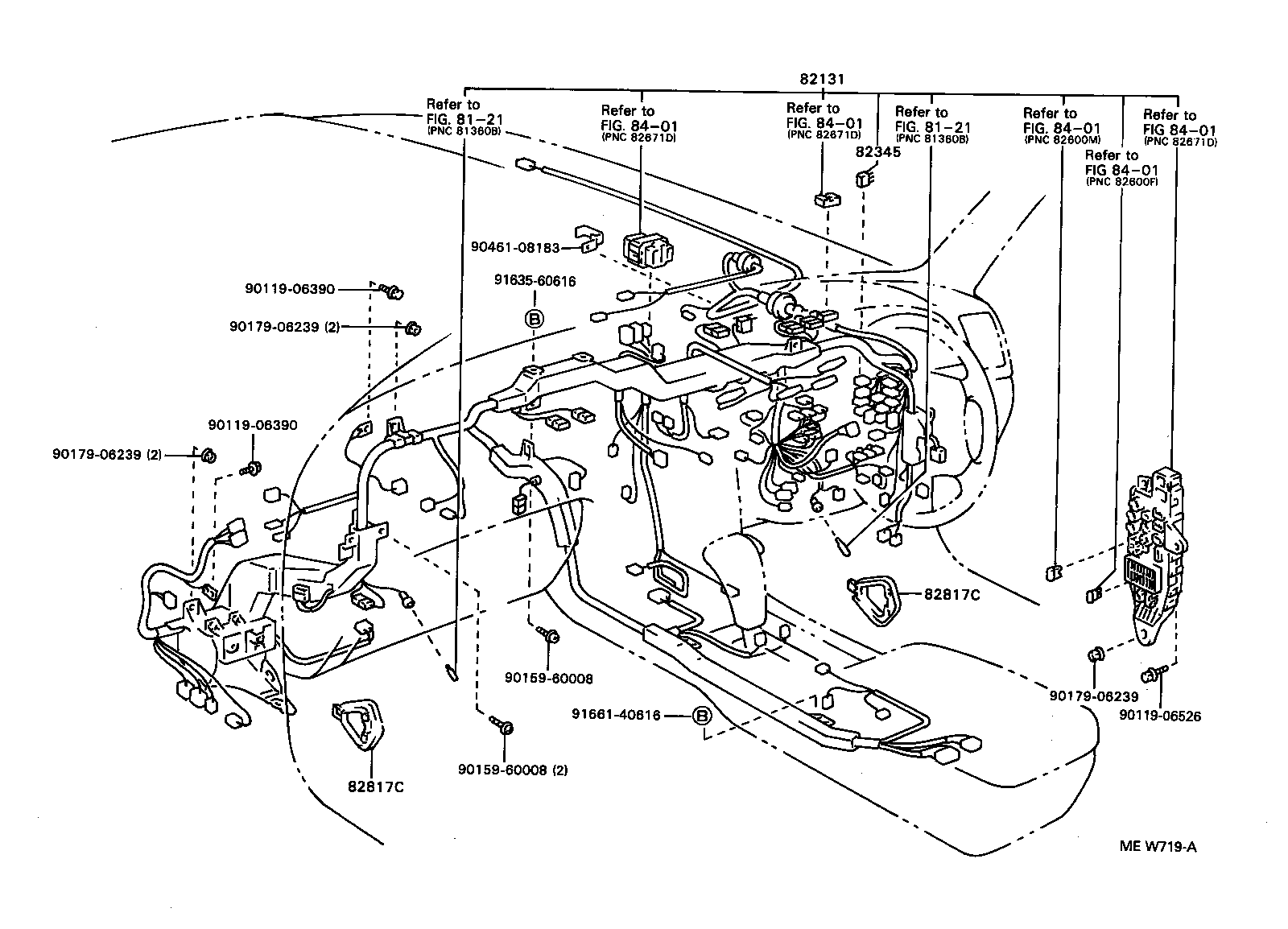

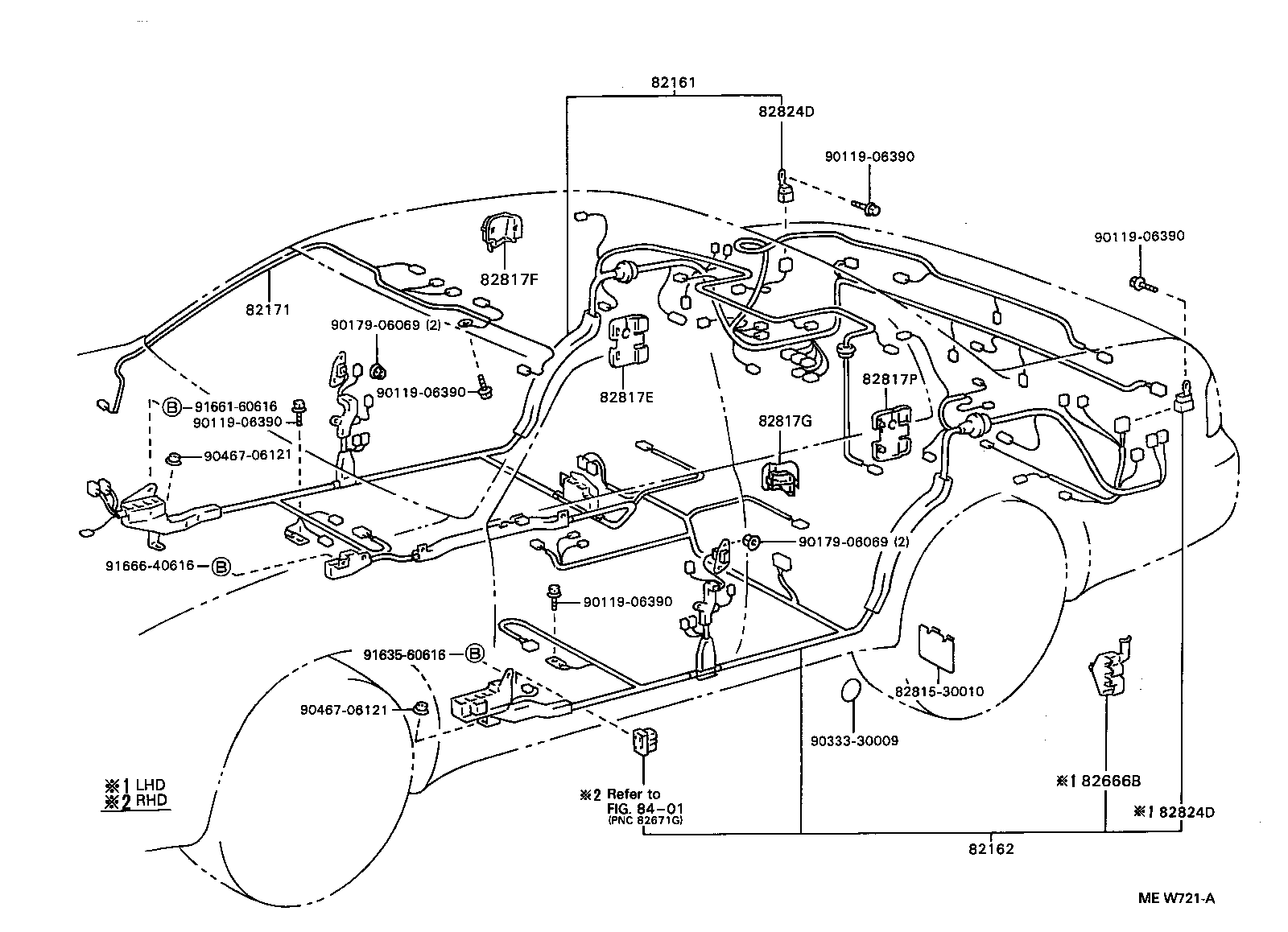

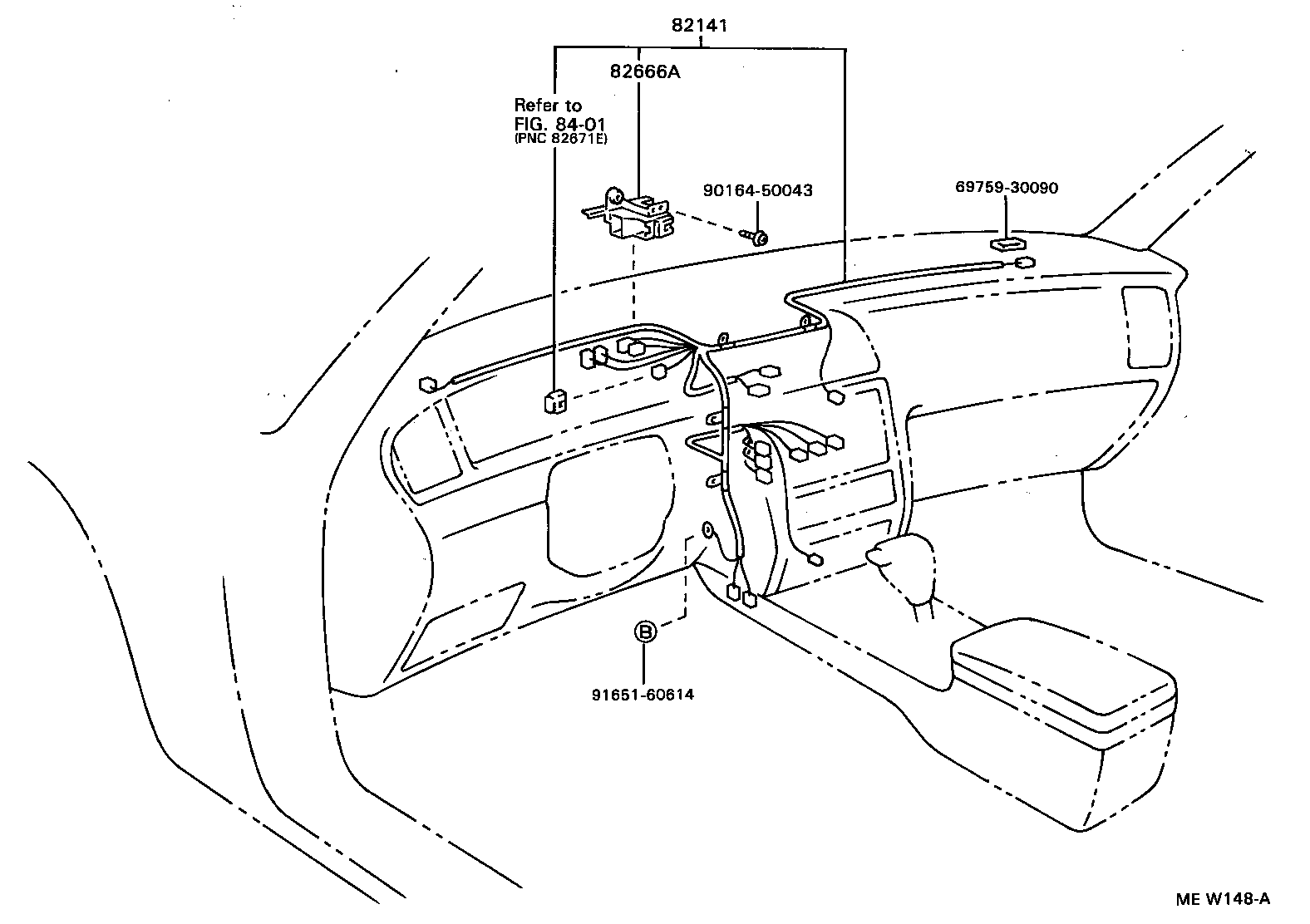

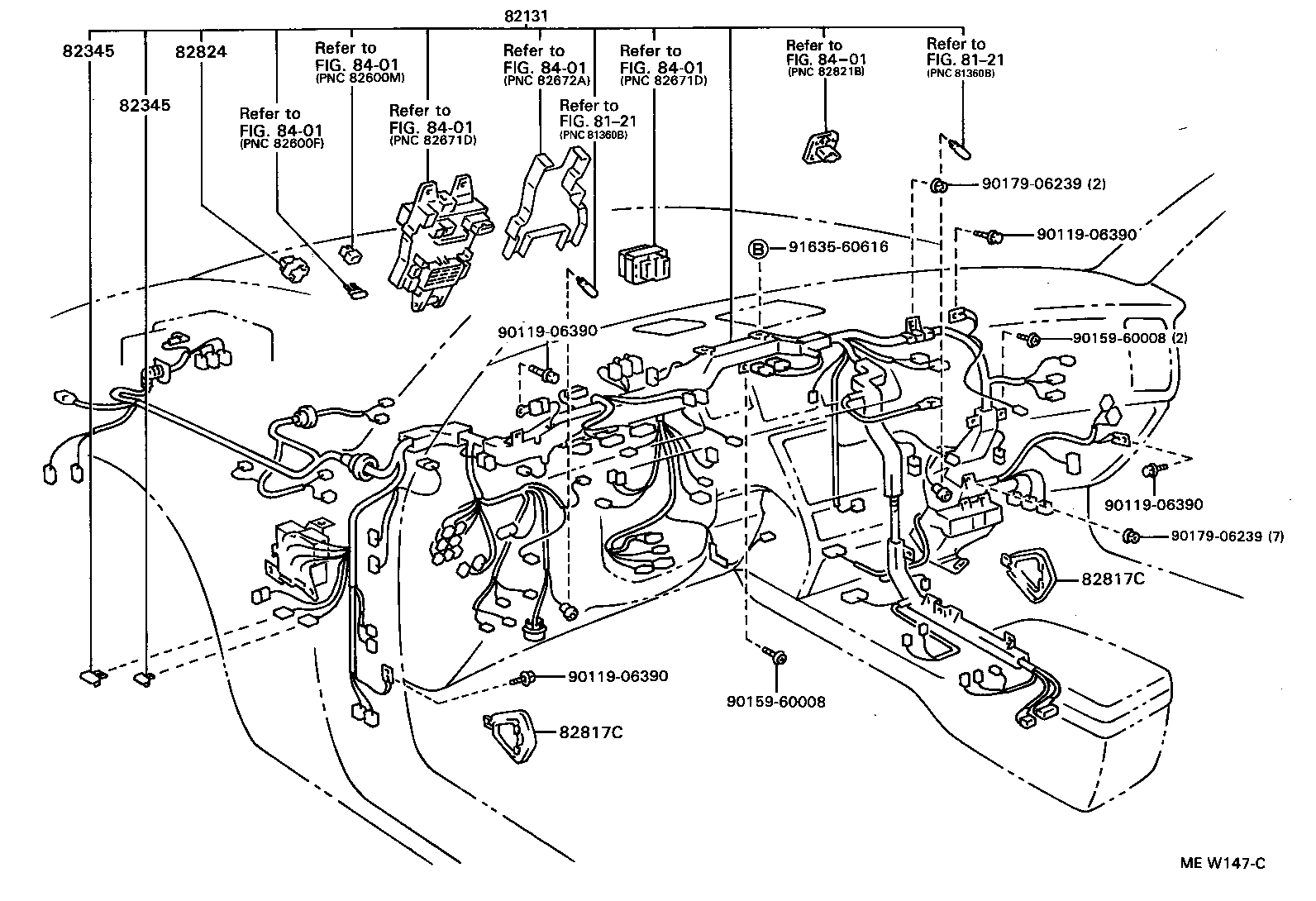

Figure MEW717D MEW717D 1993-03 → 1997-08 Figure MES707B MES707B 1993-03 → 1997-08 Figure MEW718A MEW718A 1993-03 → 1997-08 Figure MEW719A MEW719A 1993-08 → 1997-08 Figure MEW147C MEW147C 1993-03 → 1997-08 Figure MEW148A MEW148A 1993-03 → 1997-08 Figure MEW720 MEW720 1993-08 → 1997-08 Figure MES713 MES713 1993-03 → 1997-08 Figure MEW721A MEW721A 1993-03 → 1997-08 Figure MES715 MES715 1993-03 → 1997-08 Figure MEW152A MEW152A 1993-03 → 1997-08 Figure MES629A MES629A 1993-03 → 1997-08 Figure MEW153A MEW153A 1993-03 → 1997-08

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82210C Fusible Link
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817P Protector, Wiring Harness, NO.14
82821 Retainer, Headlamp Harness
82821A Cover, Connector
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
