Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 3 illustrations

Illustrations

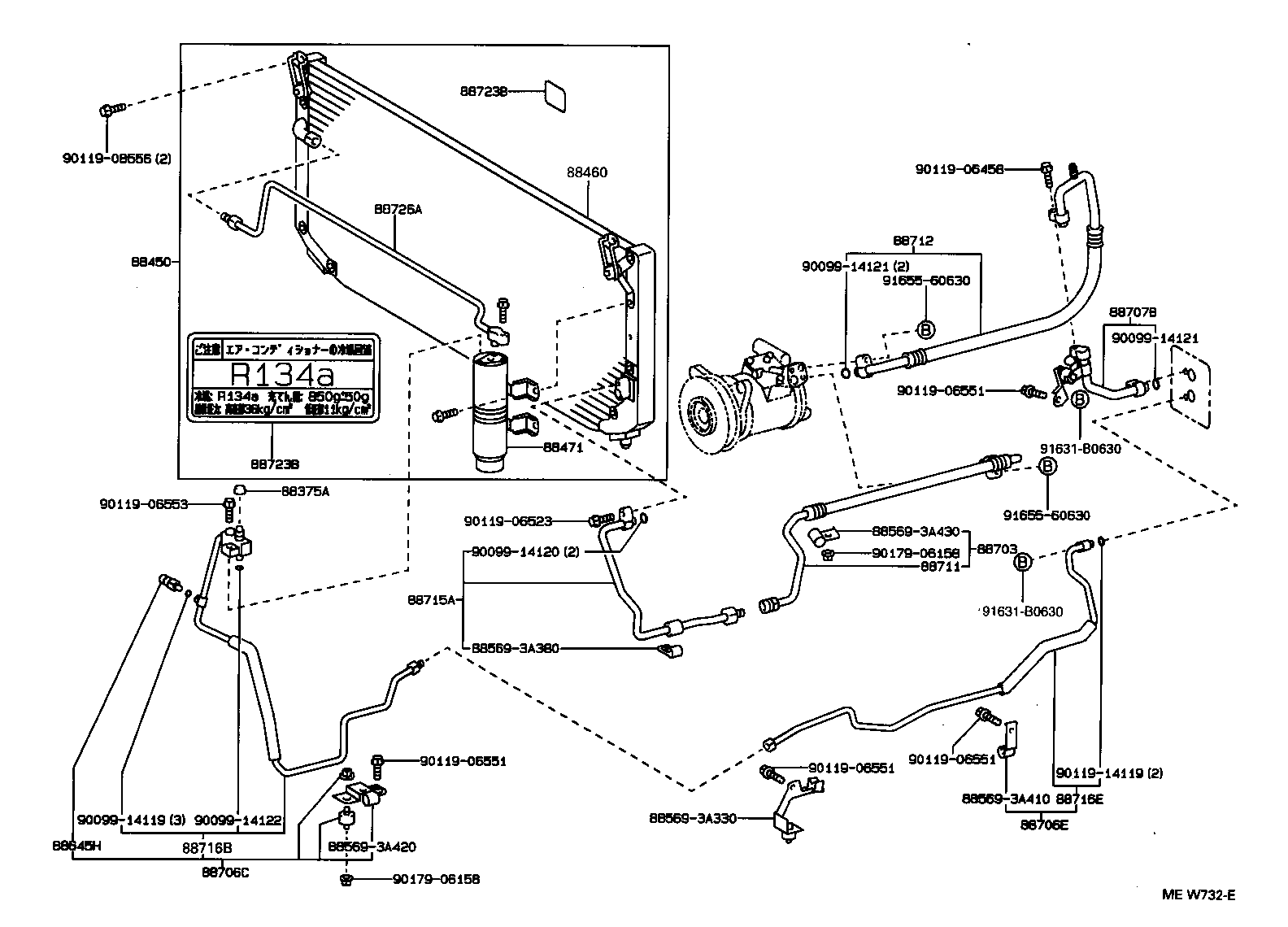

Figure MEW253E MEW253E 1993-03 → 1997-08 Figure MEW732E MEW732E 1993-08 → 1997-08 Figure 870152 870152 1993-01 → 1997-08

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88450 Condenser Assy, W/Receiver
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88550D Motor Assy, Blower
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
