Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

23 part groups · 2 illustrations

Illustrations

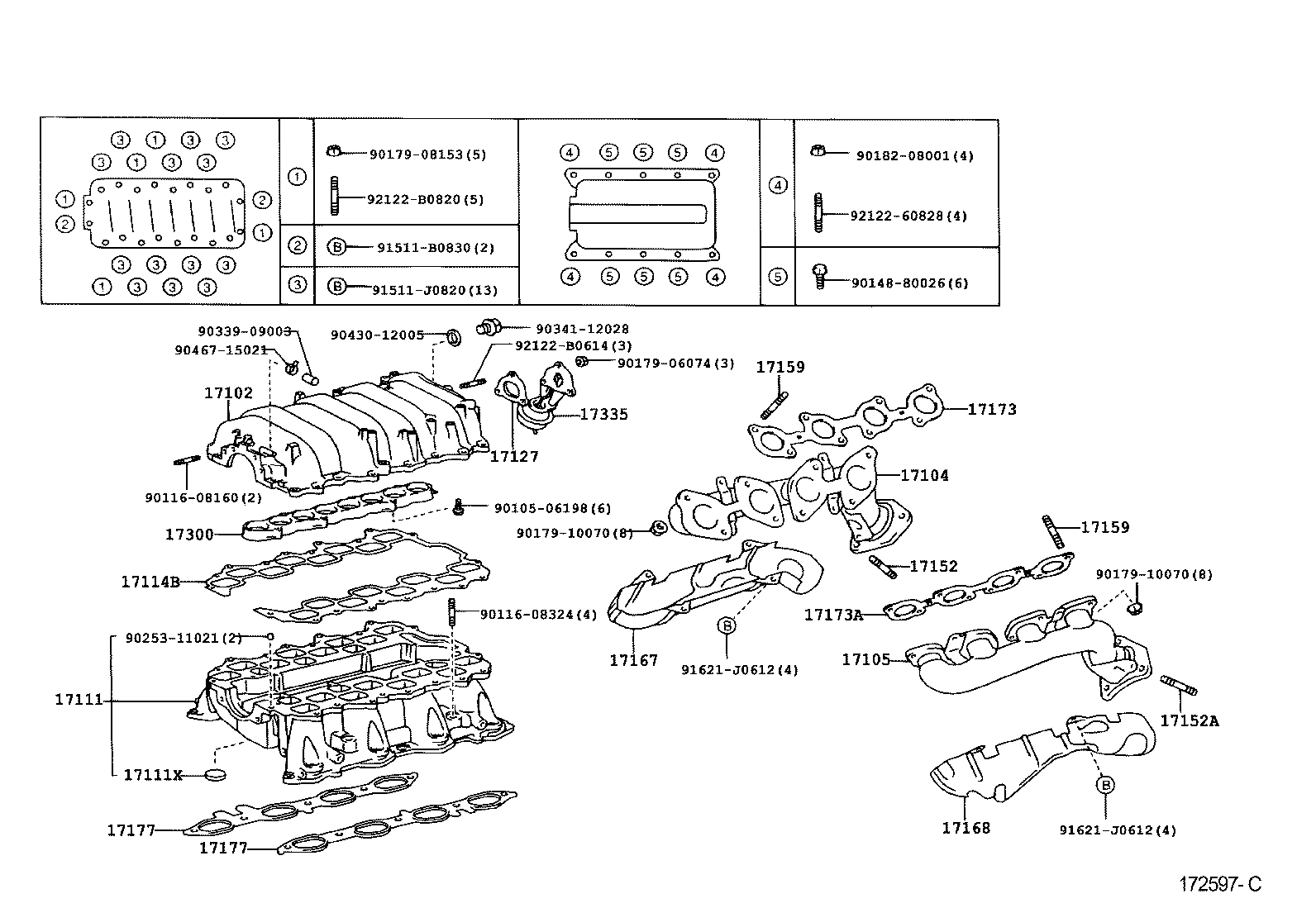

Figure 171111H 171111H 1997-08 → — Figure 172597C 172597C 2000-07 → —

Part groups

PNCDescription
17061A Diaphragm Sub-assy
17102 Manifold Sub-assy, Intake, Upper
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111X Plug, Tight NO.1(FOR INTAKE MANIFOLD)
17114B Gasket, Intake Flange
17118 Stay, Manifold
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17300 Valve Assy, Intake Air Control
17307B Lever Sub-assy, Intake Air Control
17335 Actuator, Intake Air Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
