Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 3 illustrations

Illustrations

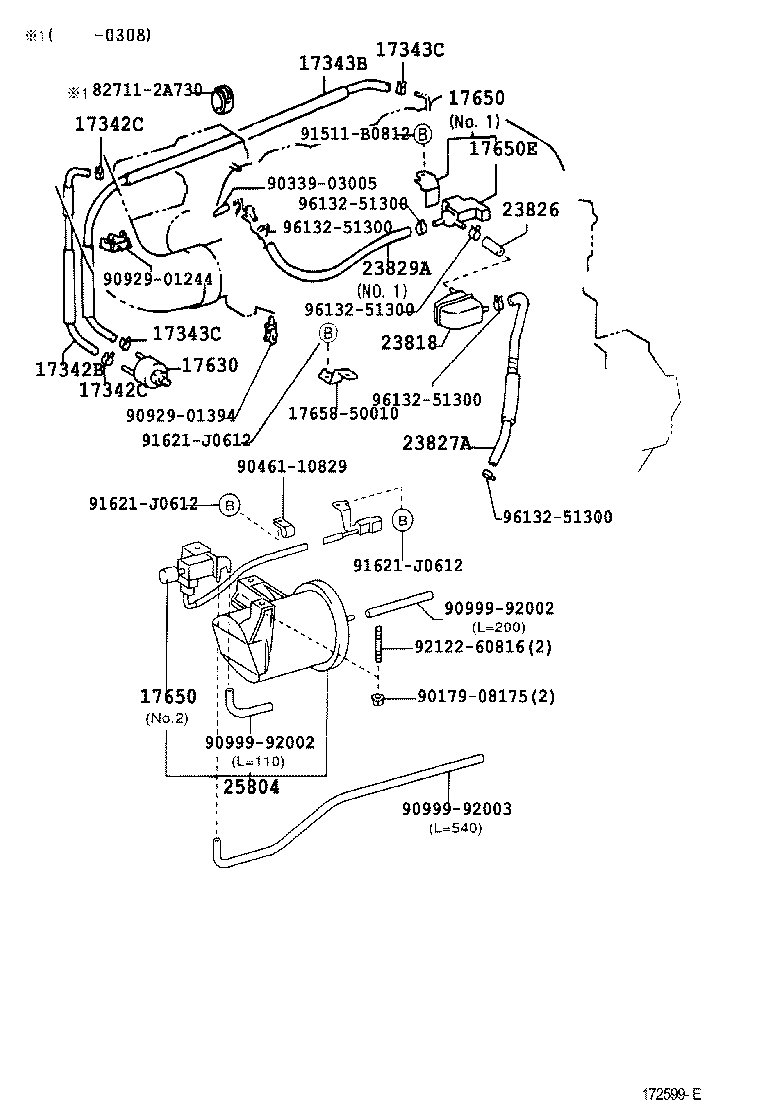

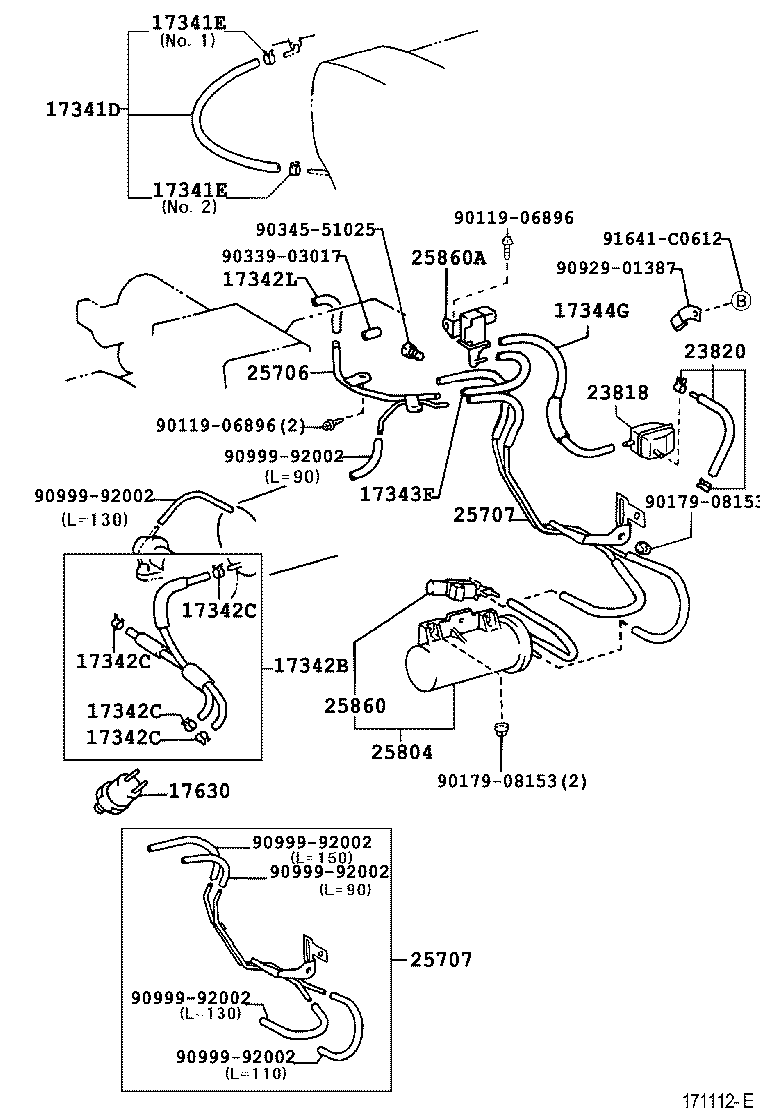

Figure 170021 170021 1997-08 → — Figure 171112E 171112E 1997-08 → — Figure 172599E 172599E 2000-07 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17344G Hose, Air, NO.4
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
