Valve Body & Oil Strainer (ATM)

162 part groups · 8 illustrations

Illustrations

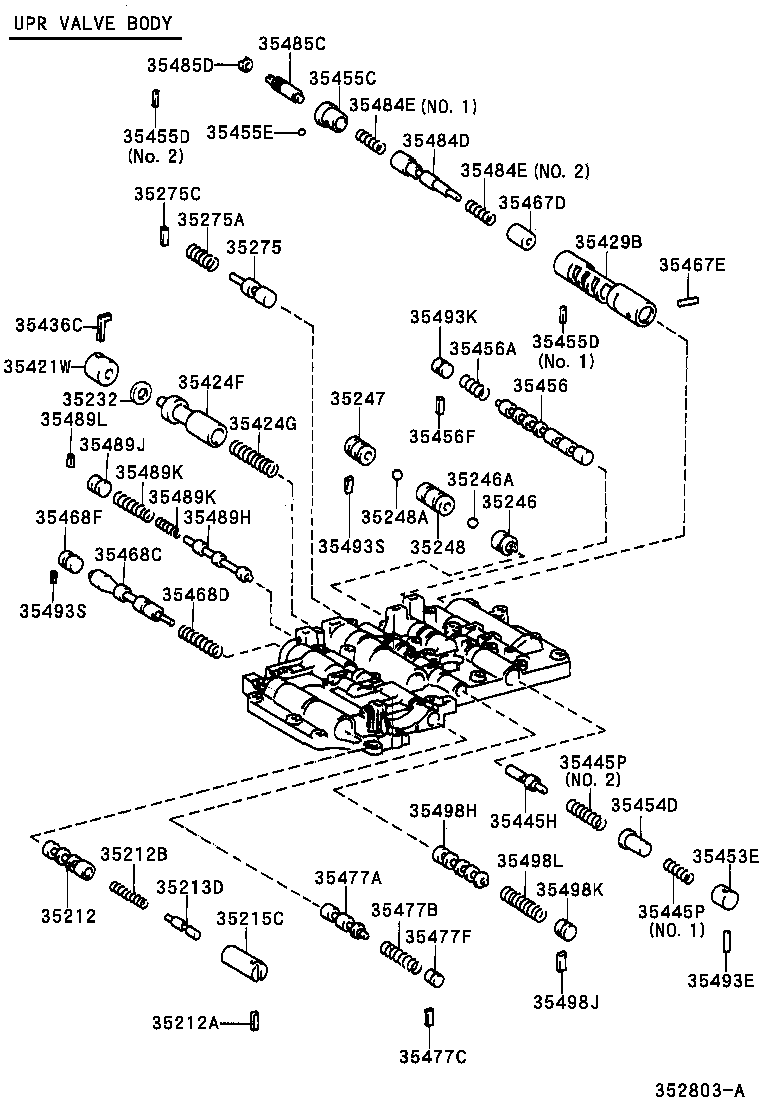

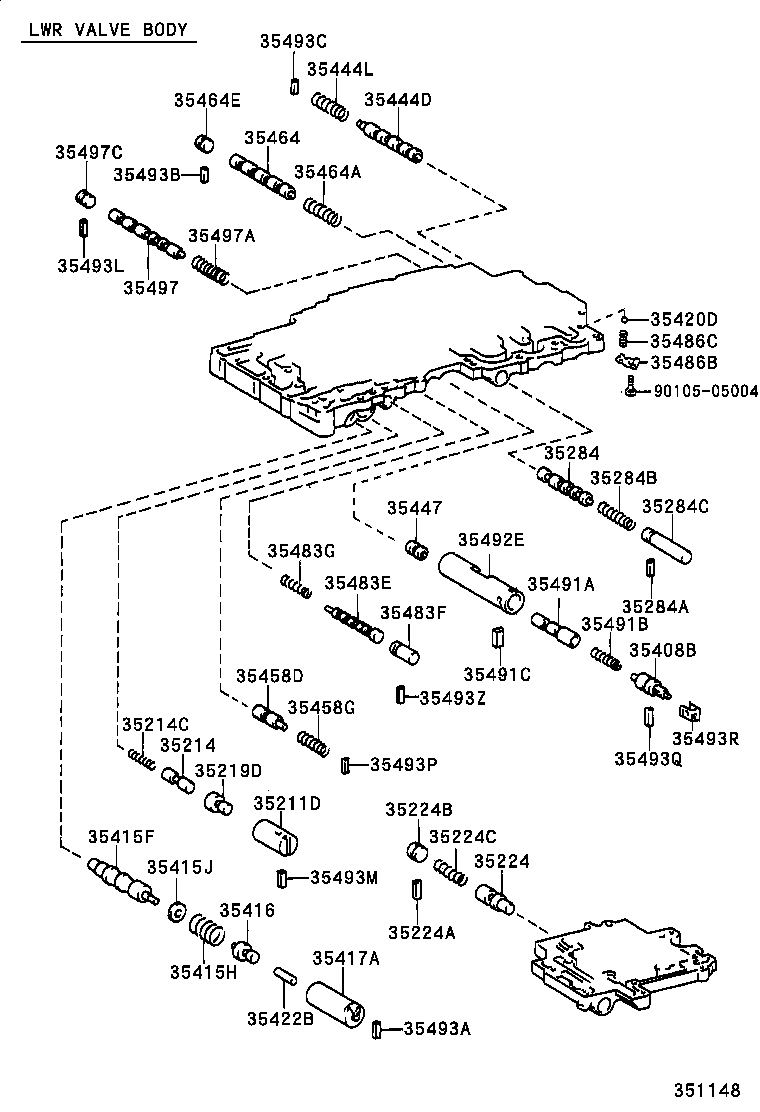

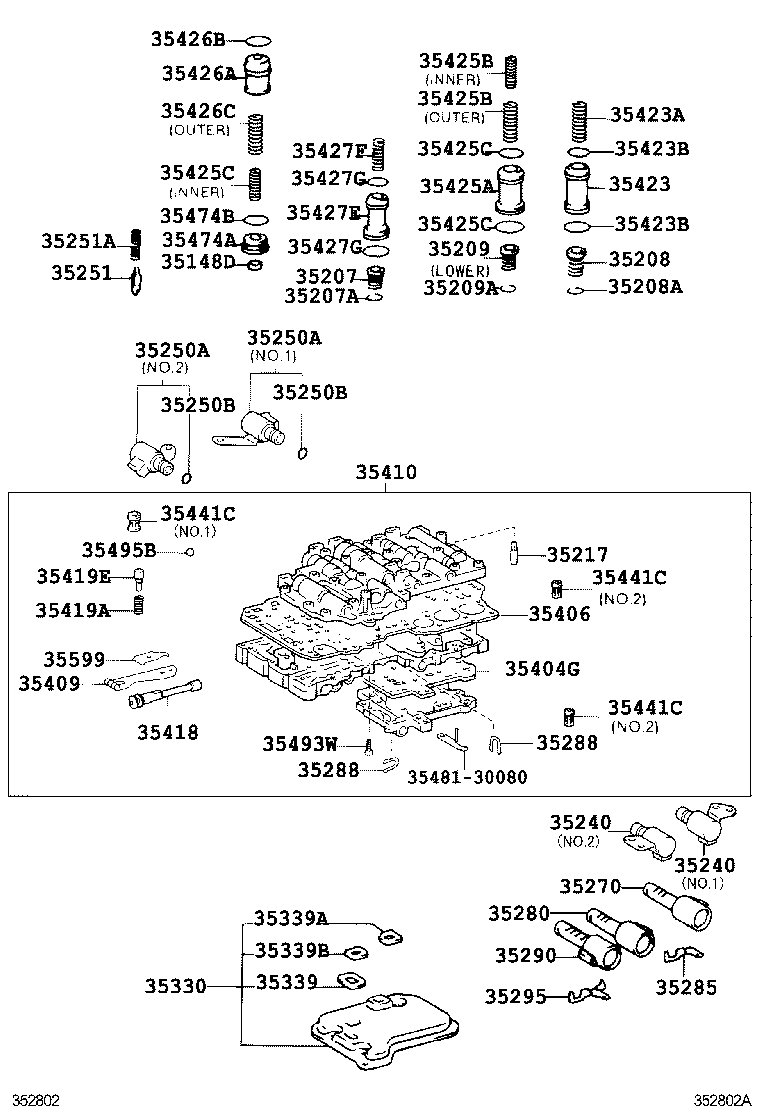

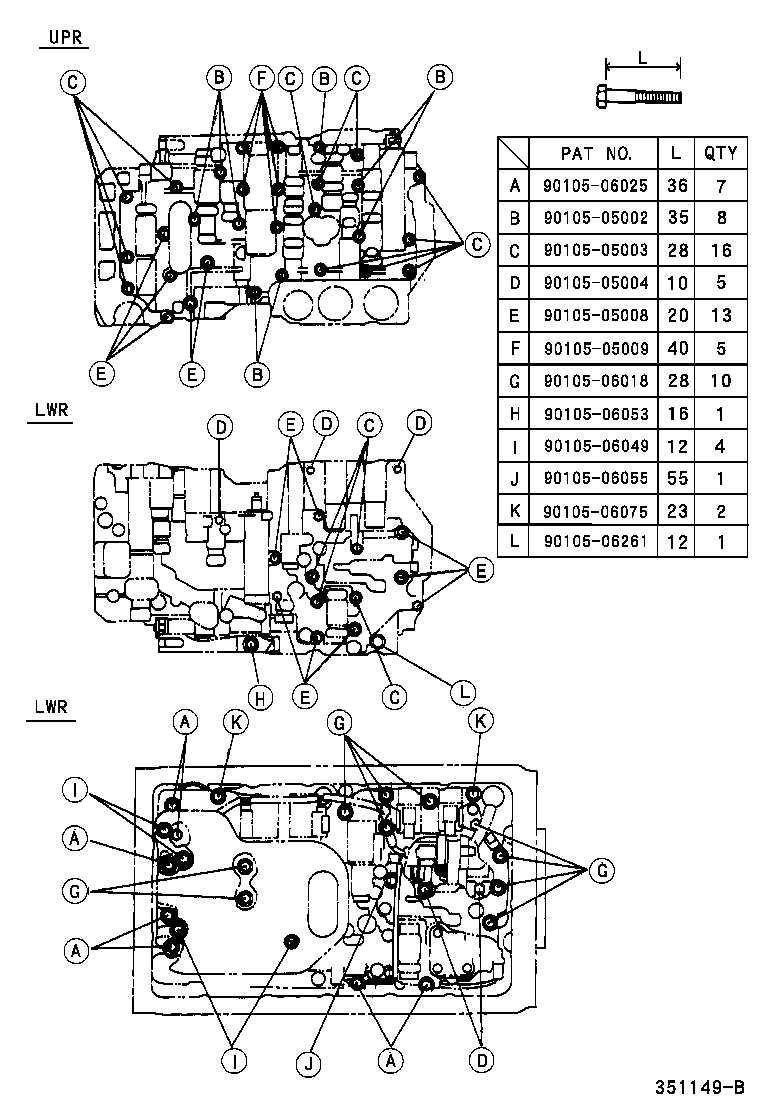

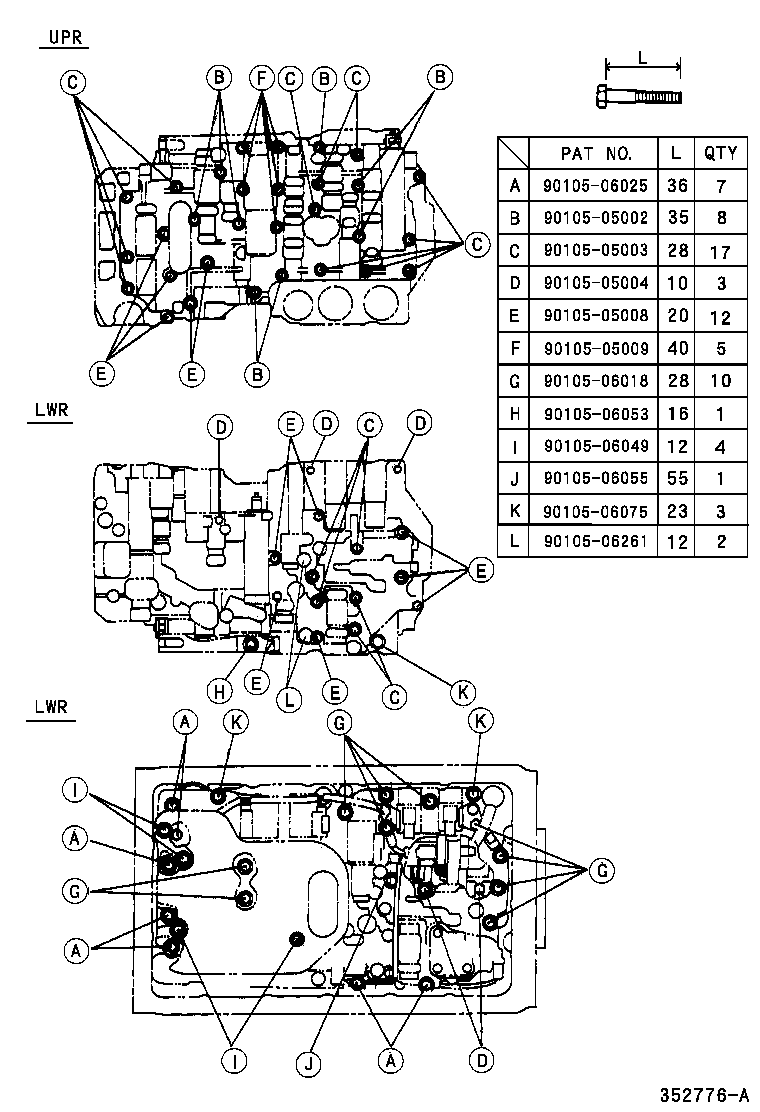

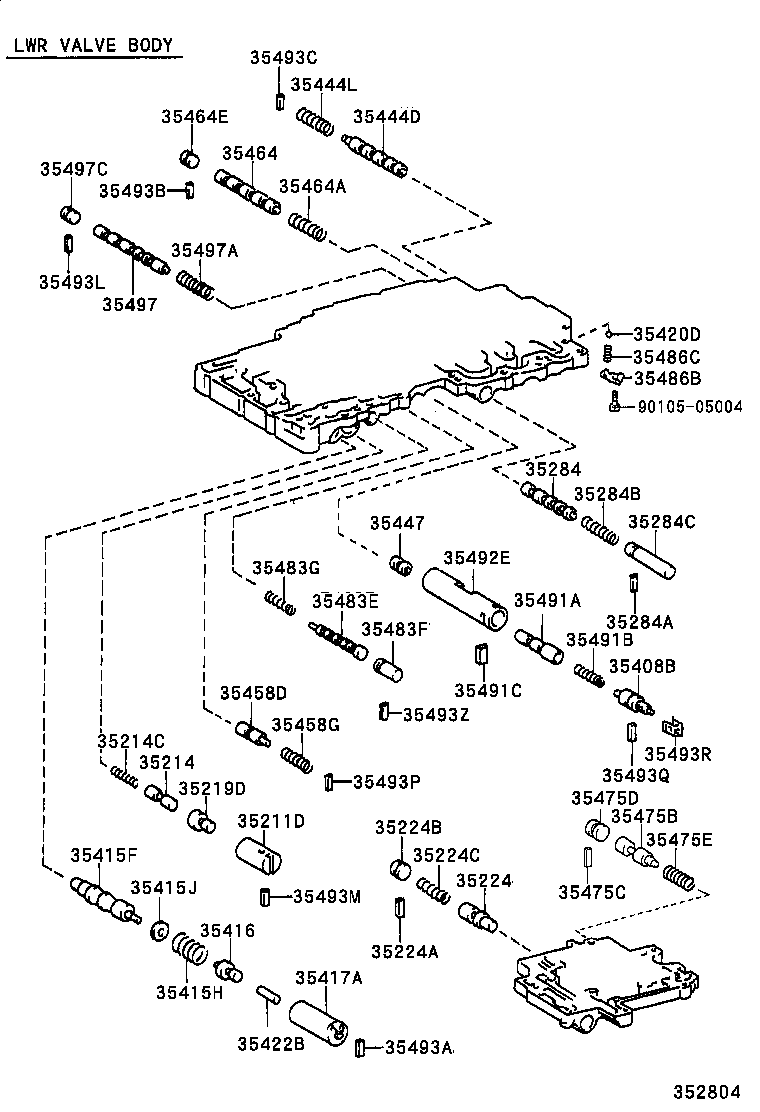

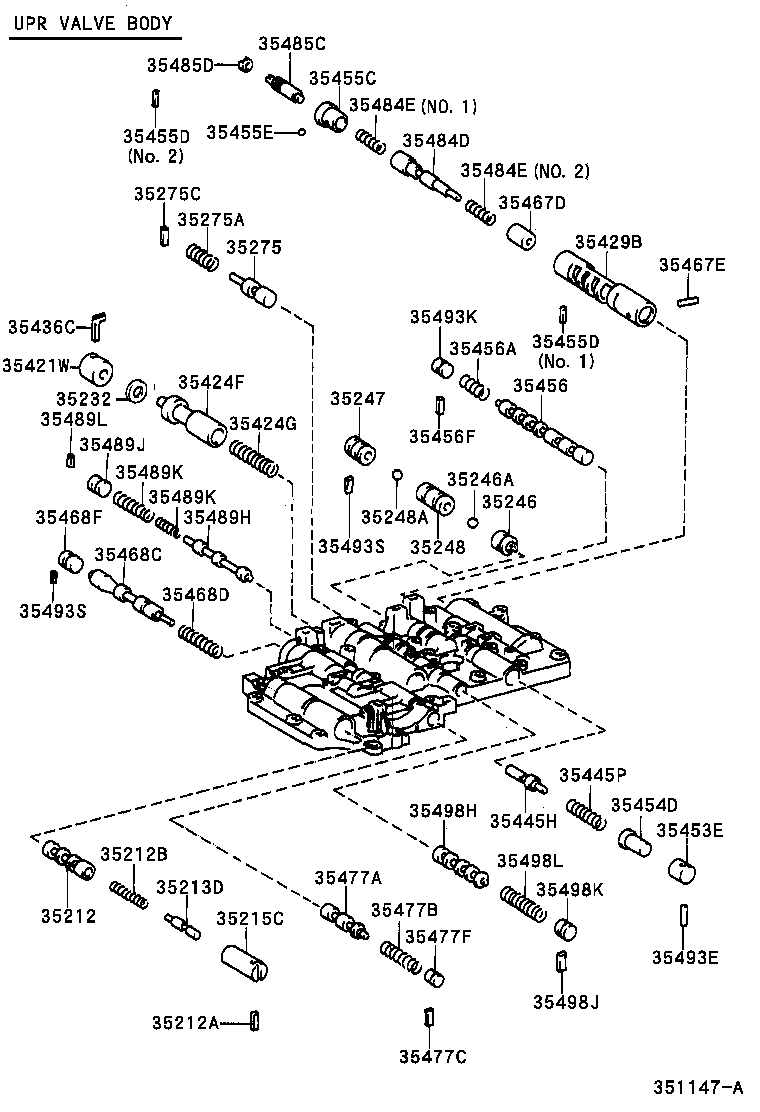

Figure 351146A 351146A 1997-08 → — Figure 351147A 351147A 1997-08 → — Figure 351148 351148 1997-08 → — Figure 351149B 351149B 1997-08 → — Figure 352802A 352802A 2000-07 → — Figure 352803A 352803A 2000-07 → — Figure 352804 352804 2000-07 → — Figure 352776A 352776A 2000-07 → —

Part groups

PNCDescription
35148D Gasket (FOR C-O ACCUMULATOR PISTON)
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35217 Valve, Accumulator Control, NO.2
35219D Plunger, Lock UP Control Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35230A Ring, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35232 Ring, C-1 Accumulator Seal
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35246 Valve, Check, NO.1
35246A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.1)
35247 Valve, Check, NO.2
35248 Valve, Check, NO.3
35248A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.3)
35250A Solenoid Assy, Transmission, NO.3
35250B Ring, O NO.3(FOR TRANSMISSION SOLENOID)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35265B Tube, Oil Cooler Return
35270 Solenoid Assy, Shift Control
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35284C Plug (FOR SOLENOID RELAY VALVE)
35285 Plate, Solenoid Lock
35288 Damper, Oil Pressure Transmission
35290 Solenoid Assy, Line Pressure Control
35295 Plate, Solenoid Lock, NO.2
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35345 Plate, Oil Guide
35404G Plate Sub-assy, Valve Body, NO.2
35406 Plate Sub-assy, Valve Body
35408B Plug Sub-assy, Accumulator Control Valve
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419A Spring, Compression (FOR CHECK VALVE)
35419E Valve, Check, NO.3
35420D Ball (FOR LOWER VALVE BODY)
35421W Plug, C-1 Accumulator Valve
35422B Plunger, Primary Regulator Valve, NO.2
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424F Valve, C-1 Accumulator
35424G Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35429B Sleeve, B-3 Control Valve
35436C Retainer, C-1 Accumulator Valve
35441C Strainer, Solenoid Oil
35444D Valve, Release Control
35444L Spring, Compression (FOR SHIFT VALVE PLUG SEAT)
35445H Valve, 2ND Coast Modulator
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35447 Plunger, Accumulator Control Valve
35453E Sleeve, 2ND Coast Modulator Valve
35454D Plunger, 2ND Coast Modulator Valve
35455C Plug, B-3 Control Valve
35455D Seat, Shift Valve Plug, NO.3
35455E Roller, NO.2 (FOR B-3 CONTROL VALVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458G Spring, Compression (FOR CUT BACK VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35467D Plunger, B-3 Control Valve
35467E Roller, NO.1 (FOR B-3 CONTROL VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35473 Cover, Transmission Valve Body
35474A Cover, Accumulator
35474B Ring, O (FOR ACCUMULATOR COVER)
35475B Valve, B-4 Relay
35475C Seat, B-4 Relay Valve
35475D Plug, B-4 Relay Valve
35475E Spring, Compression(FOR B-4 RELAY VALVE)
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477C Seat, Valve (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35483E Valve, C-0 Control Relay
35483F Plug (FOR C-0 CONTROL RELAY VALVE)
35483G Spring, Compression (FOR C-0 CONTROL RELAY VALVE)
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35485C Adjuster, B-3 Control Valve
35485D Cap (FOR B-3 CONTROL VALVE ADJUSTER)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35489H Valve, C-1 Orifice Control
35489J Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493C Seat, Release Control Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493K Seat, Shift Valve Plug
35493L Seat, Shift Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493P Seat, Cut Back Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493R Seat, Accumulator Control Valve Plug, NO.2
35493S Seat, Secondary Regulator Valve Plug
35493W Seat, Valve Body
35493Z Seat, Shift Valve Plug, NO.1
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35498H Valve, 4-5 Shift
35498J Seat, Shift Valve Plug, NO.2
35498K Plug (FOR 4-5 SHIFT VALVE)
35498L Spring, Compression (FOR 4-5 SHIFT VALVE)
35599 Cover, Manual Detent Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
