Toyota Lexus GS300/430
1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe
Discontinued model
Data version 2005-07

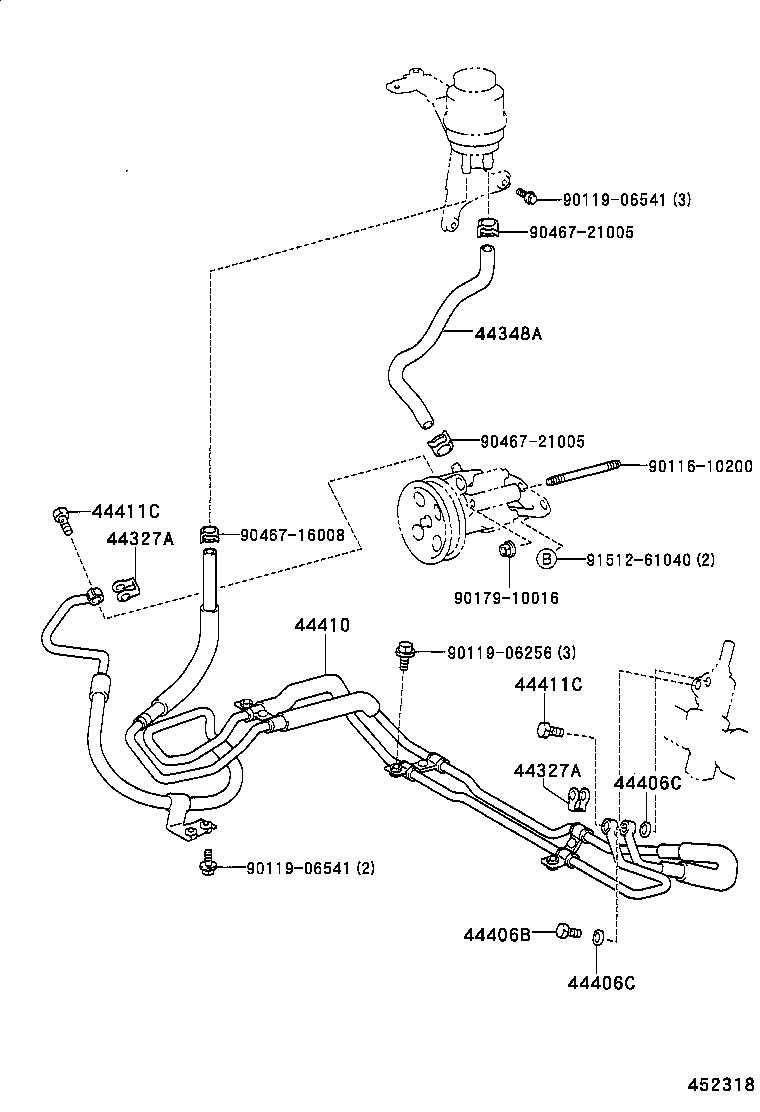

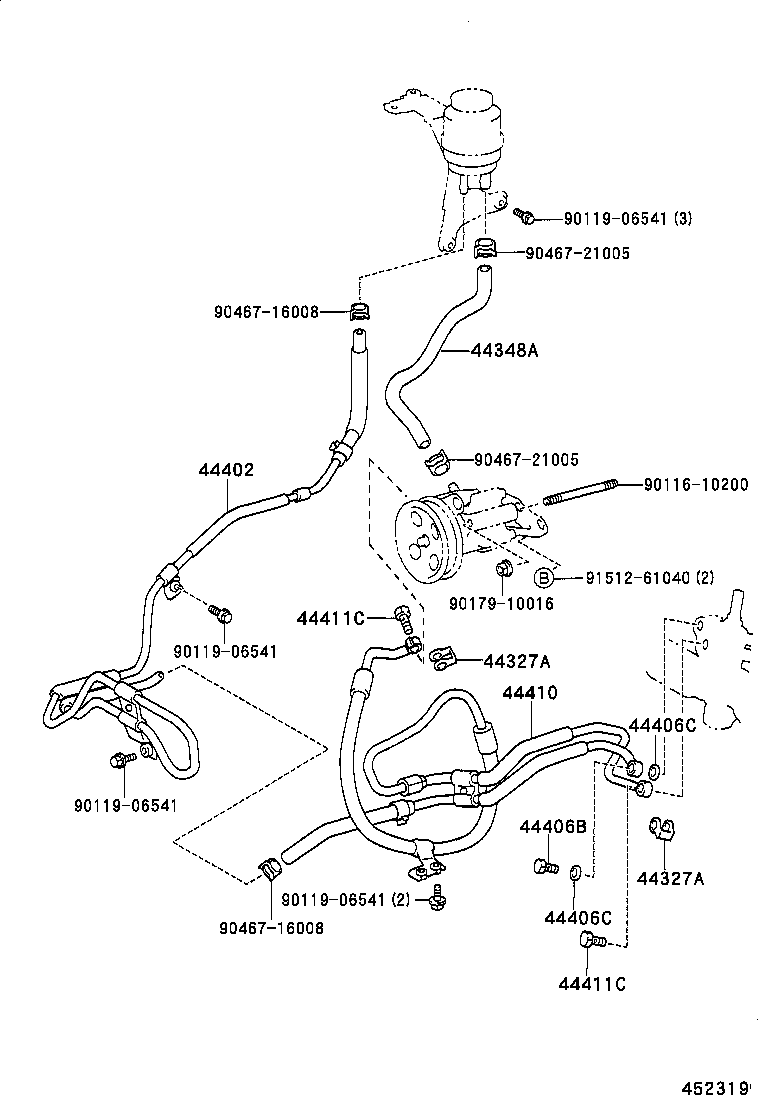

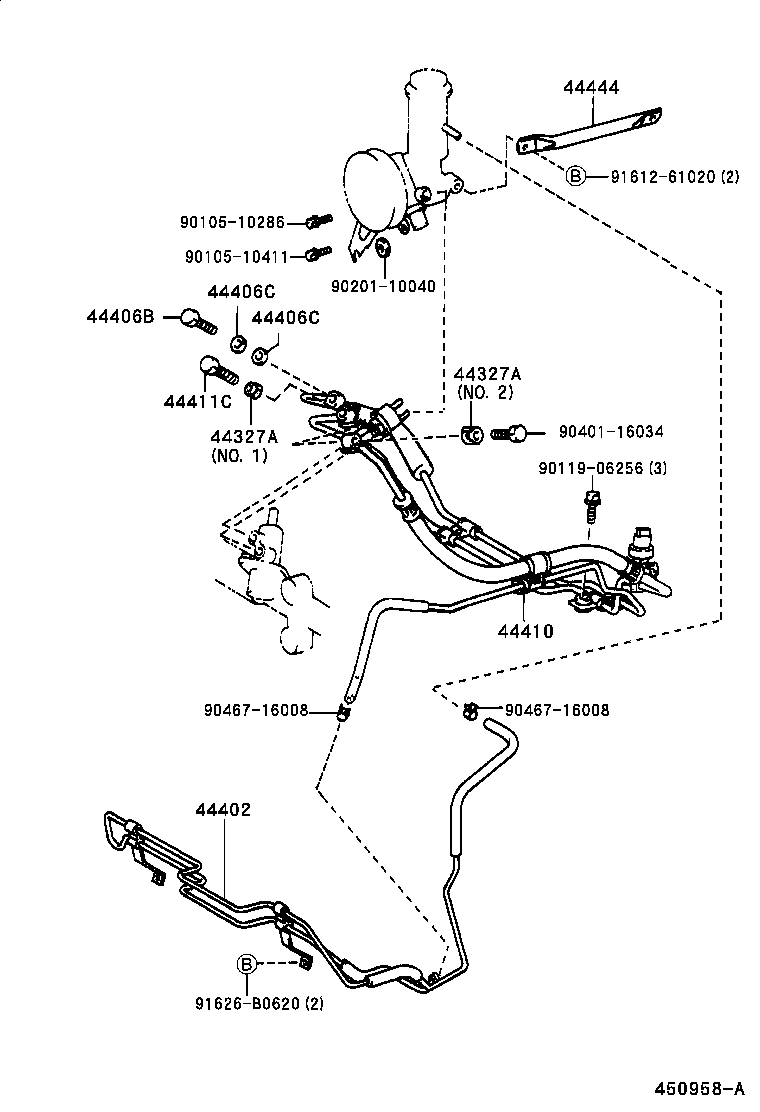

Power Steering Tube
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406B | Bolt, Union(FOR RETURN TUBE) |
| 44406C | Gasket(FOR RETURN TUBE) |
| 44410 | Tube Assy, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44444 | Stay, Pump, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
