Toyota Lexus GS300/430
1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe
Discontinued model
Data version 2005-07
Inside Trim Board & Door Opening Trim Moulding

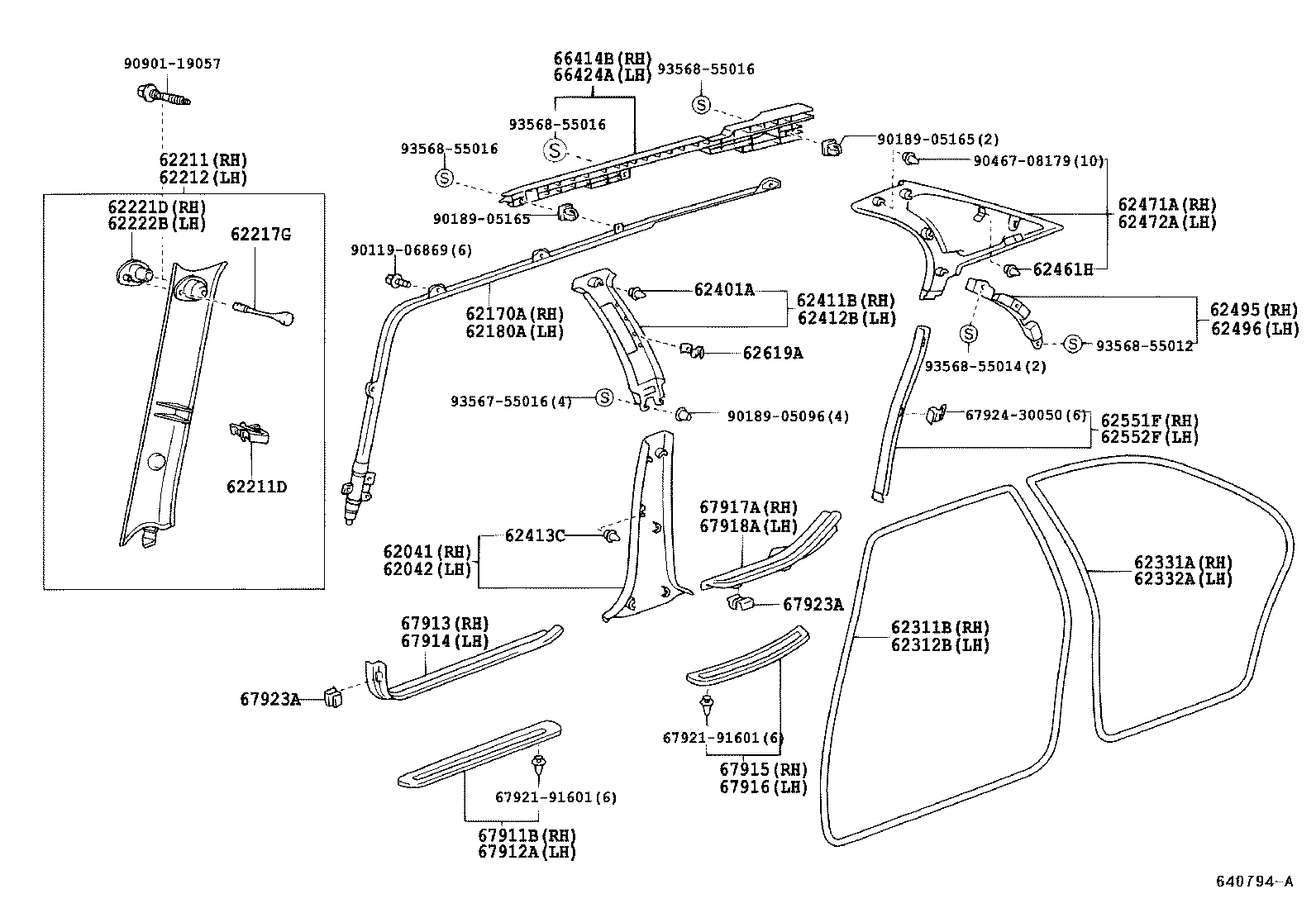

43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62041 | Panel Sub-assy, Center Pillar Garnish, Lower RH |
| 62042 | Panel Sub-assy, Center Pillar Garnish, Lower LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62221P | Spacer, Front Pillar, NO.1 RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62222D | Spacer, Front Pillar, NO.2 RH |
| 62231B | Spacer, Front Pillar, NO.1 LH |
| 62232F | Spacer, Front Pillar, NO.2 LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62495 | Spacer, Roof Side Inner Garnish, RH |
| 62496 | Spacer, Roof Side Inner Garnish, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62619A | Plate, Side Trim Set |
| 66413C | Spacer, Side Rail, Front RH |
| 66414B | Spacer, Side Rail, Rear RH |
| 66423A | Spacer, Side Rail, Front LH |
| 66424A | Spacer, Side Rail, Rear LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
