Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

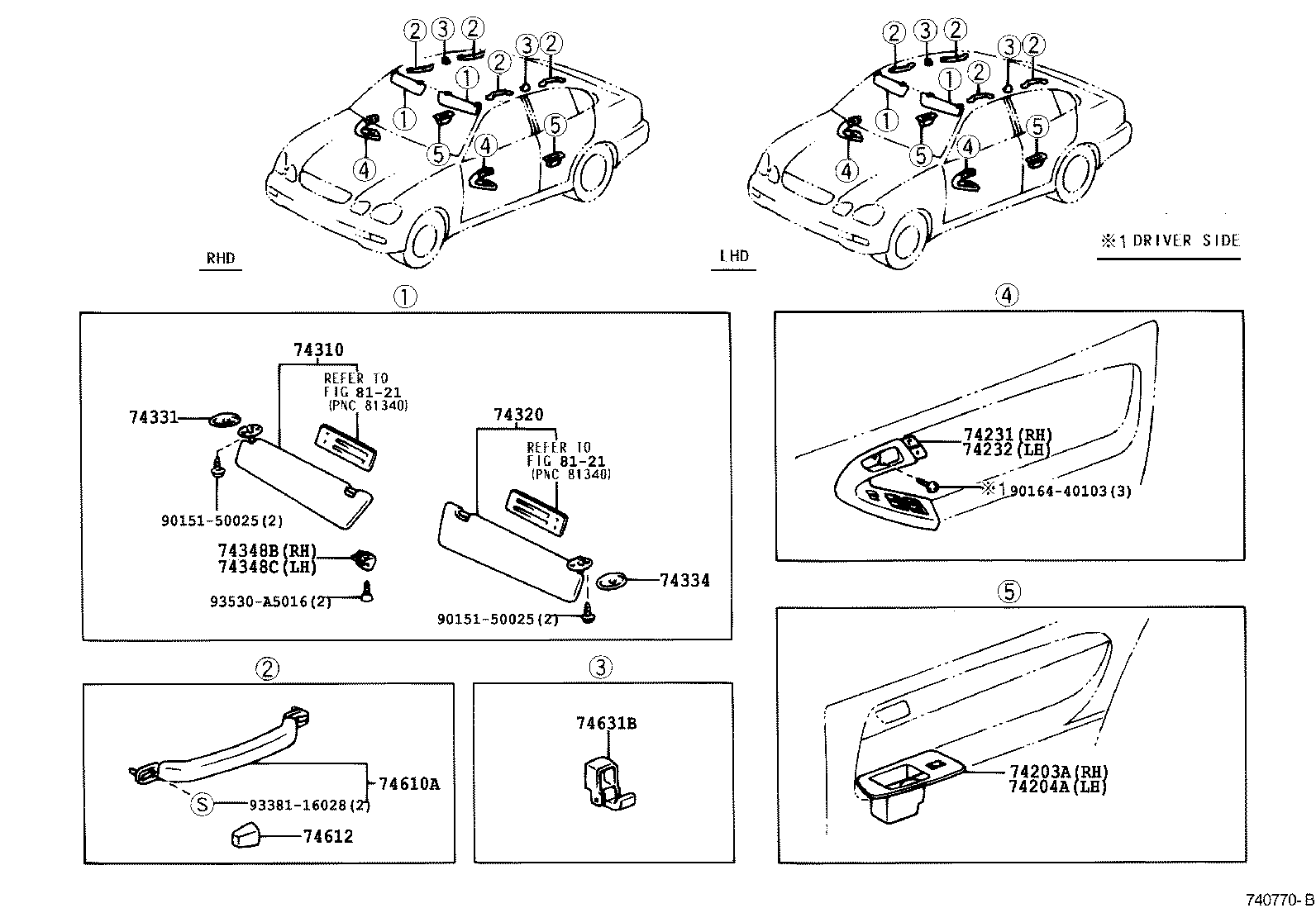

Figure 740365D 740365D 1997-08 → 2000-07 Figure 740770B 740770B 2000-07 → 2005-01

Part groups

PNCDescription
74203A Panel Sub-assy, Rear Armrest Base, Upper RH
74204A Panel Sub-assy, Rear Armrest Base, Upper LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74331 Case, Visor Arm, RH
74334 Case, Visor Arm, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74631B Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
