Toyota Lexus GS300/430
1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe
Discontinued model
Data version 2005-07
Overdrive & Electronic Controlled Transmission

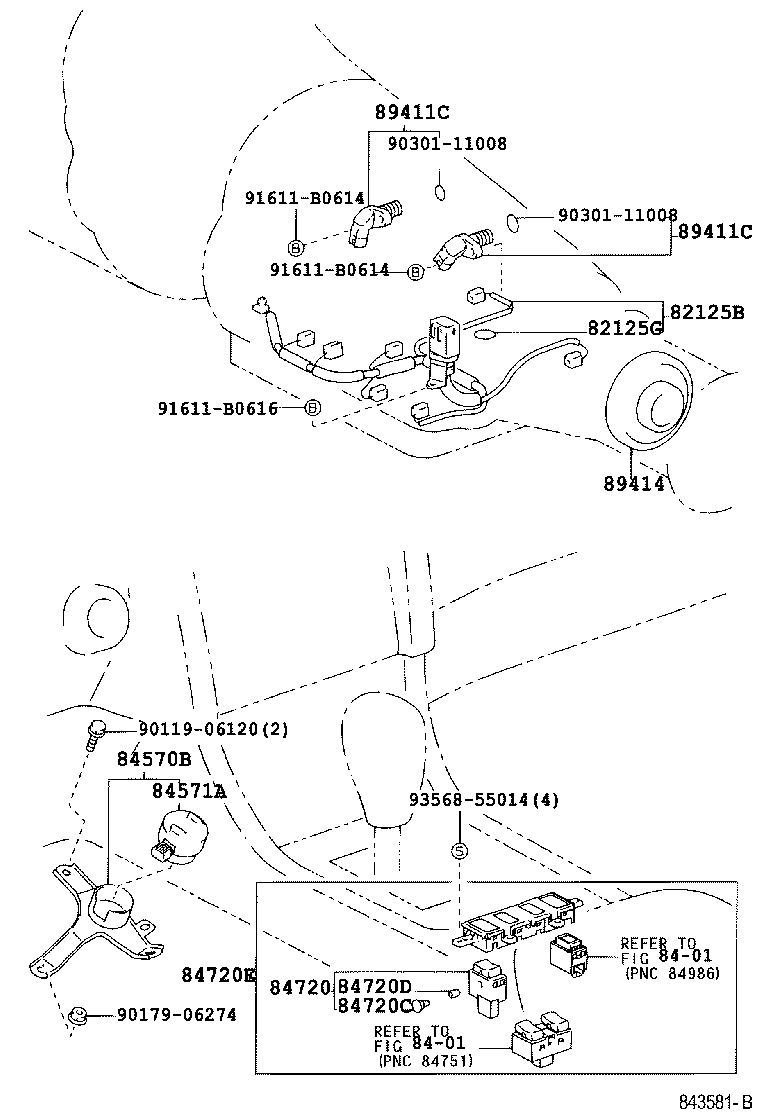

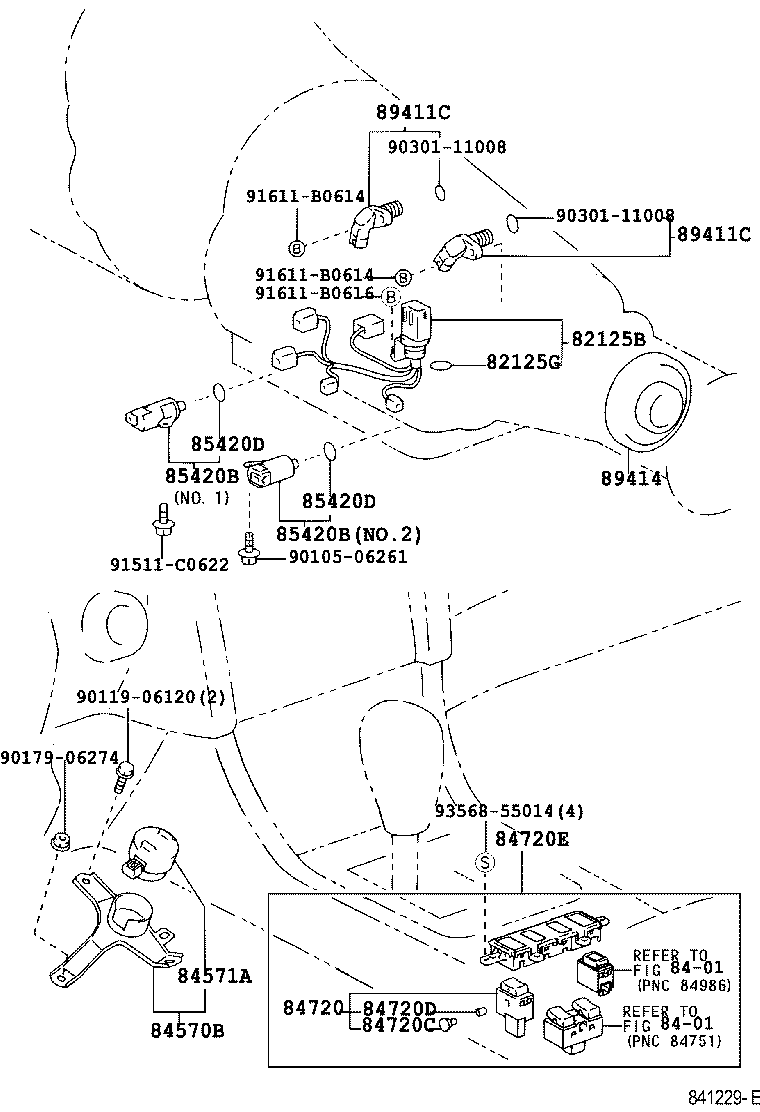

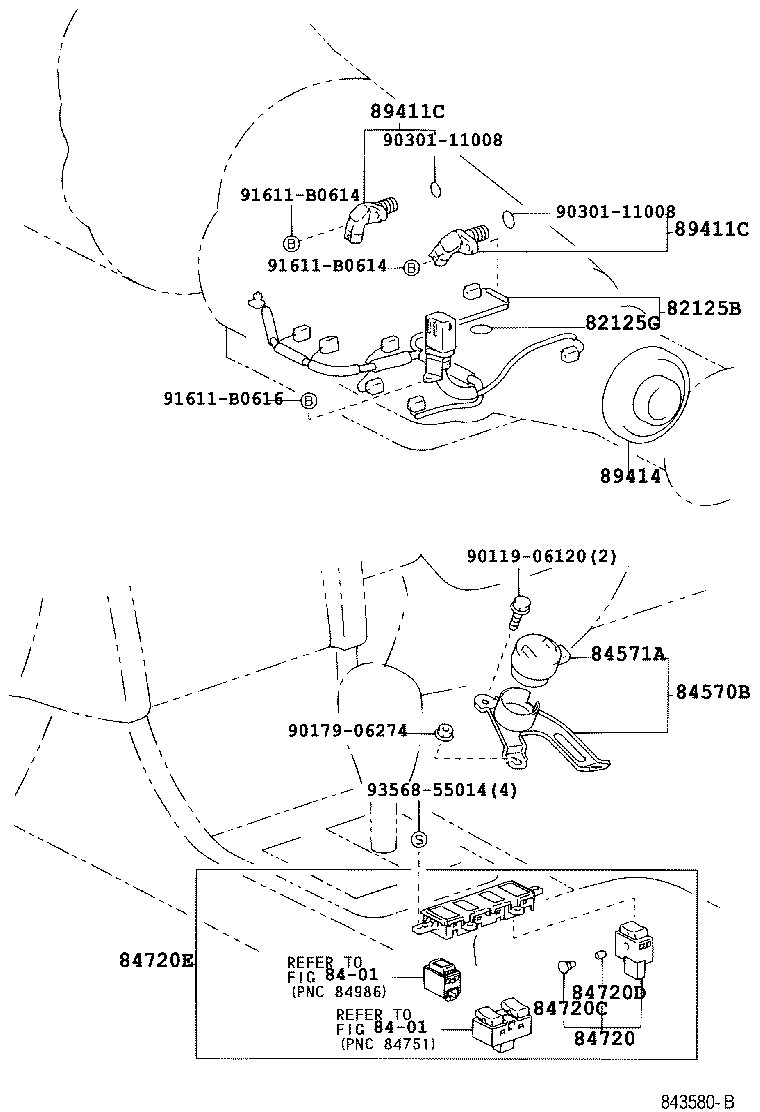

12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125B | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84570B | Switch Assy, Kick Down |
| 84571A | Switch, Kick Down |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84720D | Cap, Pattern Select Switch |
| 84720E | Switch Assy, Pattern Select |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
