Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 6 illustrations

Illustrations

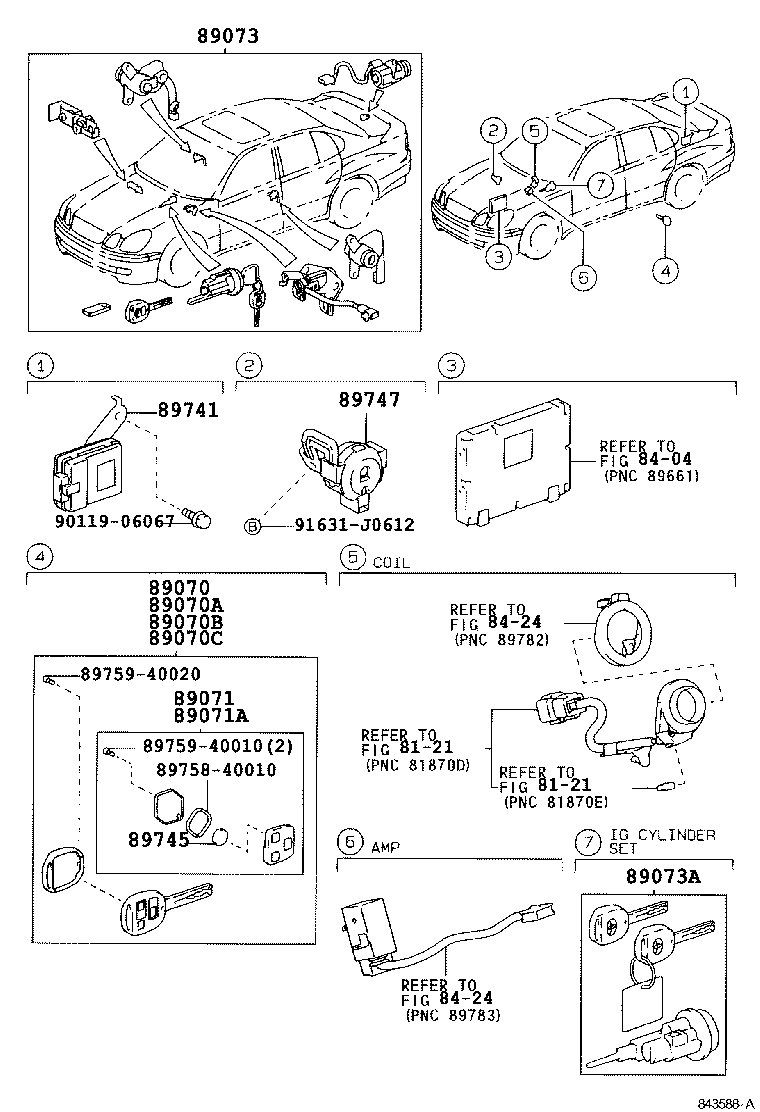

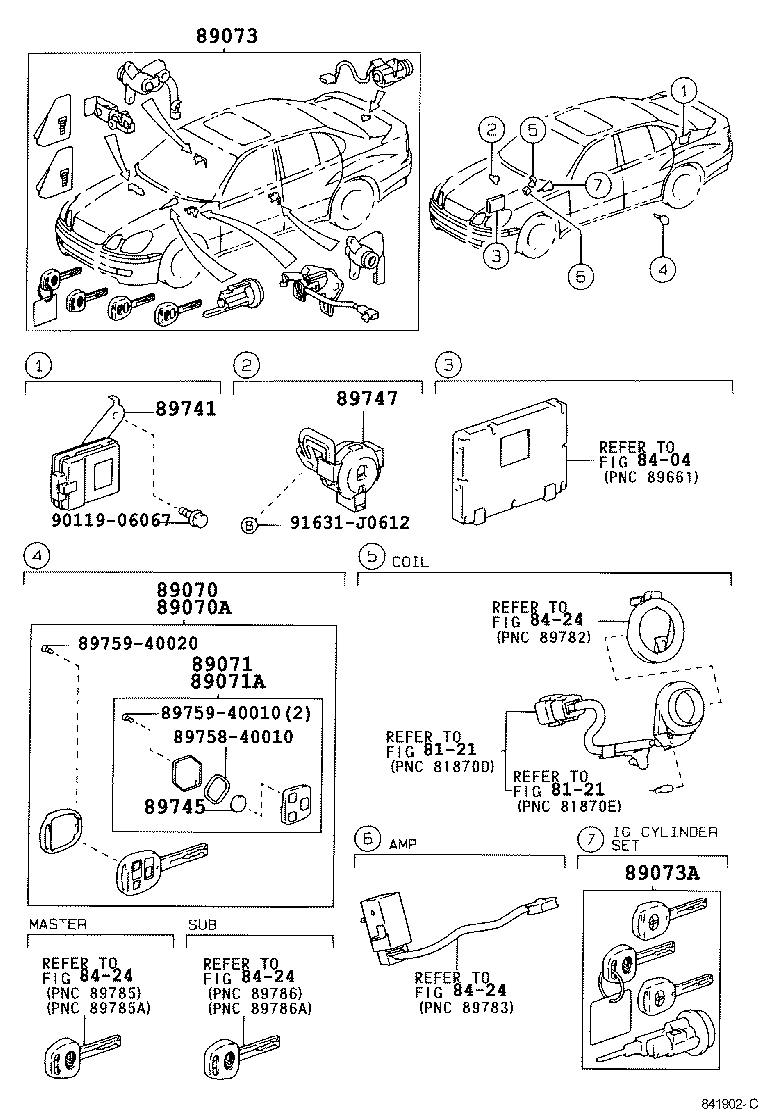

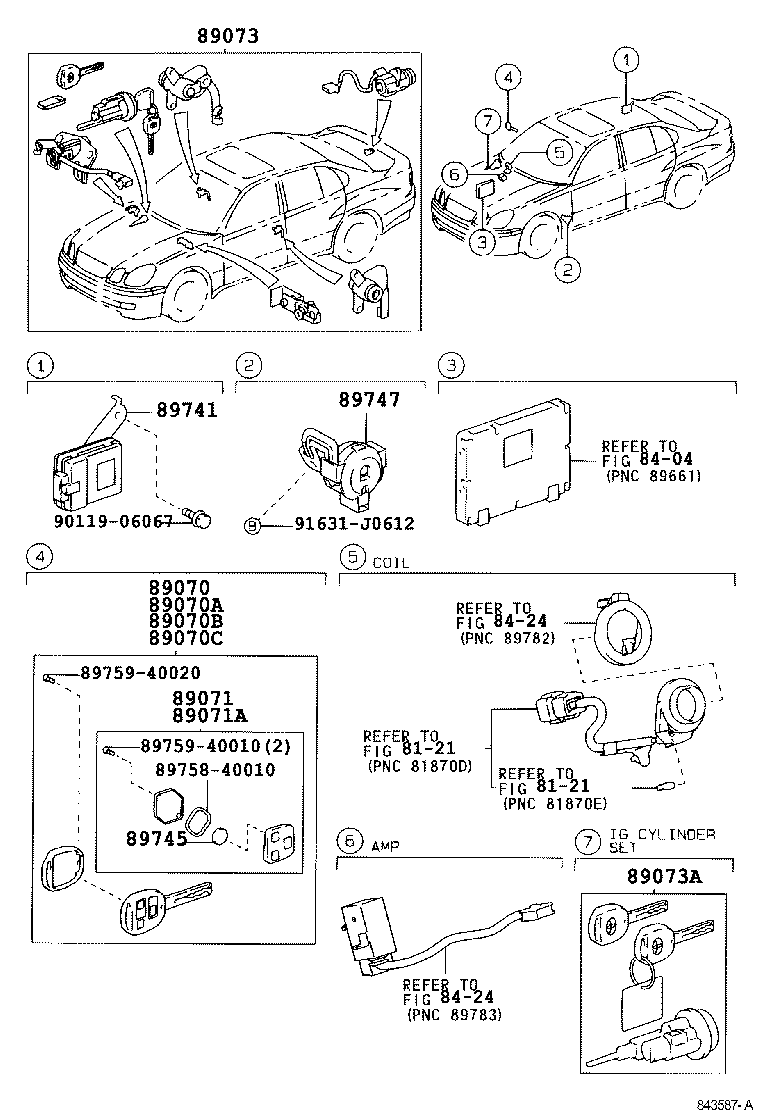

Figure 841901E 841901E 1997-08 → 2000-07 Figure 841901E 841901E 2000-07 → — Figure 843587A 843587A 2000-07 → — Figure 841902C 841902C 1997-08 → 2000-07 Figure 841902C 841902C 2000-07 → — Figure 843588A 843588A 2000-07 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89070B Transmitter Assy, Door Control (SUB KEY)
89070C Transmitter Assy, Door Control (SUB & CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89071A Module Set, Transmitter Sub-assy, Door Control(SUB KEY)
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89747 Buzzer, Wireless Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
