Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 4 illustrations

Illustrations

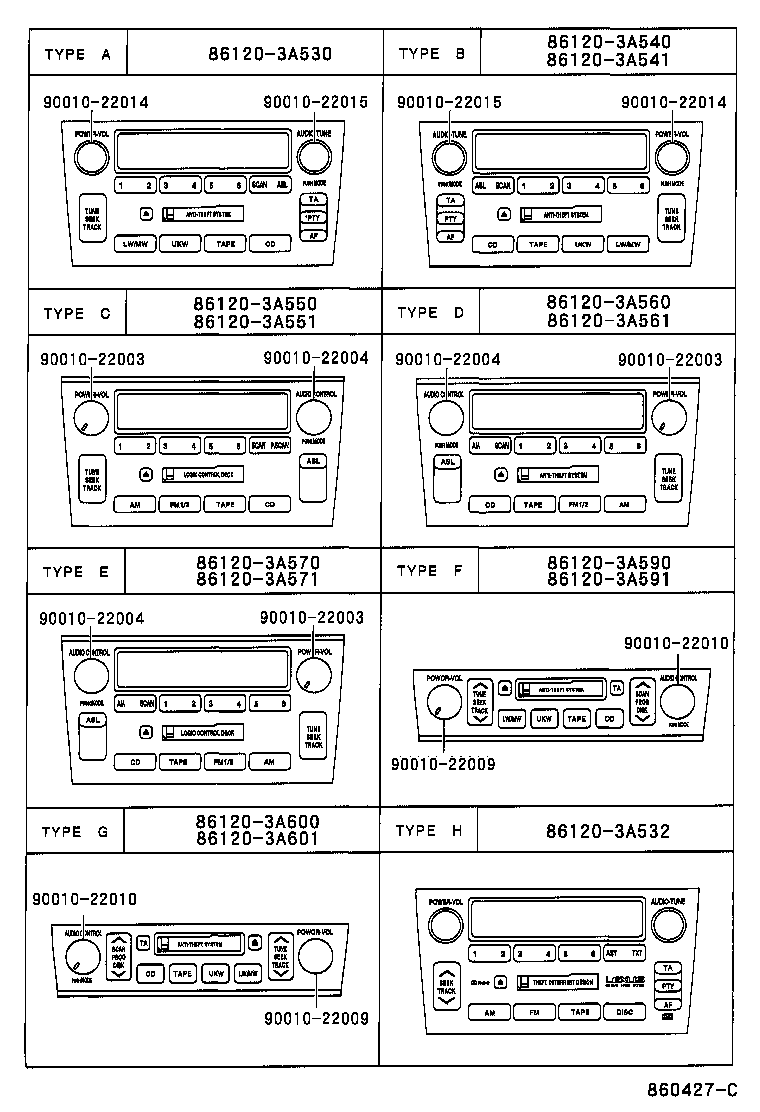

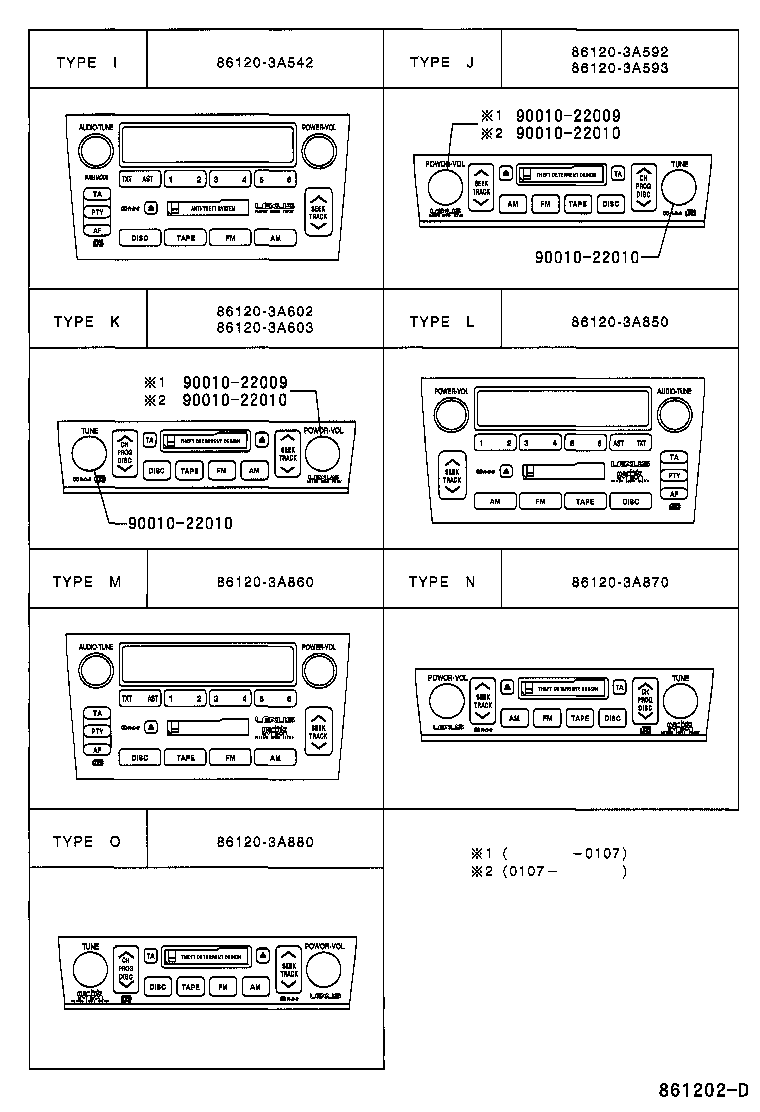

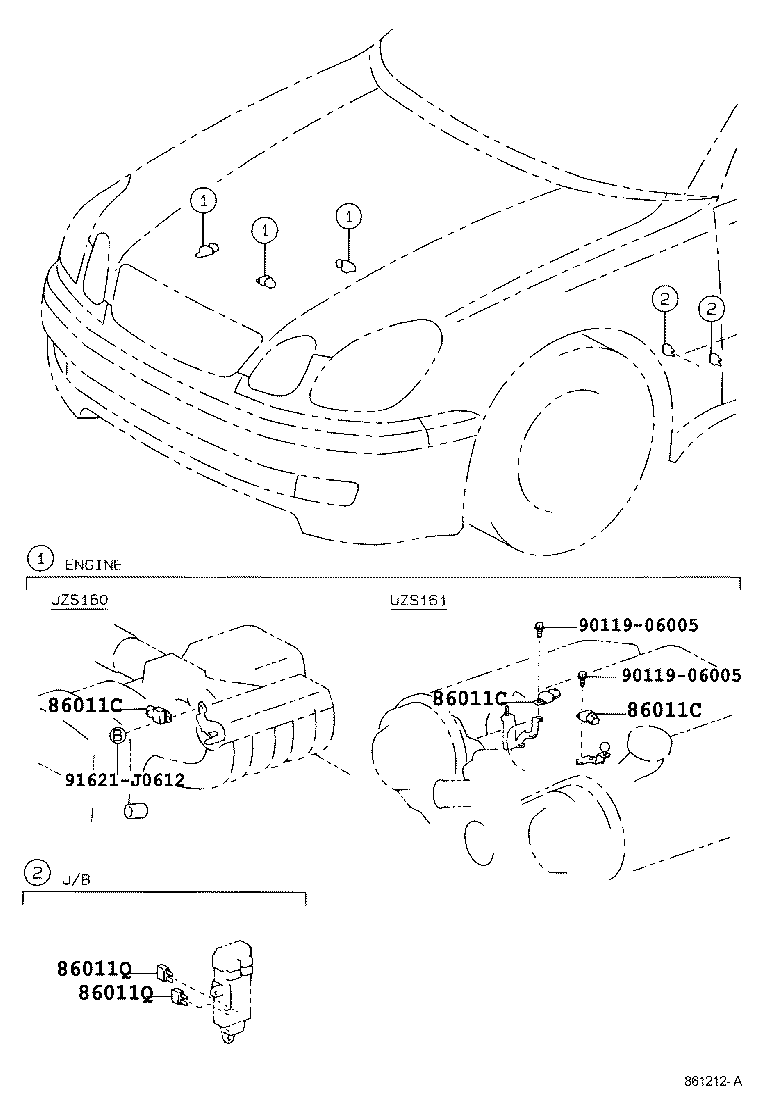

Figure 860667F 860667F 1997-08 → — Figure 860427C 860427C 1997-08 → — Figure 861202D 861202D 2000-07 → — Figure 861212A 861212A 1997-08 → —

Part groups

PNCDescription
86011C Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
