Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

8 part groups · 2 illustrations

Illustrations

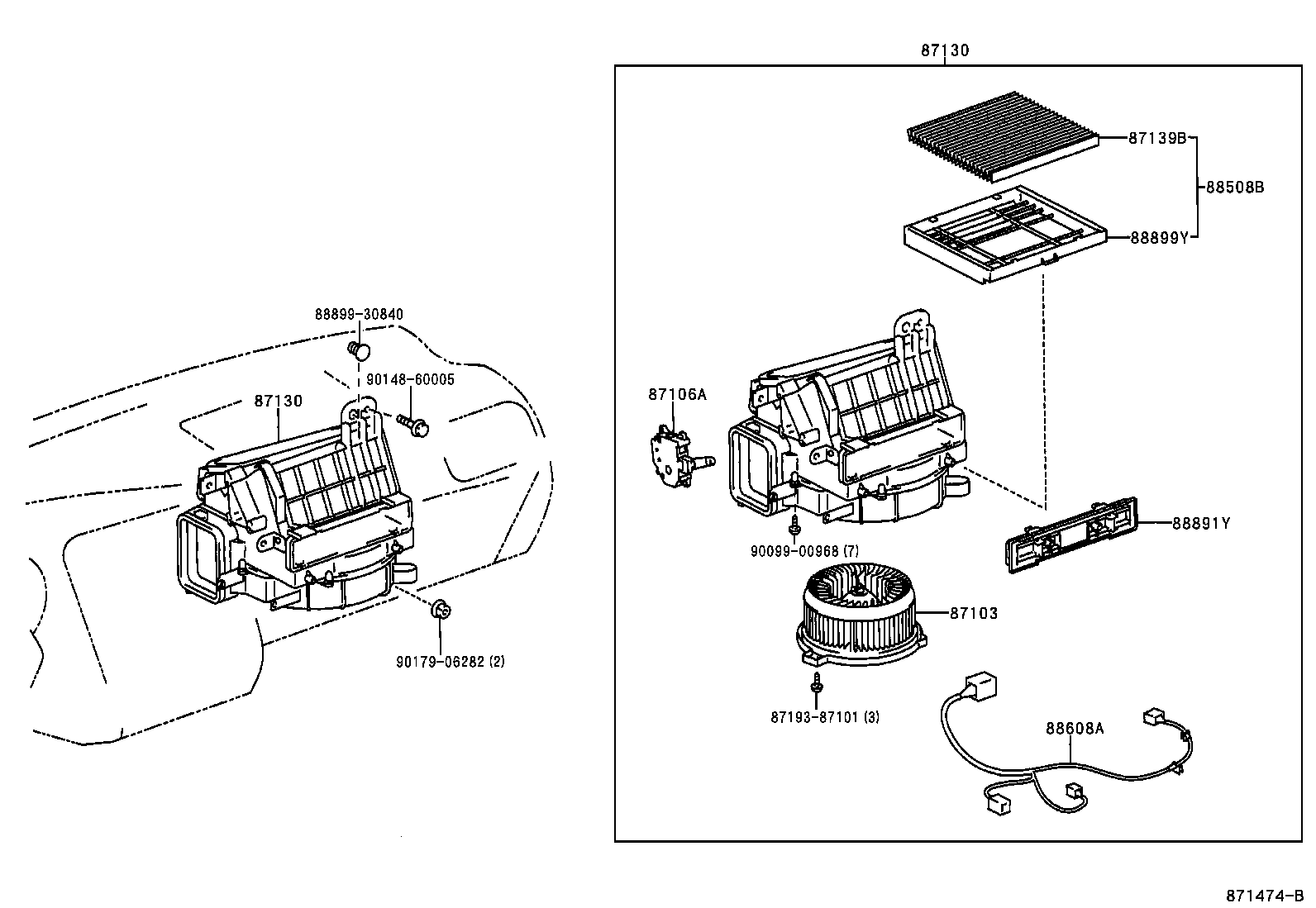

Figure 871473B 871473B 1997-08 → — Figure 871474B 871474B 1997-08 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87130 Blower Assy, Heater, Front
87139B Filter, Clean Air
88508B Filter Sub-assy, Clean Air
88608A Harness Sub-assy, Wiring Air Conditioner, NO.2
88891Y Cover, Cooler,NO.1
88899Y Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
