Toyota Lexus GS300/430
1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · Europe
Discontinued model
Data version 2005-07

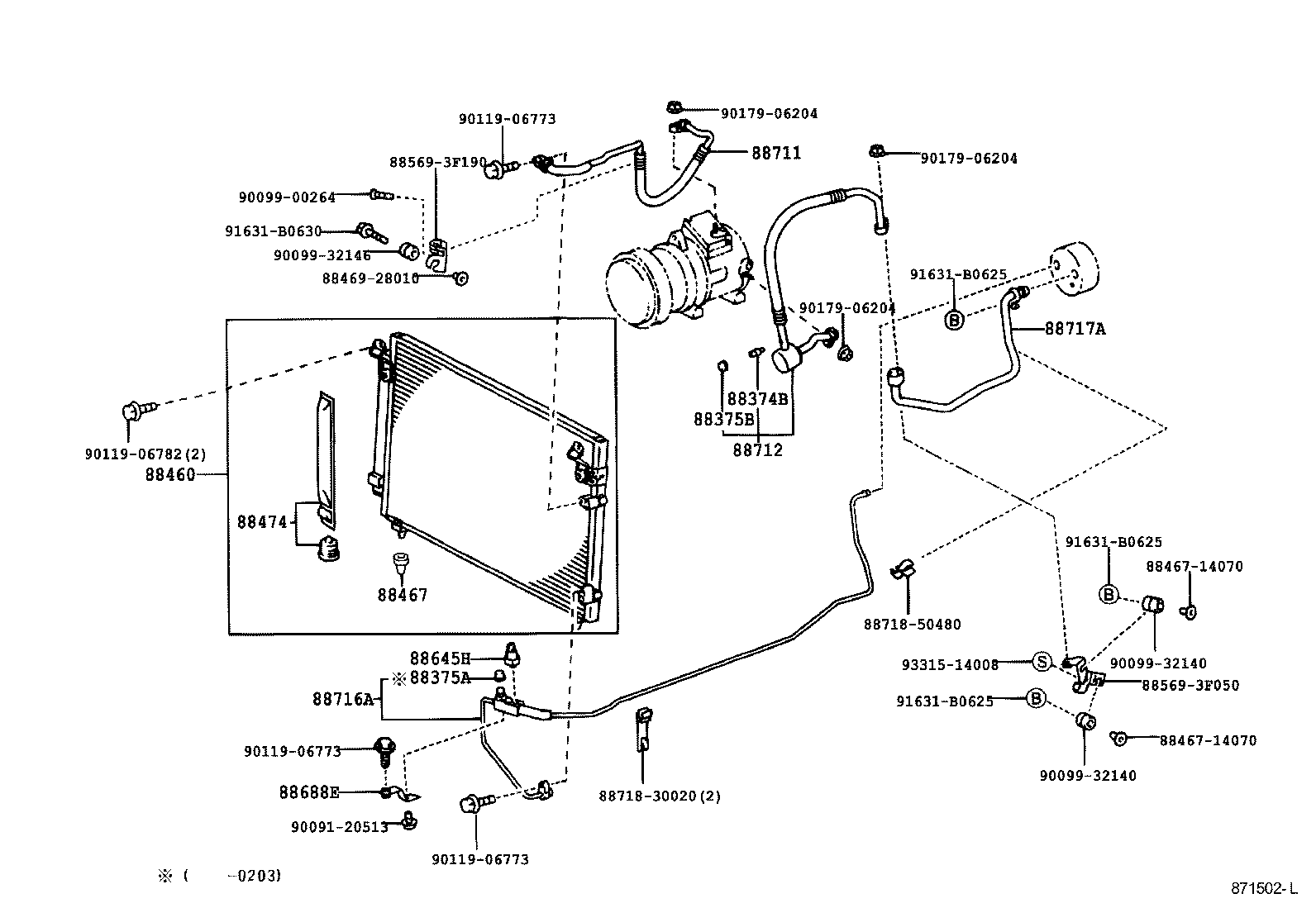

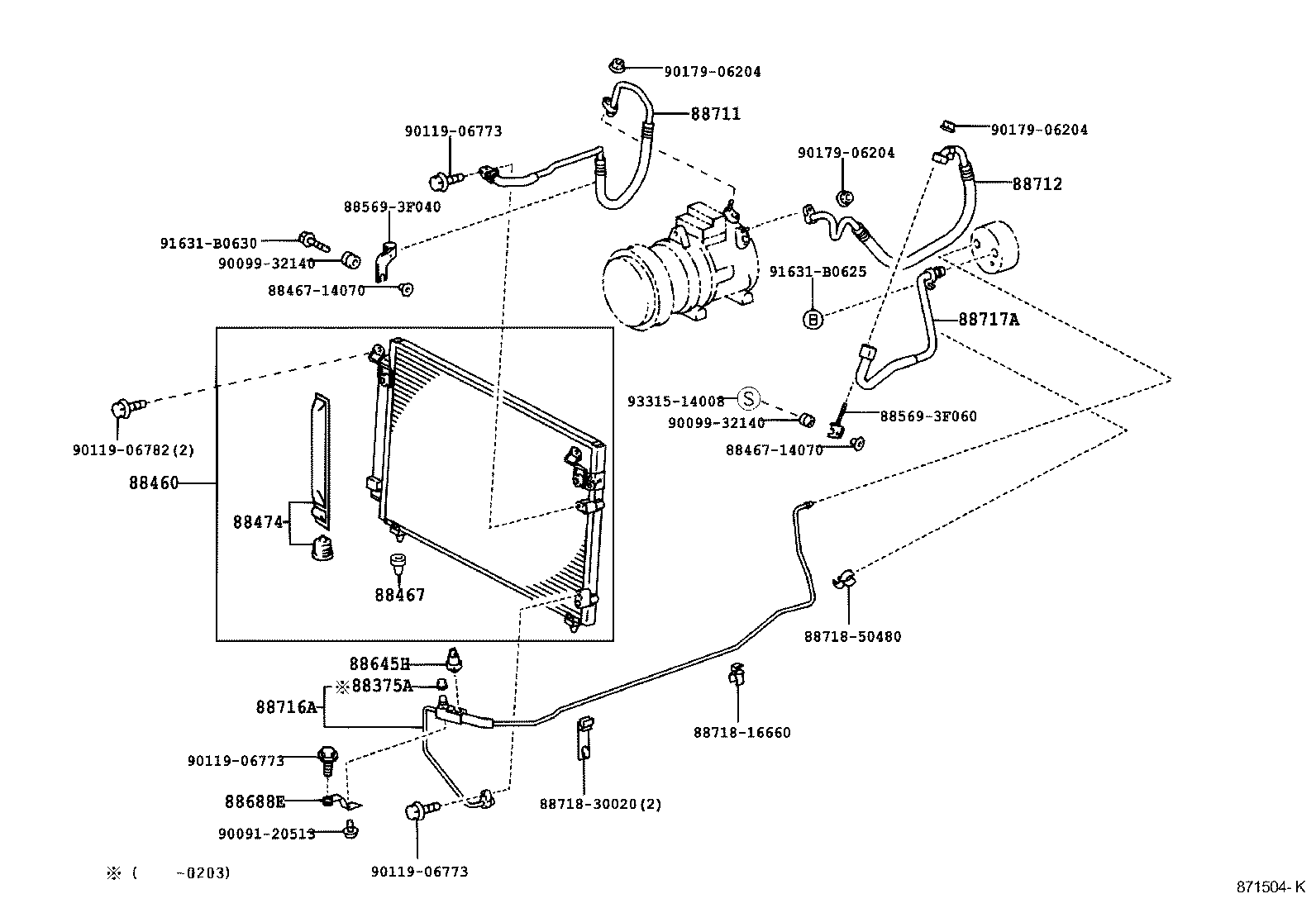

Heating & Air Conditioning - Cooler Piping
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88645H | Switch, Pressure NO.1 |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
