Toyota Lexus GS30/35/43/460
2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe
Supported model
Data version 2012-01

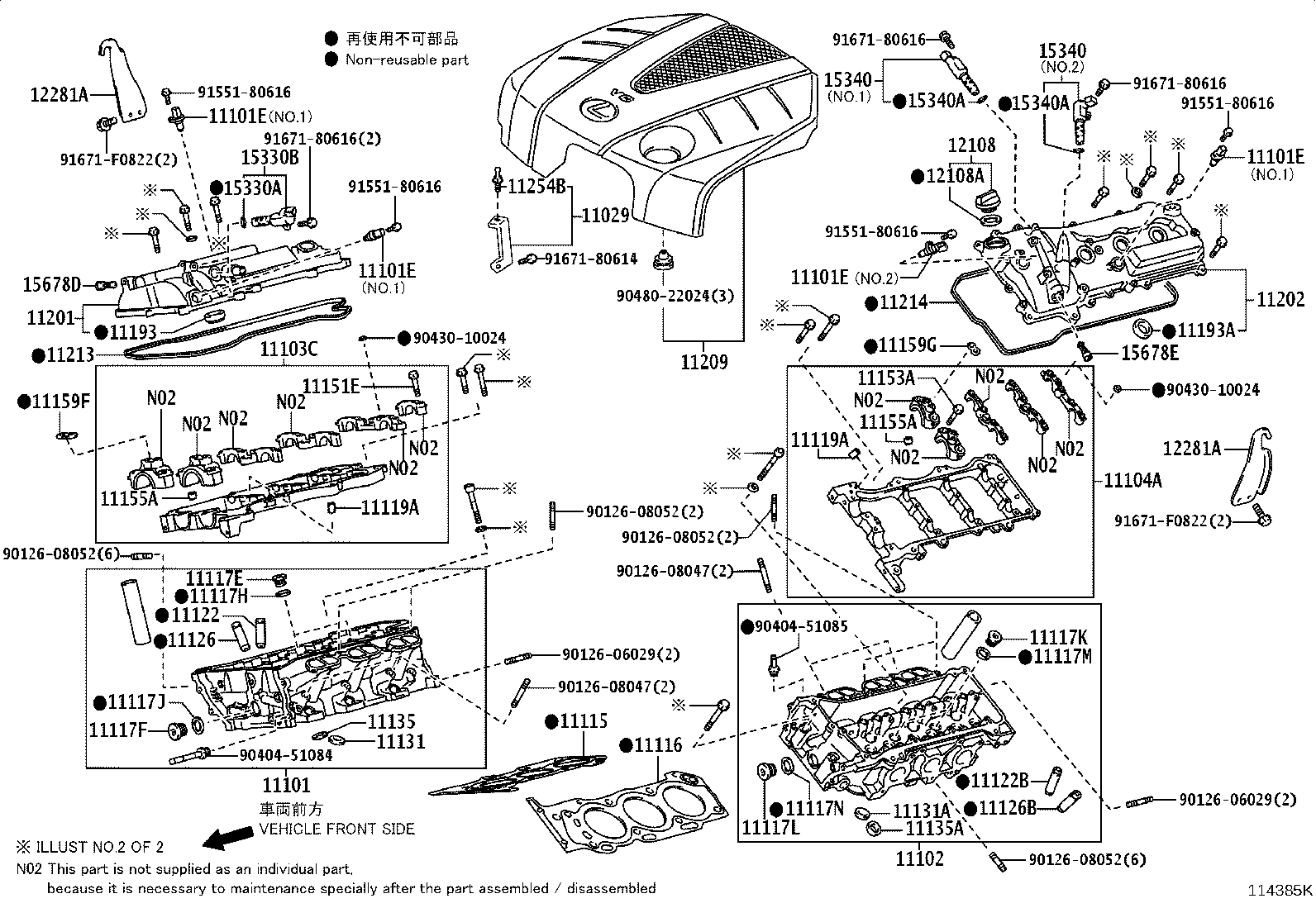

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11029 — Bracket Sub-assy, V-bank Cover | ||||
| 11029-31010 |
Bracket Sub-assy, V-bank Cover
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11029-31010 |
Bracket Sub-assy, V-bank Cover
2007-09 → 2007-12
ended
|
3GR# GRS190 | — | |
| 11029-31030 |
Bracket Sub-assy, V-bank Cover
2007-12 → —
|
3GR# GRS190 | — | |
| 11029-31040 |
Bracket Sub-assy, V-bank Cover
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11029-38040 |
Bracket Sub-assy, V-bank Cover
2007-09 → —
|
1UR# URS190 | — | |
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-39525 |
Head Sub-assy, Cylinder
2005-01 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11101-39565 |
Head Sub-assy, Cylinder
2005-01 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11101-59225 |
Head Sub-assy, Cylinder
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11101-39525 |
Head Sub-assy, Cylinder
2007-09 → 2011-09
ended
|
3GRFSE GRS190 | — | |
| 11101-39526 |
Head Sub-assy, Cylinder
2011-09 → 2011-12
ended
|
3GRFSE GRS190 | — | |
| 11101-39565 |
Head Sub-assy, Cylinder
2007-09 → 2011-09
ended
|
3GRFE GRS190 | — | |
| 11101-39566 |
Head Sub-assy, Cylinder
2011-09 → 2011-12
ended
|
3GRFE GRS190 | — | |
| 11101-39605 |
Head Sub-assy, Cylinder
2009-07 → 2011-09
ended
|
2GRFSE GRS196 | — | |
| 11101-39607 |
Head Sub-assy, Cylinder
2011-09 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11101-39655 |
Head Sub-assy, Cylinder
2007-09 → 2011-04
ended
|
1URFSE URS190 | — | |
| 11101-39656 |
Head Sub-assy, Cylinder
2011-04 → —
|
1URFSE URS190 | — | |
| 11101-39665 |
Head Sub-assy, Cylinder
2008-09 → 2011-04
ended
|
1URFE URS190 | — | |
| 11101-39666 |
Head Sub-assy, Cylinder
2011-04 → —
|
1URFE URS190 | — | |
| 11101-59225 |
Head Sub-assy, Cylinder
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11101E — Sensor, Cam Position | ||||
| 90919-05060 note |
Sensor, Cam Position
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90919-05061 note |
Sensor, Cam Position
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90919-05060 note |
Sensor, Cam Position
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90919-05060 note |
Sensor, Cam Position
2007-09 → —
|
1UR# URS190 | — | |
| 90919-05061 note |
Sensor, Cam Position
2007-09 → —
|
1UR# URS190 | — | |
| 90919-05061 note |
Sensor, Cam Position
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 11102 — Head, Cylinder, LH | ||||
| 11102-39046 |
Head, Cylinder, LH
2005-01 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11102-39126 |
Head, Cylinder, LH
2005-01 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11102-59085 |
Head, Cylinder, LH
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11102-39046 |
Head, Cylinder, LH
2007-09 → 2011-09
ended
|
3GRFSE GRS190 | — | |
| 11102-39047 |
Head, Cylinder, LH
2011-09 → 2011-12
ended
|
3GRFSE GRS190 | — | |
| 11102-39115 |
Head, Cylinder, LH
2009-07 → 2011-09
ended
|
2GRFSE GRS196 | — | |
| 11102-39117 |
Head, Cylinder, LH
2011-09 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11102-39126 |
Head, Cylinder, LH
2007-09 → 2011-09
ended
|
3GRFE GRS190 | — | |
| 11102-39127 |
Head, Cylinder, LH
2011-09 → 2011-12
ended
|
3GRFE GRS190 | — | |
| 11102-39185 |
Head, Cylinder, LH
2007-09 → 2011-04
ended
|
1URFSE URS190 | — | |
| 11102-39186 |
Head, Cylinder, LH
2011-04 → —
|
1URFSE URS190 | — | |
| 11102-39195 |
Head, Cylinder, LH
2008-09 → 2011-04
ended
|
1URFE URS190 | — | |
| 11102-39196 |
Head, Cylinder, LH
2011-04 → —
|
1URFE URS190 | — | |
| 11102-59085 |
Head, Cylinder, LH
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11103C — Housing Sub-assy, Camshaft, RH | ||||
| 11103-31010 |
Housing Sub-assy, Camshaft, RH
2005-01 → 2006-05
ended
|
3GRFSE GRS190 | — | |
| 11103-31011 |
Housing Sub-assy, Camshaft, RH
2006-05 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11103-31020 |
Housing Sub-assy, Camshaft, RH
2005-01 → 2006-05
ended
|
3GRFE GRS190 | — | |
| 11103-31021 |
Housing Sub-assy, Camshaft, RH
2006-05 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11103-31011 |
Housing Sub-assy, Camshaft, RH
2007-09 → 2008-01
ended
|
3GRFSE GRS190 | — | |
| 11103-31012 |
Housing Sub-assy, Camshaft, RH
2008-01 → —
|
2GRFSE,3GRFSE GRS19# | — | |
| 11103-31021 |
Housing Sub-assy, Camshaft, RH
2007-09 → 2008-01
ended
|
3GRFE GRS190 | — | |
| 11103-31022 |
Housing Sub-assy, Camshaft, RH
2008-01 → 2009-01
ended
|
3GRFE GRS190 | — | |
| 11103-31031 |
Housing Sub-assy, Camshaft, RH
2009-01 → 2009-07
ended
|
3GRFE GRS190 | — | |
| 11103-31032 |
Housing Sub-assy, Camshaft, RH
2009-07 → —
|
3GRFE GRS190 | — | |
| 11103-38020 |
Housing Sub-assy, Camshaft, RH
2007-09 → 2008-05
ended
|
1URFSE URS190 | — | |
| 11103-38021 |
Housing Sub-assy, Camshaft, RH
2008-05 → —
|
1UR# URS190 | — | |
| 11104A — Housing Sub-assy, Camshaft, LH | ||||
| 11104-31020 |
Housing Sub-assy, Camshaft, LH
2005-01 → 2006-05
ended
|
3GR# GRS190 | — | |
| 11104-31021 |
Housing Sub-assy, Camshaft, LH
2006-05 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11104-31021 |
Housing Sub-assy, Camshaft, LH
2007-09 → 2008-01
ended
|
3GR# GRS190 | — | |
| 11104-31022 |
Housing Sub-assy, Camshaft, LH
2008-01 → 2009-01
ended
|
3GR# GRS190 | — | |
| 11104-31033 |
Housing Sub-assy, Camshaft, LH
2009-07 → 2011-08
ended
|
2GRFSE GRS196 | — | |
| 11104-31034 |
Housing Sub-assy, Camshaft, LH
2011-08 → —
|
2GRFSE GRS196 | — | |
| 11104-31042 |
Housing Sub-assy, Camshaft, LH
2009-01 → 2009-07
ended
|
3GR# GRS190 | — | |
| 11104-31043 |
Housing Sub-assy, Camshaft, LH
2009-07 → —
|
3GR# GRS190 | — | |
| 11104-38020 |
Housing Sub-assy, Camshaft, LH
2007-09 → —
|
1UR# URS190 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-31041 |
Gasket, Cylinder Head
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11115-50070 |
Gasket, Cylinder Head
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11115-31041 |
Gasket, Cylinder Head
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11115-31080 |
Gasket, Cylinder Head
2009-07 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11115-38020 |
Gasket, Cylinder Head
2007-09 → —
|
1UR# URS190 | — | |
| 11115-50070 |
Gasket, Cylinder Head
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11116 — Gasket, Cylinder Head, NO.2 | ||||
| 11116-31021 |
Gasket, Cylinder Head, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11116-50060 |
Gasket, Cylinder Head, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11116-31021 |
Gasket, Cylinder Head, NO.2
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11116-31060 |
Gasket, Cylinder Head, NO.2
2009-07 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11116-38010 |
Gasket, Cylinder Head, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11116-50060 |
Gasket, Cylinder Head, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.1
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2007-09 → —
|
1UR# URS190 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.1
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-20004 |
Gasket(FOR WATER HOLE)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90430-27005 |
Gasket(FOR WATER HOLE)
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2007-09 → —
|
1UR# URS190 | — | |
| 90430-27005 |
Gasket(FOR WATER HOLE)
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2007-09 → —
|
1UR# URS190 | — | |
| 11117K — Plug, W/Head Straight Screw, LH NO.1 | ||||
| 90341-20012 |
Plug, W/Head Straight Screw, LH NO.1
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, LH NO.1
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, LH NO.1
2007-09 → —
|
1UR# URS190 | — | |
| 11117L — Plug, W/Head Straight Screw, LH NO.2 | ||||
| 90341-27006 |
Plug, W/Head Straight Screw, LH NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, LH NO.2
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, LH NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11117M — Gasket(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
Gasket(FOR WATER HOLE NO.2)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE NO.2)
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE NO.2)
2007-09 → —
|
1UR# URS190 | — | |
| 11117N — Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2007-09 → 2011-12
ended
|
2GRFSE,3GR# GRS19# | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2007-09 → —
|
1UR# URS190 | — | |
| 11119A — Pin, Straight, NO.1 | ||||
| 90250-05021 note |
Pin, Straight, NO.1
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90250-05021 note |
Pin, Straight, NO.1
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-20020 note |
Bush, Intake Valve Guide
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2007-09 → —
|
3GR# GRS190 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2007-09 → —
|
1UR# URS190 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2007-09 → —
|
3GR# GRS190 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2007-09 → —
|
1UR# URS190 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11122B — Bush, Intake Valve Guide, NO.2 | ||||
| 11122-20020 note |
Bush, Intake Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11122-20020 note |
Bush, Intake Valve Guide, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide, NO.2
2007-09 → —
|
3GR# GRS190 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide, NO.2
2007-09 → —
|
3GR# GRS190 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2007-09 → —
|
1UR# URS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2007-09 → —
|
1UR# URS190 | — | |
| 11126B — Bush, Exhaust Valve Guide, NO.2 | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-31020 note |
Seat, Intake Valve
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11131-50040 note |
Seat, Intake Valve
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11132-31020 note |
Seat, Intake Valve
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11132-50040 note |
Seat, Intake Valve
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11131-31020 note |
Seat, Intake Valve
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11131-31040 note |
Seat, Intake Valve
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11131-31040 note |
Seat, Intake Valve
2009-07 → 2010-04
ended
|
2GRFSE GRS196 | — | |
| 11131-31050 note |
Seat, Intake Valve
2008-12 → —
|
1UR# URS190 | — | |
| 11131-31050 note |
Seat, Intake Valve
2010-04 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11131-50040 note |
Seat, Intake Valve
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11132-31020 note |
Seat, Intake Valve
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11132-31040 note |
Seat, Intake Valve
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11132-31040 note |
Seat, Intake Valve
2009-07 → 2010-03
ended
|
2GRFSE GRS196 | — | |
| 11132-31050 note |
Seat, Intake Valve
2010-04 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11132-31050 note |
Seat, Intake Valve
2008-12 → —
|
1UR# URS190 | — | |
| 11132-50040 note |
Seat, Intake Valve
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11131A — Seat, Intake Valve, NO.2 | ||||
| 11131-31020 note |
Seat, Intake Valve, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11131-50040 note |
Seat, Intake Valve, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11132-31020 note |
Seat, Intake Valve, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11132-50040 note |
Seat, Intake Valve, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11131-31020 note |
Seat, Intake Valve, NO.2
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11131-31040 note |
Seat, Intake Valve, NO.2
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11131-31040 note |
Seat, Intake Valve, NO.2
2009-07 → 2010-04
ended
|
2GRFSE GRS196 | — | |
| 11131-31050 note |
Seat, Intake Valve, NO.2
2010-04 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11131-31050 note |
Seat, Intake Valve, NO.2
2008-12 → —
|
1UR# URS190 | — | |
| 11131-50040 note |
Seat, Intake Valve, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11132-31020 note |
Seat, Intake Valve, NO.2
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11132-31040 note |
Seat, Intake Valve, NO.2
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11132-31040 note |
Seat, Intake Valve, NO.2
2009-07 → 2010-03
ended
|
2GRFSE GRS196 | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2010-04 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2008-12 → —
|
1UR# URS190 | — | |
| 11132-50040 note |
Seat, Intake Valve, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-31040 note |
Seat, Exhaust Valve
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11135-50050 note |
Seat, Exhaust Valve
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11136-31040 note |
Seat, Exhaust Valve
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11136-50050 note |
Seat, Exhaust Valve
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11135-31040 note |
Seat, Exhaust Valve
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11135-31060 note |
Seat, Exhaust Valve
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11135-31070 note |
Seat, Exhaust Valve
2009-07 → 2011-09
ended
|
2GRFSE GRS196 | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2008-12 → —
|
1UR# URS190 | — | |
| 11135-31090 note |
Seat, Exhaust Valve
2011-09 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11135-50050 note |
Seat, Exhaust Valve
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11136-31040 note |
Seat, Exhaust Valve
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11136-31060 note |
Seat, Exhaust Valve
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11136-31070 note |
Seat, Exhaust Valve
2009-07 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2008-12 → —
|
1UR# URS190 | — | |
| 11136-50050 note |
Seat, Exhaust Valve
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11135A — Seat, Exhaust Valve, NO.2 | ||||
| 11135-31040 note |
Seat, Exhaust Valve, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11135-50050 note |
Seat, Exhaust Valve, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11136-31040 note |
Seat, Exhaust Valve, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11136-50050 note |
Seat, Exhaust Valve, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11135-31040 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11135-31060 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11135-31070 note |
Seat, Exhaust Valve, NO.2
2009-07 → 2011-09
ended
|
2GRFSE GRS196 | — | |
| 11135-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → —
|
1UR# URS190 | — | |
| 11135-31090 note |
Seat, Exhaust Valve, NO.2
2011-09 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11135-50050 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11136-31040 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2011-12
ended
|
3GR# GRS190 | — | |
| 11136-31060 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2008-12
ended
|
1UR# URS190 | — | |
| 11136-31070 note |
Seat, Exhaust Valve, NO.2
2009-07 → 2011-12
ended
|
2GRFSE GRS196 | — | |
| 11136-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → —
|
1UR# URS190 | — | |
| 11136-50050 note |
Seat, Exhaust Valve, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11151E — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2005-01 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2005-01 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2007-09 → —
|
3GRFE GRS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2007-09 → —
|
1UR# URS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2007-09 → —
|
2GRFSE,3GRFSE GRS19# | — | |
| 11153A — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
2007-09 → —
|
1UR# URS190 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-09001 |
Pin, Ring W/Head
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90253-11021 |
Pin, Ring W/Head
2005-01 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 90253-11021 |
Pin, Ring W/Head
2005-01 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 90253-09001 |
Pin, Ring W/Head
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 90253-11021 |
Pin, Ring W/Head
2007-09 → —
|
3GRFE GRS190 | — | |
| 90253-11021 |
Pin, Ring W/Head
2007-09 → —
|
2GRFSE,3GRFSE GRS19# | — | |
| 11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH | ||||
| 11159-31010 |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11159-31010 note |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2007-09 → —
|
1UR# URS190 | — | |
| 11159-31010 |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11159-38010 note |
Gasket, Camshaft Bearing Cap Oil Hole, RH
2007-09 → —
|
1UR# URS190 | — | |
| 11159G — Gasket, Camshaft Bearing Cap Oil Hole, LH | ||||
| 11159-31010 |
Gasket, Camshaft Bearing Cap Oil Hole, LH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11159-31010 note |
Gasket, Camshaft Bearing Cap Oil Hole, LH
2007-09 → —
|
1UR# URS190 | — | |
| 11159-31010 |
Gasket, Camshaft Bearing Cap Oil Hole, LH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11159-38010 note |
Gasket, Camshaft Bearing Cap Oil Hole, LH
2007-09 → —
|
1UR# URS190 | — | |
| 11193 — Gasket, Spark Plug Tube | ||||
| 11193-50010 |
Gasket, Spark Plug Tube
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11193-70010 |
Gasket, Spark Plug Tube
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11193-38020 |
Gasket, Spark Plug Tube
2007-09 → —
|
1UR# URS190 | — | |
| 11193-50010 |
Gasket, Spark Plug Tube
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11193-70010 |
Gasket, Spark Plug Tube
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11193A — Gasket, Spark Plug Tube, LH | ||||
| 11193-50010 |
Gasket, Spark Plug Tube, LH
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11193-70010 |
Gasket, Spark Plug Tube, LH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11193-38020 |
Gasket, Spark Plug Tube, LH
2007-09 → —
|
1UR# URS190 | — | |
| 11193-50010 |
Gasket, Spark Plug Tube, LH
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11193-70010 |
Gasket, Spark Plug Tube, LH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-31230 |
Cover Sub-assy, Cylinder Head
2005-01 → 2005-08
ended
|
3GRFSE GRS190 | — | |
| 11201-31231 |
Cover Sub-assy, Cylinder Head
2005-08 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11201-31240 |
Cover Sub-assy, Cylinder Head
2005-01 → 2005-11
ended
|
3GRFE GRS190 | — | |
| 11201-31241 |
Cover Sub-assy, Cylinder Head
2005-11 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11201-50031 |
Cover Sub-assy, Cylinder Head
2005-01 → 2006-01
ended
|
3UZFE UZS190 | — | |
| 11201-50041 |
Cover Sub-assy, Cylinder Head
2006-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11201-31231 |
Cover Sub-assy, Cylinder Head
2007-09 → 2007-11
ended
|
3GRFSE GRS190 | — | |
| 11201-31232 |
Cover Sub-assy, Cylinder Head
2007-11 → —
|
2GRFSE,3GRFSE GRS19# | — | |
| 11201-31241 |
Cover Sub-assy, Cylinder Head
2007-09 → 2007-10
ended
|
3GRFE GRS190 | — | |
| 11201-31242 |
Cover Sub-assy, Cylinder Head
2007-10 → —
|
3GRFE GRS190 | — | |
| 11201-38060 |
Cover Sub-assy, Cylinder Head
2007-09 → —
|
1UR# URS190 | — | |
| 11201-50041 |
Cover Sub-assy, Cylinder Head
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11202 — Cover Sub-assy, Cylinder Head, LH | ||||
| 11202-31021 |
Cover Sub-assy, Cylinder Head, LH
2005-01 → 2005-07
ended
|
3GR# GRS190 | — | |
| 11202-31022 |
Cover Sub-assy, Cylinder Head, LH
2005-07 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11202-50070 |
Cover Sub-assy, Cylinder Head, LH
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11202-31022 |
Cover Sub-assy, Cylinder Head, LH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11202-38030 |
Cover Sub-assy, Cylinder Head, LH
2007-09 → —
|
1UR# URS190 | — | |
| 11202-50070 |
Cover Sub-assy, Cylinder Head, LH
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11209 — Cover Sub-assy, V-bank | ||||
| 11209-31011 |
Cover Sub-assy, V-bank
2005-01 → 2005-08
ended
|
3GRFE GRS190 | — | |
| 11209-31041 |
Cover Sub-assy, V-bank
2005-09 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11209-31090 |
Cover Sub-assy, V-bank
2005-01 → 2005-07
ended
|
3GRFSE GRS190 | — | |
| 11209-31091 |
Cover Sub-assy, V-bank
2005-08 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11209-50140 |
Cover Sub-assy, V-bank
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11209-31041 |
Cover Sub-assy, V-bank
2007-09 → —
|
3GRFE GRS190 | — | |
| 11209-31091 |
Cover Sub-assy, V-bank
2007-09 → —
|
3GRFSE GRS190 | — | |
| 11209-31171 |
Cover Sub-assy, V-bank
2009-07 → —
|
2GRFSE GRS196 | — | |
| 11209-38050 |
Cover Sub-assy, V-bank
2007-09 → —
|
1UR# URS190 | — | |
| 11209-50140 |
Cover Sub-assy, V-bank
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-31040 |
Gasket, Cylinder Head Cover
2005-01 → 2007-09
ended
|
3GRFSE GRS190 | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2005-01 → 2007-09
ended
|
3GRFE GRS190 | — | |
| 11213-50031 |
Gasket, Cylinder Head Cover
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11213-31040 |
Gasket, Cylinder Head Cover
2007-09 → —
|
2GRFSE,3GRFSE GRS19# | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2007-09 → —
|
3GRFE GRS190 | — | |
| 11213-38030 |
Gasket, Cylinder Head Cover
2007-09 → —
|
1UR# URS190 | — | |
| 11213-50031 |
Gasket, Cylinder Head Cover
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11214 — Gasket, Cylinder Head Cover, NO.2 | ||||
| 11214-31020 |
Gasket, Cylinder Head Cover, NO.2
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 11214-50011 |
Gasket, Cylinder Head Cover, NO.2
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 11214-31020 |
Gasket, Cylinder Head Cover, NO.2
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 11214-38020 |
Gasket, Cylinder Head Cover, NO.2
2007-09 → —
|
1UR# URS190 | — | |
| 11214-50011 |
Gasket, Cylinder Head Cover, NO.2
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 11254B — Bolt, V-bank Cover | ||||
| 11254-31020 |
Bolt, V-bank Cover
2009-07 → —
|
2GRFSE GRS196 | — | |
| 90109-06385 |
Bolt, V-bank Cover
2007-09 → —
|
1UR# URS190 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-21010 |
Cap Sub-assy, Oil Filler
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 12180-50040 |
Cap Sub-assy, Oil Filler
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 12180-21010 |
Cap Sub-assy, Oil Filler
2007-09 → —
|
3GR# GRS190 | — | |
| 12180-21021 |
Cap Sub-assy, Oil Filler
2009-07 → —
|
2GRFSE GRS196 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2007-09 → —
|
1UR# URS190 | — | |
| 12180-50040 |
Cap Sub-assy, Oil Filler
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
Gasket(FOR OIL FILLER CAP)
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 12195-50010 |
Gasket(FOR OIL FILLER CAP)
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2007-09 → —
|
1UR# URS190 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-31070 |
Hanger, Engine, NO.1
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 12281-31070 |
Hanger, Engine, NO.1
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 12281-38030 |
Hanger, Engine, NO.1
2007-09 → 2008-05
ended
|
1URFSE URS190 | — | |
| 12281-38150 |
Hanger, Engine, NO.1
2008-05 → —
|
1UR# URS190 | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-09 → —
|
1UR#,3UZFE URS190,UZS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15330B — Valve Assy, Cam Timing Oil Control, RH | ||||
| 15330-31020 |
Valve Assy, Cam Timing Oil Control, RH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 15330-50011 |
Valve Assy, Cam Timing Oil Control, RH
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 15330-31020 |
Valve Assy, Cam Timing Oil Control, RH
2007-09 → 2008-02
ended
|
3GR# GRS190 | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, RH
2008-02 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, RH
2007-09 → —
|
1UR# URS190 | — | |
| 15330-50011 |
Valve Assy, Cam Timing Oil Control, RH
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 15340 — Valve Assy, Cam Timing Oil Control, LH | ||||
| 15330-31020 note |
Valve Assy, Cam Timing Oil Control, LH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 15340-31020 note |
Valve Assy, Cam Timing Oil Control, LH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 15340-50011 |
Valve Assy, Cam Timing Oil Control, LH
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 15330-31020 note |
Valve Assy, Cam Timing Oil Control, LH
2007-09 → 2008-02
ended
|
3GR# GRS190 | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, LH
2007-09 → —
|
1UR# URS190 | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2008-02 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15340-31020 note |
Valve Assy, Cam Timing Oil Control, LH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15340-50011 |
Valve Assy, Cam Timing Oil Control, LH
2007-09 → 2008-09
ended
|
3UZFE UZS190 | — | |
| 15340A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2005-01 → 2007-09
ended
|
3UZFE UZS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-09 → —
|
1UR#,3UZFE URS190,UZS190 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15678D — Filter, Oil Control Valve, RH | ||||
| 15678-46020 |
Filter, Oil Control Valve, RH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 15678-46020 |
Filter, Oil Control Valve, RH
2007-09 → —
|
1UR# URS190 | — | |
| 15678-46020 |
Filter, Oil Control Valve, RH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
| 15678E — Filter, Oil Control Valve, LH | ||||
| 15678-46020 |
Filter, Oil Control Valve, LH
2005-01 → 2007-09
ended
|
3GR# GRS190 | — | |
| 15678-46020 |
Filter, Oil Control Valve, LH
2007-09 → —
|
1UR# URS190 | — | |
| 15678-46020 |
Filter, Oil Control Valve, LH
2007-09 → —
|
2GRFSE,3GR# GRS19# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
