Toyota Lexus GS30/35/43/460
2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe
Supported model
Data version 2012-01

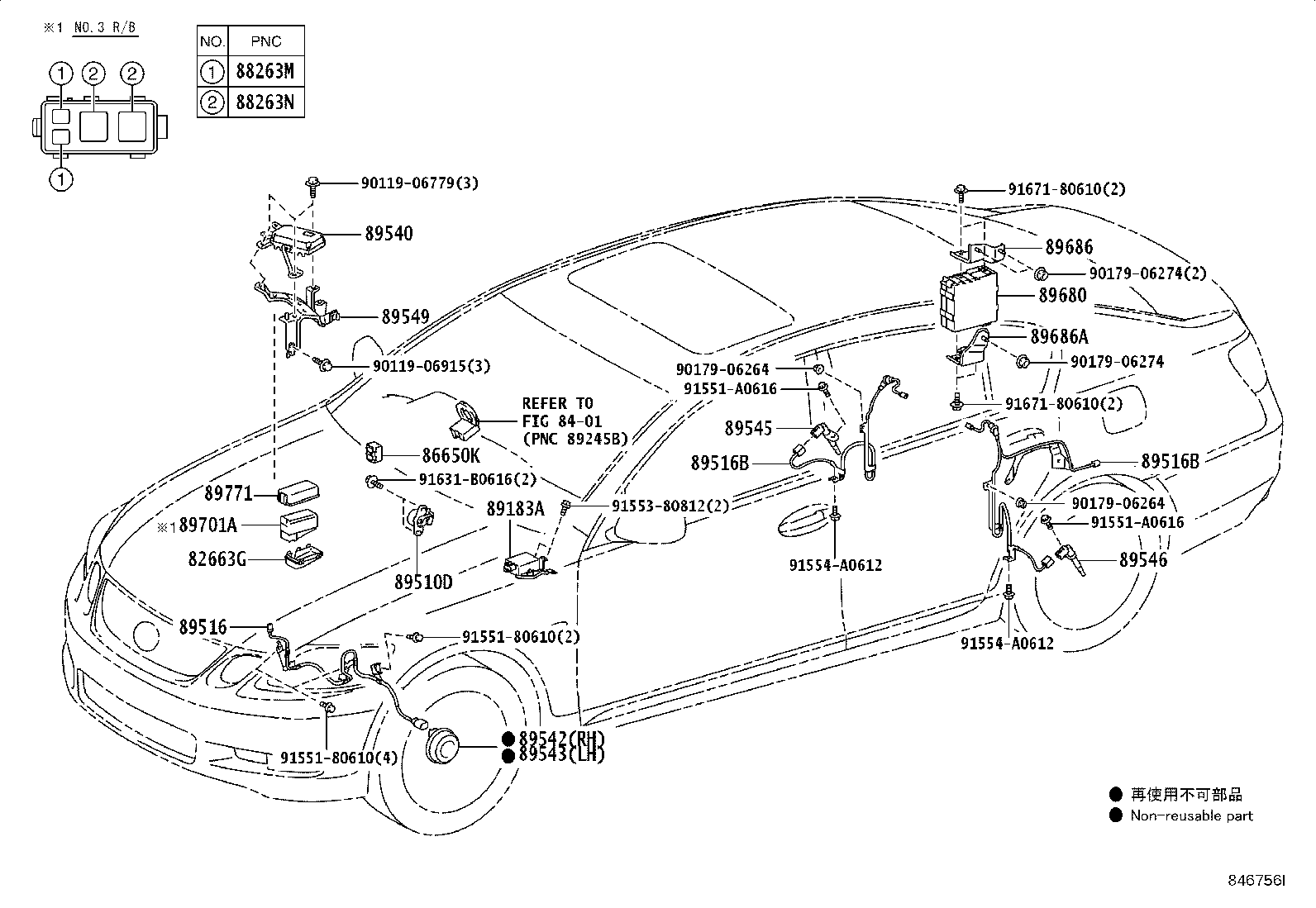

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82663G — Cover, Relay Block, Lower | ||||
| 82663-30220 |
Cover, Relay Block, Lower
2005-01 → 2007-09
ended
|
GRS190,UZS190 RHD | — | |
| 82663-30240 |
Cover, Relay Block, Lower
2005-01 → 2007-09
ended
|
GRS190,UZS190 LHD | — | |
| 82663-30220 |
Cover, Relay Block, Lower
2007-09 → 2011-12
ended
|
GRS190,URS190 RHD | — | |
| 82663-30240 |
Cover, Relay Block, Lower
2007-09 → 2011-12
ended
|
GRS19#,URS190,UZS190 LHD | — | |
| 86650K — Buzzer Assy, Skid Control | ||||
| 86652-48010 |
Buzzer Assy, Skid Control
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 86652-50010 |
Buzzer Assy, Skid Control
2007-09 → 2011-12
ended
|
GRS19#,URS190,UZS190 | — | |
| 88263M — Relay, Abs Solenoid | ||||
| 88263-32070 |
Relay, Abs Solenoid
2005-01 → 2007-09
ended
|
GRS190 | — | |
| 88263-32070 |
Relay, Abs Solenoid
2005-01 → 2007-09
ended
|
UZS190 | — | |
| 88263-32070 |
Relay, Abs Solenoid
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 88263-32070 |
Relay, Abs Solenoid
2007-09 → 2011-12
ended
|
GRS19#,URS190 | — | |
| 88263N — Relay, Abs Motor | ||||
| 88263-21010 |
Relay, Abs Motor
2005-01 → 2007-09
ended
|
GRS190 | — | |
| 88263-21010 |
Relay, Abs Motor
2005-01 → 2007-09
ended
|
UZS190 | — | |
| 88263-21010 |
Relay, Abs Motor
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 88263-21010 |
Relay, Abs Motor
2007-09 → 2011-12
ended
|
GRS19# | — | |
| 88263-21010 |
Relay, Abs Motor
2007-09 → 2011-12
ended
|
URS190 | — | |
| 89183A — Sensor, Yawrate | ||||
| 89180-30070 |
Sensor, Yawrate
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89180-30070 |
Sensor, Yawrate
2007-09 → 2009-09
ended
|
GRS19#,URS190,UZS190 | — | |
| 89180-30100 |
Sensor, Yawrate
2009-09 → 2011-12
ended
|
GRS19#,URS190 | — | |
| 89510D — Sensor Assy, Brake Pedal Stroke | ||||
| 89510-28010 |
Sensor Assy, Brake Pedal Stroke
2005-01 → 2007-09
ended
|
UZS190 RHD | — | |
| 89510-30040 |
Sensor Assy, Brake Pedal Stroke
2005-01 → 2007-09
ended
|
UZS190 LHD | — | |
| 89510-28010 |
Sensor Assy, Brake Pedal Stroke
2007-09 → 2011-12
ended
|
URS190 RHD | — | |
| 89510-30040 |
Sensor Assy, Brake Pedal Stroke
2007-09 → 2011-12
ended
|
URS190,UZS190 LHD | — | |
| 89516 — Wire, Skid Control Sensor | ||||
| 89516-30020 note |
Wire, Skid Control Sensor
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89516-30030 note |
Wire, Skid Control Sensor
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89516-30020 note |
Wire, Skid Control Sensor
2007-09 → —
|
UZS190 | — | |
| 89516-30020 note |
Wire, Skid Control Sensor
2007-09 → —
|
GRS190,URS190 | — | |
| 89516-30030 note |
Wire, Skid Control Sensor
2007-09 → —
|
GRS190 | — | |
| 89516-30030 note |
Wire, Skid Control Sensor
2007-09 → —
|
UZS190 | — | |
| 89516-30040 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516-30050 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516-30060 note |
Wire, Skid Control Sensor
2007-09 → —
|
URS190 | — | |
| 89516-30100 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516-30100 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516-30110 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516-30110 note |
Wire, Skid Control Sensor
2009-07 → —
|
GRS196 | — | |
| 89516B — Wire, Skid Control Sensor | ||||
| 89516-22020 note |
Wire, Skid Control Sensor
2005-06 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89516-22040 note |
Wire, Skid Control Sensor
2005-06 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89516-30080 note |
Wire, Skid Control Sensor
2005-01 → 2005-05
ended
|
GRS190,UZS190 | — | |
| 89516-30130 note |
Wire, Skid Control Sensor
2005-01 → 2005-05
ended
|
GRS190,UZS190 | — | |
| 89516-22020 note |
Wire, Skid Control Sensor
2007-09 → —
|
UZS190 | — | |
| 89516-22020 note |
Wire, Skid Control Sensor
2007-09 → —
|
GRS19#,URS190 | — | |
| 89516-22040 note |
Wire, Skid Control Sensor
2007-09 → —
|
UZS190 | — | |
| 89516-22040 note |
Wire, Skid Control Sensor
2007-09 → —
|
GRS19#,URS190 | — | |
| 89540 — Computer Assy, Skid Control | ||||
| 89540-30630 |
Computer Assy, Skid Control
2005-01 → 2006-07
ended
|
UZS190 LHD | — | |
| 89540-30640 |
Computer Assy, Skid Control
2005-01 → 2006-07
ended
|
UZS190 RHD | — | |
| 89540-30700 |
Computer Assy, Skid Control
2006-07 → 2006-09
ended
|
UZS190 RHD | — | |
| 89540-30700 note |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 RHD | — | |
| 89540-30700 note |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 RHD | — | |
| 89540-30710 |
Computer Assy, Skid Control
2006-07 → 2006-09
ended
|
UZS190 LHD EUR | — | |
| 89540-30710 |
Computer Assy, Skid Control
2006-07 → 2007-09
ended
|
UZS190 GCC | — | |
| 89540-30710 note |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 LHD EUR | — | |
| 89540-30710 note |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 LHD EUR | — | |
| 89540-30720 |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 RHD | — | |
| 89540-30730 |
Computer Assy, Skid Control
2006-09 → 2007-09
ended
|
UZS190 LHD EUR | — | |
| 89540-30710 |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
UZS190 | — | |
| 89540-30810 |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
GRS190 RHD | — | |
| 89540-30820 |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
GRS190 LHD | — | |
| 89540-30850 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 RHD | — | |
| 89540-30850 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 RHD | — | |
| 89540-30860 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 LHD | — | |
| 89540-30860 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 LHD | — | |
| 89540-30870 |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 RHD | — | |
| 89540-30880 |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
URS190 LHD | — | |
| 89540-30A00 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
GRS190 RHD EUR | — | |
| 89540-30A10 note |
Computer Assy, Skid Control
2007-09 → 2008-09
ended
|
GRS190 LHD EUR | — | |
| 89540-30A30 note |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 RHD | — | |
| 89540-30A30 note |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 RHD | — | |
| 89540-30A40 note |
Computer Assy, Skid Control
2008-09 → 2010-07
ended
|
URS190 LHD EUR | — | |
| 89540-30A40 |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 GCC | — | |
| 89540-30A40 note |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 LHD EUR | — | |
| 89540-30A50 |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 RHD | — | |
| 89540-30A60 |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
URS190 LHD EUR | — | |
| 89540-30B10 |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
GRS190 RHD | — | |
| 89540-30B20 |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
GRS190 LHD | — | |
| 89540-30B40 |
Computer Assy, Skid Control
2009-07 → 2011-12
ended
|
GRS196 | — | |
| 89540-30B50 note |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
GRS190 RHD EUR | — | |
| 89540-30B60 note |
Computer Assy, Skid Control
2008-09 → 2011-12
ended
|
GRS190 LHD EUR | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-30260 |
Sensor, Speed, Front RH
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89542-30260 |
Sensor, Speed, Front RH
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 89542-30260 |
Sensor, Speed, Front RH
2007-09 → 2011-12
ended
|
GRS190,URS190 | — | |
| 89542-30270 |
Sensor, Speed, Front RH
2009-07 → 2011-12
ended
|
GRS196 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-30260 |
Sensor, Speed, Front LH
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89543-30260 |
Sensor, Speed, Front LH
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 89543-30260 |
Sensor, Speed, Front LH
2007-09 → 2011-12
ended
|
GRS190,URS190 | — | |
| 89543-30270 |
Sensor, Speed, Front LH
2009-07 → 2011-12
ended
|
GRS196 | — | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-30070 |
Sensor, Speed, Rear RH
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89545-30070 |
Sensor, Speed, Rear RH
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 89545-30070 |
Sensor, Speed, Rear RH
2007-09 → 2011-12
ended
|
GRS19#,URS190 | — | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-30070 |
Sensor, Speed, Rear LH
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 89546-30070 |
Sensor, Speed, Rear LH
2007-09 → 2008-05
ended
|
UZS190 | — | |
| 89546-30070 |
Sensor, Speed, Rear LH
2007-09 → 2011-12
ended
|
GRS19#,URS190 | — | |
| 89549 — Bracket, Skid Control Computer | ||||
| 88269-30170 |
Bracket, Skid Control Computer
2005-01 → 2007-09
ended
|
UZS190 RHD | — | |
| 88269-30180 |
Bracket, Skid Control Computer
2005-01 → 2007-09
ended
|
UZS190 LHD | — | |
| 88269-30190 |
Bracket, Skid Control Computer
2007-09 → 2011-12
ended
|
URS190 RHD | — | |
| 88269-30200 |
Bracket, Skid Control Computer
2007-09 → 2011-12
ended
|
URS190,UZS190 LHD | — | |
| 89680 — Supply Assy, Brake Control Power | ||||
| 89680-33010 |
Supply Assy, Brake Control Power
2006-07 → 2007-09
ended
|
UZS190 | — | |
| 89680-48010 |
Supply Assy, Brake Control Power
2005-01 → 2006-06
ended
|
UZS190 | — | |
| 89680-33010 |
Supply Assy, Brake Control Power
2007-09 → 2011-12
ended
|
URS190,UZS190 | — | |
| 89686 — Bracket, Brake Control Power Supply, NO.1 | ||||
| 89686-30050 |
Bracket, Brake Control Power Supply, NO.1
2005-01 → 2007-09
ended
|
UZS190 | — | |
| 89686-30050 |
Bracket, Brake Control Power Supply, NO.1
2007-09 → 2011-12
ended
|
URS190,UZS190 | — | |
| 89686A — Bracket, Brake Control Power Supply, NO.1 | ||||
| 89686-30040 |
Bracket, Brake Control Power Supply, NO.1
2005-01 → 2007-09
ended
|
UZS190 | — | |
| 89686-30040 |
Bracket, Brake Control Power Supply, NO.1
2007-09 → 2011-12
ended
|
URS190,UZS190 | — | |
| 89701A — Block Sub-assy, Abs Relay | ||||
| 82743-30020 |
Block Sub-assy, Abs Relay
2005-01 → 2007-09
ended
|
GRS190 RHD | — | |
| 82743-30030 |
Block Sub-assy, Abs Relay
2005-01 → 2007-09
ended
|
UZS190 RHD | — | |
| 82743-30040 |
Block Sub-assy, Abs Relay
2005-01 → 2007-09
ended
|
GRS190 LHD | — | |
| 82743-30050 |
Block Sub-assy, Abs Relay
2005-01 → 2007-09
ended
|
UZS190 LHD | — | |
| 82743-30020 |
Block Sub-assy, Abs Relay
2007-09 → 2011-12
ended
|
GRS190 RHD | — | |
| 82743-30030 |
Block Sub-assy, Abs Relay
2007-09 → 2011-12
ended
|
URS190 RHD | — | |
| 82743-30040 |
Block Sub-assy, Abs Relay
2007-09 → 2011-12
ended
|
GRS19# LHD | — | |
| 82743-30050 |
Block Sub-assy, Abs Relay
2007-09 → 2011-12
ended
|
URS190,UZS190 LHD | — | |
| 89771 — Cover, Abs Relay Block, Upper | ||||
| 82662-30560 |
Cover, Abs Relay Block, Upper
2005-01 → 2007-09
ended
|
GRS190,UZS190 | — | |
| 82662-30560 |
Cover, Abs Relay Block, Upper
2007-09 → 2011-12
ended
|
GRS19#,URS190,UZS190 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
