Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 4 illustrations

Illustrations

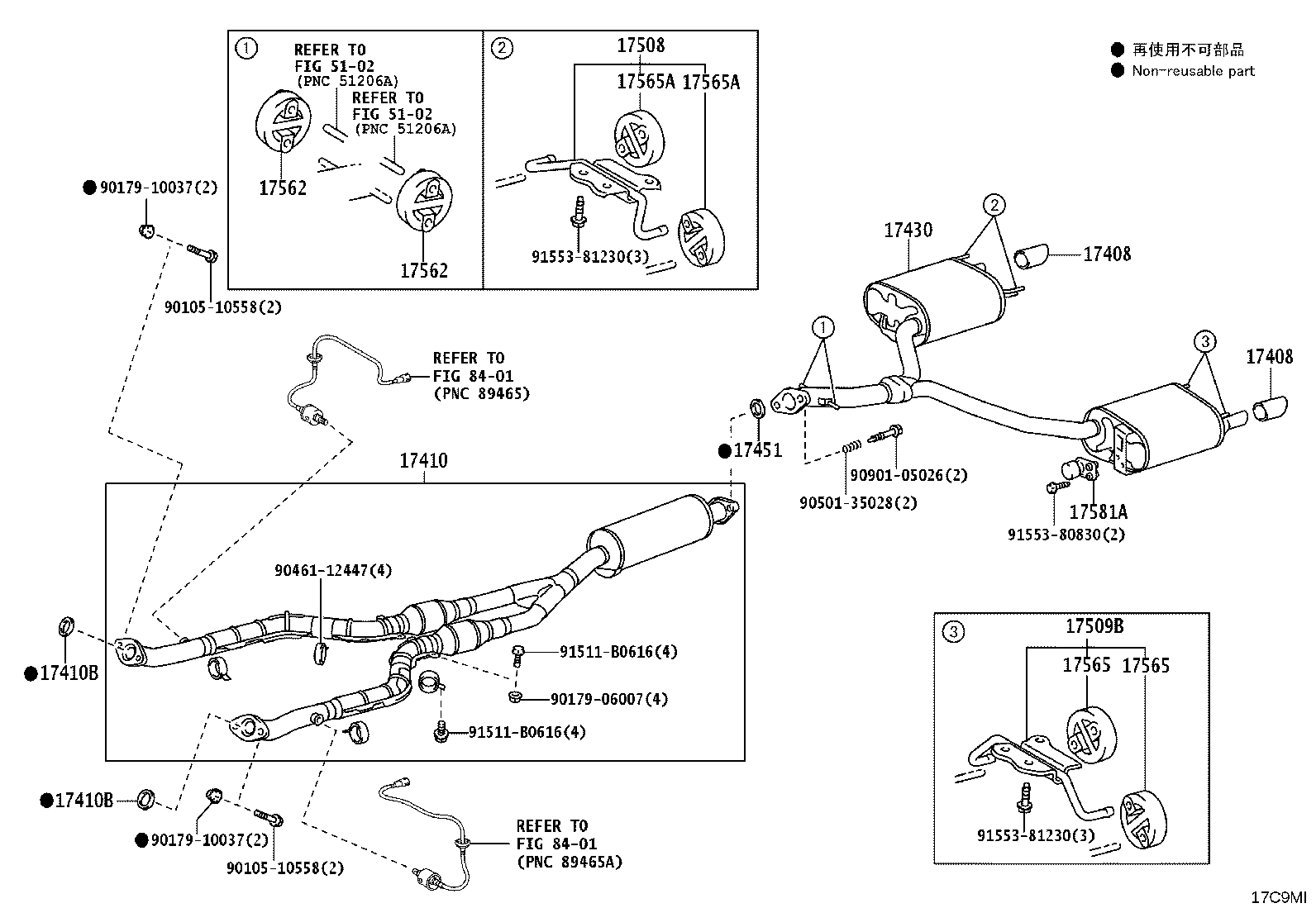

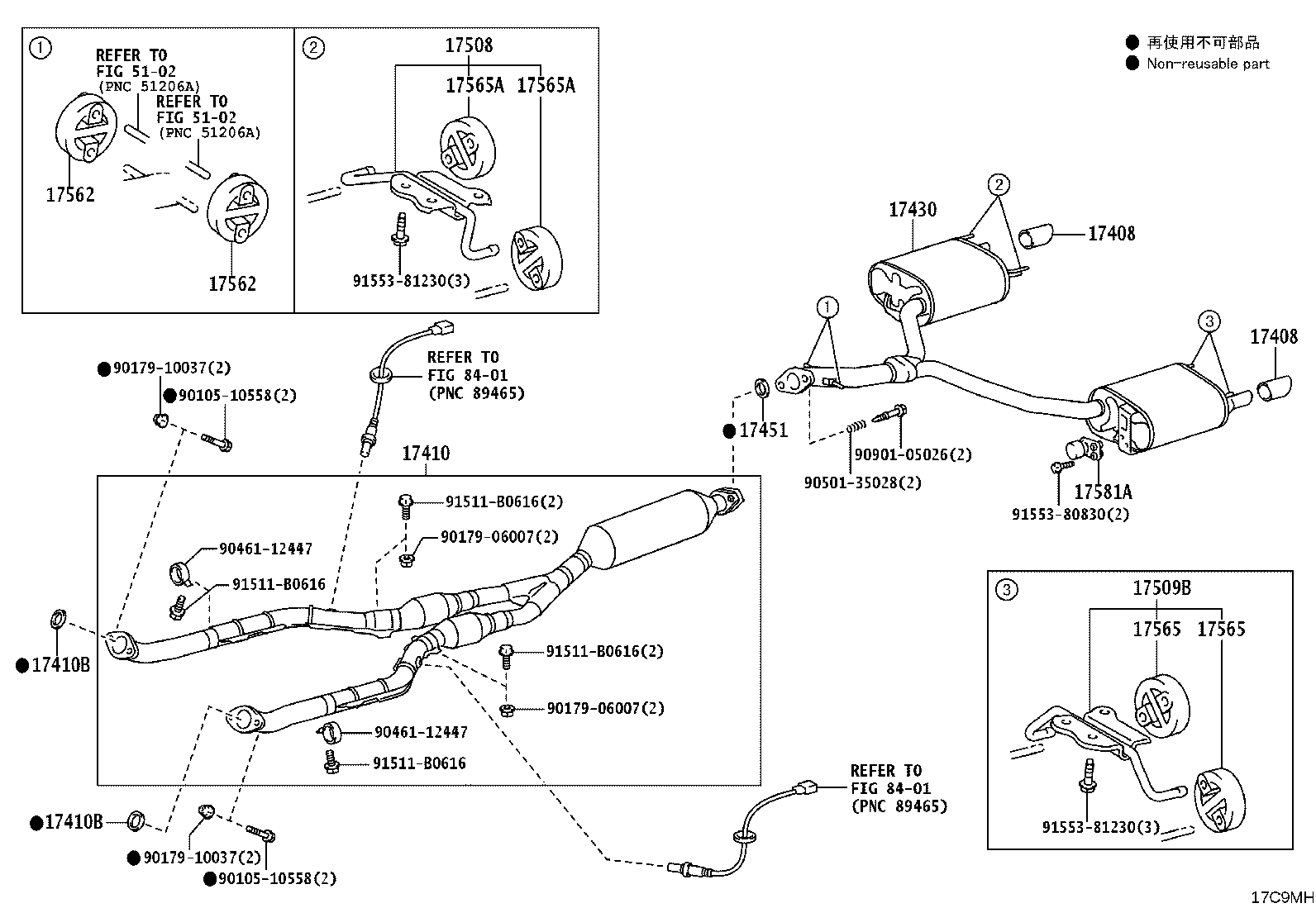

Figure 174352L 174352L 2005-01 → — Figure 174525G 174525G 2005-01 → — Figure 17C9MH 17C9MH 2007-09 → — Figure 17C9MI 17C9MI 2009-07 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17509B Support, Exhaust Pipe NO.4
17562 Support, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
