Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 2 illustrations

Illustrations

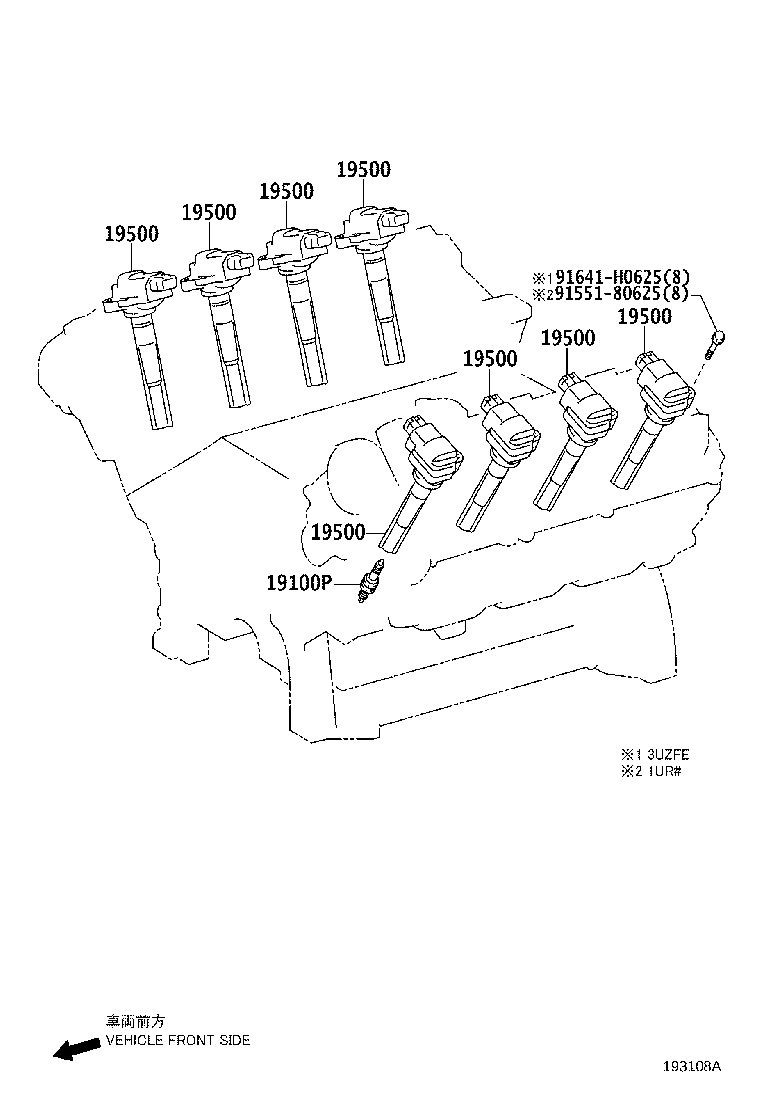

Figure 193264I 193264I 2005-01 → — Figure 193108A 193108A 2005-01 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
