Toyota Lexus GS30/35/43/460
2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe
Supported model
Data version 2012-01
Starter
29 part groups · 5 illustrations
Part groups

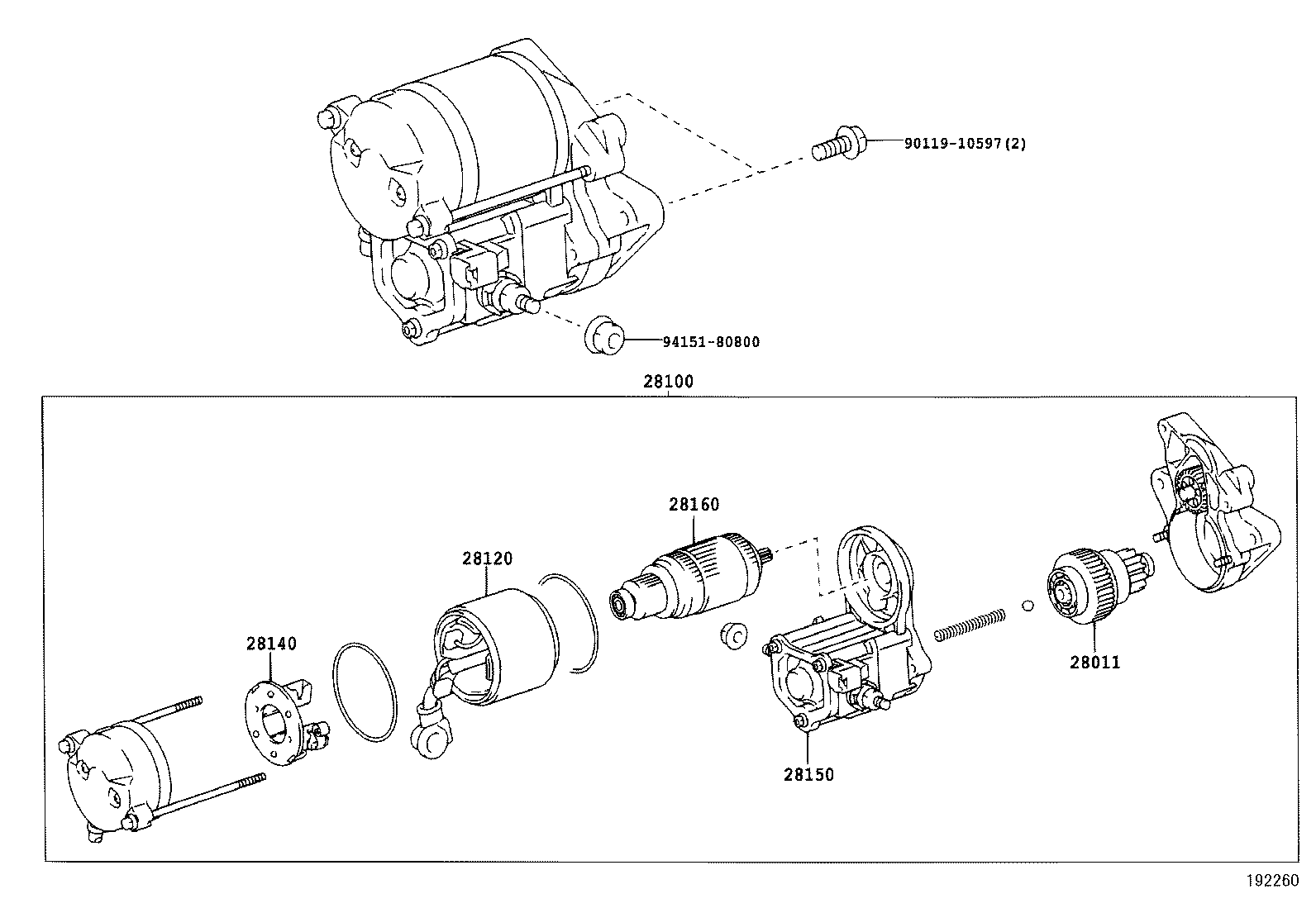

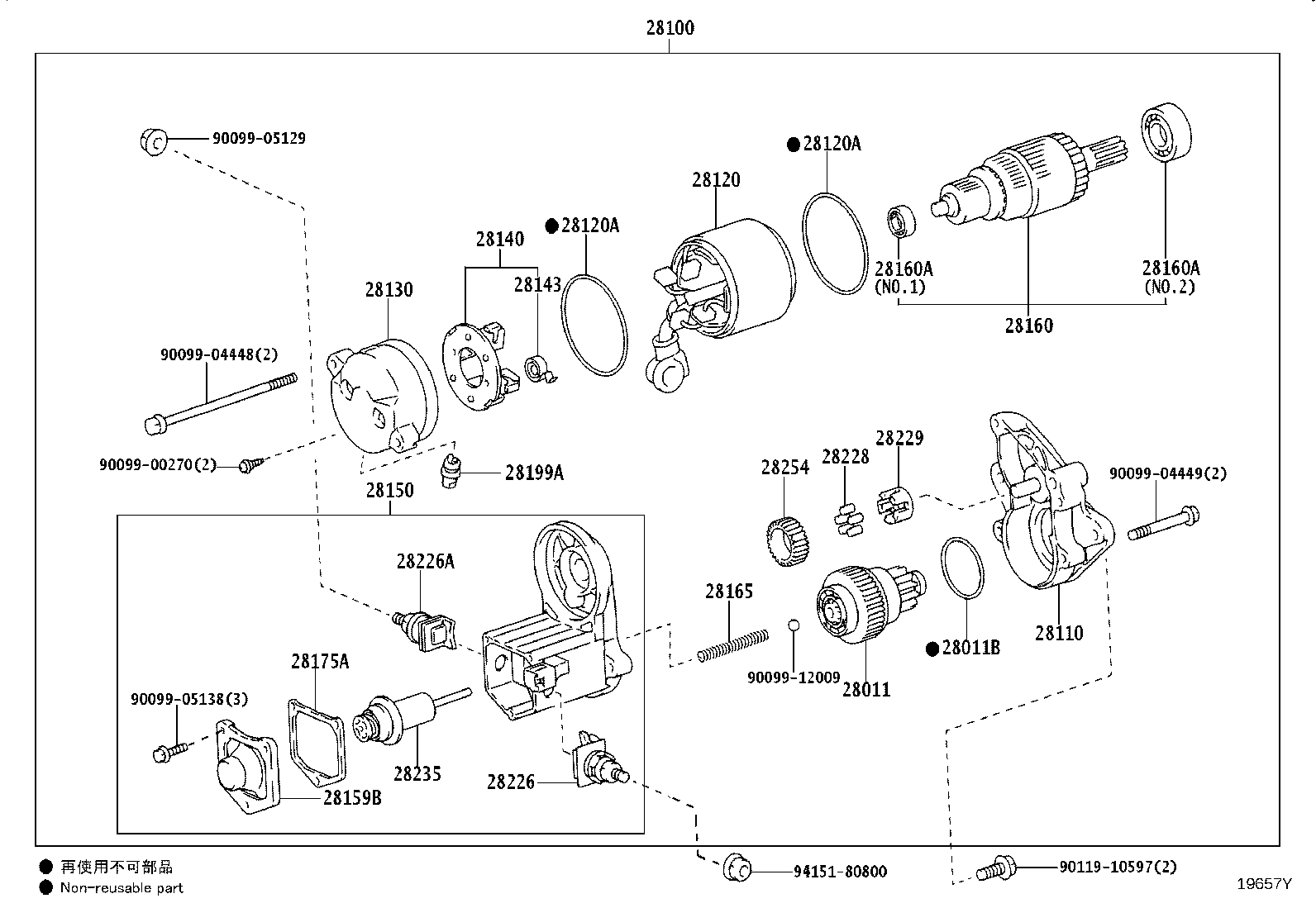

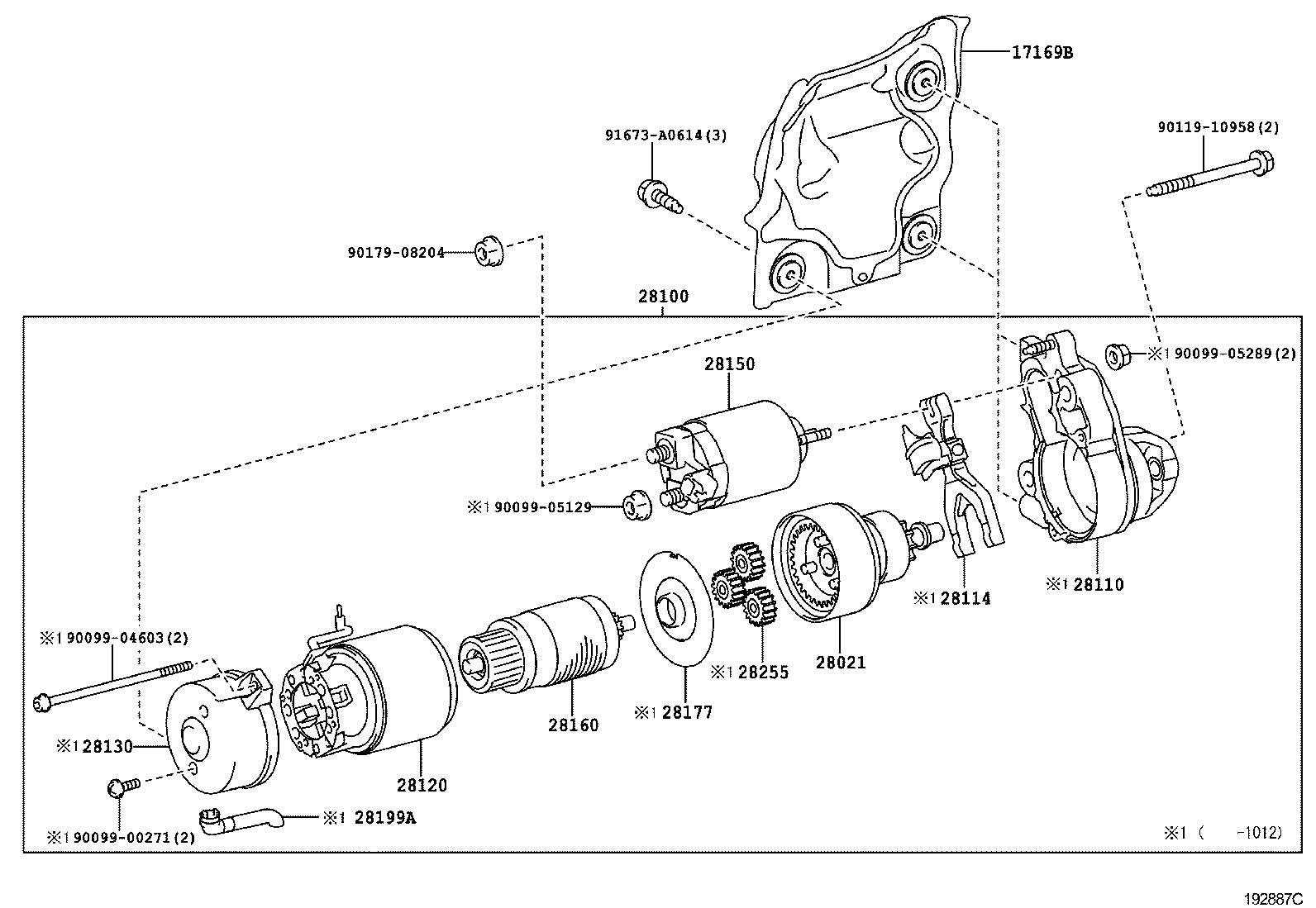

| PNC | Description |
|---|---|
| 17169B | Insulator, Exhaust Manifold Heat, NO.3 |
| 28011 | Clutch Sub-assy, Starter |
| 28011B | Ring, O(FOR STARTER CLUTCH) |
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28114 | Pin, Starter Drive Lever Set |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28140 | Holder Assy, Starter Brush |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28159B | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28165 | Spring, Starter Magnet Switch Return |
| 28175A | Gasket, Magnet Switch Cover |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28199A | Protector, Dust Starter |
| 28226 | Starter Kit, Battery Terminal |
| 28226A | Starter Kit, Motor Terminal |
| 28226B | Starter Kit, Repair Service |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28235 | Plunger, Magnet Switch |
| 28254 | Pinion, Starter Idle Gear |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
