Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 5 illustrations

Illustrations

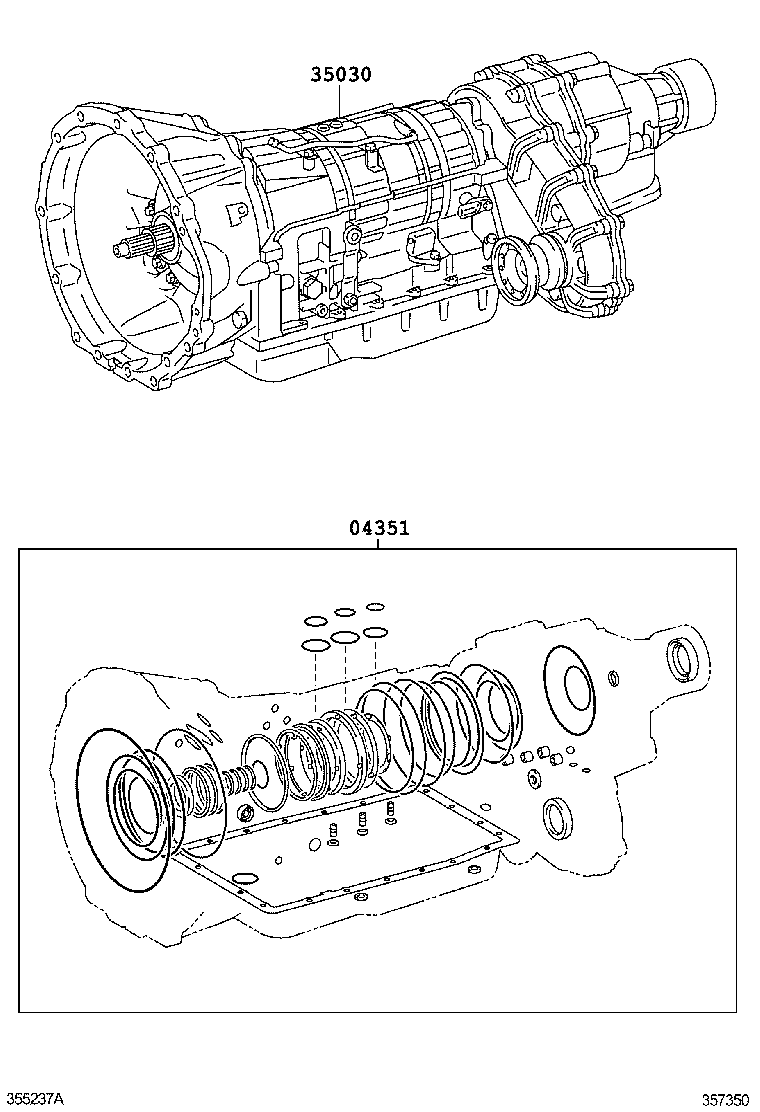

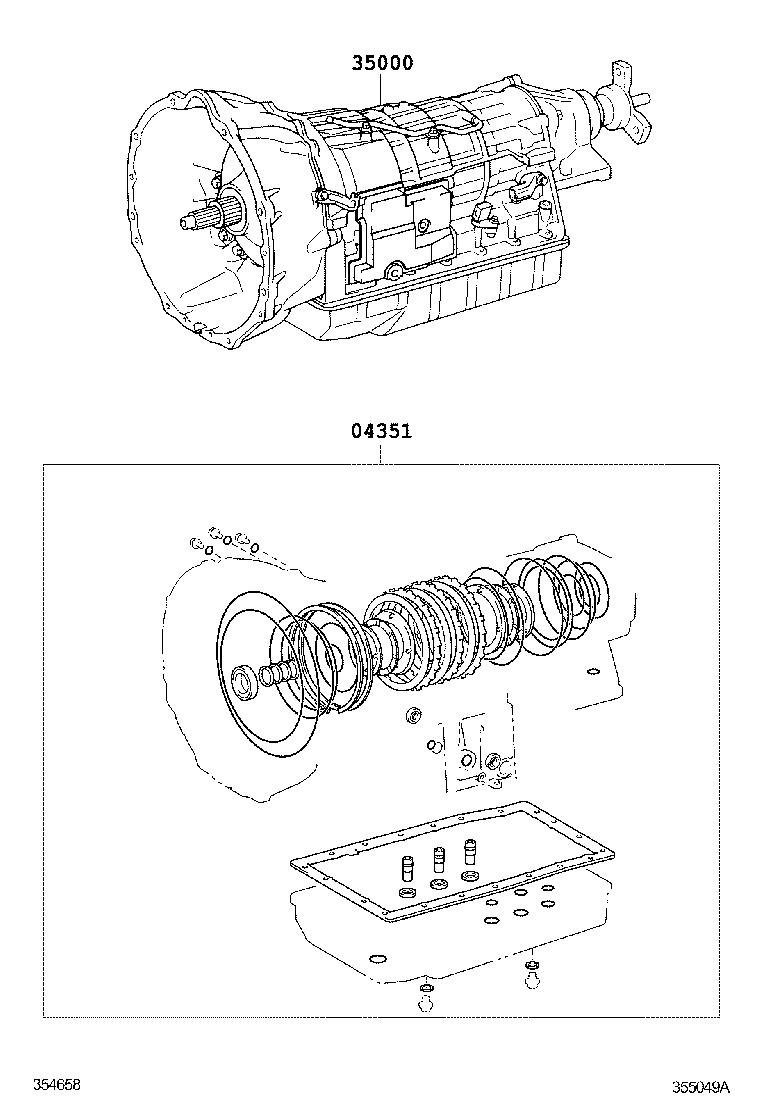

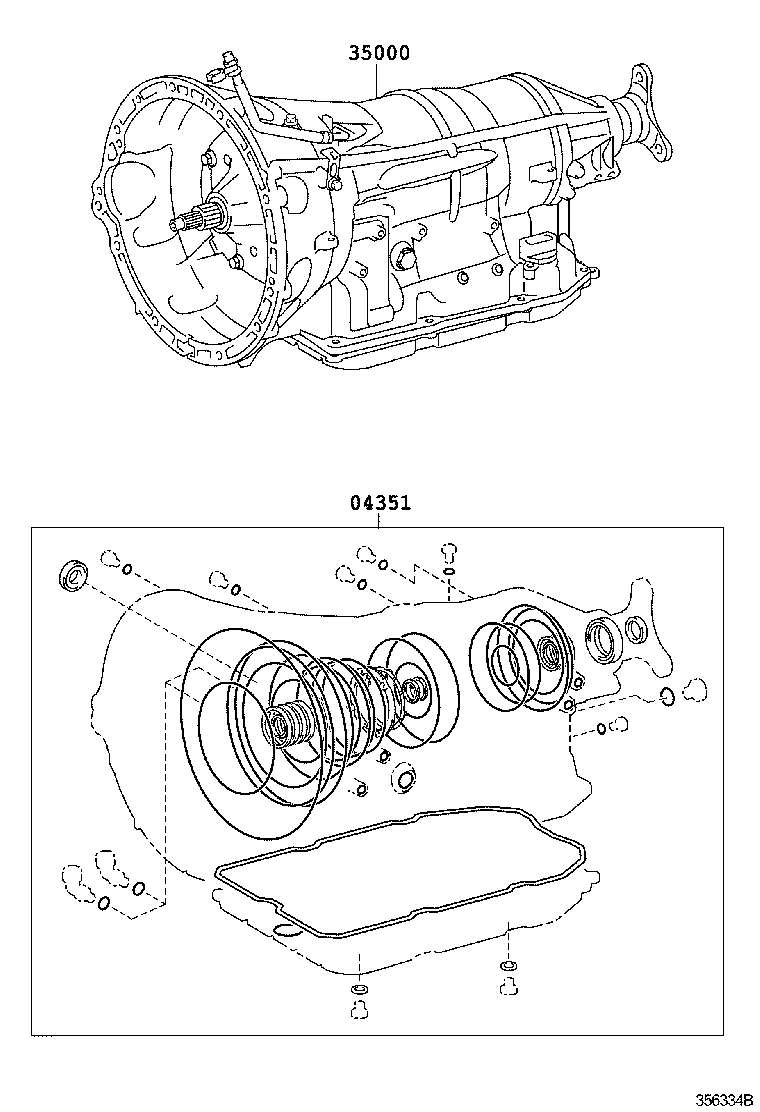

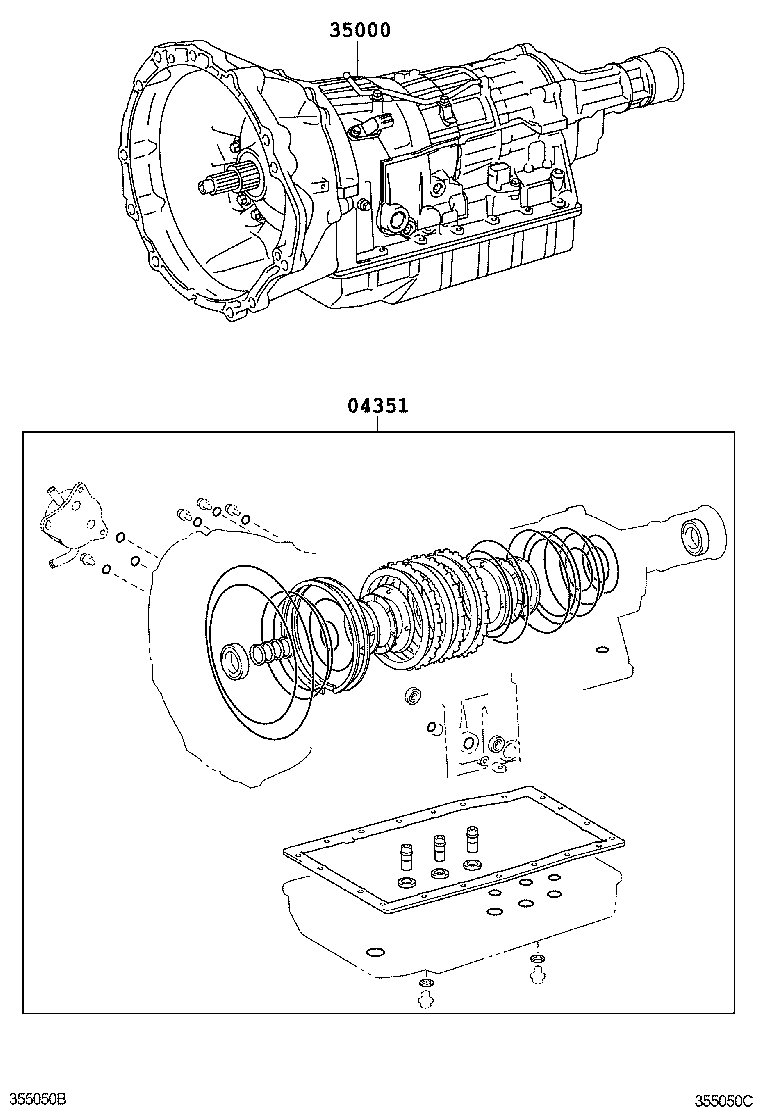

Figure 355048A 355048A 2005-01 → — Figure 355049A 355049A 2005-01 → — Figure 355050C 355050C 2005-01 → — Figure 356334B 356334B 2007-09 → — Figure 357350 357350 2009-07 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
