Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Throttle Link & Valve Lever (ATM)

14 part groups · 3 illustrations

Illustrations

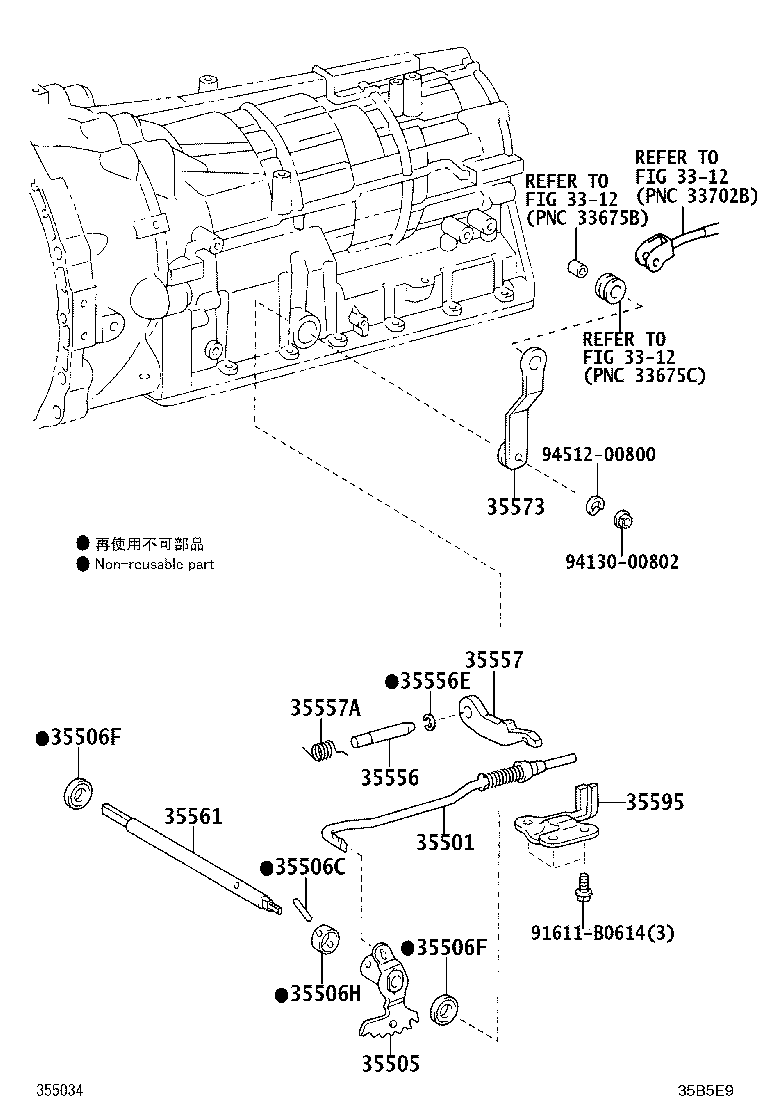

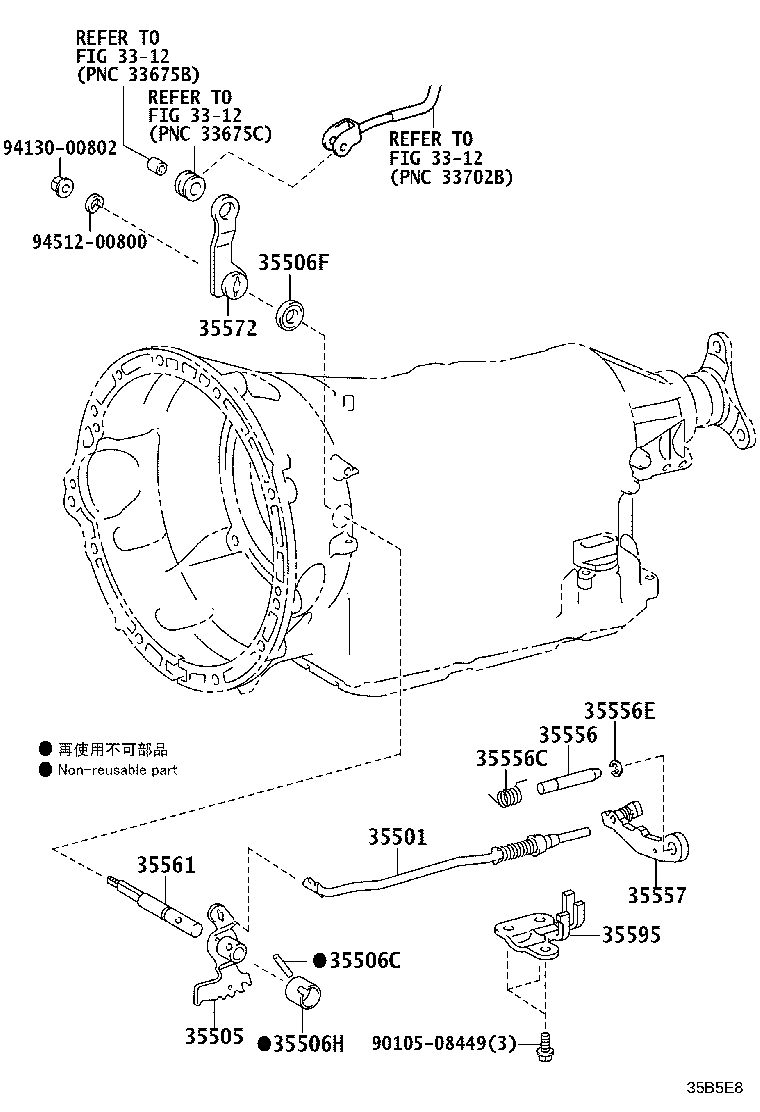

Figure 35B5E7 35B5E7 2005-01 → — Figure 35B5E8 35B5E8 2007-09 → — Figure 35B5E9 35B5E9 2009-07 → —

Part groups

PNCDescription
35501 Rod Sub-assy, Parking Lock
35505 Lever Sub-assy, Manual Valve
35506C Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
35506F Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
35506H Spacer (FOR MANUAL VALVE LEVER SHAFT)
35556 Shaft, Parking Lock Pawl
35556C Spring, Torsion (FOR PARKING LOCK PAWL SHAFT)
35556E Ring, E (FOR PARKING LOCK PAWL SHAFT)
35557 Pawl, Parking Lock
35557A Spring, Torsion (FOR PARKING LOCK PAWL)
35561 Shaft, Manual Valve Lever
35572 Lever, Transmission Control Shaft, RH
35573 Lever, Transmission Control Shaft, LH
35595 Bracket, Parking Lock Pawl
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
