Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 6 illustrations

Illustrations

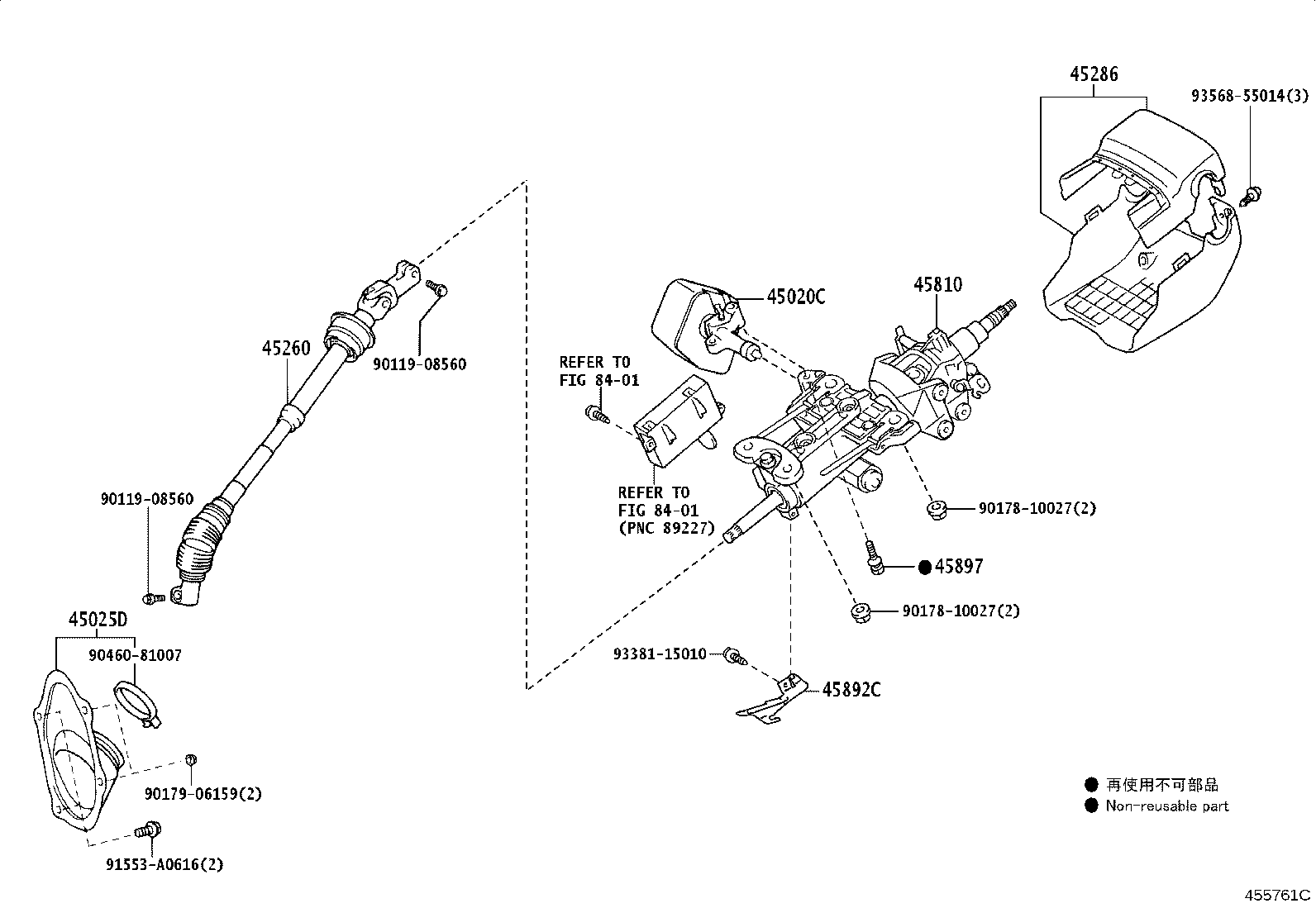

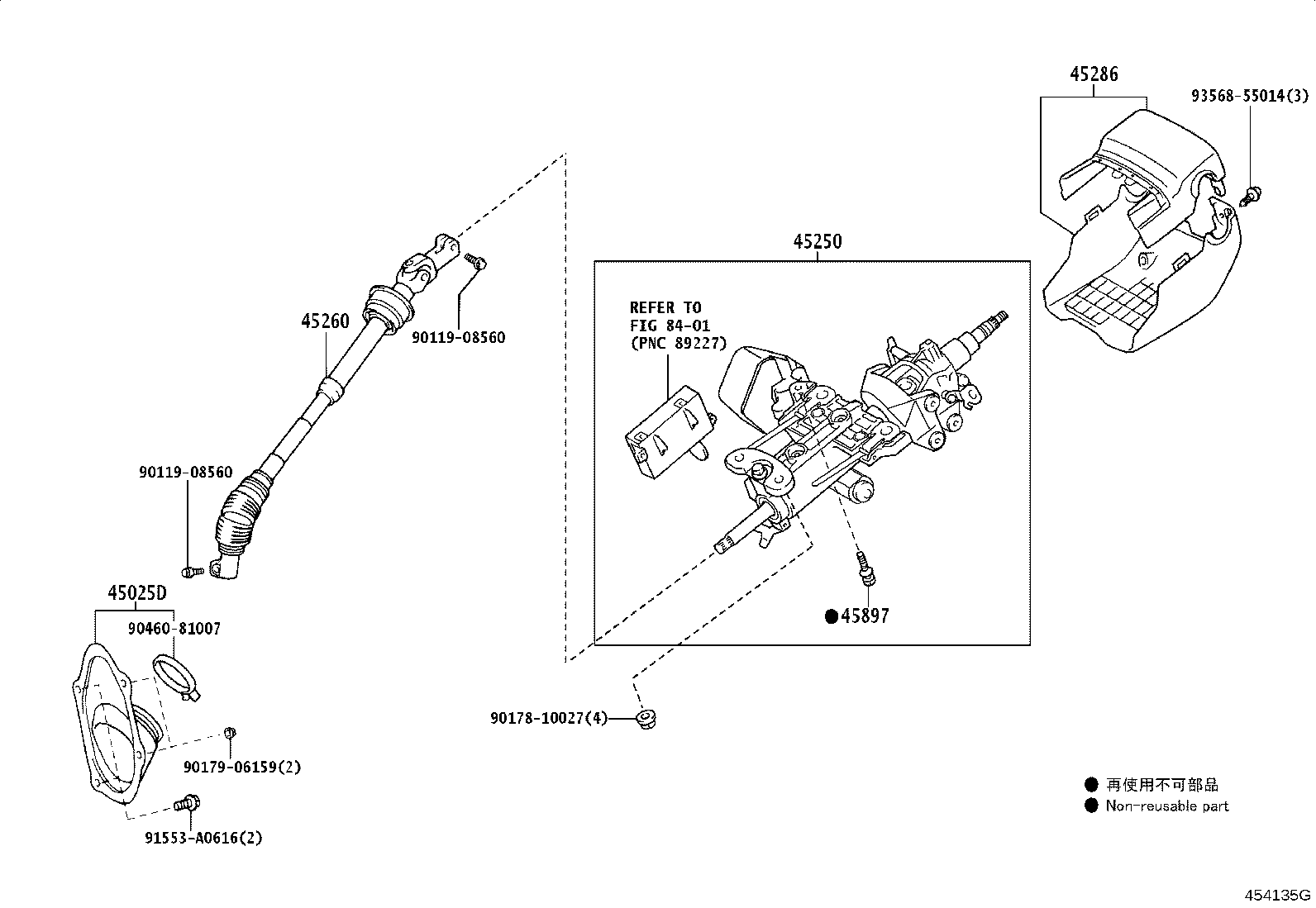

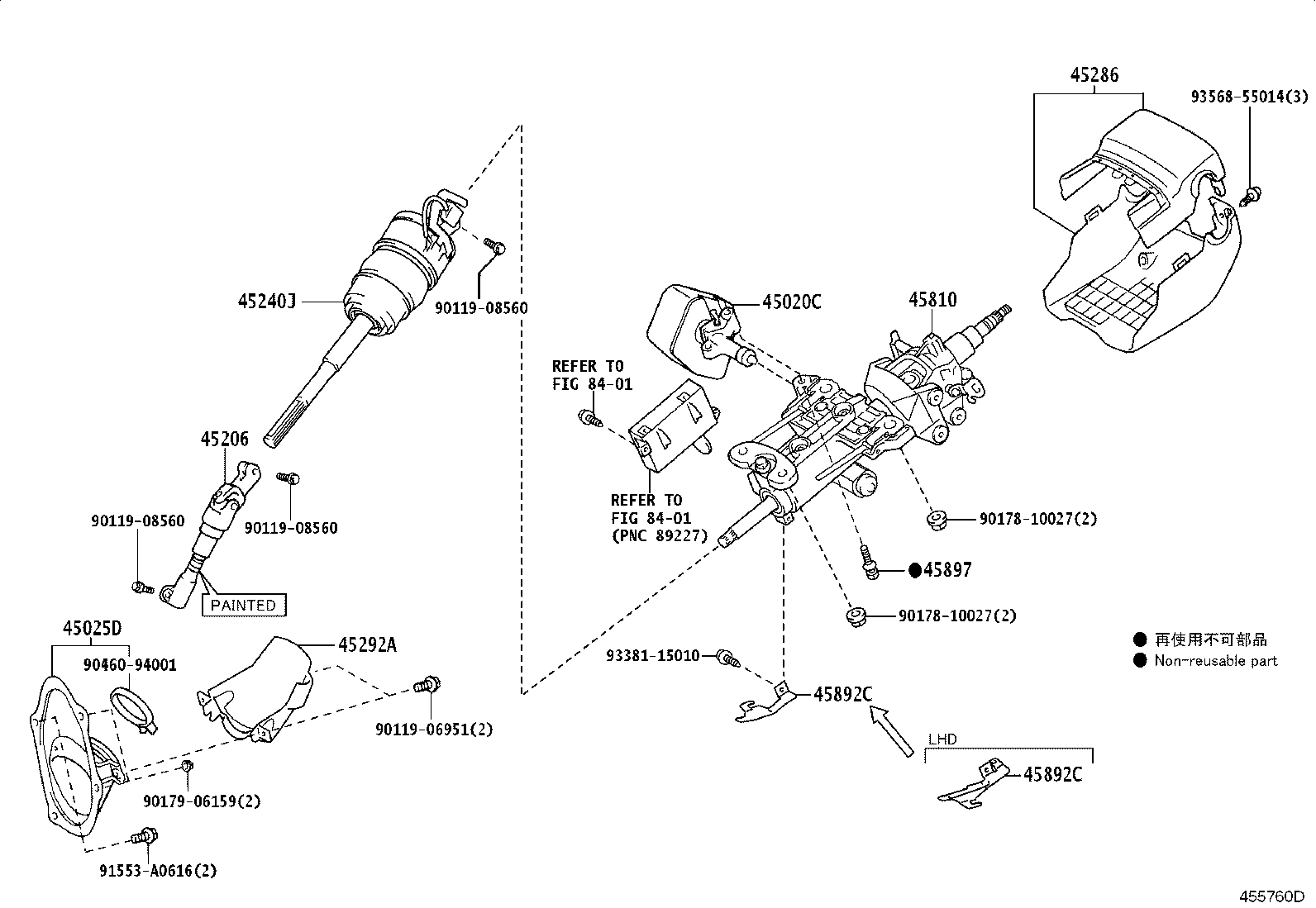

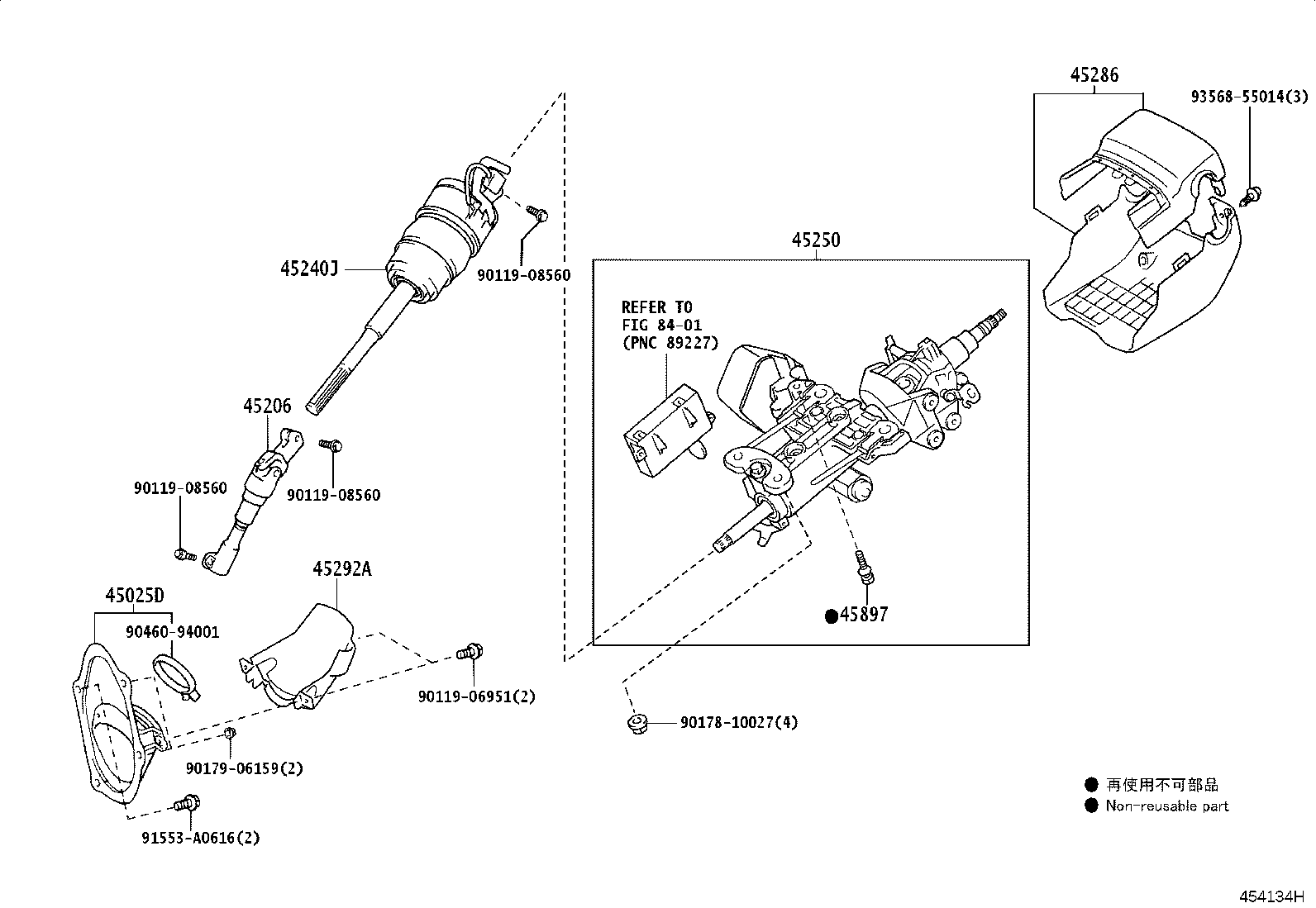

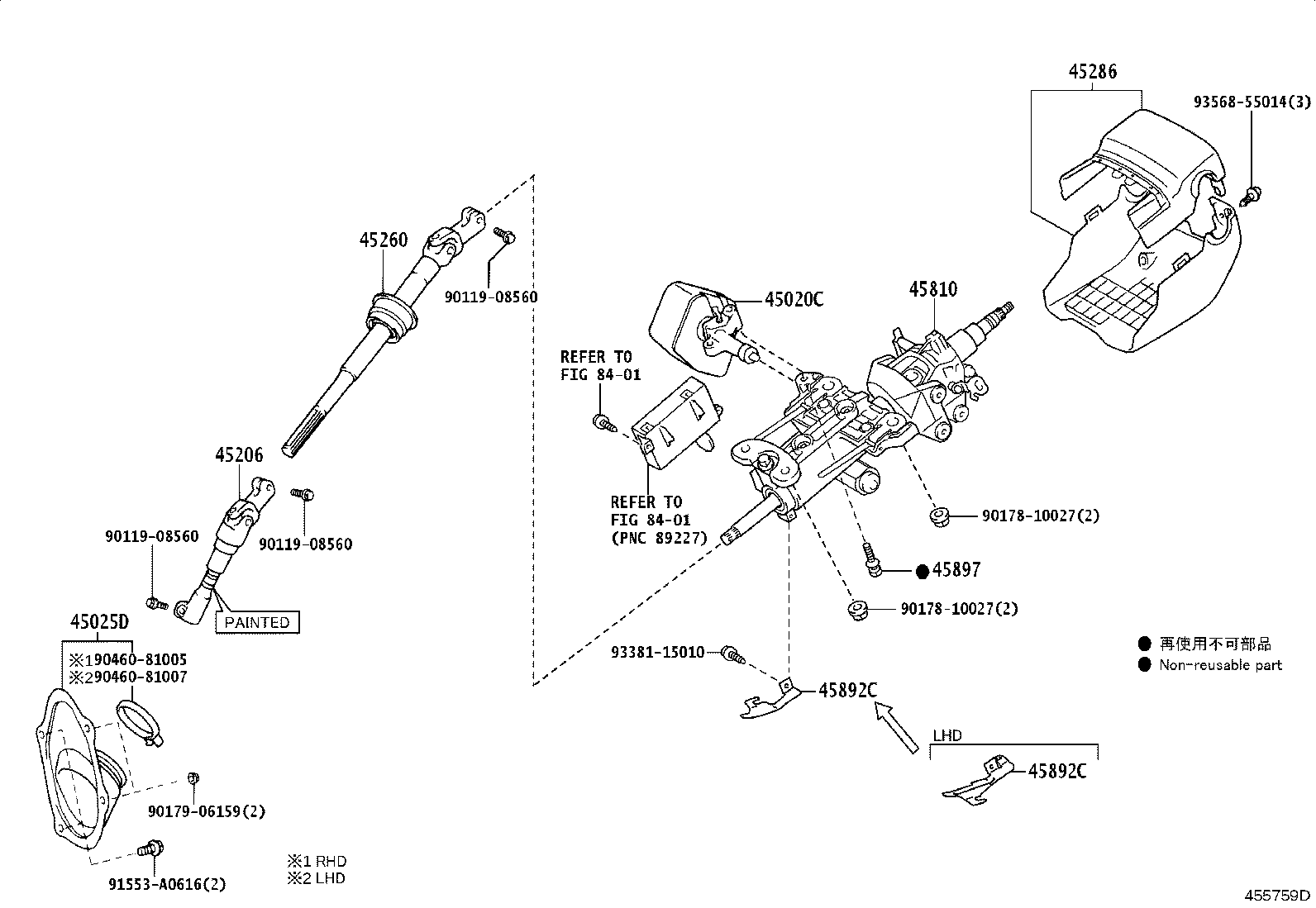

Figure 454133K 454133K 2005-01 → 2010-11 Figure 455759D 455759D 2010-11 → — Figure 454134H 454134H 2005-01 → 2010-11 Figure 455760D 455760D 2010-11 → — Figure 454135G 454135G 2009-07 → 2010-11 Figure 455761C 455761C 2010-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45292A Cover, Main Shaft Lower Dust
45810 Gear Assy, Tilt Steering, W/Motor
45892C Bracket, Return Spring
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
