Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

16 part groups · 8 illustrations

Illustrations

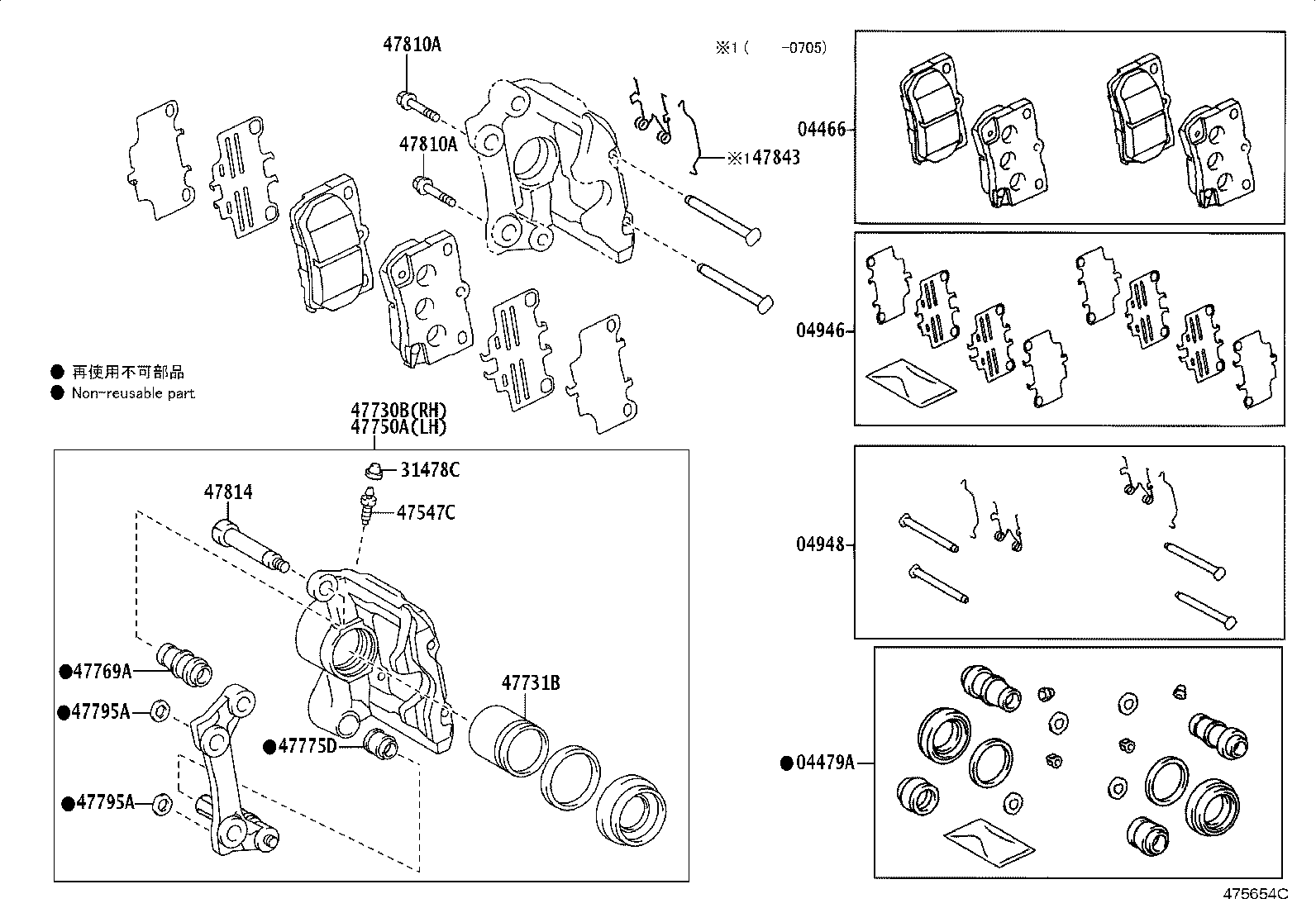

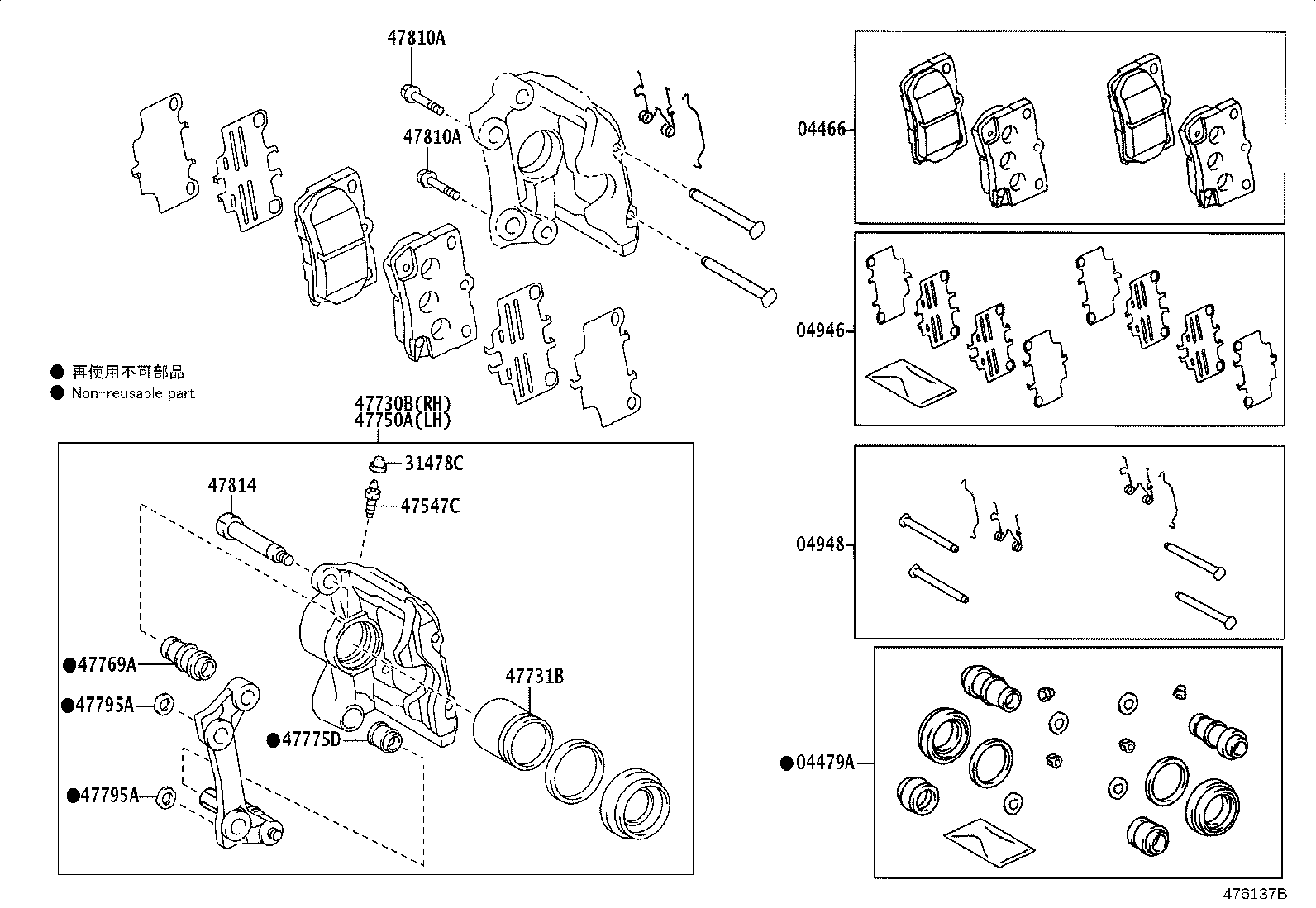

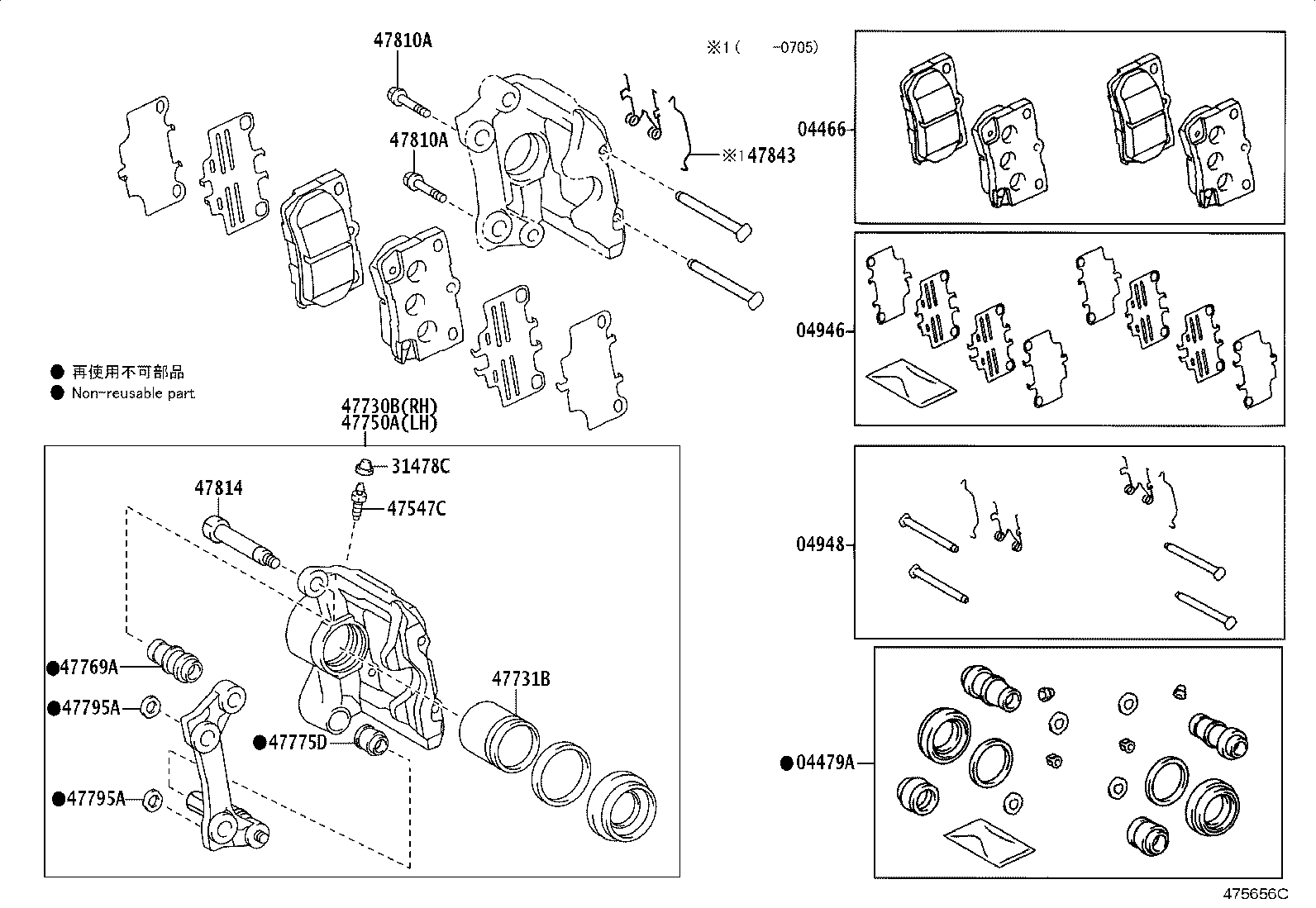

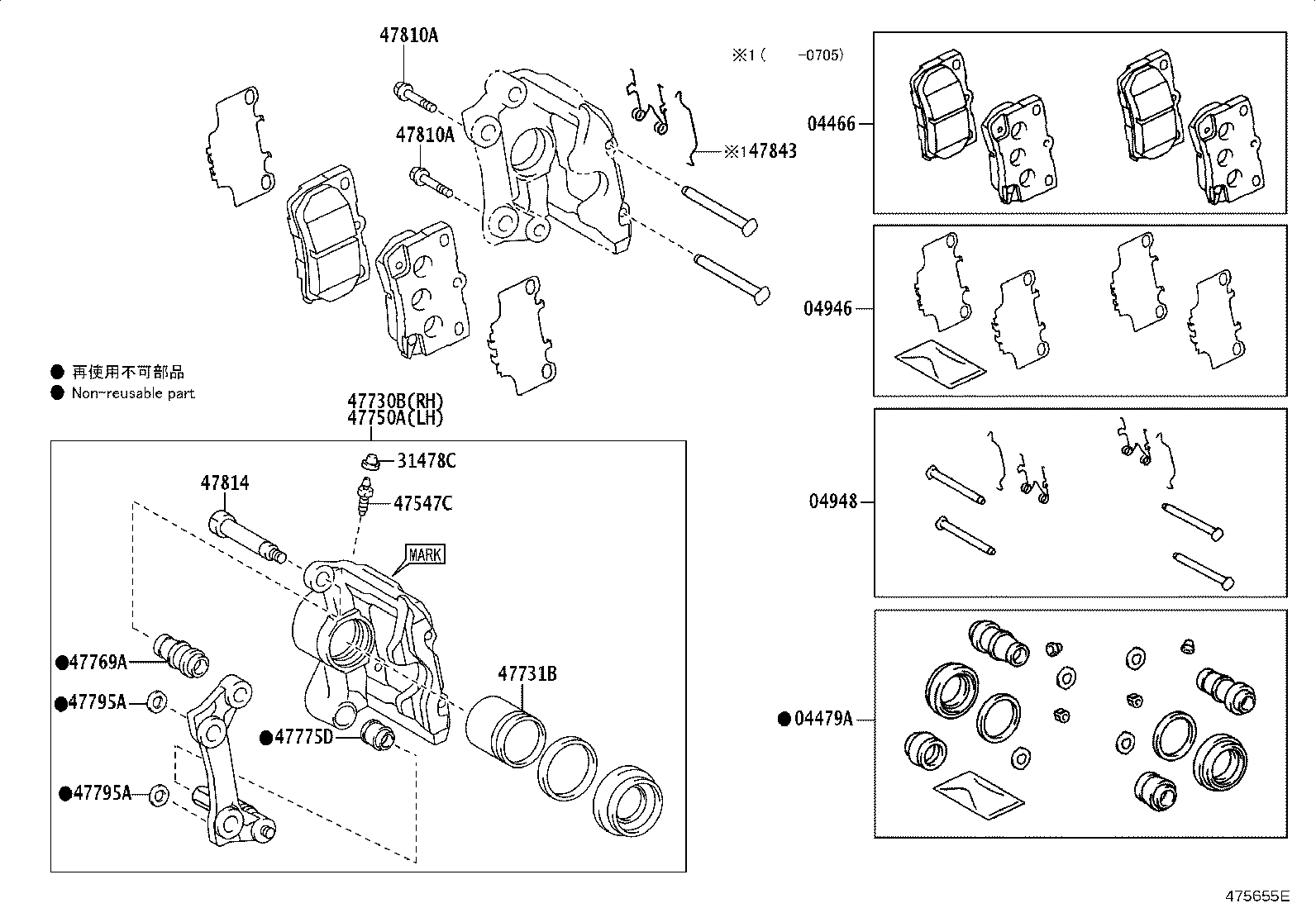

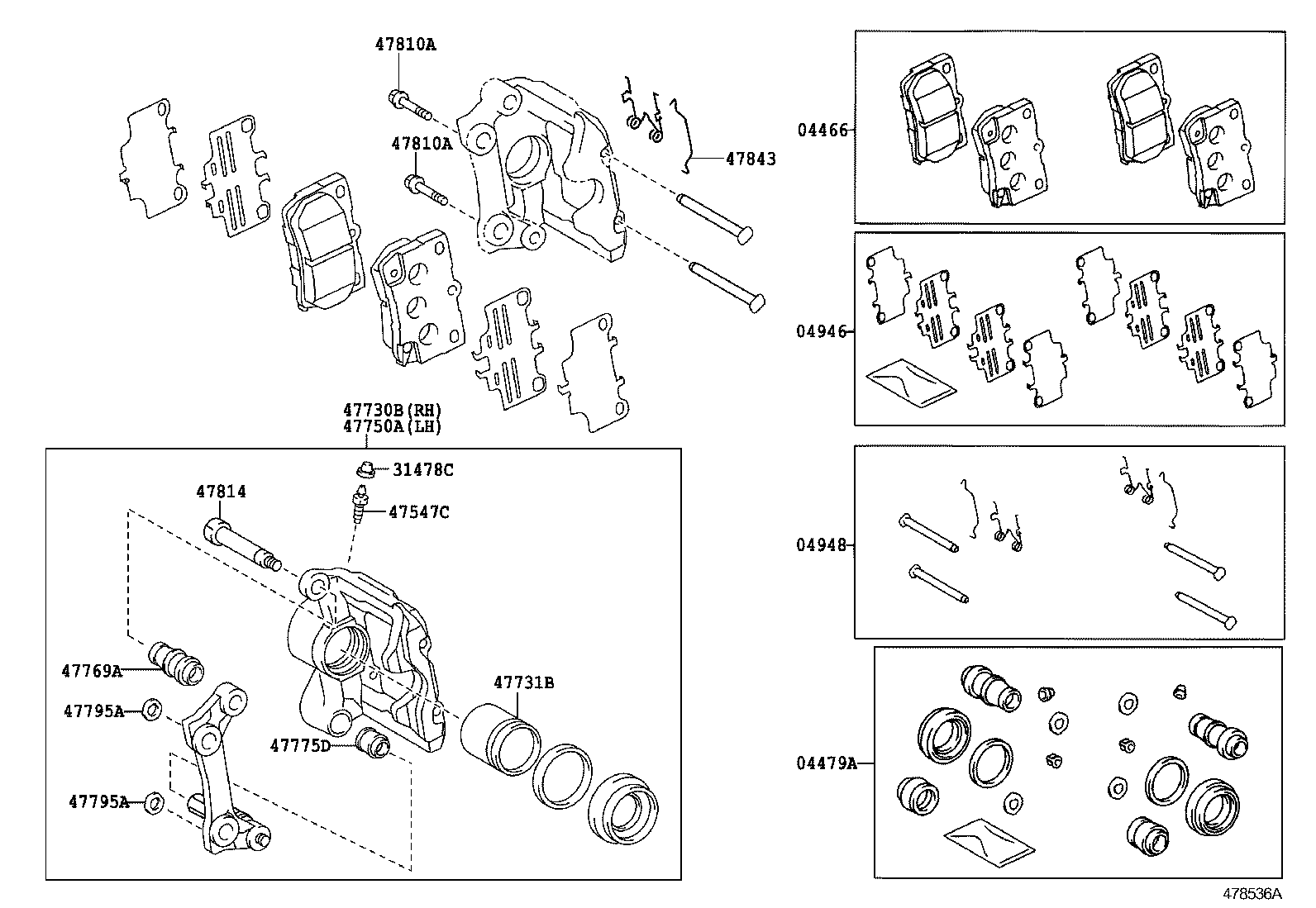

Figure 474422G 474422G 2005-01 → 2005-11 Figure 478536A 478536A 2005-11 → 2006-09 Figure 475654C 475654C 2006-09 → — Figure 475654C 475654C 2007-09 → — Figure 475655E 475655E 2006-09 → 2007-09 Figure 475655E 475655E 2007-09 → — Figure 475656C 475656C 2006-09 → 2007-09 Figure 476137B 476137B 2007-09 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47795A Plate, Rear Disc Brake Caliper, NO.1
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47815 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47843 Clip, Rear Disc Brake Pin Hold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
