Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

25 part groups · 4 illustrations

Illustrations

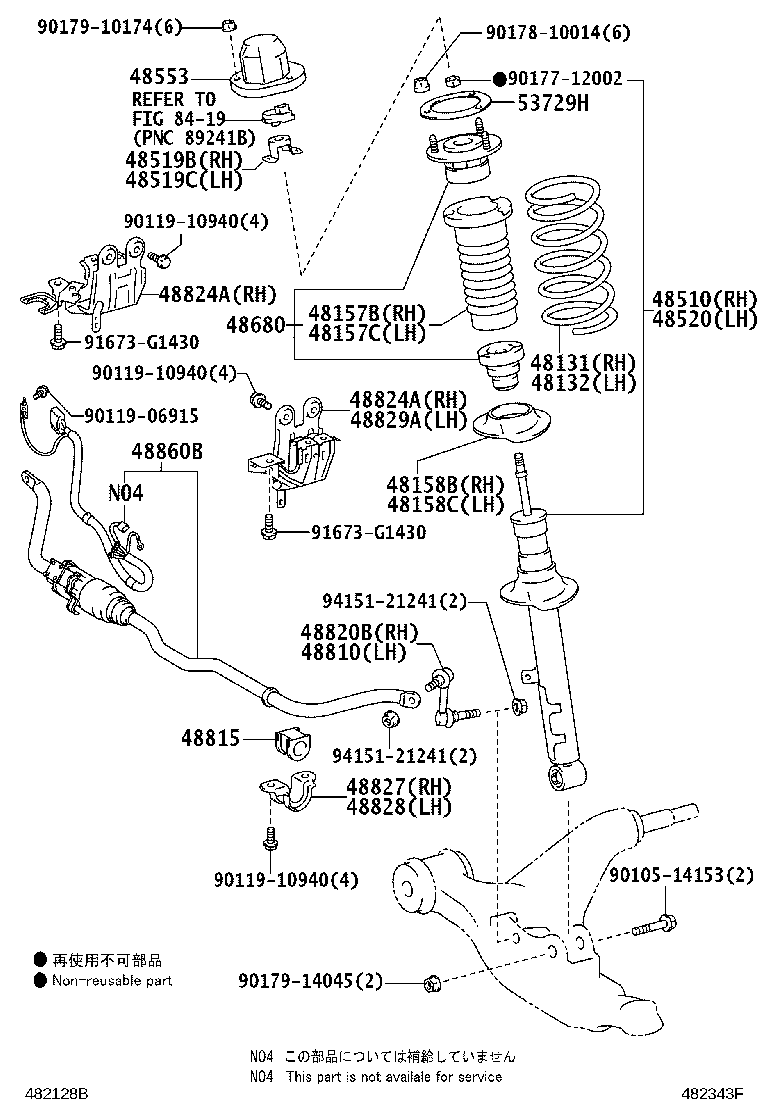

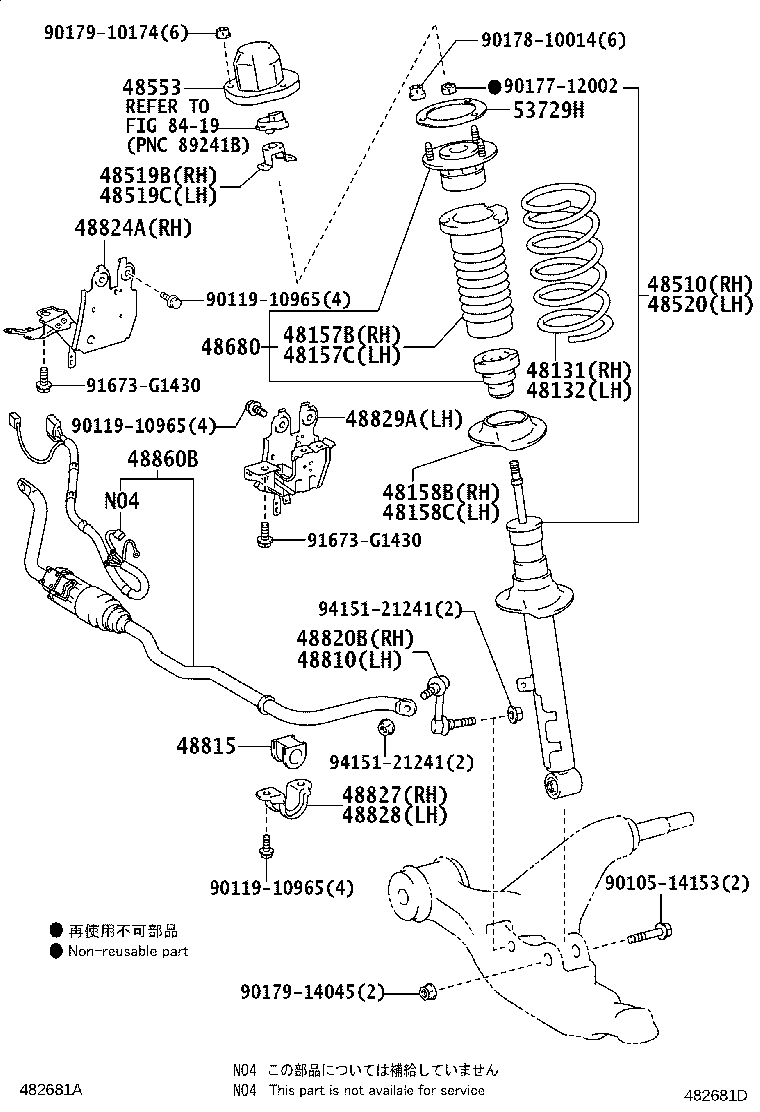

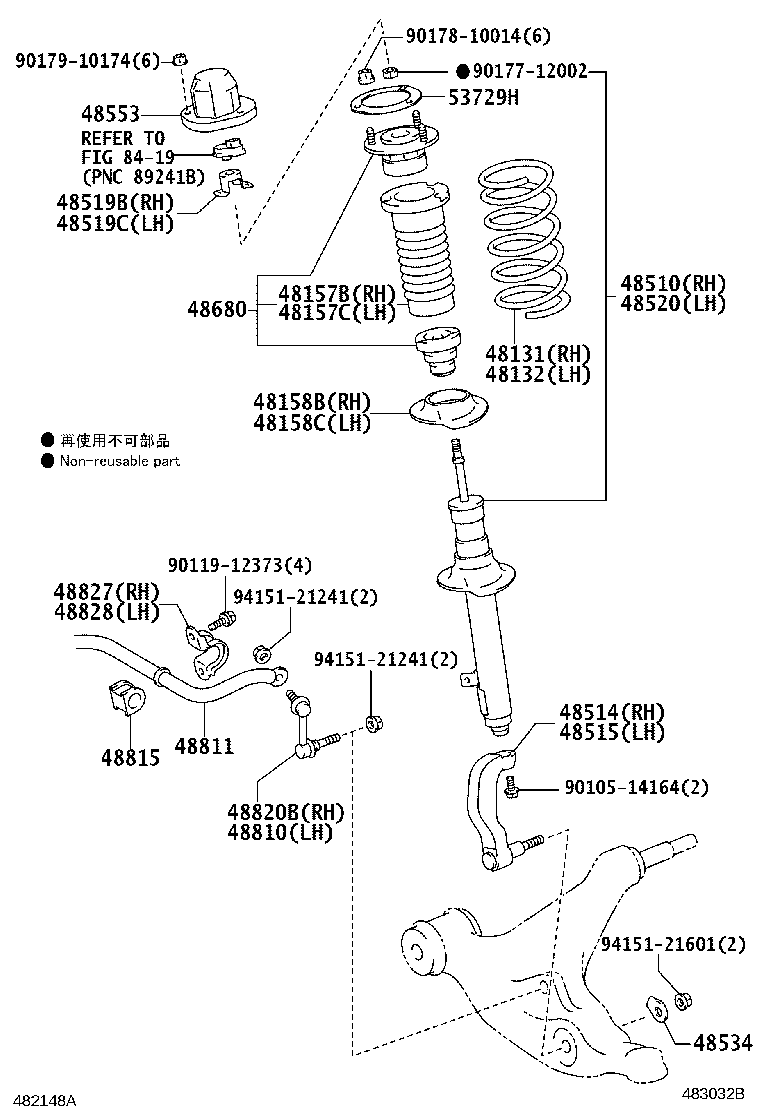

Figure 482021I 482021I 2005-01 → — Figure 482343F 482343F 2006-07 → 2007-09 Figure 482681D 482681D 2007-09 → 2010-07 Figure 483032B 483032B 2009-07 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48510 Absorber Assy, Shock, Front RH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48519B Bracket, Actuator Support, Front RH
48519C Bracket, Actuator Support, Front LH
48520 Absorber Assy, Shock, Front LH
48534 Plate, Front Shock Absorber Upper Bracket
48553 Cap, Shock Absorber, Upper
48680 Support Assy, Front Suspension
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
48860B Actuator Assy, Front Active Stabilizer Control
53729H Reinforcement, Front Spring Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
