Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

34 part groups · 6 illustrations

Illustrations

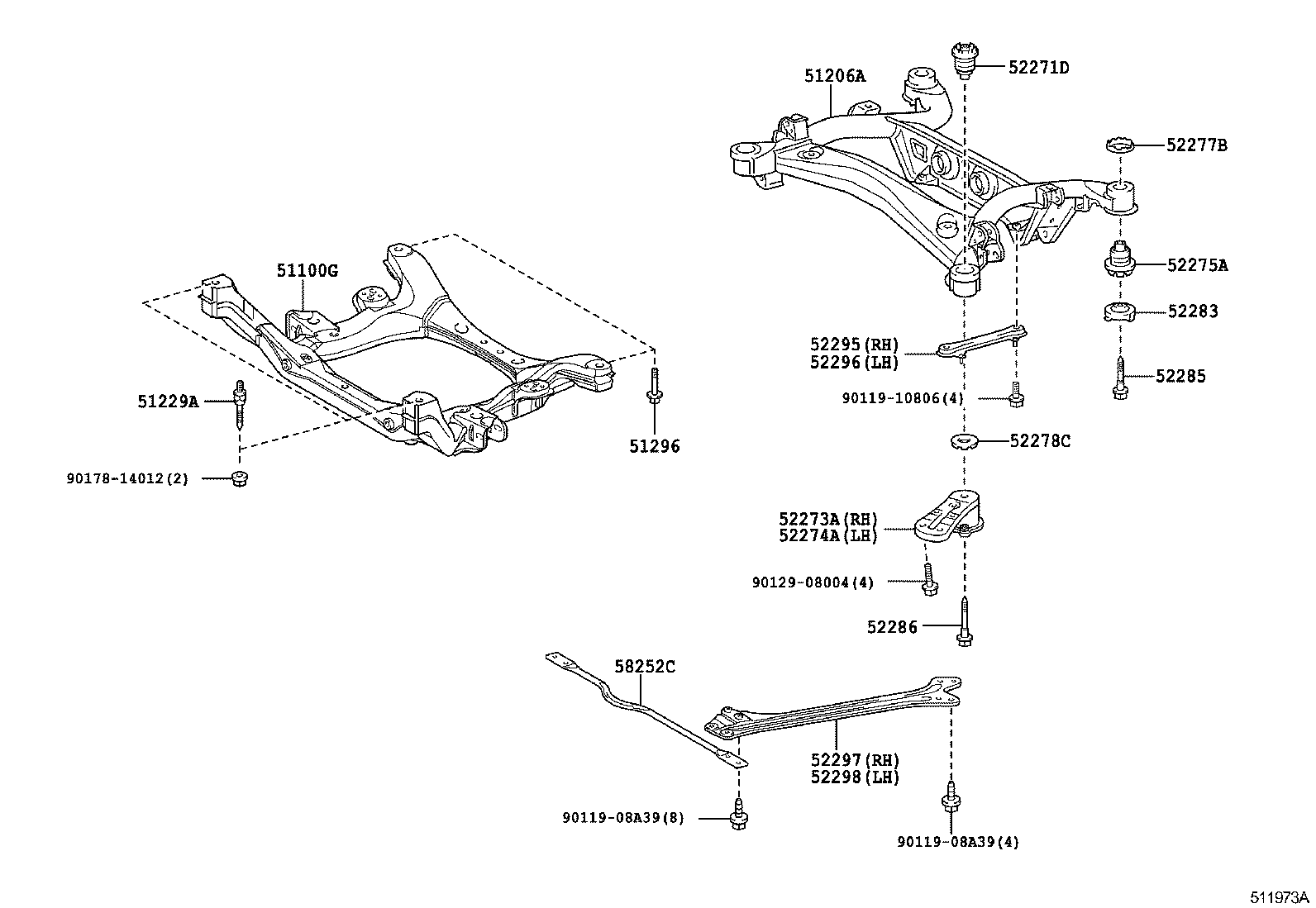

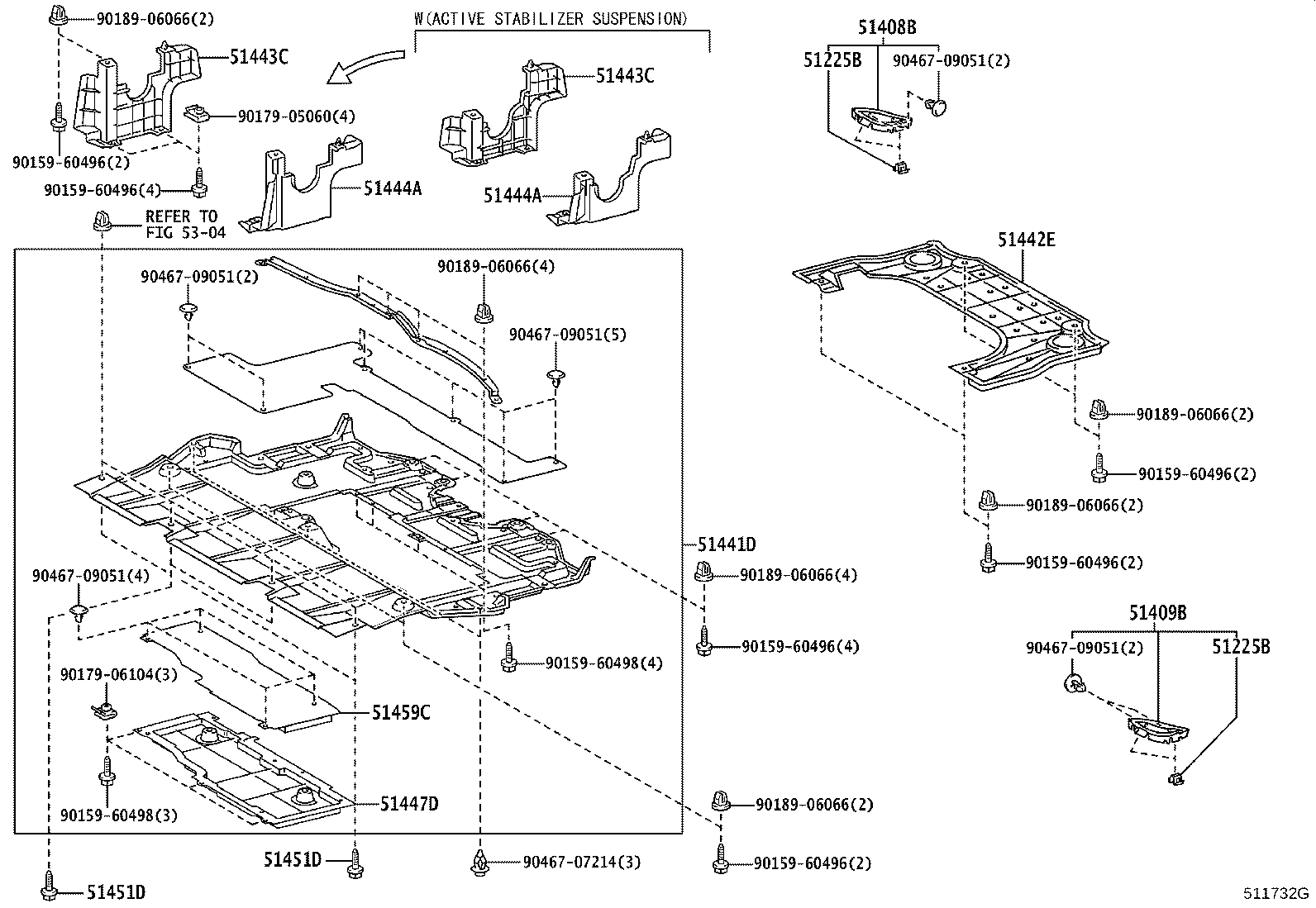

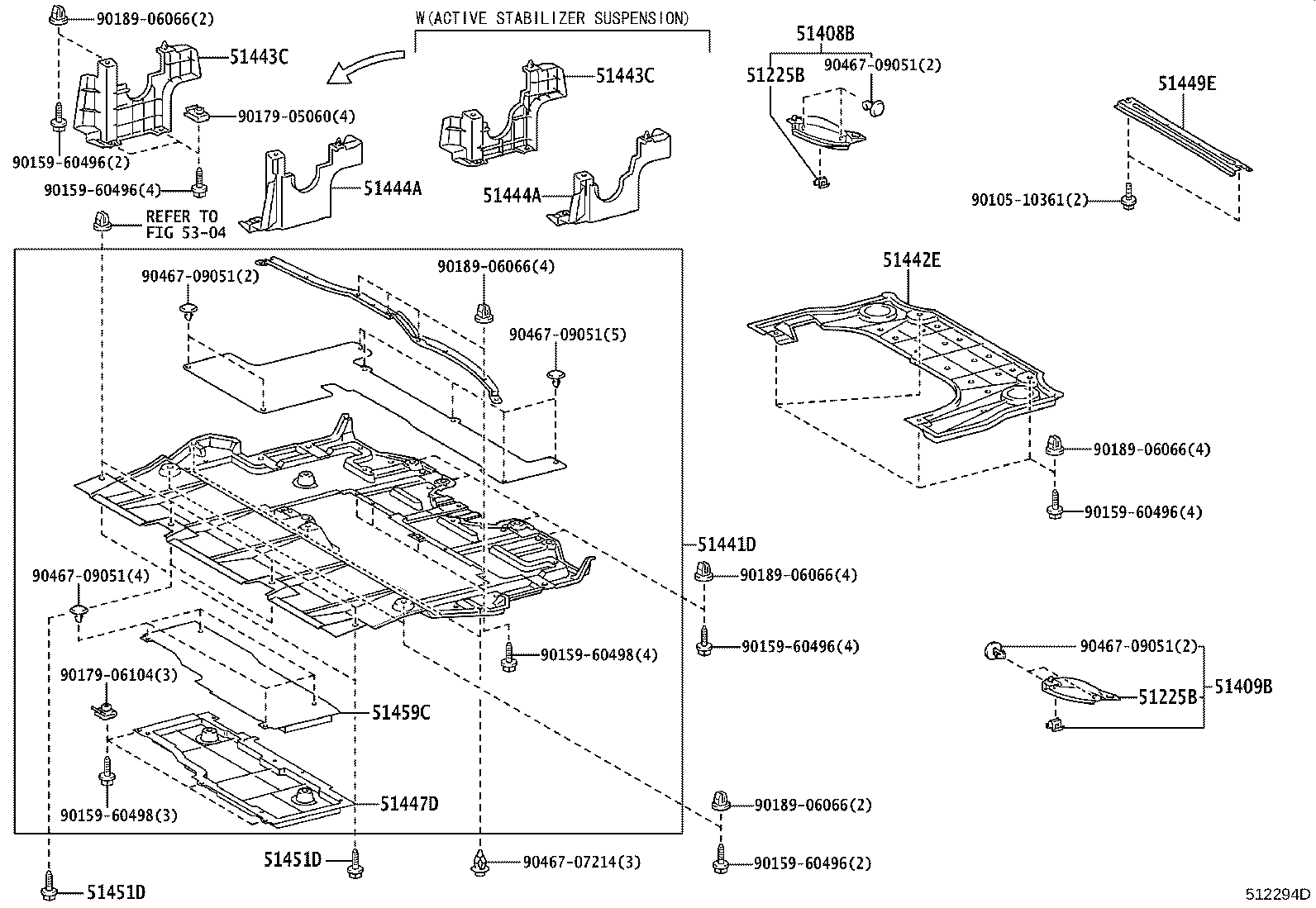

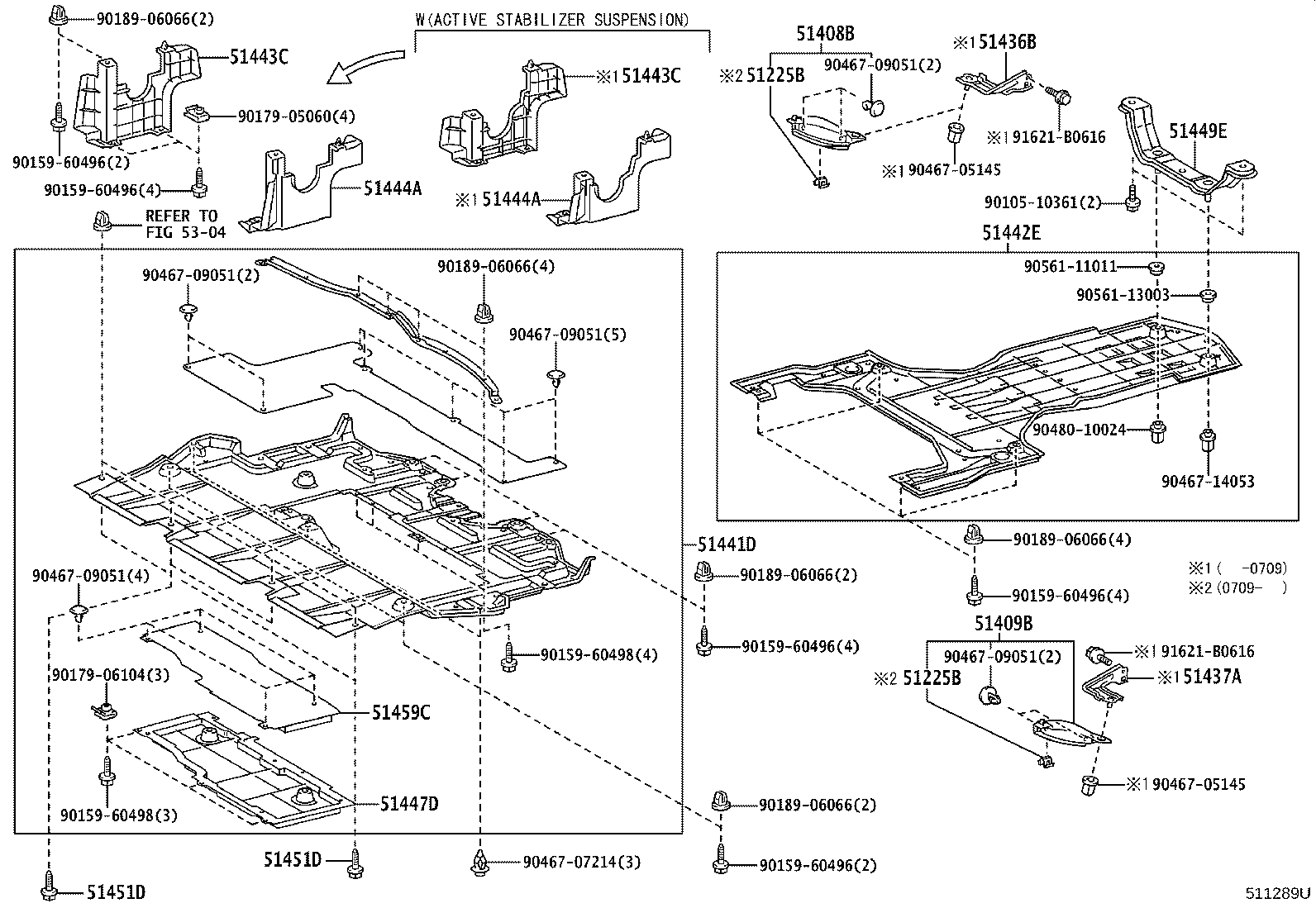

Figure 511768B 511768B 2005-01 → — Figure 511973A 511973A 2009-07 → — Figure 511289U 511289U 2005-01 → 2011-08 Figure 512294D 512294D 2011-08 → — Figure 511732G 511732G 2007-09 → — Figure 511974G 511974G 2009-07 → —

Part groups

PNCDescription
51100G Frame Assy, Front
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51219 Protector, Front Suspension Member, Lwr
51224A Plate, Front Suspension Menber Brace
51225B Bracket, Front Suspension Member, RH
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51408B Cover Sub-assy, Engine Under, RH
51409B Cover Sub-assy, Engine Under, LH
51436B Bracket, Engine Side Cover, NO.1 RH
51437A Bracket, Engine Side Cover, NO.1 LH
51441D Cover, Engine Under
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51449E Bracket, Engine Under Cover Air Guide
51451D Screw, NO.1
51459C Silencer, Engine Under Cover, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52283 Stopper, Differential Support Member, Lower
52285 Bolt, Differential Support Member Mounting, NO.1
52286 Bolt, Differential Support Member Mounting, NO.2
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
52297 Brace, Rear Suspension Member, Rear Lower RH
52298 Brace, Rear Suspension Member, Rear Lower LH
58252C Brace, Floor Panel, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
