Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 2 illustrations

Illustrations

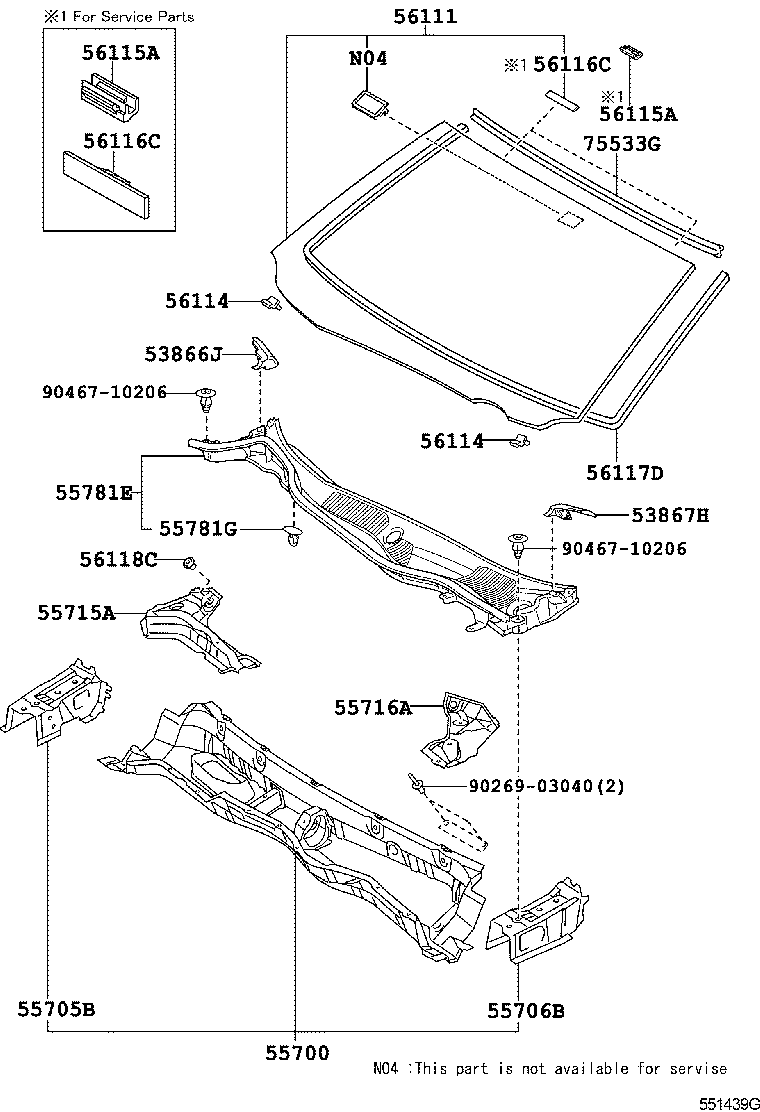

Figure 551438G 551438G 2005-01 → — Figure 551439G 551439G 2005-01 → —

Part groups

PNCDescription
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55700 Panel Assy, Front
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
56118C Retainer, Windshield Glass, NO.2
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
