Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

17 part groups · 4 illustrations

Illustrations

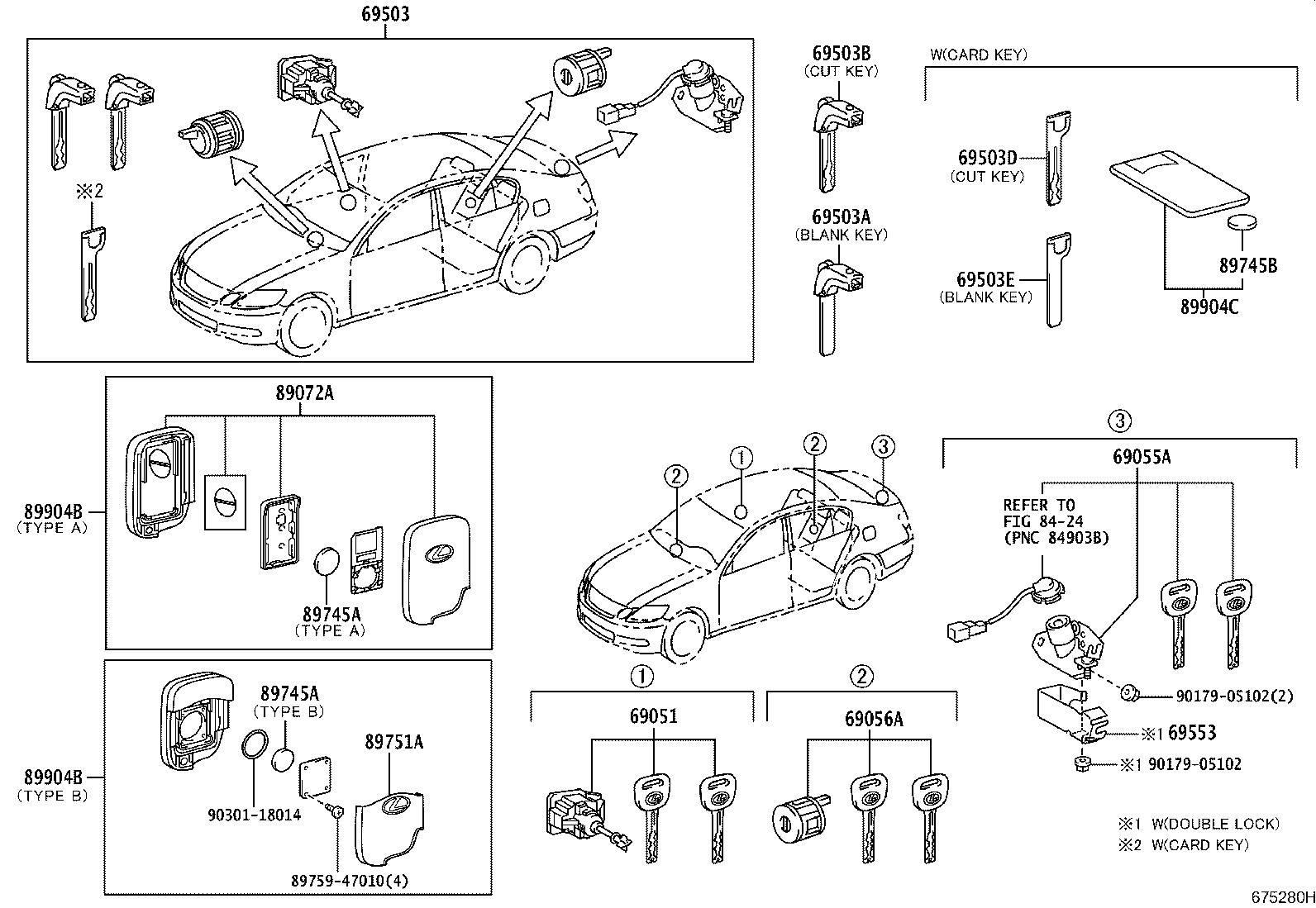

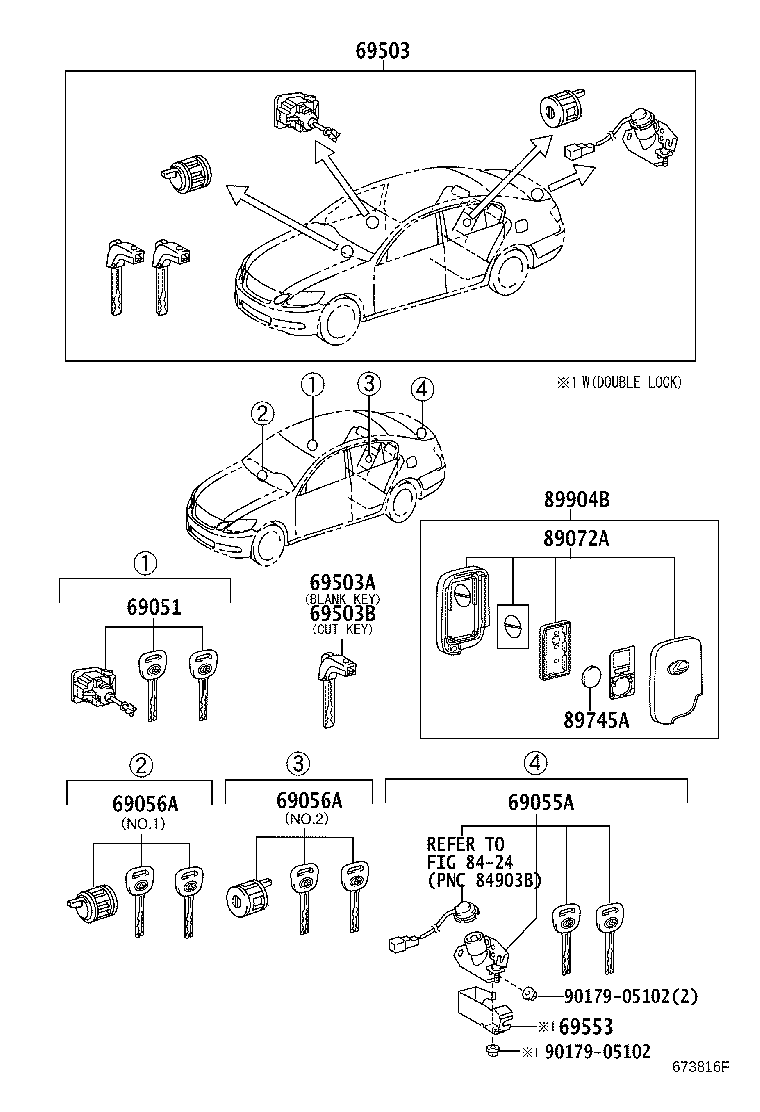

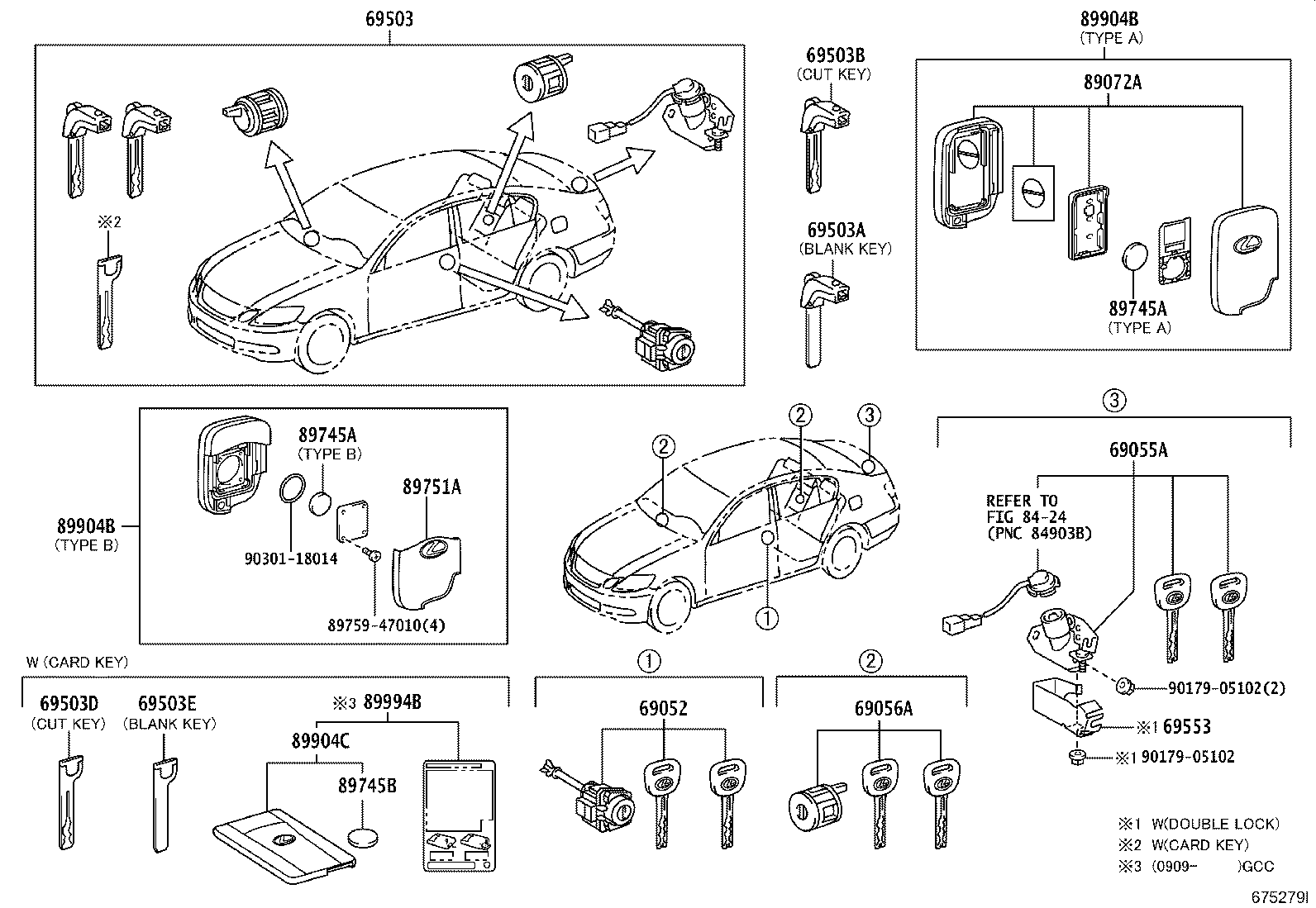

Figure 673815F 673815F 2005-01 → 2007-09 Figure 673816F 673816F 2005-01 → 2007-09 Figure 675279I 675279I 2007-09 → — Figure 675280H 675280H 2007-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69503D Key, Cut(CARD KEY)
69503E Key, Blank(CARD KEY)
69553 Protector, Luggage Compartment Key Cylinder
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89745B Battery, Transmitter(CARD KEY)
89751A Cover, Transmitter Housing
89904B Transmitter Sub-assy, Electrical Key
89904C Transmitter Sub-assy, Electrical Key(CARD KEY)
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
